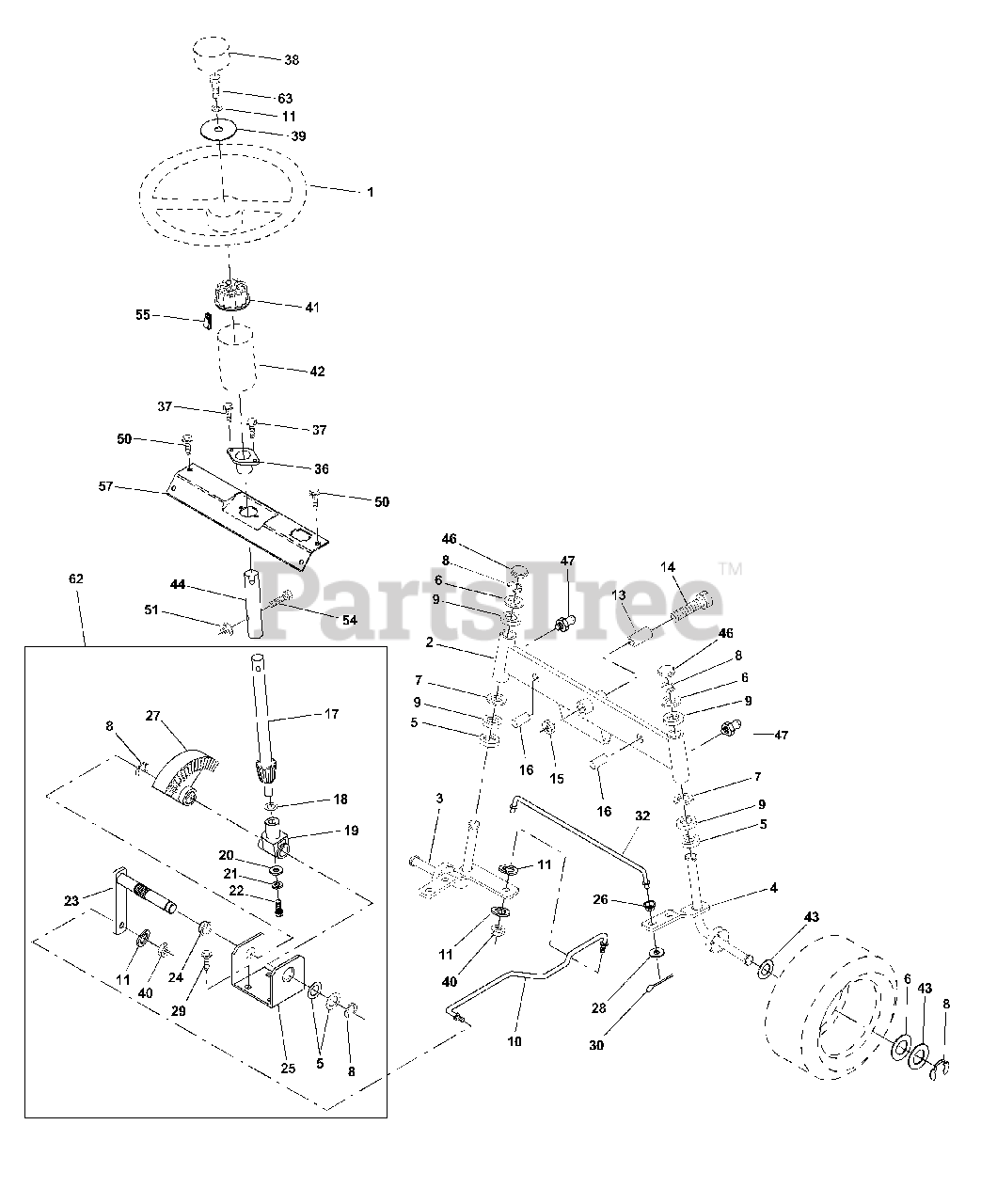

LTH 130 (954830061-B) - Husqvarna Lawn Tractor (1996-02) Steering Assembly Parts Diagram

Lawn Tractor

Steering Assembly Parts Diagram

  • Title
1

Husqvarna 532124415

Wheel Steering Auto Grey

$

$

Not available

2

Husqvarna 532142033

Axle Asm Fr LT W/gzks 38/42

$

$

Not available

3

Husqvarna 532135227

Spindle Asm LH

$

$

Not available

4

Husqvarna 532135228

Spindle Asm RH

$

$

Not available

5

Husqvarna 532124931

Bearing Race Thrust Harden
(Superseded to 532006266)

$7.49

$

In Stock, Qty 8

0

6

Husqvarna 532121748

Washer 25/32 X 1-5/8 X 16 Ga

$4.99

$

In Stock, Qty 20+

0

7

Husqvarna 819272016

Washer 27/32 X 1-1/4 X 16 Ga

$6.49

$

In Stock, only 2 left!

0

8

Husqvarna 812000029

Ring Klip #t5304-75

$4.99

$

Usually ships in 3-10 days

0

9

Husqvarna 532124937

Bearing Col Strg Blk
(Superseded to 532003366)

$4.99

$

In Stock, Qty 19

0

10

Husqvarna 532130468

Link Drag Sol Ball Jt 20 064

$93.99

$

In Stock, only 1 left!

0

11

Husqvarna 810040600

Washer Lock Hvy Hlcl Spr 3/8
(Superseded to 596238701)

$4.99

$

In Stock, Qty 15

0

12

Husqvarna 873610600

Nut Fin Hex 3/8-24 Unf
(Superseded to 873800600)

$3.99

$

Usually ships in 3-10 days

0

13

Husqvarna 532110438

Spacer Bearing Axle Front
(Superseded to 532155134)

$

$

Not available

14

Husqvarna 874011056

Bolt Hex 5/8-11 Unc X 3-1/2

$4.99

$

Usually ships in 3-10 days

0

15

Husqvarna 873901000

Nut Lock Flange 5/8-11 Unc
(Superseded to 873681000)

$3.49

$

Usually ships in 3-10 days

0

16

Husqvarna 532132624

Pin Axle 5/8 X 1 55/1 54 Lg

$

$

Not available

17

Husqvarna 532140176

Shaft Asm Strg Private Label
(Superseded to 532156546)

$49.99

$

In Stock, only 3 left!

0

18

Husqvarna 532057079

Washer Thrust 515x 750x 033

$6.49

$

In Stock, Qty 10

0

19

Husqvarna 532124035

Support Shaft
(Superseded to 532160395)

$10.99

$

In Stock, Qty 7

0

20

Husqvarna 532126684

Washer Shim 1/4 X 5/8 X 062
(Superseded to 819091016)

$4.99

$

Usually ships in 3-10 days

0

21

Husqvarna 810040400

Washer Lock Hvy Helical 1/4
(Superseded to 596029801)

$3.99

$

In Stock, only 2 left!

0

22

Husqvarna 871100410

Screw Cap Sckt Hd Phos & Oil
(Superseded to 871070410)

$6.49

$

In Stock, only 3 left!

0

23

Husqvarna 532127501

Shaft Asm Pittman
(Superseded to 532156365)

$

$

Not available

24

Husqvarna 532109816

Nyliner Snap In

$6.49

$

In Stock, only 2 left!

0

25

Husqvarna 532124036

Bracket Steering

$

$

Not available

26

Husqvarna 543126847

Bushing Link Drag Blk LR
(Superseded to 532126847)

$5.99

$

In Stock, only 2 left!

0

27

Husqvarna 532136874

Gear Sector

$80.99

$

In Stock, only 1 left!

0

28

Husqvarna 819131416

Washer 13/32 X 7/8 X 16 Ga
(Superseded to 819131414)

$6.49

$

In Stock, only 2 left!

0

29

Husqvarna 817490612

Screw Thdrol 3/8-16x3/4 Ty-tt
(Superseded to 874780612)

$7.49

$

In Stock, only 2 left!

0

30

Husqvarna 876020412

Pin Cotter 1/8 X 3/4 Cad
(Superseded to 539990365)

$6.49

$

In Stock, Qty 20+

0

32

Husqvarna 532130465

Rod Tie Wire Form 19 75 Mech
(Superseded to 532192757)

$34.99

$

In Stock, only 2 left!

0

36

Husqvarna 532102803

Bushing Strg
(Superseded to 532155107)

$7.99

$

Usually ships in 3-10 days

0

37

Husqvarna 532152927

Screw Tt #10-32 5 3/8 Flange

$7.49

$

In Stock, only 2 left!

0

38

Husqvarna 532124416

Insert Cap Strg Wh Au

$

$

Not available

39

Husqvarna 819133808

Washer 13/32 X 2-3/8 X 8 Ga
(Superseded to 819133812)

$

$

Not available

40

Husqvarna 532124701

Lock nut
(Superseded to 873610600)

$3.99

$

Usually ships in 3-10 days

0

41

Husqvarna 532100711

Adaptor Wheel Strg 640/ 635id
(Superseded to 587738905)

$9.49

$

In Stock, Qty 6

0

42

Husqvarna 532150390

Boot Steering Shaft

$

$

Not available

43

Husqvarna 532121749

Washer 25/32 X 1 1/4 X 16 Ga

$3.49

$

Usually ships in 3-10 days

0

44

Husqvarna 532153721

Extension Shaft Steering

$

$

Not available

46

Husqvarna 532121232

Cap Spindle Fr Top Blk

$4.99

$

In Stock, Qty 8

0

47

Husqvarna 532124836

Fitting Grease
(Superseded to 532183226)

$7.49

$

In Stock, only 2 left!

0

50

Husqvarna 817490412

Screw Hex Wsh Thdrol 1/4-20 x 3/4
(Superseded to 874760412)

$7.49

$

In Stock, only 1 left!

0

51

Husqvarna 873800500

Nut Lock Hex w/Ins 5/16-18

$3.99

$

Usually ships in 3-10 days

0

54

Husqvarna 874780520

Bolt Fin Hex 5/16-18 Unc x 1-1/4
(Superseded to 874520520)

$4.99

$

Usually ships in 3-10 days

0

55

Husqvarna 532140285

Clip Tinnerman

$2.99

$

Usually ships in 3-10 days

0

57

Husqvarna 532140172

Support Shaft Steering

$

$

Not available

62

Husqvarna 532149686

Kit, Steering Assembly
(Superseded to 584371701)

$136.99

$

In Stock, only 1 left!

0

63

Husqvarna 874780616

Bolt Fin Hex 3/8-16 Unc x 1 Gr. 5

$6.49

$

Usually ships in 3-10 days

0
