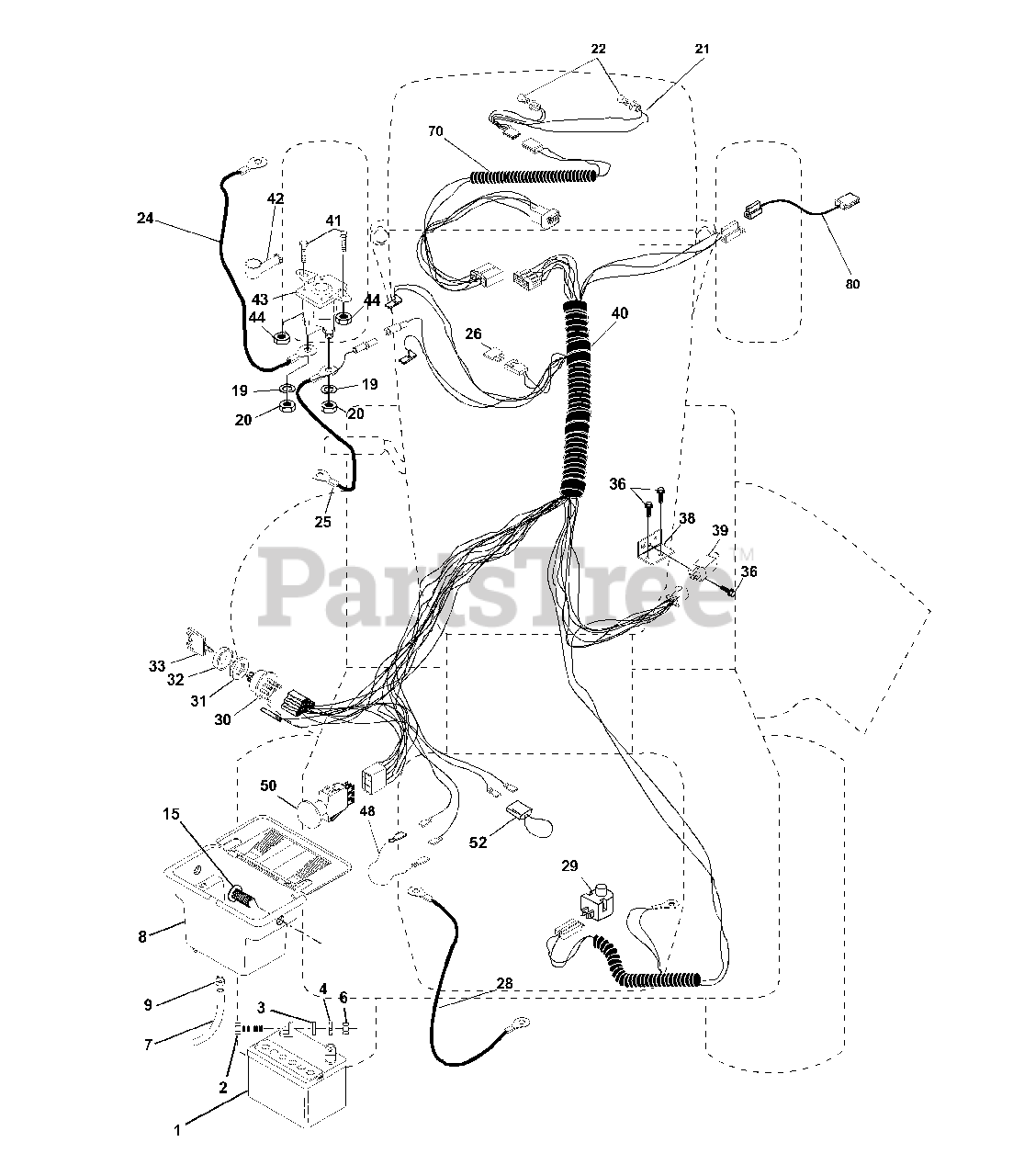

LTH 130 (954830061-A) - Husqvarna Lawn Tractor (1996-01) Electrical Parts Diagram

Lawn Tractor

Electrical Parts Diagram

  • Title

1

Husqvarna 532144925

Battery 12 Volt 25 AMP
(Superseded to 532123899)

$194.99

$

In Stock, only 1 left!

0

2

Husqvarna 874760412

Bolt Hex Hd 1/4-20unc X 3/4

$7.49

$

In Stock, only 1 left!

0

3

Husqvarna 819091016

Washer 9/32 X 5/8 X 16 Ga.

$4.99

$

Usually ships in 3-10 days

0

4

Husqvarna 810040400

Washer Lock Hvy Helical 1/4
(Superseded to 596029801)

$3.99

$

In Stock, only 2 left!

0

6

Husqvarna 873220400

Nut Fin Hex 1/4-20 Unc
(Superseded to 532050675)

$6.49

$

In Stock, only 1 left!

0

7

Husqvarna 532109238

Tube Plastic 12"

$

$

Not available

8

Husqvarna 532144940

Case Battery w/2 Holes W BRTY
(Superseded to 532404349)

$

$

Not available

9

Husqvarna 532109596

Clamp Hose Olive

$4.99

$

Usually ships in 3-10 days

0

15

Husqvarna 532147688

Fastener Snap-In

$

$

Not available

19

Husqvarna 810090400

Washer Lock 1/4
(Superseded to 810040400)

$3.99

$

In Stock, only 2 left!

0

20

Husqvarna 873350400

Nut Jam Hex 1/4-20 Unc
(Superseded to 873220400)

$6.49

$

In Stock, only 1 left!

0

21

Husqvarna 532147430

Harness Asm Light W/4152j

$

$

Not available

22

Husqvarna 532004152

Bulb Light #1156

$4.99

$

Usually ships in 3-10 days

0

24

Husqvarna 532124780

Cable Battery 6 Ga 11" red
(Superseded to 532004799)

$10.99

$

Usually ships in 3-10 days

0

25

Husqvarna 532146147

Cable Battery 6 Ga 44" w/16W

$34.99

$

Usually ships in 3-10 days

0

26

Husqvarna 532108824

Fuse 30 AMP Auto Green

$6.49

$

Usually ships in 3-10 days

0

28

Husqvarna 532124773

Cable Ground 6 Ga 12" black
(Superseded to 532420700)

$8.99

$

Usually ships in 3-10 days

0

29

Husqvarna 532121305

Switch Plunger Nc Gray
(Superseded to 532421062)

$14.99

$

In Stock, only 2 left!

0

30

Husqvarna 532140301

Switch Ign 4 pos w/lights

$37.99

$

In Stock, only 1 left!

0

31

Husqvarna 532124211

Nut Ignition

$5.99

$

In Stock, only 1 left!

0

32

Husqvarna 532141226

Cover Sw Ignition

$5.99

$

Usually ships in 3-10 days

0

33

Husqvarna 532122147

Key Ign Modleded Generic

$

$

Not available

36

Husqvarna 817021008

Screw Tap Hex #10-24unc X 1/2

$4.99

$

In Stock, Qty 14

0

38

Husqvarna 532140336

Bracket, Switch, Interlock

$

$

Not available

39

Husqvarna 532109553

Switch Intlk Clutch Red 4 Term
(Superseded to 539101080)

$17.99

$

Usually ships in 3-10 days

0

40

Husqvarna 532146059

Harness Ign. Elec. HMLT P/L
(Superseded to 532151215)

$

$

Not available

41

Husqvarna 871110408

Bolt Blk Fin Hex 1/4 - 20 x 1/2
(Superseded to 539990071)

$3.99

$

Usually ships in 3-10 days

0

42

Husqvarna 532131563

Cover Terminal Red
(Superseded to 532154336)

$8.99

$

In Stock, only 2 left!

0

43

Husqvarna 532145673

Solenoid
(Superseded to 532146154)

$24.99

$

In Stock, only 2 left!

0

44

Husqvarna 873640400

Nut Keps Hex 1/4-20 Unc

$

$

Not available

48

Husqvarna 532140844

Adapter Ammeter Rectangular

$6.49

$

Usually ships in 3-10 days

0

50

Husqvarna 532140404

Switch PTO 3 PTD Black
(Superseded to 582107601)

$28.99

$

In Stock, only 3 left!

0

52

Husqvarna 532141940

Protection Wire Loop

$7.49

$

Usually ships in 3-10 days

0

70

Husqvarna 532142291

Harness, Eng.

$

$

Not available

80

Husqvarna 532146685

Harness Clutch EVX

$26.99

$

In Stock, only 2 left!

0
