LTH 130 (954820001-F) - Husqvarna Lawn Tractor (1998-12) MOWER LIFT / DECK LIFT Parts Diagram

Lawn Tractor

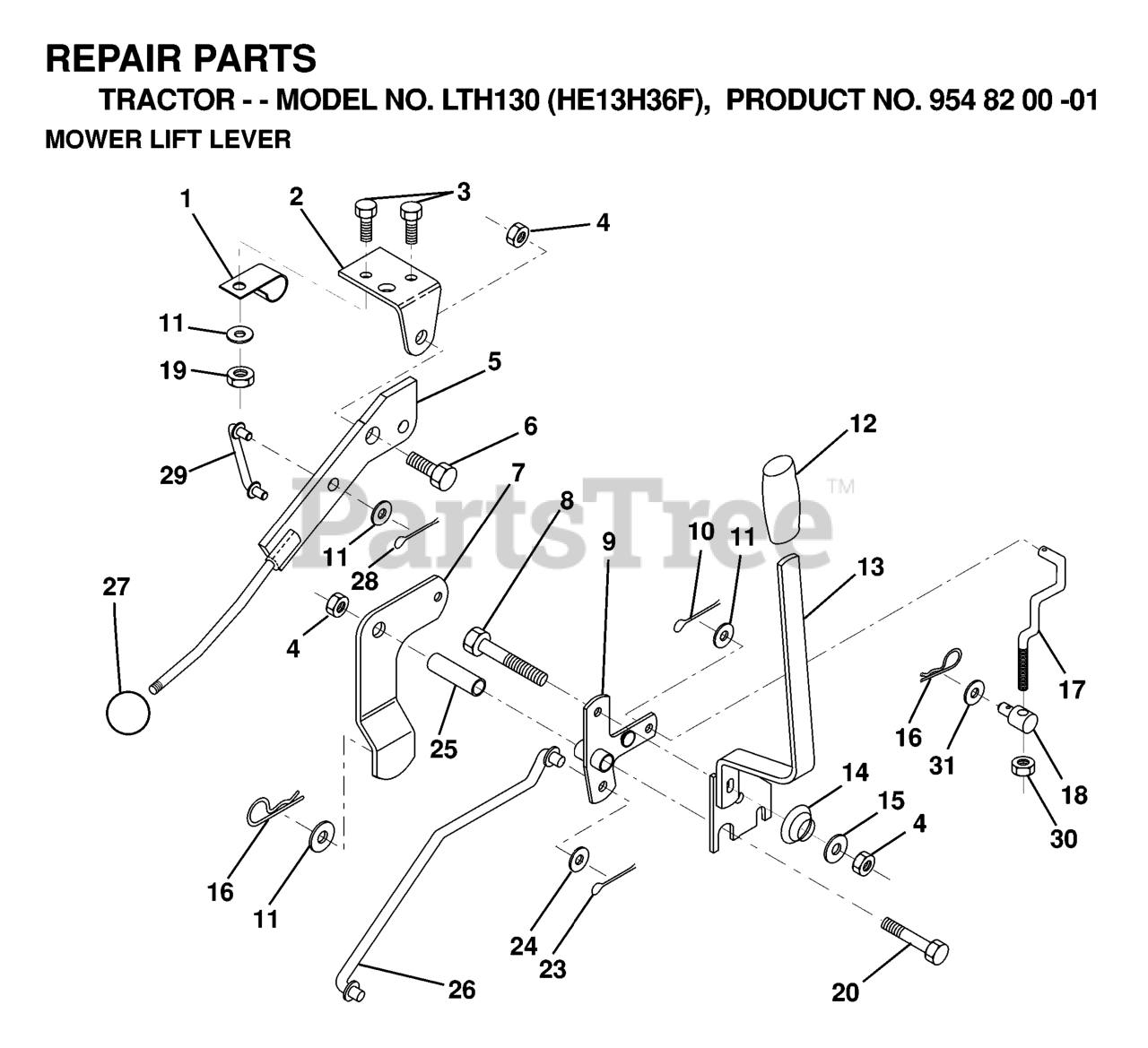

MOWER LIFT / DECK LIFT Parts Diagram

  • Title
19

Husqvarna 873680400

NUT.CROWNLOCK.1/4
(Superseded to 586668901)

$4.99

$

In Stock, Qty 15

0

14

Husqvarna 532123496

SPRING COMPRESSIO

$2.99

$

Usually ships in 3-10 days

0

$

$

Not available

12

Husqvarna 532122027

GRIP HANDLE

$

$

Not available

24

Husqvarna 819171612

WASHER GT
(Superseded to 734117801)

$

$

Not available

29

Husqvarna 532131655

LINK MOWER CLUTCH

$

$

Not available

31

Husqvarna 819132012

WASHER
(Superseded to 596134901)

$3.49

$

Usually ships in 3-10 days

0

17

Husqvarna 532127359

LINK LIFT FRT

$24.99

$

Usually ships in 3-10 days

0

30

Husqvarna 873350600

NUT
(Superseded to 873220600)

$6.49

$

In Stock, only 2 left!

0

9

Husqvarna 532121930

BELLCRANK,LIFT

$11.99

$

Usually ships in 3-10 days

0

23

Husqvarna 876020416

PIN COTTER

$3.99

$

Usually ships in 3-10 days

0

2

Husqvarna 532122018

BRKT CLUTCH

$

$

Not available

26

$

$

Not available

$3.99

$

Usually ships in 3-10 days

0

$6.49

$

Usually ships in 3-10 days

0

5

Husqvarna 532145187

CLUTCH LEVER

$

$

Not available

25

Husqvarna 532121933

TUBE SPACER

$

$

Not available

16

Husqvarna 532124961

SPRING TI
(Superseded to 532004921)

$6.49

$

In Stock, only 2 left!

0

15

Husqvarna 819131212

WASHER T
(Superseded to 734117201)

$3.49

$

Usually ships in 3-10 days

0

$6.49

$

Usually ships in 3-10 days

0

11

Husqvarna 819131316

WASHER
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

28

Husqvarna 876020312

COTTER PIN
(Superseded to 876020308)

$

$

Not available

10

Husqvarna 876020412

COTTER PIN
(Superseded to 539990365)

$6.49

$

In Stock, Qty 20+

0

3

Husqvarna 871110408

BOLT
(Superseded to 539990071)

$3.99

$

Usually ships in 3-10 days

0

1

Husqvarna 532126470

CLIP,INSULATOR

$3.99

$

Usually ships in 3-10 days

0

18

Husqvarna 532142028

TRUNNION.ADJUSTABLE.3/8-16

$

$

Not available

7

Husqvarna 532135371

ASSEMBLY MOWER CLUTCH ARM

$

$

Not available

6

Husqvarna 532106451

BOLT, SHOULDER LT

$2.99

$

Usually ships in 3-10 days

0

13

Husqvarna 532139352

LIFT HANDLE ASSY

$

$

Not available
