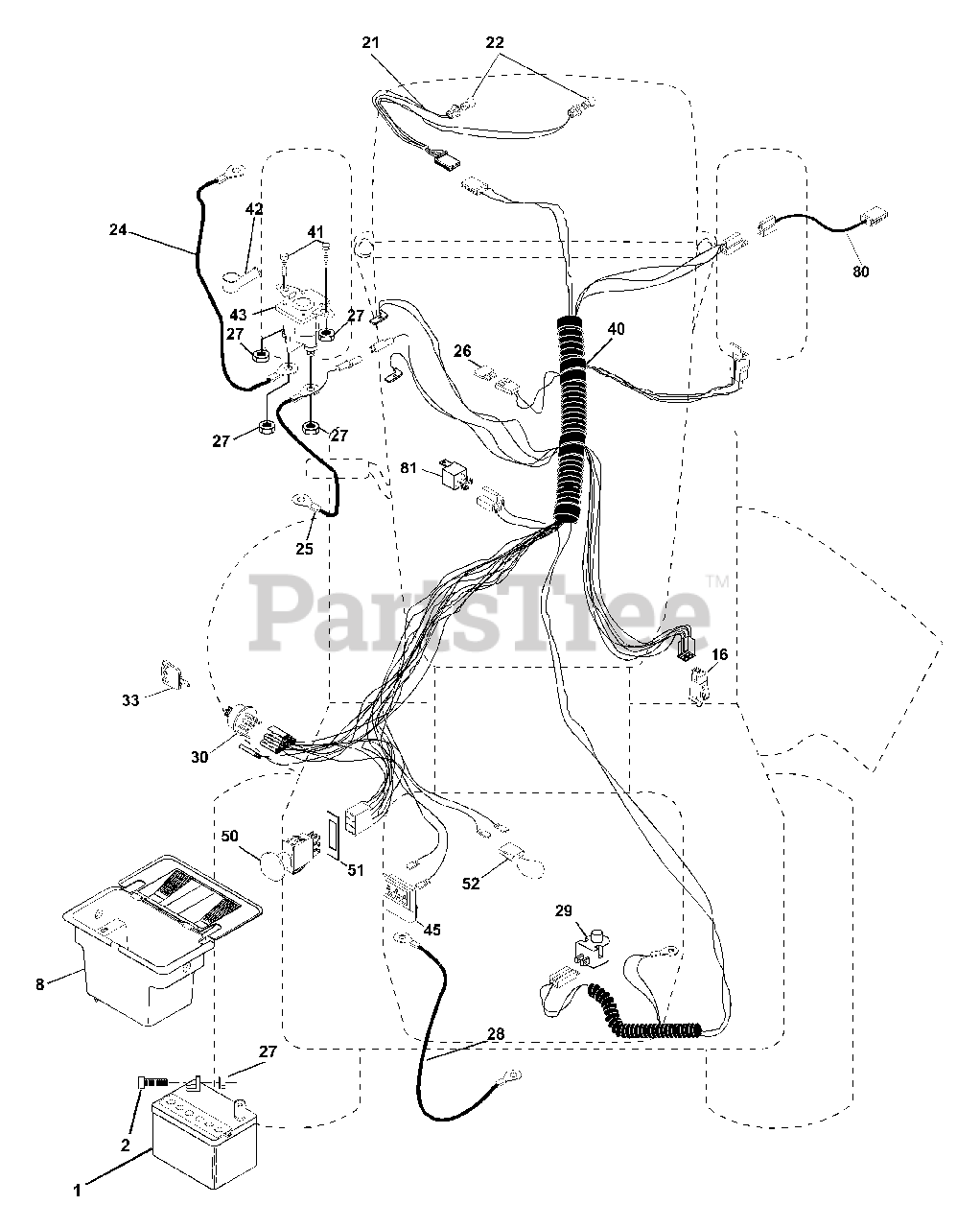

LTH 130 (954140107-A) - Husqvarna Lawn Tractor (1999-11) Electrical Parts Diagram

Lawn Tractor

Electrical Parts Diagram

  • Title
1

Husqvarna 532144925

Battery 12 Volt 25 AMP
(Superseded to 532123899)

$194.99

$

In Stock, only 1 left!

0

2

Husqvarna 874760412

Bolt Hex Hd 1/4-20unc x 3/4

$7.49

$

In Stock, only 1 left!

0

8

Husqvarna 532156417

Case Battery Mech Hinge
(Superseded to 532404349)

$

$

Not available

16

Husqvarna 532153664

Switch Interlock Push-In
(Superseded to 532176138)

$22.99

$

In Stock, Qty 7

0

20

Husqvarna 873350400

Nut Jam Hex 1/4-20 Unc
(Superseded to 873220400)

$6.49

$

In Stock, only 1 left!

0

21

Husqvarna 532166181

Harness Asm Light W/4152j

$

$

Not available

22

Husqvarna 532004152

Bulb Light #1156

$4.99

$

Usually ships in 3-10 days

0

24

Husqvarna 532124780

Cable Battery 6 Ga 11" red
(Superseded to 532004799)

$10.99

$

Usually ships in 3-10 days

0

25

Husqvarna 532146147

Cable Battery 6 Ga 44" red w/16 wire

$34.99

$

Usually ships in 3-10 days

0

26

Husqvarna 532166180

Fuse 15 AMP Auto Green
(Superseded to 532175158)

$7.49

$

In Stock, only 2 left!

0

27

Husqvarna 873510400

Nut Keps Hex 1/4-20 Unc
(Superseded to 873680400)

$4.99

$

In Stock, Qty 16

0

28

Husqvarna 532124773

Cable Ground 6 Ga 12" black
(Superseded to 532420700)

$8.99

$

Usually ships in 3-10 days

0

29

Husqvarna 532160784

Switch Plunger Normal OP Olive

$20.99

$

In Stock, only 1 left!

0

30

Husqvarna 532163968

Switch Ign
(Superseded to 532175566)

$26.99

$

In Stock, Qty 7

0

33

Husqvarna 532140401

Key Ign Molded

$6.99

$

In Stock, Qty 8

0

40

Husqvarna 532170222

Harness Ign.
(Superseded to 532179725)

$113.99

$

Usually ships in 3-10 days

0

41

Husqvarna 871110408

Bolt Blk Fin Hex 1/4 - 20 x 1/2
(Superseded to 539990071)

$3.99

$

Usually ships in 3-10 days

0

42

Husqvarna 532131563

Cover Terminal Red
(Superseded to 532154336)

$8.99

$

In Stock, only 2 left!

0

43

Husqvarna 532145673

Solenoid
(Superseded to 532146154)

$24.99

$

In Stock, only 2 left!

0

45

Husqvarna 532122822

Ammeter Rectangular 15 Amp

$20.99

$

In Stock, only 1 left!

0

50

Husqvarna 532169417

Switch PTO 3PDT Black Delta
(Superseded to 582107601)

$28.99

$

In Stock, only 4 left!

0

51

Husqvarna 532140405

Ring Retainer PTO

$6.49

$

Usually ships in 3-10 days

0

52

Husqvarna 532141940

Protection Wire Loop

$7.49

$

Usually ships in 3-10 days

0

80

Husqvarna 532146685

Harness Clutch EVX

$26.99

$

In Stock, only 2 left!

0

81
