LTH 130 (954140005-J) - Husqvarna Lawn Tractor (1999-01) Chassis And Enclosures Parts Diagram

Lawn Tractor

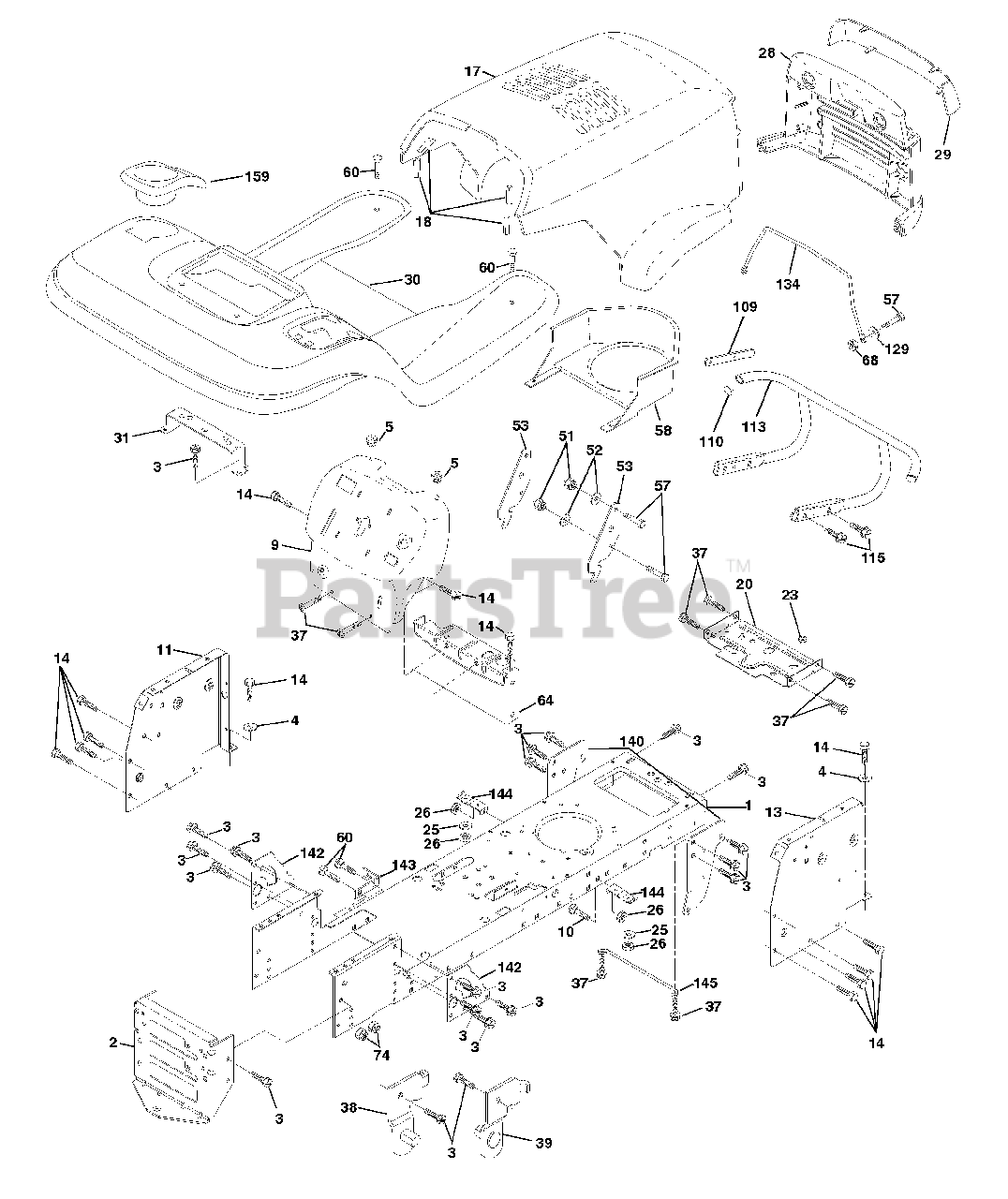

Chassis And Enclosures Parts Diagram

  • Title
1

Husqvarna 532165583

Chassis
(Superseded to 532166819)

$

$

Not available

2

Husqvarna 532140356

Drawbar, Stretch
(Superseded to 532145009)

$

$

Not available

3

Husqvarna 817490612

Screw Thdrol 3/8-16x3/4 Ty-tt
(Superseded to 874780612)

$7.49

$

In Stock, only 2 left!

0

4

Husqvarna 819131216

Washer 13/32 x 3/4 x 16 Ga.

$

$

Not available

5

Husqvarna 532155272

Bumper Hood/Dash

$7.49

$

In Stock, only 3 left!

0

9

Husqvarna 532157409

Dash P/L M, N/AMM N/HM Grey
(Superseded to 532150154)

$

$

Not available

10

Husqvarna 872140608

Bolt Carriage 3/8-16 x 1
(Superseded to 872110608)

$4.99

$

In Stock, only 1 left!

0

11

Husqvarna 532155927

Panel Dash Lh
(Superseded to 532174996)

$

$

Not available

13

Husqvarna 532157262

Panel Dash Rh
(Superseded to 532172107)

$

$

Not available

14

Husqvarna 817490608

Screw Thdrol 3/8-16x1/2 Ty-tt

$6.49

$

Usually ships in 3-10 days

0

17

Husqvarna 532165378

Hood LT/PL Husqvarna
(Superseded to 532156051)

$519.99

$

Usually ships in 3-10 days

0

18

Husqvarna 532126938

Bumper Hood

$

$

Not available

20

Husqvarna 532156437

Plate Mtg Battery Fuel Tank Fr
(Superseded to 532180679)

$11.99

$

Usually ships in 3-10 days

0

23

$5.99

$

In Stock, only 3 left!

0

25

Husqvarna 819131312

Washer 13/32 X 13/16 X 12 Ga
(Superseded to 734117201)

$3.49

$

Usually ships in 3-10 days

0

26

Husqvarna 873800600

Nut Lock Hex W/Ins 3/8-16 Unc
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

28

Husqvarna 532165379

Grille LT/PL Husqvarna
(Superseded to 532156880)

$

$

Not available

29

Husqvarna 532165380

Lens LT/PL Husqvarna
(Superseded to 532149777)

$

$

Not available

30

Husqvarna 532166505

Fender Footrest STLT Pnt
(Superseded to 583713401)

$303.99

$

Usually ships in 3-10 days

0

31

Husqvarna 532139976

Bracket Support Fender

$17.99

$

Usually ships in 3-10 days

0

37

Husqvarna 817490508

Screw Thdrol 6/16-18 x 1/2 TYT
(Superseded to 539990858)

$3.99

$

Usually ships in 3-10 days

0

38

Husqvarna 532139886

Bracket, Asm. Pivot, L.H., Mower Rear

$8.99

$

Usually ships in 3-10 days

0

39

Husqvarna 532139887

Bracket, Asm. Pivot, R.H., Mower Rear

$

$

Not available

51

Husqvarna 873800400

Nut Lock Hex W/Ins 1/4-20
(Superseded to 582478602)

$2.49

$

In Stock, Qty 20+

0

52

Husqvarna 819091416

Washer 9/32 x 7/8 x 16 Ga.

$6.49

$

Usually ships in 3-10 days

0

53

Husqvarna 532150067

Bracket Pnt. Pick off LT/PL Husqvarna

$

$

Not available

57

Husqvarna 874780412

Bolt Hex 1/4-20 x 3/4
(Superseded to 874780414)

$6.49

$

Usually ships in 3-10 days

0

58

Husqvarna 532150127

Air Duct Engine P/L

$

$

Not available

60

Husqvarna 872140606

Bolt Rdhd Sqnk 3/8-16unc x 3/4

$

$

Not available

64

Husqvarna 532154798

Dash Lower STLT

$20.99

$

Usually ships in 3-10 days

0

68

Husqvarna 873510400

Nut Keps Hex 1/4-20 UNC
(Superseded to 873680400)

$4.99

$

In Stock, Qty 15

0

74

Husqvarna 873680600

Nut Crownlock 3/8-16 UNC

$3.99

$

Usually ships in 3-10 days

0

109

Husqvarna 532141461

Bracket Extension Bumper
(Superseded to 532170310)

$

$

Not available

110

Husqvarna 532143679

Plug Plastic

$2.99

$

Usually ships in 3-10 days

0

113

Husqvarna 532150300

Bumper Asm.
(Superseded to 532170311)

$

$

Not available

115

Husqvarna 817490620

Screw Thdrol 3/8-16 x 1-1/4
(Superseded to 874760620)

$7.49

$

Usually ships in 3-10 days

0

129

Husqvarna 819091016

Washer 9/32 x 5/8 x 16 Ga.

$4.99

$

Usually ships in 3-10 days

0

134

Husqvarna 532160219

Rod Support Hood LT/PL Husq.

$7.99

$

Usually ships in 3-10 days

0

140

Husqvarna 532158418

Bracket Suspension Front

$

$

Not available

142

Husqvarna 532165867

Plate Reinforcement STLT
(Superseded to 532175702)

$9.49

$

Usually ships in 3-10 days

0

143

Husqvarna 532154966

Bracket Swaybar Chassis
(Superseded to 532186689)

$6.99

$

In Stock, only 2 left!

0

144

Husqvarna 532154207

Bracket Pnt Footrest STLT
(Superseded to 532175582)

$7.49

$

Usually ships in 3-10 days

0

145

Husqvarna 532156524

Rod Pivot Chassis/Hood
(Superseded to 532409167)

$13.99

$

In Stock, only 2 left!

0

159

Husqvarna 532166508

Cupholder Stlt Grey
(Superseded to 532155123)

$

$

Not available

Husqvarna 532005479

Plug Button

$5.99

$

Usually ships in 3-10 days

0
