LTH 130 (954140005-H) - Husqvarna Lawn Tractor (1998-07) Electrical Parts Diagram

Lawn Tractor

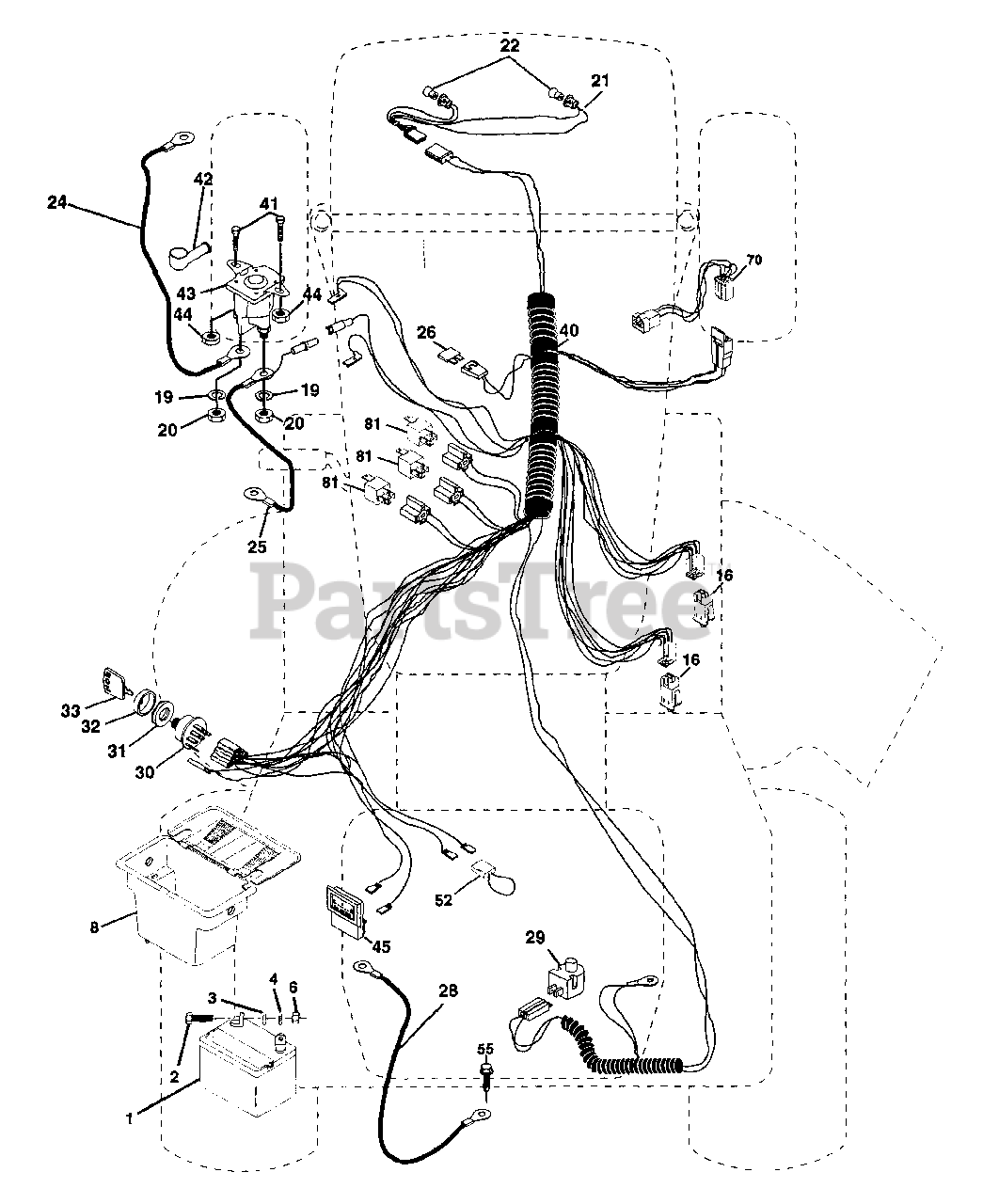

Electrical Parts Diagram

  • Title
1

Husqvarna 163465

Battery 12 Volt 28 Amp

$

$

Not available

2

Husqvarna 74760412

Bolt Hex Hd 1/4-20unc X 3/4
(Superseded to 874760412)

$7.49

$

In Stock, only 1 left!

0

3

Husqvarna STD551025

Washer 9/32 X 5/8 X 16 Ga

$

$

Not available

4

Husqvarna STD551125

Washer Lock Hvy Helical 1/4

$

$

Not available

6

Husqvarna STD541025

Nut Fin Hex 1/4-20 Unc

$

$

Not available

8

Husqvarna 156417

Case Battery

$

$

Not available

16

Husqvarna 161343

Switch Interlock N. Opn./N Opn.

$

$

Not available

19

Husqvarna STD551125

Washer Lock 1/4

$

$

Not available

20

Husqvarna 73350400

Nut Jam Hex 1/4-20 Unc

$2.49

$

Usually ships in 3-10 days

0

21

Husqvarna 147430

Harness Asm Light W/4152J

$

$

Not available

22

Husqvarna 4152J

Bulb Light #1156
(Superseded to 532004152)

$4.99

$

Usually ships in 3-10 days

0

24

Husqvarna 4799J

Cable Battery 6 Ga 11" red
(Superseded to 532004799)

$10.99

$

Usually ships in 3-10 days

0

25

Husqvarna 146147

Cable Battery 6 Ga w/16 wire, red
(Superseded to 532146147)

$34.99

$

Usually ships in 3-10 days

0

26

Husqvarna 108824X

Fuse 30 AMP Auto Green
(Superseded to 532108824)

$6.49

$

Usually ships in 3-10 days

0

28

Husqvarna 4207J

Cable Ground
(Superseded to 532004207)

$8.99

$

Usually ships in 3-10 days

0

29

Husqvarna 160784

Switch Plunger Normal Op. Olive
(Superseded to 532160784)

$20.99

$

In Stock, only 1 left!

0

30

Husqvarna 140301

Switch Ign 3
(Superseded to 532140301)

$37.99

$

In Stock, only 1 left!

0

31

Husqvarna 124211X

Nut Ignition
(Superseded to 532124211)

$5.99

$

In Stock, only 1 left!

0

32

Husqvarna 141226

Cover Sw Ignition
(Superseded to 532141226)

$5.99

$

Usually ships in 3-10 days

0

33

Husqvarna 109310X

Key Ign
(Superseded to 583657601)

$7.49

$

In Stock, Qty 6

0

40

Husqvarna 163845

Harness Ign

$110.99

$

Usually ships in 3-10 days

0

41

Husqvarna 71110408

Bolt Blk Fin Hex 1/4-20unc X 1/2

$2.99

$

Usually ships in 3-10 days

0

42

Husqvarna 131563

Cover Terminal Red

$

$

Not available

43

Husqvarna 145673

Solenoid

$

$

Not available

44

Husqvarna 73640400

Nut Keps Blk Hex 1/4-20 unc
(Superseded to 873640400)

$

$

Not available

45

Husqvarna 122822X

Ammeter
(Superseded to 532122822)

$20.99

$

In Stock, only 1 left!

0

52

Husqvarna 141940

Protection Wire Loop (Hourmeter)
(Superseded to 532141940)

$7.49

$

Usually ships in 3-10 days

0

55

UNKNOWN

$

$

Not available

70

Husqvarna 140426

Harness Eng

$

$

Not available

81

Husqvarna 109748X

Relay Asm.
(Superseded to 532109748)

$30.99

$

In Stock, only 1 left!

0
