LTH 130 (954140005-F) - Husqvarna Lawn Tractor (1998-07) Hydro Gear Transaxle Parts Diagram

Lawn Tractor

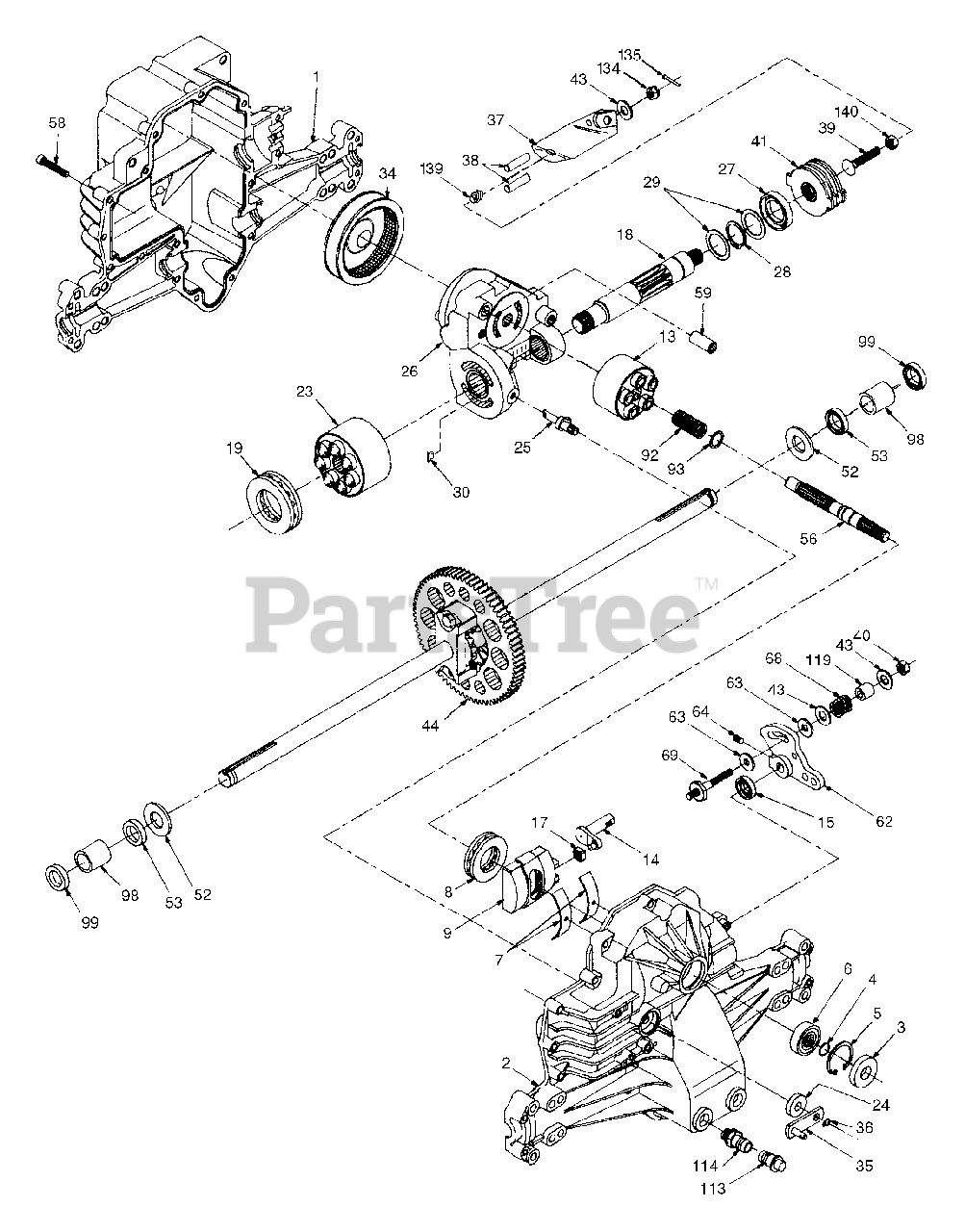

Hydro Gear Transaxle Parts Diagram

  • Title

1

Husqvarna 142986

Housing, Lower

$

$

Not available

2

Husqvarna 142987

Assembly, Upper Housing
(Superseded to 532142987)

$132.99

$

Usually ships in 3-10 days

0

3

Husqvarna 142932

Seal, Lip
(Superseded to 532142932)

$

$

Not available

4

Husqvarna 142928

Ring, Wire Retaining
(Superseded to 532142928)

$6.49

$

Usually ships in 3-10 days

0

5

Husqvarna 142933

Ring, Retaining
(Superseded to 532142933)

$6.49

$

Usually ships in 3-10 days

0

6

Husqvarna 142934

Bearing, Shaft Ball
(Superseded to 532142934)

$60.99

$

Usually ships in 3-10 days

0

7

Husqvarna 142935

Bearing, Cradle
(Superseded to 532142935)

$30.99

$

Usually ships in 3-10 days

0

8

Husqvarna 150771

Bearing, Thrust 30 x 52 x 13
(Superseded to 532150771)

$36.99

$

Usually ships in 3-10 days

0

9

Husqvarna 142937

Swashplate, Variable
(Superseded to 532142937)

$160.99

$

Usually ships in 3-10 days

0

13

Husqvarna 142938

Block, Cylinder Assembly

$

$

Not available

14

Husqvarna 142939

Arm, Trunnion
(Superseded to 532142939)

$218.99

$

Usually ships in 3-10 days

0

15

Husqvarna 142940

Seal, Lip
(Superseded to 532142940)

$6.49

$

Usually ships in 3-10 days

0

17

Husqvarna 142941

Guide, Slot
(Superseded to 532142941)

$7.99

$

Usually ships in 3-10 days

0

18

Husqvarna 150772

Shaft, Motor

$

$

Not available

19

Husqvarna 150773

Bearing, Thrust 42 x 68 x 16
(Superseded to 532150773)

$51.99

$

Usually ships in 3-10 days

0

23

Husqvarna 142944

Block, Cylinder Assembly

$

$

Currently unavailable

24

Husqvarna 142945

Seal, Lip 10 x 25 x 7

$

$

Not available

25

Husqvarna 142946

Actuator, Bypass
(Superseded to 532142946)

$18.99

$

Usually ships in 3-10 days

0

26

Husqvarna 150774

Center Section Assembly Kit

$

$

Not available

27

Husqvarna 142948

Seal, Lip 26 x 42 x 8
(Superseded to 532142948)

$

$

Not available

28

Husqvarna 142949

Ring, Retaining
(Superseded to 532142949)

$6.49

$

Usually ships in 3-10 days

0

29

Husqvarna 142950

Washer 26 x 35 x 1
(Superseded to 532142950)

$3.99

$

Usually ships in 3-10 days

0

30

Husqvarna 150787

Nut, Jam

$

$

Not available

34

Husqvarna 142951

Oil Filter Element

$

$

Currently unavailable

35

Husqvarna 142952

Arm, Bypass
(Superseded to 532142952)

$21.99

$

Usually ships in 3-10 days

0

36

Husqvarna 142953

Ring, Retaining
(Superseded to 532142953)

$6.49

$

Usually ships in 3-10 days

0

37

Husqvarna 142954

Arm, Actuating

$

$

Currently unavailable

38

Husqvarna 142955

Pin, Actuating
(Superseded to 532142955)

$10.99

$

Usually ships in 3-10 days

0

39

Husqvarna 150777

Bolt 5/16-24 x 1-3/4
(Superseded to 532150777)

$5.99

$

Usually ships in 3-10 days

0

40

Husqvarna 150778

Locknut, Hex 5/16-24 UNJC
(Superseded to 532150778)

$6.49

$

Usually ships in 3-10 days

0

41

Husqvarna 142958

Brake Rotor/Stator Kit
(Superseded to 532142958)

$103.99

$

Usually ships in 3-10 days

0

43

Husqvarna 142884

Washer 7/16 x 7/8 x .060
(Superseded to 532142884)

$

$

Not available

44

Husqvarna 142990

Differential Assembly

$

$

Currently unavailable

52

Husqvarna 142991

Washer 3/4 x 1.5 x .13
(Superseded to 532142991)

$7.49

$

Usually ships in 3-10 days

0

53

Husqvarna 142961

Seal .75 x 1.25 x .250
(Superseded to 532142961)

$10.99

$

In Stock, only 2 left!

0

56

Husqvarna 142963

Shaft, Input
(Superseded to 532142963)

$157.99

$

Usually ships in 3-10 days

0

58

Husqvarna 142964

Bolt 1/4-20 x 1.38
(Superseded to 532142964)

$6.49

$

Usually ships in 3-10 days

0

59

Husqvarna 142965

Pin .5 OD x .43 ID x .750
(Superseded to 532142965)

$10.99

$

Usually ships in 3-10 days

0

62

Husqvarna 142966

Arm, Control
(Superseded to 532142966)

$40.99

$

Usually ships in 3-10 days

0

63

Husqvarna 142967

Puck, Dampener
(Superseded to 532142967)

$7.49

$

Usually ships in 3-10 days

0

64

Husqvarna 142920

Set Screw
(Superseded to 532142920)

$9.99

$

Usually ships in 3-10 days

0

68

Husqvarna 142969

Spring
(Superseded to 532142969)

$

$

Not available

69

Husqvarna 144610

Stud 5/16-24
(Superseded to 532144610)

$9.99

$

Usually ships in 3-10 days

0

92

Husqvarna 142977

Spring, Block
(Superseded to 532142977)

$6.49

$

Usually ships in 3-10 days

0

93

Husqvarna 142978

Washer, Block Thrust
(Superseded to 532142978)

$7.49

$

Usually ships in 3-10 days

0

98

Husqvarna 142993

Sleeve Bearing
(Superseded to 532142993)

$14.99

$

In Stock, only 2 left!

0

99

Husqvarna 142976

Seal, Wiper

$

$

Currently unavailable

113

Husqvarna 142917

Cap, Vent Assembly
(Superseded to 532142578)

$46.99

$

Usually ships in 3-10 days

0

114

Husqvarna 142918

Fitting, O-Ring Assembly
(Superseded to 532142918)

$

$

Not available

119

Husqvarna 142980

Spacer
(Superseded to 532142980)

$4.99

$

Usually ships in 3-10 days

0

134

Husqvarna 144607

Nut, Castle 5/16-24
(Superseded to 532122658)

$6.49

$

Usually ships in 3-10 days

0

135

Husqvarna 144608

Pin, Cotter

$

$

Currently unavailable

139

Husqvarna 150775

Spring, Compression
(Superseded to 532150775)

$6.49

$

Usually ships in 3-10 days

0

140

Husqvarna 150776

Nut, Hex 5/16-24

$

$

Not available
