LTH 130 (954140005-B) - Husqvarna Lawn Tractor (1997-12) Peerless Transaxle Parts Diagram

Lawn Tractor

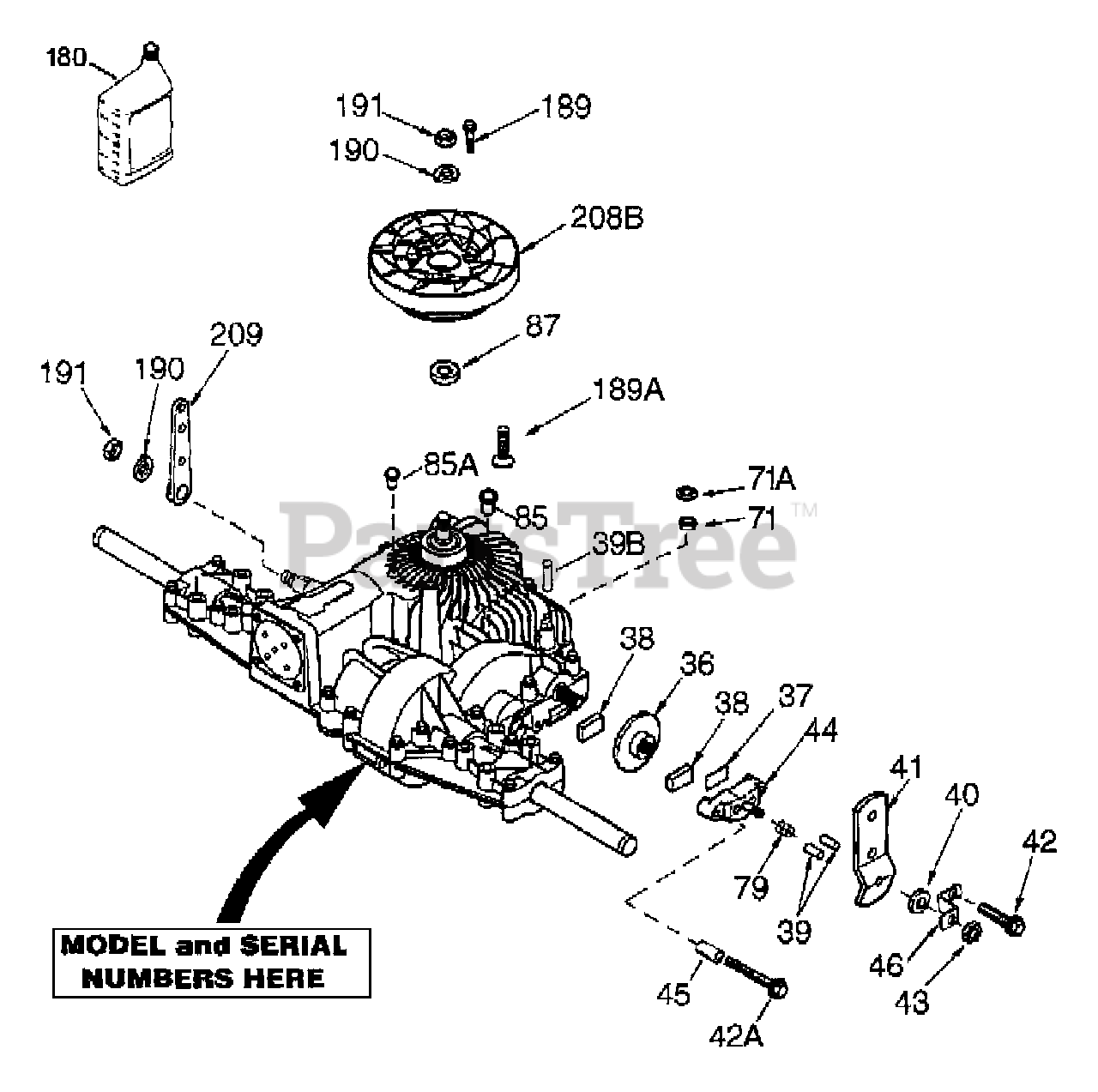

Peerless Transaxle Parts Diagram

  • Title

36

Husqvarna 790075

Brake Disc

$

$

Not available

37

Husqvarna 790007

Brake Pad Plate

$

$

Not available

38

Husqvarna 799021

Brake Pad

Note: (pkg of 2)

$

$

Not available

39

Husqvarna 786026

Dowel Pin

$

$

Not available

39B

Husqvarna 798033

Belt Guard

$

$

Not available

40

Husqvarna 792076A

Flat Washer

$

$

Not available

41

UNKNOWN

$

$

Not available

41B

Husqvarna 790085

Brake Lever

$

$

Not available

42

Husqvarna 792073

Screw, 1/4-20 x 1-1/4"

$

$

Not available

42A

Husqvarna 792085A

Screw, 1/4-20 x 2-1/4"

$

$

Not available

43

Husqvarna 792075

Locknut, 5/16-24

$

$

Not available

44

Husqvarna 790025

Brake Pad Holder

$

$

Not available

45

Husqvarna 786066

Spacer

$

$

Not available

46

Husqvarna 790086

Brake Lever Bracket

$

$

Not available

71

Husqvarna 788069

Square Cut Ring

$

$

Not available

71A

Husqvarna 792162

Pushnut, 9/16"

$

$

Not available

79

Husqvarna 792144

Spring

$

$

Not available

85

Husqvarna 792154

Oil Fill Plug

$

$

Not available

85A

UNKNOWN

$

$

Not available

87

Husqvarna 788035

Oil Seal, 5/8"

$

$

Not available

180

Husqvarna 730229A

Gear Oil 80W90

$

$

Not available

189

Husqvarna 792168

Drive Screw #6 x 1/2"

$

$

Not available

189A

Husqvarna 792169

Screw, 10-32 x 1/2"

$

$

Not available

190

Husqvarna 792150

Lockwasher

$

$

Not available

191

Husqvarna 792151

Nut, 7/16-20

$

$

Not available

208B

Husqvarna 798025

Fan/Coupling

Note: (Incl. 189 & 189A)

$

$

Not available

209

Husqvarna 798024

Control Lever

$

$

Not available
