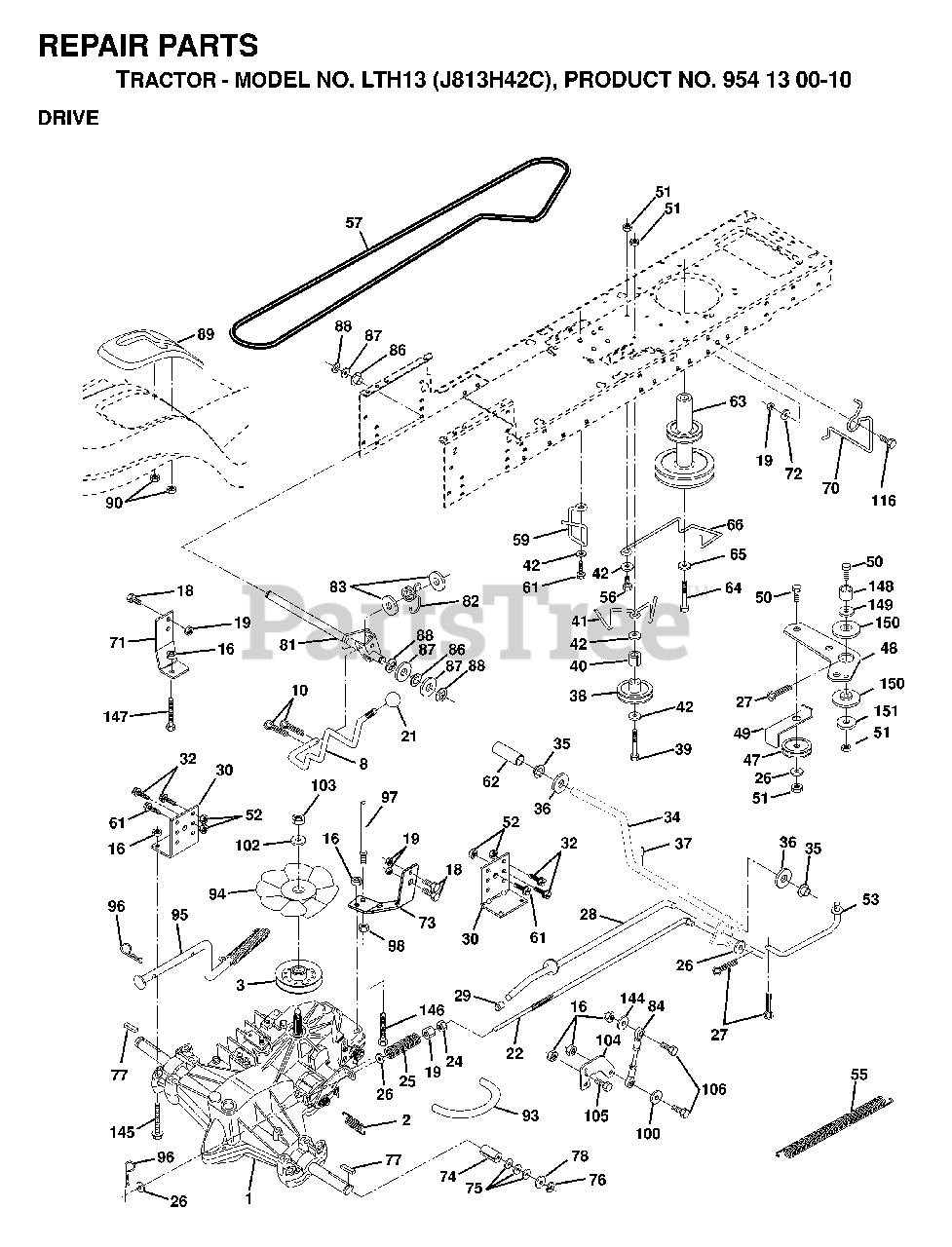

LTH 13 (954130010) - Jonsered Lawn Tractor (1998-12) DRIVE Parts Diagram

Lawn Tractor

DRIVE Parts Diagram

  • Title
2

Jonsered 532142431

SPRING BRAKE

$8.99

$

Usually ships in 3-10 days

0

3

Jonsered 532143995

PULLEY, TRANSAXLE

$34.99

$

Usually ships in 3-10 days

0

8

Jonsered 532154792

ROD SHIFT FENDER

$12.99

$

Usually ships in 3-10 days

0

10

Jonsered 876020416

PIN COTTER

$3.99

$

Usually ships in 3-10 days

0

16

Jonsered 873800500

NUT.71038.31-18.HEX.NYLOCK
(Superseded to 596040501)

$3.99

$

In Stock, Qty 20+

0

$6.49

$

Usually ships in 3-10 days

0

19

Jonsered 873800600

NUT
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

21

Jonsered 532130564

PISTOL KNOB

$14.99

$

Usually ships in 3-10 days

0

22

Jonsered 532145627

ROD BRAKE HYDRO

$193.99

$

In Stock, only 1 left!

0

24

Jonsered 873350600

NUT
(Superseded to 873220600)

$6.49

$

In Stock, only 2 left!

0

25

Jonsered 532106888

SPRING ROD LT
(Superseded to 532151332)

$6.49

$

In Stock, only 1 left!

0

26

$4.99

$

In Stock, Qty 5

0

27

Jonsered 876020412

COTTER PIN
(Superseded to 596029501)

$3.99

$

In Stock, only 1 left!

0

28

Jonsered 532145204

ROD BRAKE PARK LT

$

$

Not available

29

Jonsered 532071673

PLUNGER CAP

$5.99

$

Usually ships in 3-10 days

0

30

Jonsered 532130807

BRACKET TRANSAXLE

$3.99

$

Usually ships in 3-10 days

0

31

Jonsered 532127275

KEEPER BELT LH

$

$

Not available

32

Jonsered 874760512

BOLT
(Superseded to 596030501)

$4.99

$

In Stock, Qty 20+

0

34

Jonsered 532155071

SHAFT, FOOT PEDAL

$

$

Not available

35

Jonsered 532120183

BEARING.NYLON

$6.99

$

In Stock, only 4 left!

0

36

Jonsered 819211616

WASHER LT

$6.49

$

Usually ships in 3-10 days

0

37

Jonsered 532124963

DRIVE PIN
(Superseded to 532002882)

$

$

Not available

38

Jonsered 532123674

PULLEY.IDLER.FLAT

$31.99

$

In Stock, only 1 left!

0

$6.49

$

Usually ships in 3-10 days

0

40

$6.49

$

Usually ships in 3-10 days

0

41

Jonsered 532154777

KEEPER, BELT IDLER
(Superseded to 532165838)

$

$

Not available

42

Jonsered 819131312

WASHER
(Superseded to 596133201)

$6.99

$

In Stock, only 3 left!

0

43

$6.49

$

Usually ships in 3-10 days

0

47

Jonsered 532127783

IDLER PULLEY
(Superseded to 532139245)

$37.99

$

In Stock, only 2 left!

0

48

Jonsered 532154407

BELLCRANK, CLUTCH

$8.99

$

Usually ships in 3-10 days

0

49

Jonsered 532123205

RETAIN BELT

$6.49

$

Usually ships in 3-10 days

0

50

Jonsered 874760624

BOLT
(Superseded to 874930624)

$7.99

$

Usually ships in 3-10 days

0

51

Jonsered 873680600

LOCKNUT
(Superseded to 596322601)

$3.99

$

In Stock, only 4 left!

0

52

Jonsered 873680500

LOCKNUT
(Superseded to 873800500)

$3.99

$

In Stock, Qty 20+

0

53

Jonsered 532105710

LINK, CLUTCH LT
(Superseded to 532199652)

$13.99

$

Usually ships in 3-10 days

0

55

Jonsered 532105709

SPRING, RETURN LT

$11.99

$

In Stock, only 4 left!

0

$7.49

$

Usually ships in 3-10 days

0

57

Jonsered 531013140

No Description Available

$

$

Not available

59

Jonsered 532140312

KEEPER CENTER SPAN
(Superseded to 532169691)

$26.99

$

Usually ships in 3-10 days

0

61

Jonsered 817490612

SCREW
(Superseded to 874780612)

$7.49

$

In Stock, only 2 left!

0

62

Jonsered 532124872

PEDAL COVER T
(Superseded to 532008883)

$6.49

$

Usually ships in 3-10 days

0

63

Jonsered 532140186

PULLEY ENGINE

$113.99

$

Usually ships in 3-10 days

0

64

Jonsered 871170764

BOLT
(Superseded to 501606501)

$4.99

$

In Stock, only 1 left!

0

65

Jonsered 810040700

LOCKWASHER
(Superseded to 539990247)

$3.99

$

In Stock, Qty 20+

0

66

Jonsered 532154778

KEEPER BELT ENGINE

$12.99

$

Usually ships in 3-10 days

0

70

Jonsered 532134683

KEEPER BELT ENG

$

$

Not available

71

Jonsered 532140158

STRAP LH TORQUE
(Superseded to 140158)

$3.49

$

Usually ships in 3-10 days

0

72

$1.99

$

Usually ships in 3-10 days

0

73

Jonsered 532156347

STRAP TORQUE RH HYDRO
(Superseded to 156347)

$2.99

$

Usually ships in 3-10 days

0

74

Jonsered 532121199

SPACER SPLIT

$

$

Not available

75

$3.49

$

Usually ships in 3-10 days

0

76

Jonsered 812000001

E-RING LT

$4.99

$

Usually ships in 3-10 days

0

77

Jonsered 532123583

SQUARE KEY

$4.99

$

In Stock, Qty 7

0

78

$4.99

$

In Stock, Qty 20+

0

81

Jonsered 532156046

SHAFT ASSY

$

$

Not available

82

Jonsered 532123782

SPRING,TORSION

$

$

Not available

83

Jonsered 819171216

WASHER
(Superseded to 19171216)

$2.99

$

Usually ships in 3-10 days

0

84

$

$

Not available

86

Jonsered 532071208

BUSHING.STEERING.ROD

$3.99

$

Usually ships in 3-10 days

0

87

$6.49

$

Usually ships in 3-10 days

0

88

Jonsered 812000008

KLIP RING

$6.49

$

Usually ships in 3-10 days

0

89

Jonsered 532158388

SHIFT CONSOLE
(Superseded to 532164890)

$24.99

$

Usually ships in 3-10 days

0

$7.99

$

In Stock, only 1 left!

0

93

Jonsered 532142564

FUEL LINE

$6.49

$

Usually ships in 3-10 days

0

94

Jonsered 532140462

FAN 7" HYDRO

$12.99

$

Usually ships in 3-10 days

0

95

Jonsered 532144643

CONTROL ARM, BYPASS HYDRO
(Superseded to 532167696)

$

$

Not available

96

Jonsered 532124788

RETAINER M
(Superseded to 532004497)

$9.99

$

In Stock, Qty 12

0

97

Jonsered 532140469

KEEPER BELT RH

$

$

Not available

98

$6.49

$

Usually ships in 3-10 days

0

100

Jonsered 819111216

WASHER M
(Superseded to 734116301)

$3.49

$

Usually ships in 3-10 days

0

102

$4.99

$

Usually ships in 3-10 days

0

103

Jonsered 873940800

NUT.HEX.1/2-20

$7.49

$

In Stock, only 4 left!

0

104

Jonsered 532140156

CONTROL ARM
(Superseded to 140156)

$

$

Not available

105

$4.99

$

Usually ships in 3-10 days

0

106

Jonsered 874780520

BOLT.5/16-18X1-1/4 FULL.THREAD
(Superseded to 874520520)

$4.99

$

Usually ships in 3-10 days

0

116

Jonsered 872110610

BOLT
(Superseded to 872140614)

$4.99

$

Usually ships in 3-10 days

0

144

Jonsered 819111016

WASHER
(Superseded to 734116301)

$3.49

$

Usually ships in 3-10 days

0

$4.99

$

Usually ships in 3-10 days

0

146

Jonsered 874490536

BOLT
(Superseded to 583613101)

$2.99

$

Usually ships in 3-10 days

0

$

$

Not available

148

Jonsered 532159103

GUIDE
(Superseded to 159103)

$2.99

$

Usually ships in 3-10 days

0

149

Jonsered 532122052

SPACER RETAINER
(Superseded to 532165723)

$6.99

$

In Stock, only 2 left!

0

150

Jonsered 532150935

BUSHING NYLON COLLERED

$

$

Not available

151

Jonsered 819133210

WASHER 12/32X2X10GA
(Superseded to 596135501)

$5.99

$

In Stock, Qty 12

0
