LTH 13 (954001042-B) - Husqvarna Lawn Tractor (1995-01) Ground Drive Parts Diagram

Lawn Tractor

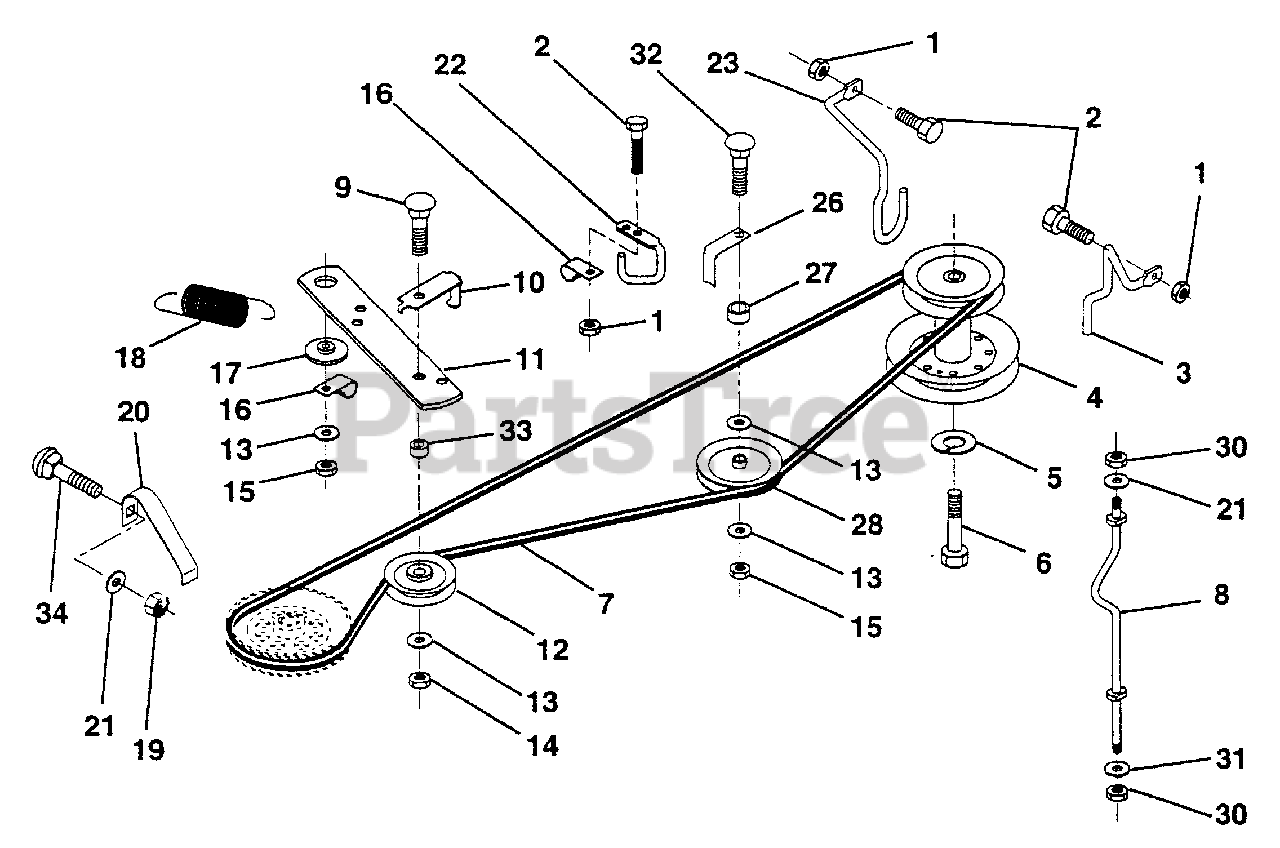

Ground Drive Parts Diagram

  • Title
1

Husqvarna 873800500

Nut, Lock Hx w/Ins 5/16-18

$3.99

$

Usually ships in 3-10 days

0

2

Husqvarna 874760512

Bolt, Hex Head 5/16-18 x 3/4
(Superseded to 874780512)

$4.99

$

In Stock, Qty 20+

0

3

Husqvarna 532140917

Keeper, Belt RH Front

$4.99

$

Usually ships in 3-10 days

0

4

Husqvarna 532138029

Pulley, Engine
(Superseded to 532140189)

$42.99

$

Usually ships in 3-10 days

0

5

Husqvarna 810040700

Washer, Lock 7/16
(Superseded to 539990247)

$

$

Not available

6

Husqvarna 871170744

Bolt, Hex Fin 7/16-20 Gr. 5

$2.99

$

Usually ships in 3-10 days

0

$72.99

$

In Stock, only 1 left!

0

8

Husqvarna 532140785

Keeper, Belt RH

$

$

Not available

9

Husqvarna 872140618

Bolt, RDHD SQ 3/8-16 x 2-1/4
(Superseded to 872110618)

$6.49

$

In Stock, only 2 left!

0

10

Husqvarna 532140780

Keeper,Belt, Idler Pulley

$

$

Not available

11

Husqvarna 532140911

Arm, Idler

$

$

Not available

12

Husqvarna 532123674

Idler, Flat

$31.99

$

In Stock, only 1 left!

0

13

Husqvarna 819131316

Washer 13/32 x 13/16 x 16 Gauge
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

14

Husqvarna 873930600

Nut, Centerlock 318-16
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

15

Husqvarna 873800600

Nut, Hex, Lock Hex w/wsh 3/8-16
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

16

Husqvarna 532126472

Clip Insulator

$

$

Not available

17

Husqvarna 532122052

Spacer, Retainer
(Superseded to 532165723)

$6.99

$

In Stock, only 2 left!

0

18

Husqvarna 532131459

Spring, Extension

$

$

Not available

$3.99

$

Usually ships in 3-10 days

0

20

Husqvarna 532140909

Keeper,Belt LH

$

$

Not available

21

Husqvarna 819111116

Washer Nut Lock Hex w/Ins. 5/6-18
(Superseded to 596204101)

$3.99

$

In Stock, Qty 20+

0

22

Husqvarna 532123404

Keeper Frame Ground Drive Belt

$

$

Not available

23

Husqvarna 532146792

Keeper,Belt LH Front

$3.99

$

Usually ships in 3-10 days

0

26

Husqvarna 532140913

Keeper, Belt

$5.99

$

Usually ships in 3-10 days

0

$3.99

$

Usually ships in 3-10 days

0

28

Husqvarna 532139123

Pulley, V-Idler

$37.99

$

In Stock, only 1 left!

0

30

Husqvarna 873800500

Nut Lock Hex w/Ins. 5/16-18

$3.99

$

Usually ships in 3-10 days

0

31

Husqvarna 819111216

Washer 11/32 x 3/4 x 16 Ga.
(Superseded to 734116301)

$3.99

$

In Stock, Qty 20+

0

32

Husqvarna 872140620

Carriage Bolt

$3.99

$

Usually ships in 3-10 days

0

$

$

Not available

34

Husqvarna 872140506

Carriage Bolt
(Superseded to 595901601)

$3.99

$

In Stock, Qty 20+

0
