LTH 126 (960410205-00) - Husqvarna Lawn Tractor (2010-08) ELECTRICAL 2 Parts Diagram

Lawn Tractor

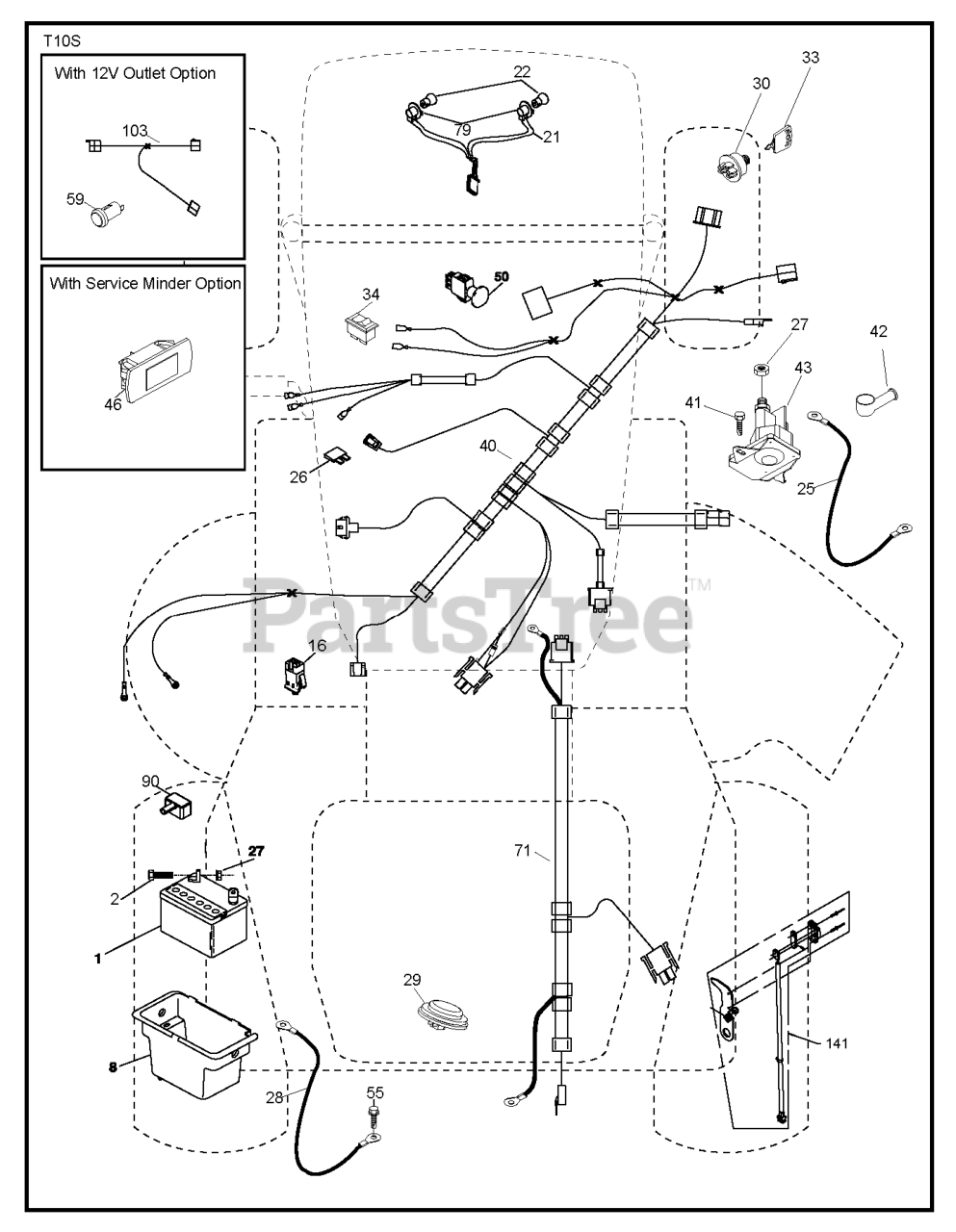

ELECTRICAL 2 Parts Diagram

  • Title

30

Husqvarna 539990053

WASHER 1/4 INT TOOTH

$3.99

$

In Stock, only 3 left!

0

20

Husqvarna 539102758

CABLE-NEGATIVE

$

$

Not available

29

Husqvarna 539101714

SOLENOID

$26.99

$

Usually ships in 3-10 days

0

12

Husqvarna 539990372

NUT 1/4C CENTERLOCK
(Superseded to 539990761)

$4.99

$

In Stock, only 4 left!

0

23

Husqvarna 539104812

KEY-PADDED

$6.99

$

Usually ships in 3-10 days

0

11

Husqvarna 539104414

CONSOLE HARNESS

$

$

Not available

15

Husqvarna 539104964

FRAMES HARNESS

$

$

Not available

9

Husqvarna 539976952

SCREW #10-24 X 5/8
(Superseded to 596039001)

$3.99

$

In Stock, Qty 17

0

2

Husqvarna 539102914

RELAY

$26.99

$

In Stock, Qty 8

0

6

Husqvarna 539101770

IGNITION SWITCH KIT

$

$

Not available

28

Husqvarna 539102617

SCREW, #1--24 X 1/2 SLOTTED

$3.99

$

In Stock, only 3 left!

0

14

Husqvarna 539104974

POST.CABLE LONG

$

$

Not available

27

Husqvarna 539104415

KAW PIGTAIL

$34.99

$

Usually ships in 3-10 days

0

24

Husqvarna 539103178

CAP IGNITION NUT

$4.99

$

Usually ships in 3-10 days

0

8

Husqvarna 539108016

DIGITAL HOUR METER
(Superseded to 576179401)

$34.99

$

In Stock, Qty 6

0

1

Husqvarna 539991034

SCREW #10 X 1/2 SELF TAPPING

$3.99

$

Usually ships in 3-10 days

0

10

Husqvarna 539102678

TAPPED PLATE

$15.99

$

In Stock, Qty 9

0

21

Husqvarna 539102463

BATTERY WET NOT SELLABLE
(Superseded to 579411601)

$

$

Not available

22

Husqvarna 539976977

NUT 10-24 NYLOC

$

$

Not available

17

Husqvarna 539976934

HCS 5/16C X 3/4
(Superseded to 596030501)

$4.99

$

In Stock, Qty 20+

0

16

Husqvarna 539103306

CABLE POSITIVE, LONG
(Superseded to 586108201)

$10.99

$

In Stock, only 2 left!

0

5

Husqvarna 539101080

SWITCH, INTERLOCK

$17.99

$

Usually ships in 3-10 days

0

13

Husqvarna 539990072

HCS 1/4C X 5/8

$3.99

$

In Stock, only 1 left!

0

26

Husqvarna 539104416

KOH PIGTAIL

$42.99

$

Usually ships in 3-10 days

0

7

Husqvarna 539101768

RP.SWITCH, BLADE
(Superseded to 582107601)

$28.99

$

In Stock, only 4 left!

0

18

Husqvarna 539102759

INSULATOR

$4.99

$

In Stock, only 2 left!

0

19

Husqvarna 539990184

NUT 5/16C CENTERLOCK

$3.99

$

Usually ships in 3-10 days

0

3

Husqvarna 539101771

FUSE, 7.5 AMP 32 VOLT ATO

$

$

Not available

4

Husqvarna 539102086

FUSE, 20 AMP 32 VOLT ATO

$

$

Not available

25

Husqvarna 539103177

DNO IGNITION NUT

$3.99

$

In Stock, only 3 left!

0

539102757

Husqvarna 539102757

CABLE POSITIVE

$15.99

$

Usually ships in 3-10 days

0
