LTH 126 (960410199-03) - Husqvarna Lawn Tractor (2013-04) MOWER DECK / CUTTING DECK Parts Diagram

Lawn Tractor

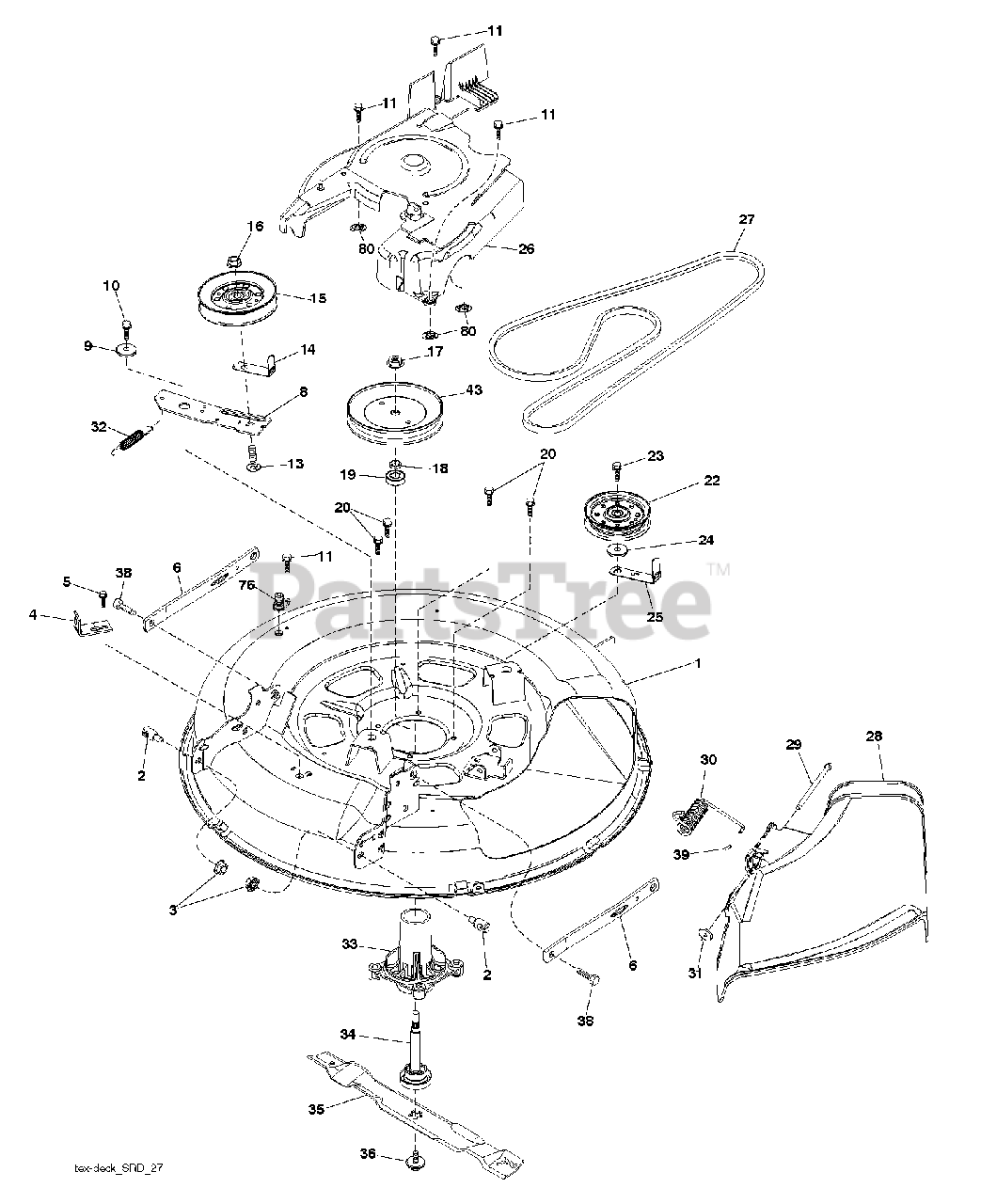

MOWER DECK / CUTTING DECK Parts Diagram

  • Title

1

Husqvarna 532442048

DECK.WELDMENT.PNT.30"SRD
(Superseded to 583498801)

$250.99

$

Usually ships in 3-10 days

0

2

Husqvarna 532195161

STUD.FASTNER.W/ANTI-ROTATE

$

$

Not available

3

Husqvarna 873900500

NUT LOCK HEX FLANGE 5/16-18
(Superseded to 583612701)

$

$

Not available

4

Husqvarna 532417645

BRACKET.CLUTCH.CABLE

$5.99

$

Usually ships in 3-10 days

0

5

Husqvarna 817000510

BOLT.5/16HEX.WHS.HD

$7.49

$

In Stock, Qty 12

0

6

Husqvarna 532418863

ARMS.SUSP.MOWER.REAR.SRD

$20.99

$

Usually ships in 3-10 days

0

8

Husqvarna 532420252

ARM.IDLER.30"SRD
(Superseded to 583379801)

$10.99

$

Usually ships in 3-10 days

0

9

Husqvarna 532199092

SPACER.RETAINER

$6.99

$

In Stock, Qty 12

0

10

Husqvarna 817000616

SCREW 3/8-16X1

$7.49

$

In Stock, only 2 left!

0

11

Husqvarna 532137729

SCREW.1/4-20X5/8

$4.99

$

In Stock, Qty 20+

0

13

Husqvarna 872110612

BOLT.3/8-16X1.50

$6.49

$

Usually ships in 3-10 days

0

14

Husqvarna 532156085

KEEPER, BELT IDLER
(Superseded to 532173968)

$

$

Not available

15

Husqvarna 532146763

PULLEY.IDLER.4.25

$

$

Not available

16

Husqvarna 873900600

NUT LOCK FLG 3/8-16 UNC
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

17

Husqvarna 532400234

NUT.FLANGE.LOCK.TOP
(Superseded to 596134801)

$4.99

$

In Stock, Qty 18

0

18

Husqvarna 532187690

WASHER.SPACER.MANDREL

$4.99

$

Usually ships in 3-10 days

0

19

Husqvarna 532110485

BEARING

$13.99

$

In Stock, Qty 6

0

20

Husqvarna 532173984

SCREW, WASHER HEAD
(Superseded to 584953901)

$4.99

$

In Stock, Qty 20+

0

22

Husqvarna 532175820

PULLEY.IDLER.FLAT.46.PR.DR.

$

$

Not available

23

Husqvarna 817490628

SCREW LT
(Superseded to 596564003)

$3.49

$

Usually ships in 3-10 days

0

24

Husqvarna 819132012

WASHER
(Superseded to 596134901)

$3.49

$

Usually ships in 3-10 days

0

25

Husqvarna 532420253

KEEPER.BELT.30"SRD
(Superseded to 529311701)

$6.49

$

Usually ships in 3-10 days

0

26

Husqvarna 532420255

COVER.ASM.MANDREL.30"
(Superseded to 583481101)

$56.99

$

Usually ships in 3-10 days

0

27

Husqvarna 532419271

V-BELT.DRIVE.MOWER.30"

$60.99

$

Usually ships in 3-10 days

0

28

Husqvarna 532417344

SHIELD.DEFLECT.MWR.30S.BLACK

$53.99

$

In Stock, only 1 left!

0

29

Husqvarna 532420895

PIN.HINGE.30".SRD
(Superseded to 583383801)

$

$

Not available

30

Husqvarna 532197026

SPRING.TORSION.DEFLECT

$10.99

$

In Stock, Qty 16

0

31

Husqvarna 532110452

NUT PUSH M

$3.99

$

Usually ships in 3-10 days

0

32

Husqvarna 532197251

SPRING.MOWER.DRIVE.ELECTRIC

$11.99

$

In Stock, only 1 left!

0

33

Husqvarna 532187281

HOUSING.MANDREL.4PT.
(Superseded to 587819701)

$56.99

$

In Stock, Qty 19

0

34

Husqvarna 532192872

SHAFT.ASM.MDRL.N/GREASE.38
(Superseded to 587819701)

$56.99

$

In Stock, Qty 19

0

35

Husqvarna 532419273

BLADE, MULCH.LRV30

$34.99

$

In Stock, only 3 left!

0

36

Husqvarna 532193003

BOLT.WASHER.ASM.7/16-2

$8.99

$

Usually ships in 3-10 days

0

38

Husqvarna 532196539

BOLT.SHOULDER

$7.49

$

In Stock, Qty 20+

0

39

Husqvarna 532105304

CAP-SLEEVE LT

$4.99

$

In Stock, Qty 20+

0

43

Husqvarna 532416877

PULLEY, MANDREL 6.5 PD
(Superseded to 525568001)

$34.99

$

In Stock, only 1 left!

0

76

Husqvarna 532415598

PORT.WASHOUT

$8.99

$

In Stock, Qty 13

0

80

Husqvarna 532423062

PALNUT 1/4

$4.99

$

In Stock, only 4 left!

0

--

Husqvarna 532192870

RB MANDREL.ASM.SUB-NON.GR
(Superseded to 587819701)

Note: MANDREL ASSEMBLY (Includes housing (key 33) shaft assembly (key 34) and bearing (key 19) only- pulley /nut /washer and blade molt /washers not included)

$56.99

$

In Stock, Qty 19

0

--

Husqvarna 532438109

$

$

Currently unavailable
