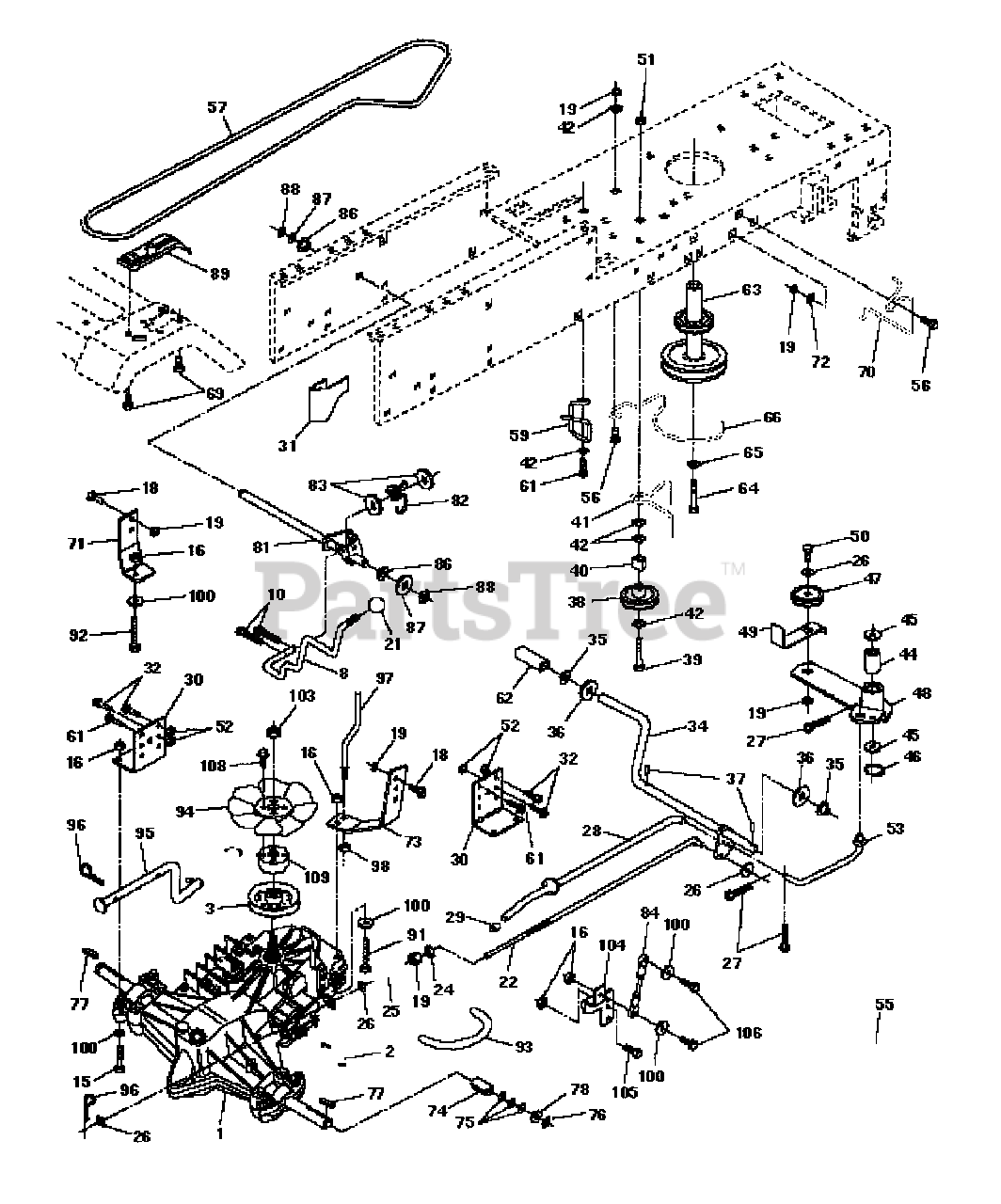

LTH 125 (954002721-C) - Husqvarna Lawn Tractor (1996-04) Drive Parts Diagram

Lawn Tractor

Drive Parts Diagram

  • Title

1

Husqvarna 532140607

Transaxle Assembly

$

$

Not available

2

Husqvarna 532142431

Spring, Return, Brake

$8.99

$

Usually ships in 3-10 days

0

3

Husqvarna 532144698

Pulley, Transaxle

$

$

Not available

8

Husqvarna 532141003

Rod Shift Hydro LT

$

$

Not available

10

Husqvarna 876020416

Pin Cotter 1/8 x 1 CAD

$3.99

$

Usually ships in 3-10 days

0

15

Husqvarna 874780544

Bolt Fin Hex 5/16-18 Unc

$

$

Not available

16

Husqvarna 873800500

Nut Lock Hex W/Ins 5/16-18 Unc P

$3.99

$

Usually ships in 3-10 days

0

18

Husqvarna 874780616

Bolt Fin Hex 3/8-16 Unc x 1 Gr. 5

$6.49

$

Usually ships in 3-10 days

0

19

Husqvarna 873800600

Nut Lock Hex W/Wsh 3/8-16 Unc
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

21

Husqvarna 532140845

Knob 1/2-13

$13.99

$

Usually ships in 3-10 days

0

22

Husqvarna 532145627

Rod, Brake Hydro

$193.99

$

In Stock, only 1 left!

0

24

Husqvarna 873350600

Nut
(Superseded to 873220600)

$6.49

$

In Stock, only 2 left!

0

25

Husqvarna 532106888

Spring, Brake Rod
(Superseded to 532151332)

$6.49

$

In Stock, only 1 left!

0

26

Husqvarna 819131316

Washer
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

27

Husqvarna 876020412

Pin Cotter 1/8 x 3/4 CAD.
(Superseded to 539990365)

$6.49

$

In Stock, Qty 20+

0

28

Husqvarna 532145204

Rod, Parking Brake

$

$

Not available

29

Husqvarna 532071673

Cap, Parking Brake

$5.99

$

Usually ships in 3-10 days

0

30

Husqvarna 532130807

Bracket, Transaxle

$3.99

$

Usually ships in 3-10 days

0

31

Husqvarna 532127275

Keeper Belt Lh

$

$

Not available

32

Husqvarna 874760512

Bolt Hex Hd 5/16-18 Unc x 3/4
(Superseded to 874780512)

$4.99

$

In Stock, Qty 20+

0

34

Husqvarna 532122424

Shaft, Foot Pedal

$

$

Not available

35

Husqvarna 532120183

Bearing, Nylon

$6.99

$

In Stock, only 4 left!

0

36

Husqvarna 819211616

Washer

$6.49

$

Usually ships in 3-10 days

0

37

Husqvarna 532124963

Pin, Roll
(Superseded to 532002882)

$4.99

$

In Stock, Qty 7

0

38

Husqvarna 532123674

Pulley, Idler, Flat

$31.99

$

In Stock, only 1 left!

0

39

Husqvarna 874760644

Bolt

$6.49

$

Usually ships in 3-10 days

0

40

Husqvarna 532124965

Spacer, Split

$6.49

$

Usually ships in 3-10 days

0

41

Husqvarna 532109070

Keeper, Belt Retainer

$6.49

$

Usually ships in 3-10 days

0

42

Husqvarna 819131312

Washer 13/32 x 13/16 x 12 Gauge
(Superseded to 734117201)

$3.49

$

Usually ships in 3-10 days

0

44

Husqvarna 532105706

Bearing, Nylon

$7.49

$

Usually ships in 3-10 days

0

45

Husqvarna 532110812

Washer, Hardened

$

$

Not available

46

Husqvarna 812000039

Ring, Klip

$6.49

$

In Stock, Qty 7

0

47

Husqvarna 532127783

Pulley, Idler, V-Groove
(Superseded to 532139245)

$37.99

$

In Stock, only 2 left!

0

48

Husqvarna 532123789

Bellcrank Assembly

$

$

Not available

49

Husqvarna 532123205

Retainer, Belt

$6.49

$

Usually ships in 3-10 days

0

50

Husqvarna 874760624

Bolt
(Superseded to 874930624)

$7.99

$

Usually ships in 3-10 days

0

51

Husqvarna 873680600

Nut Crownlock 3/8-16

$3.99

$

Usually ships in 3-10 days

0

52

Husqvarna 873680500

Nut Crownlock 5/16-18
(Superseded to 873690500)

$3.99

$

Usually ships in 3-10 days

0

53

Husqvarna 532105710

Link, Clutch
(Superseded to 532199652)

$13.99

$

Usually ships in 3-10 days

0

55

Husqvarna 532105709

Spring, Return, Clutch

$11.99

$

In Stock, only 2 left!

0

56

Husqvarna 874760620

Bolt Fin Hex 3/8-16 Unc x 1-1/4

$7.49

$

Usually ships in 3-10 days

0

57

Husqvarna 532141416

V-Belt, Ground Drive

$62.99

$

In Stock, only 1 left!

0

59

Husqvarna 532140312

Keeper, Center Span
(Superseded to 532169691)

$26.99

$

Usually ships in 3-10 days

0

61

Husqvarna 817490612

Screw Thdrol. 3/8-16 x 3/4 Ty. TT
(Superseded to 874780612)

$7.49

$

In Stock, only 2 left!

0

62

Husqvarna 532124872

Cover, Pedal
(Superseded to 532008883)

$6.49

$

In Stock, Qty 14

0

63

Husqvarna 532140186

Pulley, Engine

$113.99

$

Usually ships in 3-10 days

0

64

Husqvarna 871170764

Bolt, Hex
(Superseded to 532173937)

$4.99

$

In Stock, only 1 left!

0

65

Husqvarna 810040700

Washer
(Superseded to 539990247)

$

$

Not available

66

Husqvarna 532129921

Keeper Belt Engine

$

$

Not available

69

Husqvarna 532142432

Screw

$6.49

$

Usually ships in 3-10 days

0

70

Husqvarna 532134683

Keeper Belt Engine

$

$

Not available

71

Husqvarna 532141417

Strap Torque Lh Hydro 500 18"

$

$

Not available

72

Husqvarna 819132012

Washer 13/32 x 1-1/4 x 12 Gauge
(Superseded to 596134901)

$3.49

$

Usually ships in 3-10 days

0

73

Husqvarna 532141418

Strap Torque Rh Hydro 500 18"

$

$

Not available

74

Husqvarna 532121199

Spacer, Split

$

$

Not available

75

Husqvarna 532121749

Washer 25/32 x 1-1/4 x 16 Gauge

$3.49

$

Usually ships in 3-10 days

0

76

Husqvarna 812000001

E-Ring

$4.99

$

Usually ships in 3-10 days

0

77

Husqvarna 532123583

Key, Square

$4.99

$

In Stock, Qty 7

0

78

Husqvarna 532121748

Washer 25/32 x 1-5/8 x 16 Gauge

$4.99

$

In Stock, Qty 20+

0

81

Husqvarna 532141420

Shaft Asm. Cross Hydro 500

$

$

Not available

82

Husqvarna 532123782

Spring Torsion T/A

$

$

Not available

83

Husqvarna 819171216

Washer 17/32 x 3/4 x 16 Ga.
(Superseded to 734117771)

$6.49

$

In Stock, only 2 left!

0

84

Husqvarna 532141423

Rod, Tie Hydro Sph Ball 500

$66.99

$

Usually ships in 3-10 days

0

86

Husqvarna 532071208

Bushing Rod Strig. 629/632 ID

$3.99

$

Usually ships in 3-10 days

0

87

Husqvarna 819212016

Washer 21/32 x 1-1/4 x 16 Ga.

$6.49

$

Usually ships in 3-10 days

0

88

Husqvarna 812000008

Ring Klip #5304-62

$6.49

$

Usually ships in 3-10 days

0

89

Husqvarna 532139988

Console, Shift
(Superseded to 532153764)

$12.99

$

Usually ships in 3-10 days

0

91

Husqvarna 874780536

Bolt Fin Hex 5/16-18 x 2-1/4

$

$

Not available

92

Husqvarna 874780524

Bolt Fin Hex 5/6-18 Unc x 1-1/2
(Superseded to 539976935)

$

$

Not available

93

Husqvarna 532142564

Line Fuel Hydro 4"

$6.49

$

Usually ships in 3-10 days

0

94

Husqvarna 532140462

Fan, Hydro 7"

$12.99

$

Usually ships in 3-10 days

0

95

Husqvarna 532144643

Control Asm. Bypass Hydro
(Superseded to 532167696)

$

$

Not available

96

Husqvarna 532124788

Retainer Spring 1" Zinc/Cad
(Superseded to 532004497)

$9.99

$

In Stock, Qty 12

0

97

Husqvarna 532144201

Keeper Belt Rh Hydro 500

$8.99

$

Usually ships in 3-10 days

0

98

Husqvarna 873510600

Nut Keps Hex 3/8-16 Unc

$6.49

$

Usually ships in 3-10 days

0

100

Husqvarna 819111216

Washer 11/32 x 3/4 x 16 Ga.
(Superseded to 734116301)

$3.99

$

In Stock, Qty 20+

0

103

Husqvarna 532050831

Nut Nylon Insert 1/2-20 Unf.

$2.99

$

Usually ships in 3-10 days

0

104

Husqvarna 532141421

Arm, Control Pump

$

$

Not available

105

Husqvarna 871070516

Screw Cap Hex 5/16 x 18 x 1

$4.99

$

Usually ships in 3-10 days

0

106

Husqvarna 874780520

Bolt Fin Hex 5/16-18 Unc x 1-1/4
(Superseded to 874520520)

$4.99

$

Usually ships in 3-10 days

0

108

Husqvarna 817541026

Screw Hex Wh Hd #10-24 x 1-5/8

$

$

Not available

109

Husqvarna 532145098

Adaptor Fan/Hydro Lt Hyd Alum

$

$

Not available
