LTH 125 (954002721-C) - Husqvarna Lawn Tractor (1996-04) 42" Mower Deck Parts Diagram

Lawn Tractor

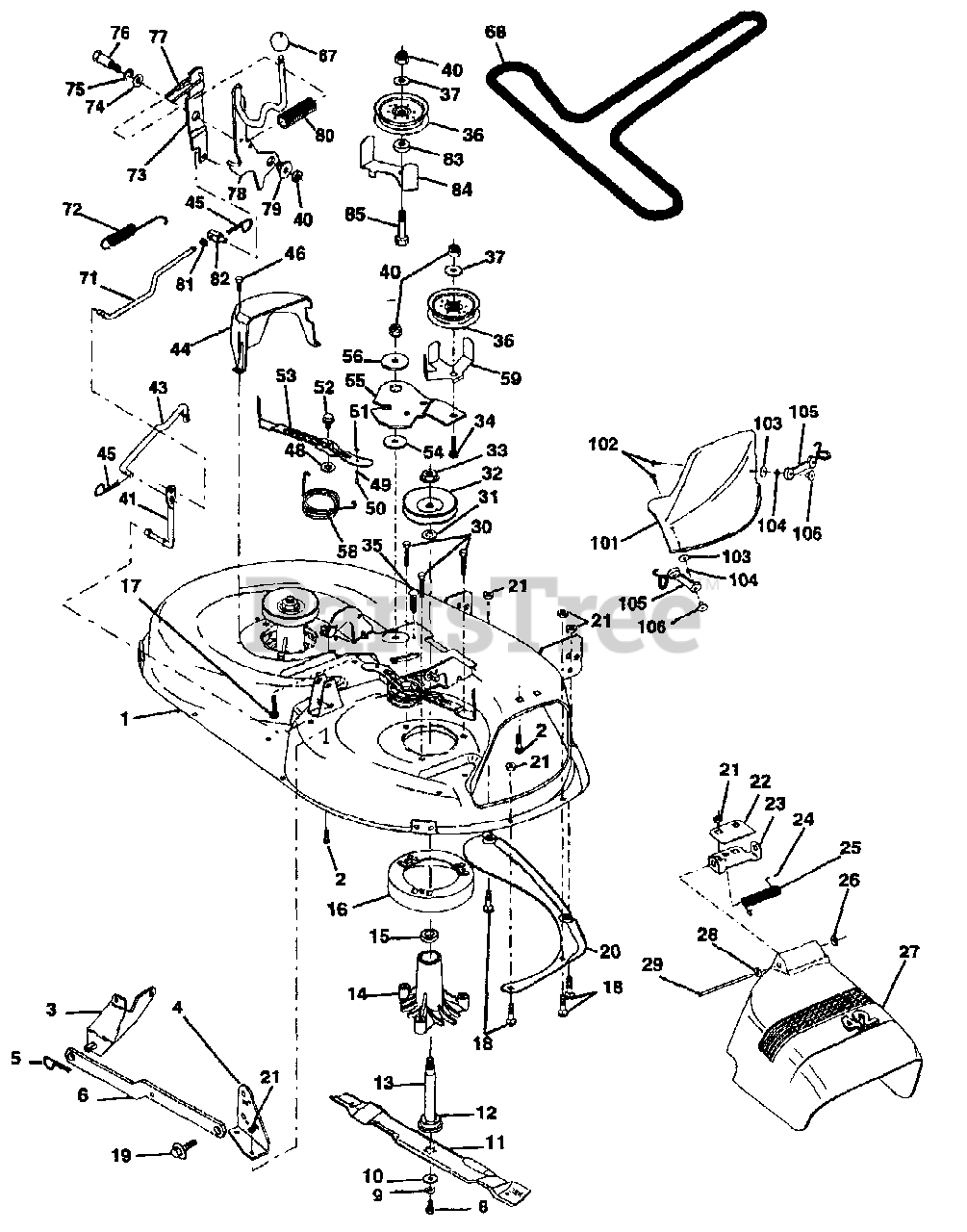

42" Mower Deck Parts Diagram

  • Title

1

Husqvarna 532144393

Deck Asm Mower 42"
(Superseded to 532176031)

$319.99

$

Usually ships in 3-10 days

0

2

Husqvarna 872140506

Bolt Rdhd Sqnk 5/16-18unc X3/4
(Superseded to 595901601)

$3.99

$

In Stock, Qty 20+

0

3

Husqvarna 532138017

Bracket Asm Fr Sway Bar

$12.99

$

In Stock, only 1 left!

0

4

Husqvarna 532138440

Bracket Asm Deck Sway Bar 42"

$6.49

$

Usually ships in 3-10 days

0

5

Husqvarna 532124670

Retainer Spring

$

$

Not available

6

Husqvarna 532130832

Arm Suspension Rear
(Superseded to 532130833)

$8.99

$

In Stock, only 4 left!

0

8

Husqvarna 532850857

Bolt 3/8-24x1 25 Gr8 Patched

$4.99

$

In Stock, only 3 left!

0

9

Husqvarna 810030600

Washer Lock Hvy 3/8 Unplated
(Superseded to 810040600)

$4.99

$

In Stock, Qty 20+

0

10

Husqvarna 532140296

Washer Hard Blade Mower Vented

$6.99

$

In Stock, only 2 left!

0

11

Husqvarna 532134149

Blade
(Superseded to 594892701)

$

$

Not available

12

Husqvarna 532129895

Bearing Ball #6204 (Mandrel)

$11.99

$

In Stock, Qty 20+

0

13

Husqvarna 532137645

Shaft Asm W/lower Bearing
(Superseded to 532137646)

$34.99

$

In Stock, only 2 left!

0

14

Husqvarna 532128774

Housing Mandrel Vented (machd)

$34.99

$

In Stock, only 2 left!

0

15

Husqvarna 532110485

Bearing Ball Mandrel

$13.99

$

In Stock, Qty 7

0

16

Husqvarna 532140329

Stripper Mower Vented
(Superseded to 532174493)

$7.49

$

Usually ships in 3-10 days

0

17

Husqvarna 872110610

Bolt Rdhd Sqnk 3/8-16 X 1-1/4
(Superseded to 872140614)

$4.99

$

Usually ships in 3-10 days

0

18

Husqvarna 872140505

Bolt Rdhd Sqnk 5/16-18 X 5/8
(Superseded to 596136401)

$3.99

$

In Stock, Qty 20+

0

19

Husqvarna 532132827

Bolt Shoulder 5/16 - 18

$

$

Not available

20

Husqvarna 532136888

Baffle Vortex 42
(Superseded to 532159770)

$

$

Not available

21

Husqvarna 873680500

Nut Crownlock 5/16-18
(Superseded to 873690500)

$3.99

$

Usually ships in 3-10 days

0

22

Husqvarna 532134753

Stiffener Bracket 42" deck
(Superseded to 532177563)

$

$

Not available

23

Husqvarna 532131267

Bracket Deflector Mower 42"
(Superseded to 532177563)

$

$

Not available

24

Husqvarna 532105304

Cap Sleeve 80x 112 Blk Mower

$4.99

$

In Stock, Qty 20+

0

25

Husqvarna 532123713

Spring Torsion Deflector 2 52

$7.99

$

In Stock, only 3 left!

0

26

Husqvarna 532110452

Nut Push Phos & Oil

$3.99

$

Usually ships in 3-10 days

0

27

Husqvarna 532130968

Shield Deflector Mower 42" Blk"

$39.99

$

In Stock, Qty 12

0

28

Husqvarna 819111016

Washer 11/32 X 5/8 X 16 Ga

$3.99

$

Usually ships in 3-10 days

0

29

Husqvarna 532131491

Rod Hinge 42" 6 75 Wlg
(Superseded to 595297001)

$5.99

$

In Stock, Qty 20+

0

30

Husqvarna 532138776

Screw Thdrol Hex Head
(Superseded to 584953901)

$4.99

$

In Stock, Qty 20+

0

31

Husqvarna 532129963

Washer Spacer Mower Vented
(Superseded to 532187690)

$4.99

$

Usually ships in 3-10 days

0

32

Husqvarna 532129861

Pulley Mandrel 42"
(Superseded to 532173436)

$17.99

$

In Stock, Qty 20+

0

33

Husqvarna 532137266

Nut Flg Top Lock Cntr B 9/16
(Superseded to 532139729)

$9.49

$

In Stock, only 1 left!

0

34

Husqvarna 872110614

Bolt Rdhd 3/8-16uncx1-3/4 Gr5

$6.49

$

Usually ships in 3-10 days

0

35

Husqvarna 532133835

Fastner Christmas Tree

$7.49

$

Usually ships in 3-10 days

0

36

Husqvarna 532131494

Pulley Idler Flat 3 060
(Superseded to 597025001)

$26.99

$

In Stock, Qty 7

0

37

Husqvarna 819131316

Washer 13/32 X 13/16 X 16 Ga
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

40

Husqvarna 873680600

Nut Crownlock 3/8-16

$3.99

$

Usually ships in 3-10 days

0

41

Husqvarna 532133551

Rod Pivot W/nibs

$8.99

$

In Stock, only 1 left!

0

43

Husqvarna 532140083

Rod Clutch Secondary W/nibs

$

$

Not available

44

Husqvarna 532140088

Guard Mandrel LH Black

$34.99

$

In Stock, Qty 10

0

45

Husqvarna 532124788

Spring Retainer 1" Zinc/cad
(Superseded to 532004497)

$9.99

$

In Stock, Qty 12

0

46

Husqvarna 532137729

Screw Hex Thd Cut 1/4-20x5/8 T

$4.99

$

In Stock, Qty 20+

0

48

Husqvarna 532133944

Washer Hardened Smaller

$6.49

$

Usually ships in 3-10 days

0

49

Husqvarna 532133940

Roller Asm Cam Follower 42" dec
(Superseded to 532174284)

$10.99

$

In Stock, only 4 left!

0

50

Husqvarna 532131340

Bolt Shldr 10-24 Zinc Gr 5 42"

$

$

Not available

51

Husqvarna 532069180

Nut Lock #10-24 Unc

$6.49

$

Usually ships in 3-10 days

0

52

Husqvarna 532139888

Bolt Shoulder 5/16-18

$6.49

$

In Stock, only 1 left!

0

53

Husqvarna 532131845

Arm Asm Pad Brake
(Superseded to 532184907)

$14.99

$

Usually ships in 3-10 days

0

54

Husqvarna 532133943

Washer Hardened
(Superseded to 532178515)

$6.99

$

Usually ships in 3-10 days

0

55

Husqvarna 532140084

Arm Idler 42" mower LT/YT
(Superseded to 532151785)

$40.99

$

In Stock, only 1 left!

0

56

Husqvarna 532122052

Spacer Retainer Pm Mower
(Superseded to 532165723)

$6.99

$

In Stock, only 2 left!

0

58

Husqvarna 532140086

Spring Torsion Brakes

$6.49

$

In Stock, only 1 left!

0

59

Husqvarna 532141043

Guard Tuv Idler
(Superseded to 531165901)

$5.99

$

In Stock, only 3 left!

0

67

Husqvarna 532106933

Knob Rd 1/2-13 Plstc Thds Blk

$7.99

$

In Stock, only 1 left!

0

68

Husqvarna 532144200

V-Belt Mower

$45.99

$

Usually ships in 3-10 days

0

71

Husqvarna 532142427

Rod Clutch Primary 38/42
(Superseded to 532142655)

$

$

Not available

72

Husqvarna 532131870

Spring Return

$18.99

$

In Stock, only 1 left!

0

73

Husqvarna 532127847

Arm Clutch Secondary

$2.99

$

Usually ships in 3-10 days

0

74

Husqvarna 532121748

Washer 25/32 X 1-5/8 X 16 Ga

$4.99

$

In Stock, Qty 10

0

75

Husqvarna 812000029

Ring Klip #t5304-75

$4.99

$

Usually ships in 3-10 days

0

76

Husqvarna 532128903

Bolt Shoulder 3/8-16 Unc 1 44

$6.99

$

In Stock, only 2 left!

0

77

Husqvarna 532127845

Keeper Spring 4 000

$

$

Not available

78

Husqvarna 532140179

Arm Asm Clutch Primary

$

$

Not available

79

Husqvarna 532127498

Bushing 747 Od X 794 Lg Brass

$

$

Not available

80

Husqvarna 532128759

Spring Clutch Mower 2 750 Zinc
(Superseded to 532153701)

$

$

Not available

81

Husqvarna 873350600

Nut Hex Jam 3/8-16 unc
(Superseded to 873220600)

$6.49

$

In Stock, only 2 left!

0

82

Husqvarna 532142028

Trunnion Adj.

$

$

Not available

83

Husqvarna 532120958

Washer Sintered

$

$

Not available

84

Husqvarna 532144394

Keeper Belt Idler Fixed
(Superseded to 532156084)

$6.49

$

Usually ships in 3-10 days

0

85

Husqvarna 872140620

Bolt Carriage 3/8-16 x 2-1/2 Gr.5

$3.99

$

Usually ships in 3-10 days

0

101

Husqvarna 532136420

Cover Mulching 42" Black

$29.99

$

Usually ships in 3-10 days

0

102

Husqvarna 871161010

Screw
(Superseded to 871081010)

$3.99

$

In Stock, Qty 17

0

103

Husqvarna 810071000

Washer Lock #10

$4.99

$

In Stock, Qty 14

0

104

Husqvarna 819061216

Washer #10

$4.99

$

In Stock, only 1 left!

0

105

Husqvarna 532130758

Latch Asm Bagger
(Superseded to 597000601)

$6.99

$

In Stock, Qty 11

0

106

Husqvarna 532125004

Nut Weld .327/.304 #10-24
(Superseded to 596987401)

$3.99

$

In Stock, Qty 20+

0

Husqvarna 532130794

Mandrel Asm Service

Note: (Includes Key Nos. 8-10, 12-15, 31 and 33)

$56.99

$

In Stock, Qty 7

0

Husqvarna 532145411

Deck Serv 42" mech
(Superseded to 532164963)

Note: (Std. Deck - Order Mulcher Plate Components separately- Key Nos. 101-106)

$728.99

$

Usually ships in 3-10 days

0
