LTH 125 (954000782-A) - Husqvarna Lawn Tractor (1994-01) Engine Parts Diagram

Lawn Tractor

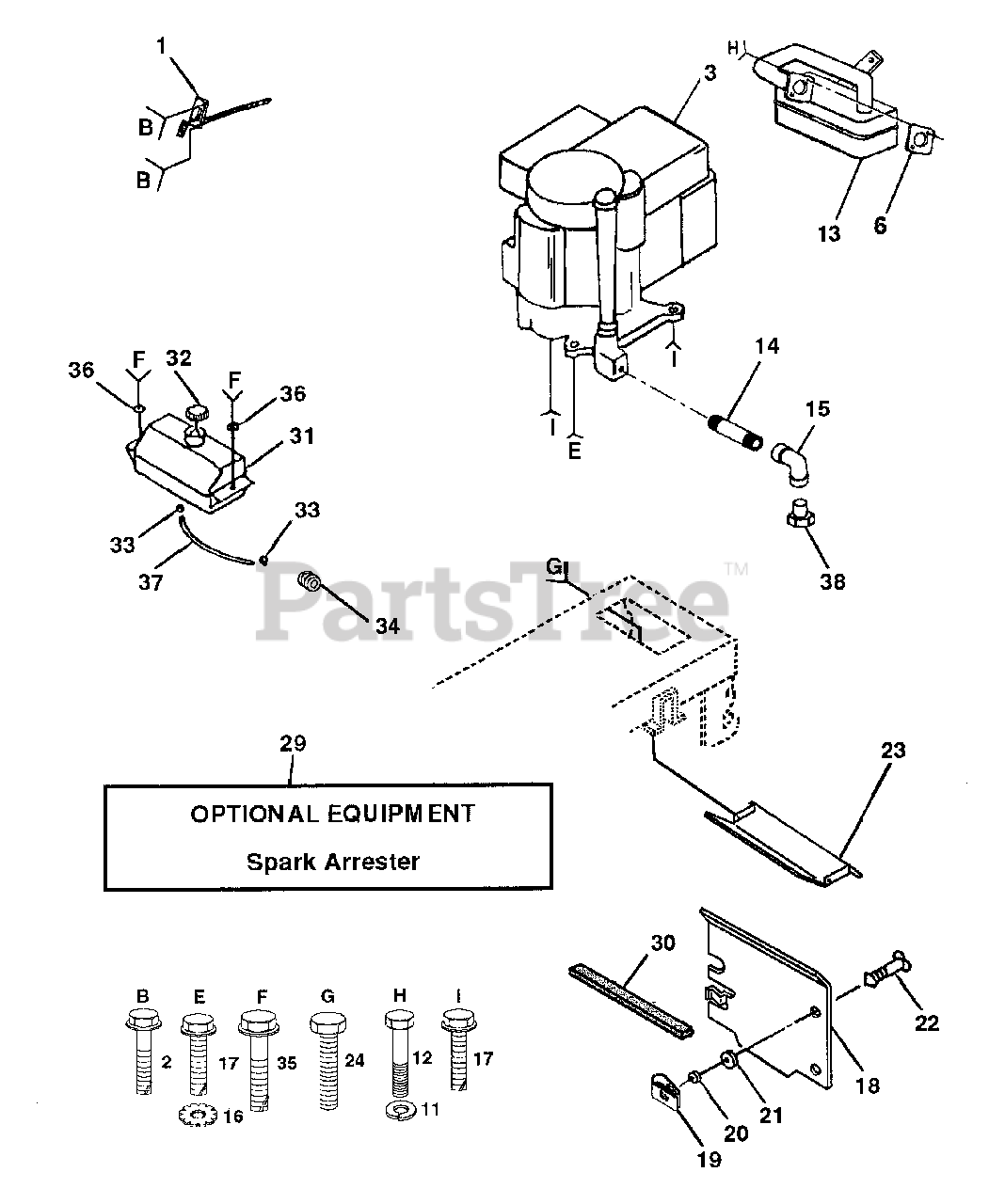

Engine Parts Diagram

  • Title
1

Husqvarna 532140310

Control Th/ch RH Blk Tee Eec
(Superseded to 532170551)

$37.99

$

Usually ships in 3-10 days

0

2

Husqvarna 817720410

Screw Hex Thd Cut 1/4-20x5/8 T
(Superseded to 874780410)

$3.99

$

In Stock, only 1 left!

0

3

Engine B&s 12.5HP Icq Dual 1vt Model No 286707

$

$

Not available

6

Husqvarna 532125593

Gasket Eng 1 313 Id Tin Plated
(Superseded to 532272293)

$12.99

$

Usually ships in 3-10 days

0

11

Husqvarna 810040500

Washer Lock Hvy Hlcl Spr 5/16
(Superseded to 596238801)

$3.99

$

In Stock, only 2 left!

0

12

Husqvarna 871070512

Screw Hexhd Cap 5/16-18x3/4
(Superseded to 532192334)

$

$

Not available

13

Husqvarna 532137348

Muffler LT B&s 12/12.5 HP

$102.99

$

In Stock, only 1 left!

0

14

Husqvarna 813280324

Nipple Pipe 3/8 Npt X 3"

$

$

Not available

15

Husqvarna 813200300

Elbow Std 90 Degree 3/8-18 Npt
(Superseded to 532428287)

$18.99

$

In Stock, Qty 5

0

16

Husqvarna 811050600

Washer Lock Ext Tooth 3/8
(Superseded to 810040600)

$4.99

$

In Stock, Qty 15

0

17

Husqvarna 817490620

Screw Thdrol 3/8-16x1-1/4 TYTT
(Superseded to 874760620)

$7.49

$

Usually ships in 3-10 days

0

18

Husqvarna 532136718

Shield Heat LT

$

$

Not available

19

Husqvarna 532105839

Receptacle 1/4 Turn dacrotized

$3.99

$

In Stock, only 1 left!

0

20

Husqvarna 532105838

Retainer 1/4 Turn 365 OD x .222 ID

$6.49

$

Usually ships in 3-10 days

0

21

Husqvarna 819091016

Washer 9/32 x 5/8 x 16 Ga

$4.99

$

Usually ships in 3-10 days

0

22

Husqvarna 532123650

Stud 1/4 Turn

Note: (Replaces 105751)

$6.49

$

Usually ships in 3-10 days

0

23

Husqvarna 532128953

Shield Heat Browning LT/YT

$

$

Not available

24

Husqvarna 817021008

Screw Tap Hex #10-24unc X 1/2

$4.99

$

In Stock, Qty 14

0

29

Husqvarna 532131780

Kit Spark Arrestor 1 25

$

$

Not available

30

Husqvarna 532127057

Pinch Weld Hood Black 2.00

$

$

Not available

31

Husqvarna 532140280

Tank Fuel Front 2.00
(Superseded to 532180645)

$

$

Not available

32

Husqvarna 532140527

Cap Asm Fuel W/sym Vented
(Superseded to 581075501)

$26.99

$

Usually ships in 3-10 days

0

33

Husqvarna 532123487

Clamp Hose Blk

$7.49

$

In Stock, only 1 left!

0

34

Husqvarna 532124028

Bushing Snap Nyl Blk Fuel Line

$5.99

$

In Stock, only 3 left!

0

35

Husqvarna 817490412

Screw Hexwsh Thdrol 1/4-20x3/4
(Superseded to 874760412)

$7.49

$

In Stock, only 1 left!

0

36

Husqvarna 819091416

Washer 9/32 X 7/8 X 16ga

$6.49

$

Usually ships in 3-10 days

0

37

Husqvarna 532137040

Line Fuel 9 20"
(Superseded to 587044820)

$11.99

$

In Stock, Qty 11

0

38

Plug Oil Drain

Note: (Order From Engine Manufacturer)

$

$

Not available
