LTH 120 (954140106-B) - Husqvarna Lawn Tractor (2000-01) Chassis And Enclosures Parts Diagram

Lawn Tractor

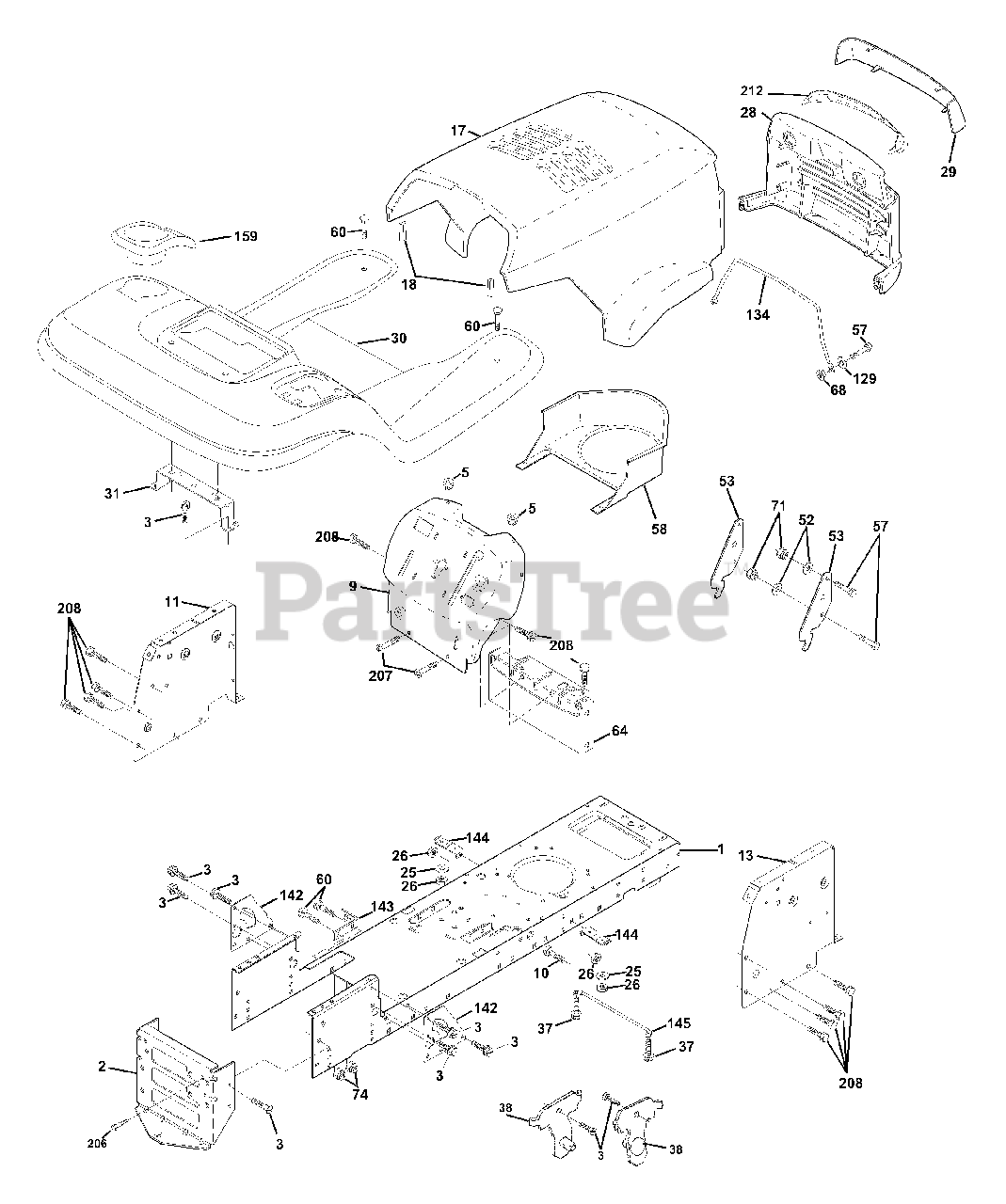

Chassis And Enclosures Parts Diagram

  • Title

1

Husqvarna 532169630

Chassis Stamping

$

$

Not available

2

Husqvarna 532169061

Drawbar, 12 Ga.
(Superseded to 532176554)

$43.99

$

Usually ships in 3-10 days

0

3

Husqvarna 817060612

Screw 3/8-16 x 3/4
(Superseded to 817000612)

$4.99

$

In Stock, only 4 left!

0

5

Husqvarna 532155272

Bumper Hood/Dash

$7.49

$

In Stock, only 3 left!

0

9

Husqvarna 532171708

Dash Slkscr
(Superseded to 532168337)

$

$

Not available

10

Husqvarna 872140608

Bolt Carriage 3/8-16 x 1
(Superseded to 872110608)

$4.99

$

In Stock, only 2 left!

0

11

Husqvarna 532155927

Panel Dash Lh
(Superseded to 532174996)

$

$

Not available

13

Husqvarna 532173025

Panel Dash Rh

$

$

Not available

17

Husqvarna 532165378

Hood LT/PL Husqvarna
(Superseded to 532156051)

$519.99

$

Usually ships in 3-10 days

0

18

Husqvarna 532126938

Bumper Hood

$

$

Not available

25

Husqvarna 819131312

Washer 13/32 X 13/16 X 12 Ga
(Superseded to 734117201)

$3.49

$

Usually ships in 3-10 days

0

26

Husqvarna 873800600

Nut Lock Hex W/Ins 3/8-16 Unc
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

28

Husqvarna 532165379

Grille LT/PL Husqvarna
(Superseded to 532156880)

$

$

Not available

29

Husqvarna 532165380

Lens LT/PL Husqvarna
(Superseded to 532149777)

$

$

Not available

30

Husqvarna 532171625

Fender Footrest STLT Pnt
(Superseded to 583713401)

$303.99

$

Usually ships in 3-10 days

0

31

Husqvarna 532139976

Bracket Support Fender

$17.99

$

Usually ships in 3-10 days

0

37

Husqvarna 817490508

Screw Thdrol 6/16-18 x 1/2 TYT
(Superseded to 539990858)

$3.99

$

Usually ships in 3-10 days

0

38

Husqvarna 532169834

Bracket Asm Pivot Mower Rear
(Superseded to 532175710)

$11.99

$

Usually ships in 3-10 days

0

52

Husqvarna 819091416

Washer 9/32 x 7/8 x 16 Ga.

$6.49

$

Usually ships in 3-10 days

0

53

Husqvarna 532150067

Bracket Pnt. Pick off LT/PL Husqvarna

$

$

Not available

57

Husqvarna 874780412

Bolt Hex 1/4-20 x 3/4
(Superseded to 874780414)

$6.49

$

Usually ships in 3-10 days

0

58

Husqvarna 532150127

Air Duct Engine P/L

$

$

Not available

60

Husqvarna 872140606

Bolt Rdhd Sqnk 3/8-16unc x 3/4

$

$

Not available

64

Husqvarna 532154798

Dash Lower STLT

$20.99

$

Usually ships in 3-10 days

0

68

Husqvarna 873510400

Nut Keps Hex 1/4-20unc
(Superseded to 873680400)

$4.99

$

In Stock, Qty 18

0

71

Husqvarna 873680400

Nut Cronwn Lock 1/4-20 Unc Blk D
(Superseded to 586668901)

$4.99

$

In Stock, Qty 18

0

74

Husqvarna 873680600

Nut Crownlock 3/8-16 UNC

$3.99

$

Usually ships in 3-10 days

0

129

Husqvarna 819091016

Washer 9/32 x 5/8 x 16 Ga.

$4.99

$

Usually ships in 3-10 days

0

134

Husqvarna 532160219

Rod Support Hood LT/PL Husq.

$7.99

$

Usually ships in 3-10 days

0

142

Husqvarna 532165867

Plate Reinforcement STLT
(Superseded to 532175702)

$9.49

$

Usually ships in 3-10 days

0

143

Husqvarna 532154966

Bracket Swaybar Chassis
(Superseded to 532186689)

$6.99

$

In Stock, only 2 left!

0

144

Husqvarna 532154207

Bracket Pnt Footrest STLT
(Superseded to 532175582)

$7.49

$

Usually ships in 3-10 days

0

145

Husqvarna 532156524

Rod Pivot Chassis/Hood
(Superseded to 532409167)

$13.99

$

In Stock, only 2 left!

0

159

Husqvarna 532166508

Cupholder Stlt Grey
(Superseded to 532155123)

$

$

Not available

206

Husqvarna 532170165

Bolt Shoulder 5/16-18 TT

$4.99

$

In Stock, Qty 7

0

207

Husqvarna 817670508

Screw Thdrol 5/16-18 x 1/2

$9.49

$

In Stock, only 2 left!

0

208

Husqvarna 817670608

Screw Thdrol 3/8-16x1/2 Ty-tt

$6.49

$

Usually ships in 3-10 days

0

212

Husqvarna 532156195

Insert Lens Reflective

$

$

Not available

Husqvarna 532005479

Plug Button

$5.99

$

Usually ships in 3-10 days

0
