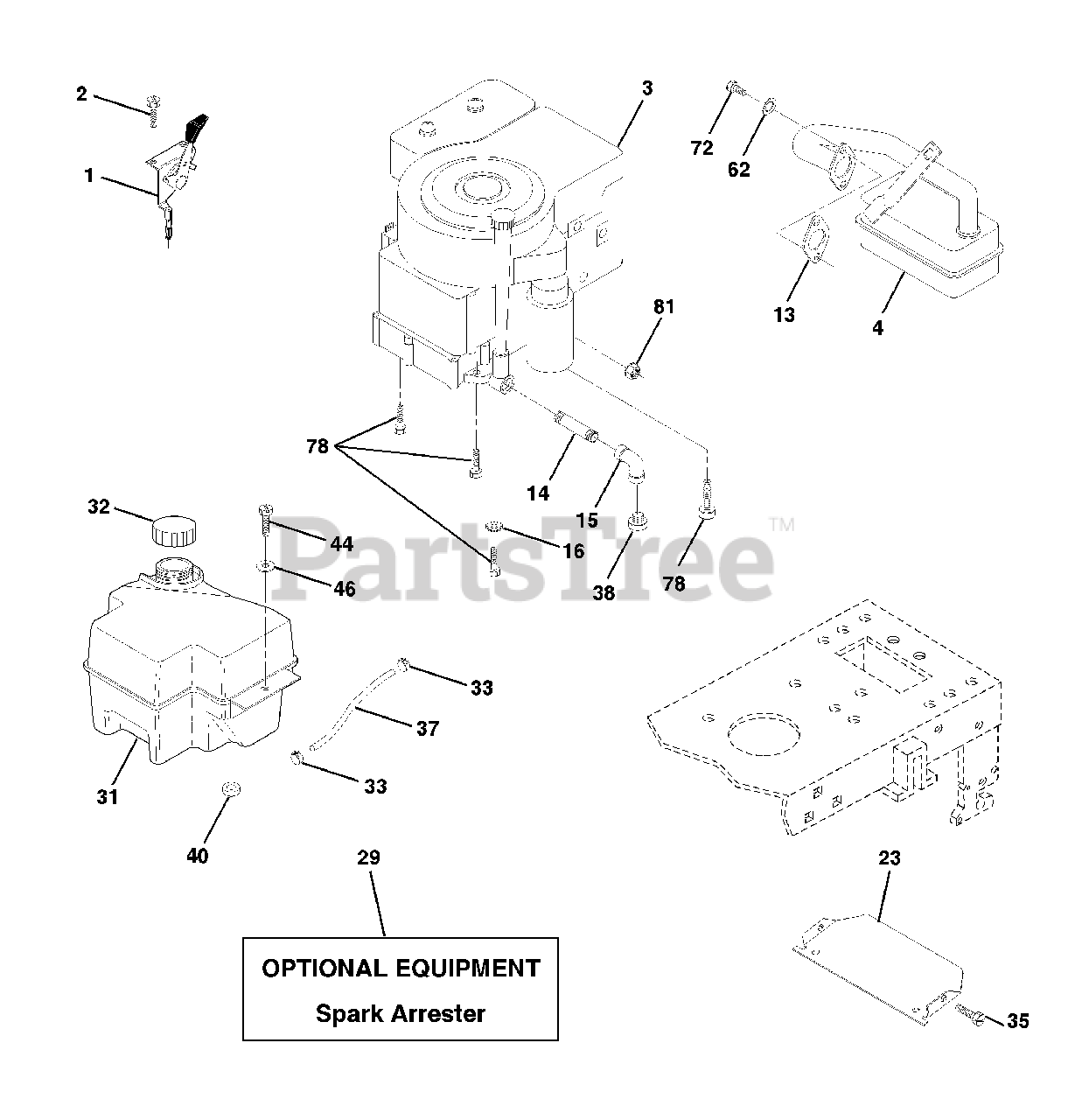

LTH 120 (954140013-A) - Husqvarna Lawn Tractor (1997-12) Engine Parts Diagram

Lawn Tractor

Engine Parts Diagram

  • Title
1

Husqvarna 532140310

Control Th/ch 23 5 LH Flag
(Superseded to 532170551)

$37.99

$

Usually ships in 3-10 days

0

2

Husqvarna 817720410

Screw Hex Thd Cut 1/4-20x5/8 T
(Superseded to 874780410)

$3.99

$

In Stock, only 1 left!

0

3

Engine

Note: Briggs 289707

$

$

Not available

4

Husqvarna 532137348

Muffler LT B&S 12/12.5/13HP

$102.99

$

In Stock, only 1 left!

0

13

Husqvarna 532272293

Gasket Eng 1 313 Id Tin Plated

$12.99

$

Usually ships in 3-10 days

0

14

Husqvarna 813280324

Nipple Pipe 3/8 Npt X 3"

$

$

Not available

15

Husqvarna 813200300

Elbow Std 90 Degree 3/8-18 Npt
(Superseded to 532428287)

$18.99

$

In Stock, only 4 left!

0

16

Husqvarna 811050600

Washer Lock Ext Tooth 3/8
(Superseded to 810040600)

$4.99

$

In Stock, Qty 19

0

23

Husqvarna 532156123

Shield Heat

$

$

Not available

29

Husqvarna 532137180

Kit Spark Arrestor (Flat Scrn)

$182.99

$

In Stock, only 1 left!

0

31

Husqvarna 532140280

Tank Fuel Front 2 00
(Superseded to 532180645)

$

$

Not available

32

Husqvarna 532140527

Cap Asm Fuel W/sym Vented
(Superseded to 581075501)

$26.99

$

Usually ships in 3-10 days

0

33

Husqvarna 532123487

Clamp Hose Black

$7.49

$

In Stock, only 4 left!

0

35

Husqvarna 817490512

Screw
(Superseded to 874780512)

$4.99

$

In Stock, Qty 20+

0

37

Husqvarna 532137040

Line Fuel 20"
(Superseded to 587044820)

$11.99

$

In Stock, Qty 11

0

38

Plug Oil Drain

Note: (Order From Engine Manufacturer)

$

$

Not available

40

Husqvarna 532124028

Bushing Snap Nyl Blk Fuel Line

$5.99

$

In Stock, only 3 left!

0

44

Husqvarna 817490412

Screw Hexwsh Thdrol 1/4-20 x 3/4
(Superseded to 874760412)

$7.49

$

In Stock, only 1 left!

0

46

Husqvarna 819091416

Washer 9/32 X 7/8 X 16 Ga

$6.49

$

Usually ships in 3-10 days

0

62

Husqvarna 810040500

Washer Lock Hvy Hlcl Spr 5/16
(Superseded to 596238801)

$3.99

$

In Stock, only 3 left!

0

72

Husqvarna 871070512

Screw Hexhd Cap 5/16-18 x 3/4
(Superseded to 532192334)

$

$

Not available

78

Husqvarna 817490620

Screw Thdrol 3/8-16 x 1-1/4 TYTT
(Superseded to 874760620)

$7.49

$

Usually ships in 3-10 days

0

81

Husqvarna 532128861

Nut Flange 1/4-20 Starter Nut
(Superseded to 873220400)

$6.49

$

In Stock, only 1 left!

0
