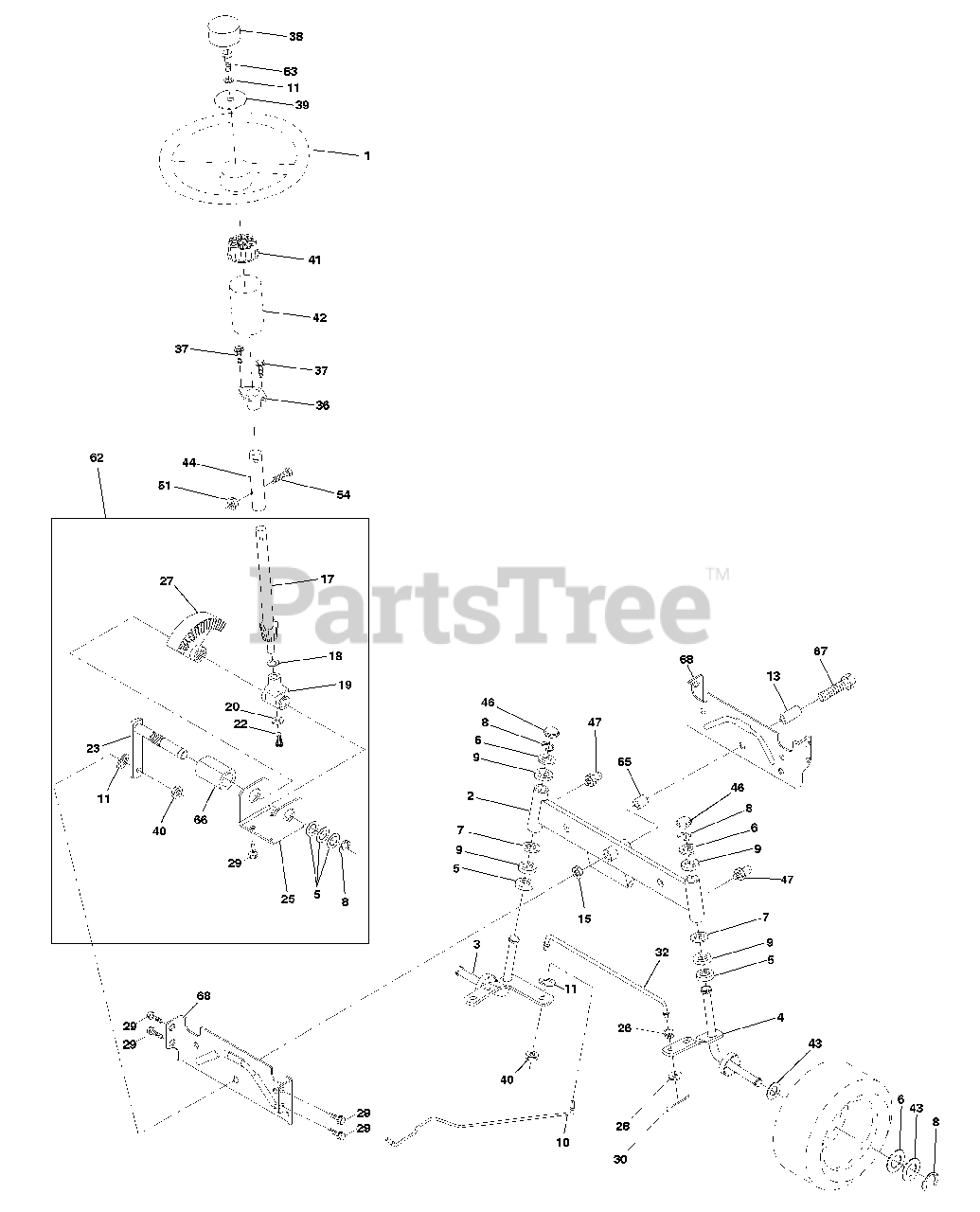

LTH 120 (954140003-D) - Husqvarna Lawn Tractor (1998-07) Steering Assembly Parts Diagram

Lawn Tractor

Steering Assembly Parts Diagram

  • Title
1

Husqvarna 532124415

Wheel Steering

$

$

Not available

2

Husqvarna 532154427

Axle Asm STMP Dropped STL
(Superseded to 532175131)

$68.99

$

In Stock, Qty 20+

0

3

Husqvarna 532156483

Spindle Asm LH

$26.99

$

Usually ships in 3-10 days

0

4

Husqvarna 532157473

Spindle Asm RH

$26.99

$

In Stock, only 1 left!

0

5

Husqvarna 532124931

Bearing Race Thrust Harden
(Superseded to 532006266)

$7.49

$

In Stock, Qty 15

0

6

Husqvarna 532121748

Washer 25/32 X 1-5/8 X 16 Ga

$4.99

$

In Stock, Qty 10

0

7

Husqvarna 819272016

Washer 27/32 X 1-1/4 X 16 Ga

$6.49

$

In Stock, only 2 left!

0

8

Husqvarna 812000029

Ring Klip #t5304-75

$4.99

$

Usually ships in 3-10 days

0

9

Husqvarna 532124937

Bearing Col Strg Blk
(Superseded to 532003366)

$4.99

$

In Stock, Qty 20+

0

10

Husqvarna 532156438

Link Drag Extended Stamp

$93.99

$

In Stock, only 1 left!

0

11

Husqvarna 810040600

Washer Lock Hvy Hlcl Spr 3/8
(Superseded to 596238701)

$4.99

$

In Stock, Qty 20+

0

13

Husqvarna 532154779

Bearing Axle STLT/GT

$10.99

$

In Stock, only 1 left!

0

15

Husqvarna 873901000

Nut Lock Flange 5/8-11 Unc
(Superseded to 873681000)

$3.49

$

Usually ships in 3-10 days

0

17

Husqvarna 532156546

Shaft Asm Strg
(Superseded to 531166901)

$49.99

$

In Stock, Qty 5

0

18

Husqvarna 532057079

Washer Thrust 515 x 750 x 033

$6.49

$

In Stock, Qty 12

0

19

Husqvarna 532124035

Support Shaft
(Superseded to 532160395)

$10.99

$

In Stock, Qty 8

0

20

Husqvarna 532126684

Washer Shim 1/4 X 5/8 X 062
(Superseded to 819091016)

$4.99

$

Usually ships in 3-10 days

0

22

Husqvarna 871200410

Screw Hex Socket 1/4-20 x 5/8
(Superseded to 532165857)

$6.49

$

In Stock, only 4 left!

0

23

Husqvarna 532127501

Shaft Asm Pittman
(Superseded to 532156365)

$

$

Not available

25

Husqvarna 532154406

Bracket Steering

$8.99

$

In Stock, only 1 left!

0

26

Husqvarna 532126847

Bushing Link Drag Blk LR

$5.99

$

In Stock, only 2 left!

0

27

Husqvarna 532136874

Gear Sector

$80.99

$

In Stock, only 1 left!

0

28

Husqvarna 819131416

Washer 13/32 X 7/8 X 16 Ga
(Superseded to 819131414)

$6.49

$

In Stock, only 2 left!

0

29

Husqvarna 817490612

Screw Thdrol 3/8-16x3/4 Ty-tt
(Superseded to 874780612)

$7.49

$

In Stock, only 2 left!

0

30

Husqvarna 876020412

Pin Cotter 1/8 X 3/4 Cad
(Superseded to 539990365)

$6.49

$

In Stock, Qty 20+

0

32

Husqvarna 532130465

Rod Tie Wire Form 19 75 Mech
(Superseded to 532192757)

$34.99

$

In Stock, only 2 left!

0

36

Husqvarna 532155099

Bushing Strg
(Superseded to 532155106)

$10.99

$

In Stock, Qty 13

0

$7.49

$

In Stock, only 2 left!

0

38

Husqvarna 532124416

Insert Cap Strg Wh Au

$

$

Not available

39

Husqvarna 819133808

Washer 13/32 X 2-3/8 X 8 Ga
(Superseded to 819133812)

$

$

Not available

40

Husqvarna 532124701

Lock nut
(Superseded to 873610600)

$3.99

$

Usually ships in 3-10 days

0

41

Husqvarna 532100711

Adaptor Wheel Strg
(Superseded to 587738905)

$9.49

$

In Stock, Qty 5

0

42

Husqvarna 532155092

Boot Steering Shaft
(Superseded to 532145054)

$

$

Not available

43

Husqvarna 532121749

Washer 25/32 X 1 1/4 X 16 Ga

$3.49

$

Usually ships in 3-10 days

0

44

Husqvarna 532153720

Extension Steering Shaft LR/LT
(Superseded to 532153721)

$

$

Not available

46

Husqvarna 532121232

Cap Spindle Fr Top Blk

$4.99

$

In Stock, Qty 8

0

47

Husqvarna 532124836

Fitting Grease
(Superseded to 532183226)

$7.49

$

In Stock, only 2 left!

0

51

Husqvarna 873800500

Nut Lock Hex w/Ins 5/16-18

$3.99

$

Usually ships in 3-10 days

0

54

Husqvarna 874780520

Bolt Fin Hex 5/16-18 Unc x 1-1/4
(Superseded to 874520520)

$4.99

$

Usually ships in 3-10 days

0

62

Husqvarna 532156594

Kit, Steering Assembly Svc
(Superseded to 584371701)

$136.99

$

In Stock, only 1 left!

0

63

Husqvarna 874780616

Bolt Fin Hex 3/8-16unc x 1 Gr. 5

$6.49

$

Usually ships in 3-10 days

0

65

Husqvarna 532154780

Spacer Axle

$9.99

$

Usually ships in 3-10 days

0

66

Husqvarna 532154404

Bearing Arm Pittman

$6.49

$

In Stock, only 3 left!

0

67

Husqvarna 874781044

Bolt, Fin Hex 5/8-11 UNC x 2-3/4

$

$

Not available

68

Husqvarna 532154429

Axle, Brace

$21.99

$

Usually ships in 3-10 days

0
