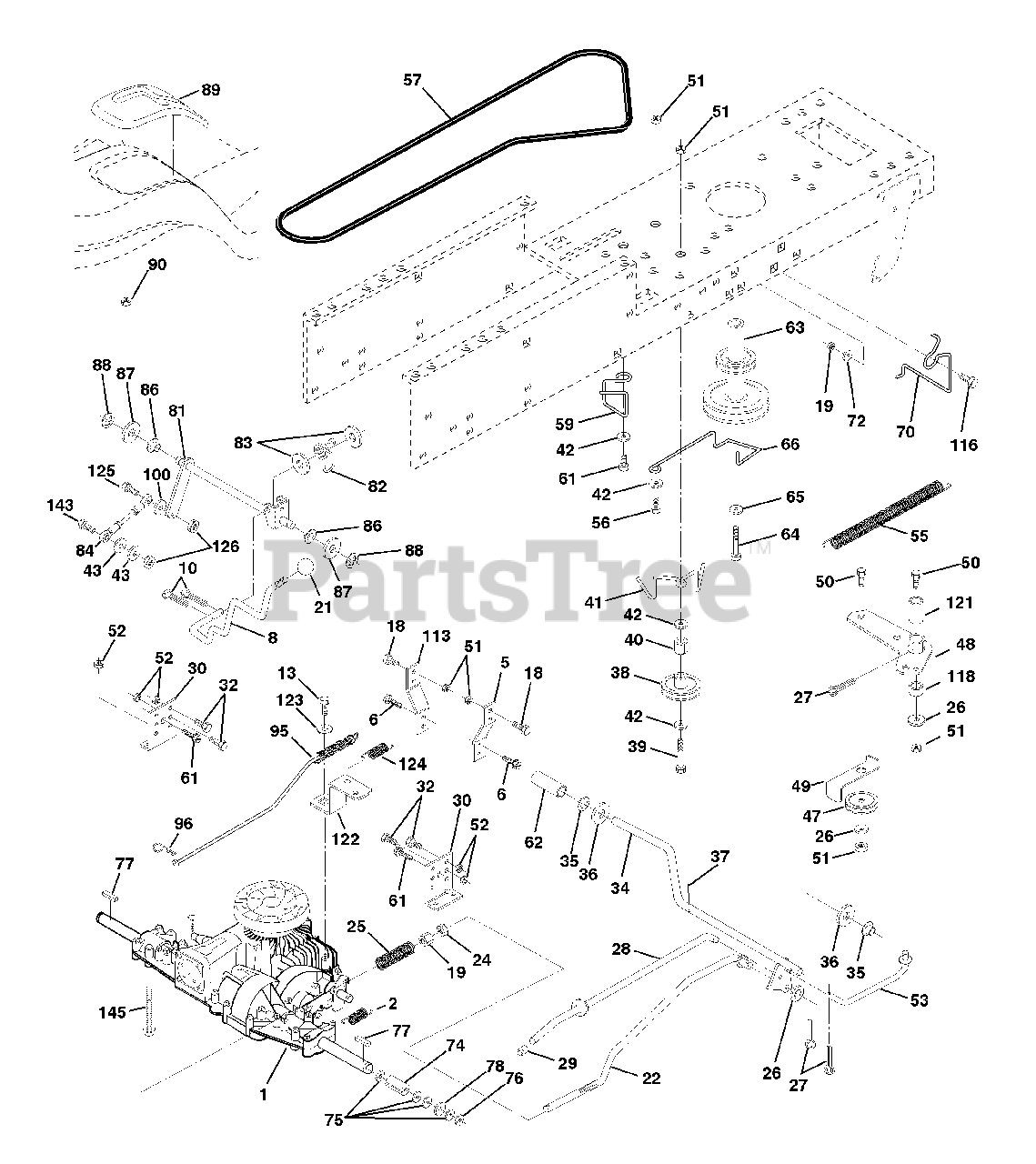

LTH 120 (954140003-B) - Husqvarna Lawn Tractor (1997-12) Drive Parts Diagram

Lawn Tractor

Drive Parts Diagram

  • Title

1

Transaxle

Note: (See "Peerless Transaxle" illustration and parts list) Peerless Model 205-027B

$

$

Not available

2

Husqvarna 532146682

Spring, Return Brake

$8.99

$

In Stock, only 2 left!

0

5

Husqvarna 532121520

Strap Torque

$7.99

$

In Stock, only 3 left!

0

6

Husqvarna 817490512

Screw Thdrol 5/16-18 x 3/4
(Superseded to 874780512)

$4.99

$

In Stock, Qty 20+

0

8

Husqvarna 532154792

Rod Shift Hydro STLT

$12.99

$

Usually ships in 3-10 days

0

10

Husqvarna 876020416

Pin Cotter 1/8 x 1 CAD

$3.99

$

Usually ships in 3-10 days

0

13

Husqvarna 874550412

Bolt 1/4-28 Unf Gr. 8 W/Patch
(Superseded to 871040412)

$6.49

$

Usually ships in 3-10 days

0

15

Husqvarna 874490544

Bolt Hex Flghd 5/16-18 Gr. 5

$4.99

$

Usually ships in 3-10 days

0

18

Husqvarna 874780616

Bolt Fin Hex 3/8-16 Unc x 1 Gr. 5

$6.49

$

Usually ships in 3-10 days

0

19

Husqvarna 873800600

Nut Lock Hex W/Wsh 3/8-16 Unc
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

21

Husqvarna 532106933

Knob, Round 1/2-13

$7.99

$

In Stock, only 1 left!

0

22

Husqvarna 532130804

Rod, Brake

$31.99

$

Usually ships in 3-10 days

0

24

Husqvarna 873350600

Nut, Hex Jam 3/8-16 Unc
(Superseded to 873220600)

$6.49

$

In Stock, only 2 left!

0

25

Husqvarna 532106888

Spring, Brake Rod
(Superseded to 532151332)

$6.49

$

In Stock, only 1 left!

0

26

Husqvarna 819131316

Washer
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

27

Husqvarna 876020412

Pin Cotter 1/8 x 3/4 CAD.
(Superseded to 539990365)

$6.49

$

In Stock, Qty 20+

0

28

Husqvarna 532145204

Rod, Parking Brake

$

$

Not available

29

Husqvarna 532071673

Cap, Parking Brake

$5.99

$

Usually ships in 3-10 days

0

30

Husqvarna 532130807

Bracket, Transaxle

$3.99

$

Usually ships in 3-10 days

0

32

Husqvarna 874760512

Bolt Hex Hd 5/16-18 Unc x 3/4
(Superseded to 874780512)

$4.99

$

In Stock, Qty 20+

0

34

Husqvarna 532155071

Shaft, Foot Pedal

$

$

Not available

35

Husqvarna 532120183

Bearing, Nylon

$6.99

$

In Stock, only 3 left!

0

36

Husqvarna 819211616

Washer

$6.49

$

Usually ships in 3-10 days

0

37

Husqvarna 532124963

Pin, Roll
(Superseded to 532002882)

$4.99

$

In Stock, Qty 7

0

38

Husqvarna 532123674

Pulley, Idler, Flat

$31.99

$

In Stock, only 1 left!

0

39

Husqvarna 874760644

Bolt

$6.49

$

Usually ships in 3-10 days

0

40

Husqvarna 532124965

Spacer, Split

$6.49

$

Usually ships in 3-10 days

0

41

Husqvarna 532154777

Keeper, Belt, Idler
(Superseded to 532165838)

$

$

Not available

42

Husqvarna 819131312

Washer 13/32 x 13/16 x 12 Gauge
(Superseded to 734117201)

$3.49

$

Usually ships in 3-10 days

0

43

Husqvarna 819111012

Washer 11/32 x 5/8 x 12 Ga.

$6.49

$

Usually ships in 3-10 days

0

47

Husqvarna 532127783

Pulley, Idler, V-Groove
(Superseded to 532139245)

$37.99

$

Usually ships in 3-10 days

0

48

Husqvarna 532154604

Bellcrank Assembly

$

$

Not available

49

Husqvarna 532123205

Retainer, Belt

$6.49

$

Usually ships in 3-10 days

0

50

Husqvarna 874760624

Bolt
(Superseded to 874930624)

$7.99

$

Usually ships in 3-10 days

0

51

Husqvarna 873680600

Nut Crownlock 3/8-16 UNC

$3.99

$

Usually ships in 3-10 days

0

52

Husqvarna 873680500

Nut, Crownlock 5/16-18 Unc
(Superseded to 873690500)

$3.99

$

Usually ships in 3-10 days

0

53

Husqvarna 532105710

Link, Clutch
(Superseded to 532199652)

$13.99

$

Usually ships in 3-10 days

0

55

Husqvarna 532105709

Spring, Return, Clutch

$11.99

$

Usually ships in 3-10 days

0

56

Husqvarna 874760620

Bolt Hex 3/8-16 x 1-1/4

$7.49

$

Usually ships in 3-10 days

0

57

Husqvarna 532156971

V-Belt, Ground Drive
(Superseded to 584448801)

$

$

Not available

59

Husqvarna 532140312

Keeper, Center Span
(Superseded to 532169691)

$26.99

$

Usually ships in 3-10 days

0

61

Husqvarna 817490612

Screw Thdrol. 3/8-16 x 3/4 Ty. TT
(Superseded to 874780612)

$7.49

$

In Stock, only 2 left!

0

62

Husqvarna 532124872

Cover, Pedal
(Superseded to 532008883)

$6.49

$

In Stock, Qty 14

0

63

Husqvarna 532140186

Pulley, Engine

$113.99

$

Usually ships in 3-10 days

0

64

Husqvarna 871170764

Bolt Hex 7/16-20 X 4 Gr. 5
(Superseded to 532173937)

$4.99

$

Usually ships in 3-10 days

0

65

Husqvarna 810040700

Washer
(Superseded to 539990247)

$

$

Not available

66

Husqvarna 532154778

Keeper Belt Engine

$12.99

$

Usually ships in 3-10 days

0

70

Husqvarna 532134683

Keeper Belt Engine

$

$

Not available

72

Husqvarna 819132012

Washer 13/32 x 1-1/4 x 12 Gauge
(Superseded to 596134901)

$3.49

$

Usually ships in 3-10 days

0

74

Husqvarna 532156972

Spacer, Axle PVST

$6.99

$

Usually ships in 3-10 days

0

75

Husqvarna 532121749

Washer 25/32 x 1-1/4 x 16 Gauge

$3.49

$

Usually ships in 3-10 days

0

76

Husqvarna 812000001

E-Ring

$4.99

$

Usually ships in 3-10 days

0

77

Husqvarna 532123583

Key, Square

$4.99

$

In Stock, only 4 left!

0

78

Husqvarna 532121748

Washer 25/32 x 1-5/8 x 16 Gauge

$4.99

$

In Stock, Qty 20+

0

81

Husqvarna 532158461

Shaft Asm. Cross Hydro 18" Tires

$

$

Not available

82

Husqvarna 532123782

Spring Torsion T/A

$

$

Not available

83

Husqvarna 819171216

Washer 17/32 x 3/4 x 16 Ga.
(Superseded to 734117771)

$6.49

$

In Stock, only 2 left!

0

84

Husqvarna 532158286

Rod, Tie PVST 18"

$47.99

$

Usually ships in 3-10 days

0

86

Husqvarna 532071208

Bushing Rod Strig. 629/632 ID

$3.99

$

Usually ships in 3-10 days

0

87

Husqvarna 819212016

Washer 21/32 x 1-1/4 x 16 Ga.

$6.49

$

Usually ships in 3-10 days

0

88

Husqvarna 812000008

Ring Klip #5304-62

$6.49

$

Usually ships in 3-10 days

0

89

Husqvarna 532154882

Console, Shift
(Superseded to 532164890)

$24.99

$

Usually ships in 3-10 days

0

90

Husqvarna 532124346

Nut Self-Thd Wsh-Thd 1/4 Zinc

$7.99

$

In Stock, only 1 left!

0

95

Husqvarna 532156970

Rod Asm Bypass PVST

$

$

Not available

96

Husqvarna 532124788

Retainer Spring 1" Zinc/Cad
(Superseded to 532004497)

$9.99

$

In Stock, Qty 12

0

100

Husqvarna 819111216

Washer 11/32 x 3/4 x 16 Ga.
(Superseded to 734116301)

$3.99

$

In Stock, Qty 11

0

113

Husqvarna 532127285

Strap Torque LH LT

$

$

Not available

116

Husqvarna 872110610

Bolt Rdhd Sq. Neck 3/8-16 x 1.25
(Superseded to 872140614)

$4.99

$

Usually ships in 3-10 days

0

118

Husqvarna 532154774

Spacer Bellcrank

$

$

Not available

121

Husqvarna 532154419

Nyliner Clutching STL

$

$

Not available

122

Husqvarna 532156963

Plate Bypass PVST

$

$

Not available

123

Husqvarna 819091016

Washer 9/32 x 5/8 x 16 Ga.

$4.99

$

Usually ships in 3-10 days

0

124

Husqvarna 532156967

Spring Return PVST

$6.99

$

Usually ships in 3-10 days

0

125

Husqvarna 874780516

Bolt Fin Hex 5/16-18 Unc x 1

$6.49

$

Usually ships in 3-10 days

0

126

Husqvarna 532124949

Nut Lock 5/16-18 Unc

$3.99

$

Usually ships in 3-10 days

0

143

Husqvarna 874780520

Bolt Fin Hex 5/16-18unc x 1-1/4
(Superseded to 874520520)

$4.99

$

Usually ships in 3-10 days

0

145
