LTH 120 (954140003-A) - Husqvarna Lawn Tractor (1997-12) Hydro Transaxle - Model Number 310-500 Parts Diagram

Lawn Tractor

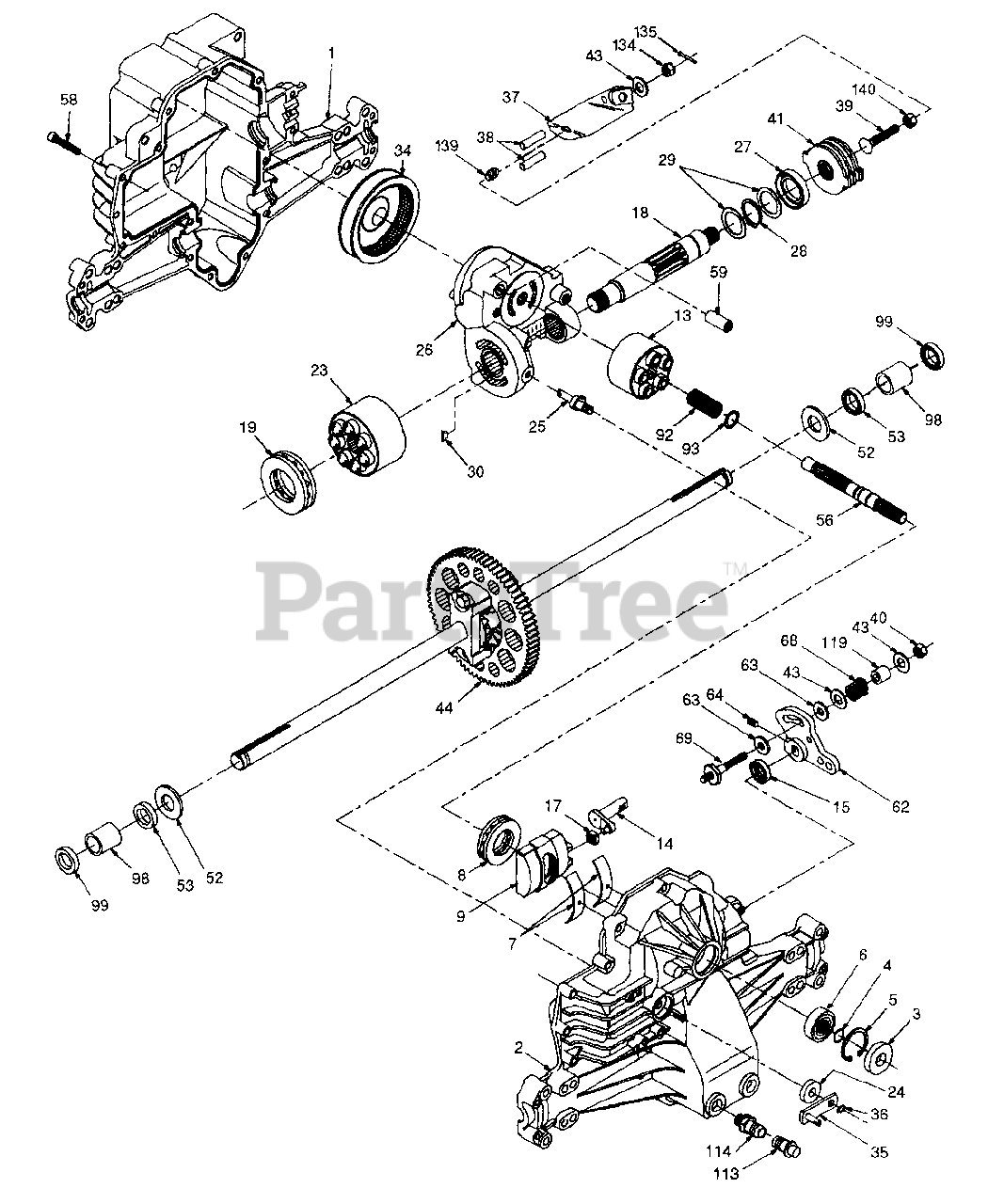

Hydro Transaxle - Model Number 310-500 Parts Diagram

  • Title
1

Husqvarna 532142986

Housing, Lower

$

$

Not available

2

Husqvarna 532142987

Assembly, Upper Housing

$132.99

$

Usually ships in 3-10 days

0

3

$

$

Not available

4

Husqvarna 532142928

Ring, Wire Retaining

$6.49

$

Usually ships in 3-10 days

0

5

Husqvarna 532142933

Ring, Retaining

$6.49

$

Usually ships in 3-10 days

0

6

Husqvarna 532142934

Bearing, Shaft Ball

$60.99

$

Usually ships in 3-10 days

0

7

Husqvarna 532142935

Bearing, Cradle

$30.99

$

Usually ships in 3-10 days

0

8

Husqvarna 532150771

Bearing, Thrust 30 x 52 x 13

$36.99

$

Usually ships in 3-10 days

0

9

Husqvarna 532142937

Swashplate, Variable

$160.99

$

Usually ships in 3-10 days

0

13

Husqvarna 532142938

Block, Cylinder Assembly
(Superseded to 532169898)

$145.99

$

Usually ships in 3-10 days

0

14

Husqvarna 532142939

Arm, Trunnion

$218.99

$

Usually ships in 3-10 days

0

15

$6.49

$

Usually ships in 3-10 days

0

17

Husqvarna 532142941

Guide, Slot

$7.99

$

Usually ships in 3-10 days

0

18

Husqvarna 532150772

Shaft, Motor

$

$

Not available

19

Husqvarna 532150773

Bearing, Thrust 42 x 68 x 16

$51.99

$

Usually ships in 3-10 days

0

23

Husqvarna 532142944

Block, Cylinder Assembly

$

$

Not available

24

Husqvarna 532142945

Seal, Lip 10 x 25 x 7

$

$

Not available

25

Husqvarna 532142946

Actuator, Bypass

$18.99

$

Usually ships in 3-10 days

0

26

Husqvarna 532150774

Center Section Assembly Kit
(Superseded to 532169051)

$461.99

$

Usually ships in 3-10 days

0

27

Husqvarna 532142948

Seal, Lip 26 x 42 x 8

$

$

Not available

28

Husqvarna 532142949

Ring, Retaining

$6.49

$

Usually ships in 3-10 days

0

29

Husqvarna 532142950

Washer 26 x 35 x 1

$3.99

$

Usually ships in 3-10 days

0

30

$

$

Not available

34

Husqvarna 532142951

Oil Filter Element
(Superseded to 532169893)

$125.99

$

Usually ships in 3-10 days

0

35

Husqvarna 532142952

Arm, Bypass

$21.99

$

Usually ships in 3-10 days

0

36

Husqvarna 532142953

Ring, Retaining

$6.49

$

Usually ships in 3-10 days

0

37

Husqvarna 532142954

Arm, Actuating
(Superseded to 532122660)

$12.99

$

Usually ships in 3-10 days

0

38

Husqvarna 532142955

Pin, Actuating

$10.99

$

Usually ships in 3-10 days

0

39

Husqvarna 532150777

Bolt 5/16-24 x 1-3/4

$5.99

$

Usually ships in 3-10 days

0

40

Husqvarna 532150778

Locknut, Hex 5/16-24 UNJC

$6.49

$

Usually ships in 3-10 days

0

41

Husqvarna 532142958

Brake Rotor/Stator Kit

$103.99

$

Usually ships in 3-10 days

0

43

Husqvarna 532142884

Washer 7/16 x 7/8 x .060

$

$

Not available

44

Husqvarna 532142990

Differential Assembly

$

$

Not available

52

Husqvarna 532142991

Washer 3/4 x 1.5 x .13

$7.49

$

Usually ships in 3-10 days

0

53

Husqvarna 532142961

Seal .75 x 1.25 x .250

$10.99

$

In Stock, only 2 left!

0

56

Husqvarna 532142963

Shaft, Input

$157.99

$

Usually ships in 3-10 days

0

58

Husqvarna 532142964

Bolt 1/4-20 x 1.38

$6.49

$

Usually ships in 3-10 days

0

59

Husqvarna 532142965

Pin .5 OD x .43 ID x .750

$10.99

$

Usually ships in 3-10 days

0

62

Husqvarna 532142966

Arm, Control

$40.99

$

Usually ships in 3-10 days

0

63

Husqvarna 532142967

Puck, Dampener

$7.49

$

Usually ships in 3-10 days

0

64

$9.99

$

Usually ships in 3-10 days

0

$

$

Not available

69

Husqvarna 532144610

Stud 5/16-24

$9.99

$

Usually ships in 3-10 days

0

92

Husqvarna 532142977

Spring, Block

$6.49

$

Usually ships in 3-10 days

0

93

Husqvarna 532142978

Washer, Block Thrust

$7.49

$

Usually ships in 3-10 days

0

98

Husqvarna 532142993

Sleeve Bearing

$14.99

$

In Stock, only 2 left!

0

99

Husqvarna 532142976

Seal, Wiper
(Superseded to 532169054)

$20.99

$

In Stock, only 2 left!

0

113

Husqvarna 532142917

Cap, Vent Assembly
(Superseded to 532142578)

$46.99

$

Usually ships in 3-10 days

0

114

Husqvarna 532142918

Fitting, 0-Ring Assembly

$

$

Not available

119

Husqvarna 532142980

Spacer
(Superseded to 584282801)

$4.99

$

Usually ships in 3-10 days

0

134

Husqvarna 532144607

Nut, Castle 5/16-24
(Superseded to 584281701)

$6.49

$

Usually ships in 3-10 days

0

135

Husqvarna 532144608

Pin, Cotter
(Superseded to 532122656)

$

$

Not available

139

Husqvarna 532150775

Spring, Compression

$6.49

$

Usually ships in 3-10 days

0

140

Husqvarna 532150776

Nut, Hex 5/16-24

$

$

Not available
