LTB/GTB 48 A (954633736) - Husqvarna Grass Catcher (2003-11) Grass Catcher Parts Diagram

Grass Catcher

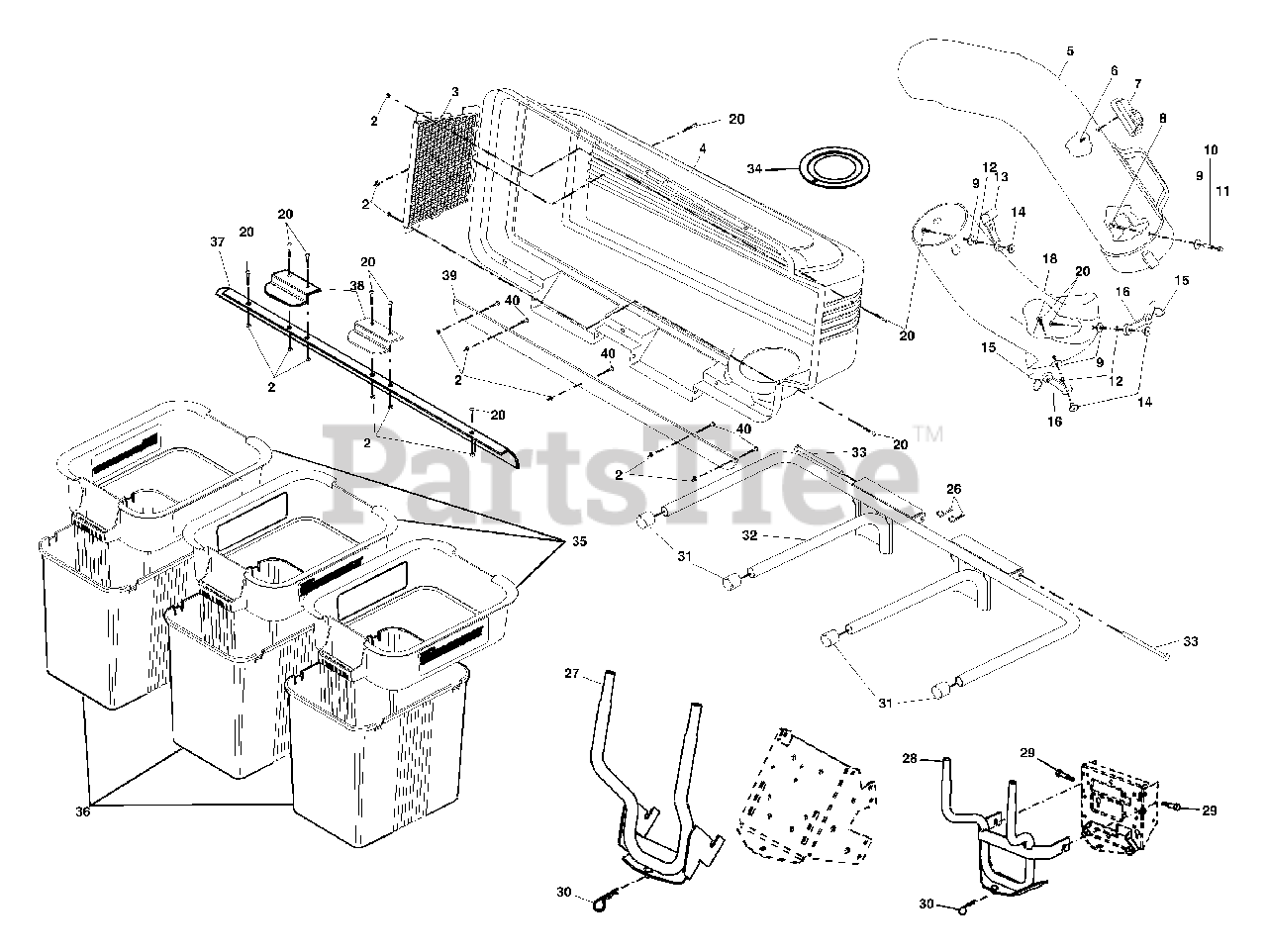

Grass Catcher Parts Diagram

  • Title
2

Husqvarna 532069180

Nut, Crownlock #10-24

$6.49

$

Usually ships in 3-10 days

0

3

Husqvarna 532127533

Screen, Cover

$18.99

$

Usually ships in 3-10 days

0

4

Husqvarna 532139850

Cover Assembly
(Superseded to 532400436)

Note: (Includes 3, 37, 38, 39)

$279.99

$

Usually ships in 3-10 days

0

5

Husqvarna 532176741

Chute, Upper

$133.99

$

Usually ships in 3-10 days

0

6

Husqvarna 818021008

Screw, Special #10-14x1/2

$5.99

$

Usually ships in 3-10 days

0

7

Husqvarna 532140572

Dump Bag Indicator

$8.99

$

In Stock, only 1 left!

0

8

Husqvarna 532087175

Screw, #10-24 x 1-1/8
(Superseded to 874981024)

$9.99

$

In Stock, Qty 10

0

9

Husqvarna 819061216

Washer 3/16x3/4x16 Ga.

$4.99

$

In Stock, only 1 left!

0

10

Husqvarna 532007206

Spacer, Split

$7.49

$

In Stock, Qty 8

0

11

Husqvarna 532060867

Nut, Acorn #10-24
(Superseded to 539108086)

$4.99

$

In Stock, Qty 20+

0

12

Husqvarna 810071000

Washer, Lock

$4.99

$

In Stock, Qty 14

0

13

Husqvarna 532109808

Latch, Chute

$6.99

$

In Stock, Qty 15

0

14

Husqvarna 532125004

Nut, Weld
(Superseded to 596987401)

$3.99

$

In Stock, Qty 20+

0

15

Husqvarna 532130760

Latch, Hook
(Superseded to 597000601)

$6.99

$

In Stock, Qty 11

0

16

Husqvarna 532130759

Rubber, Latch
(Superseded to 597000601)

$6.99

$

In Stock, Qty 11

0

18

Husqvarna 532174345

Chute, Lower

$133.99

$

Usually ships in 3-10 days

0

20

Husqvarna 871161010

Screw #10-24 x 5/8
(Superseded to 871081010)

$3.99

$

In Stock, Qty 18

0

26

Husqvarna 532124670

Spring, Retainer

$

$

Not available

27

Husqvarna 532176987

Support Assembly - GT

$84.99

$

Usually ships in 3-10 days

0

28

Husqvarna 532179534

Support Assembly - LT
(Superseded to 532403699)

$145.99

$

Usually ships in 3-10 days

0

29

Husqvarna 532176997

Shoulder Bolt,Self Tapping

$7.49

$

Usually ships in 3-10 days

0

30

Husqvarna 532165898

Spring, Retainer

$7.49

$

Usually ships in 3-10 days

0

31

Husqvarna 532174083

Plug, Tubing End

$7.49

$

In Stock, only 3 left!

0

32

Husqvarna 532176990

Bagger, Frame

$121.99

$

Usually ships in 3-10 days

0

33

Husqvarna 532128600

Pin, Hinge
(Superseded to 532192786)

$17.99

$

Usually ships in 3-10 days

0

34

Husqvarna 532127534

Gasket, Cover

$13.99

$

Usually ships in 3-10 days

0

35

Husqvarna 532183286

Container, Top

$34.99

$

Usually ships in 3-10 days

0

36

Husqvarna 532129586

Container, Bottom

$80.99

$

In Stock, only 4 left!

0

37

Husqvarna 532134637

Seal, Cover

$

$

Not available

38

Husqvarna 532130895

Latch Handle, Cover

$7.49

$

Usually ships in 3-10 days

0

39

Husqvarna 532186601

Strip, Reinforcement

$

$

Not available

40

Husqvarna 871141008

Screw #10-24 x 1/2

$

$

Not available

Husqvarna 532190227

Owner's Manual

$

$

Not available
