LTB 48 A - Husqvarna Grass Catcher (2002) Grass Catcher Parts Diagram

Grass Catcher

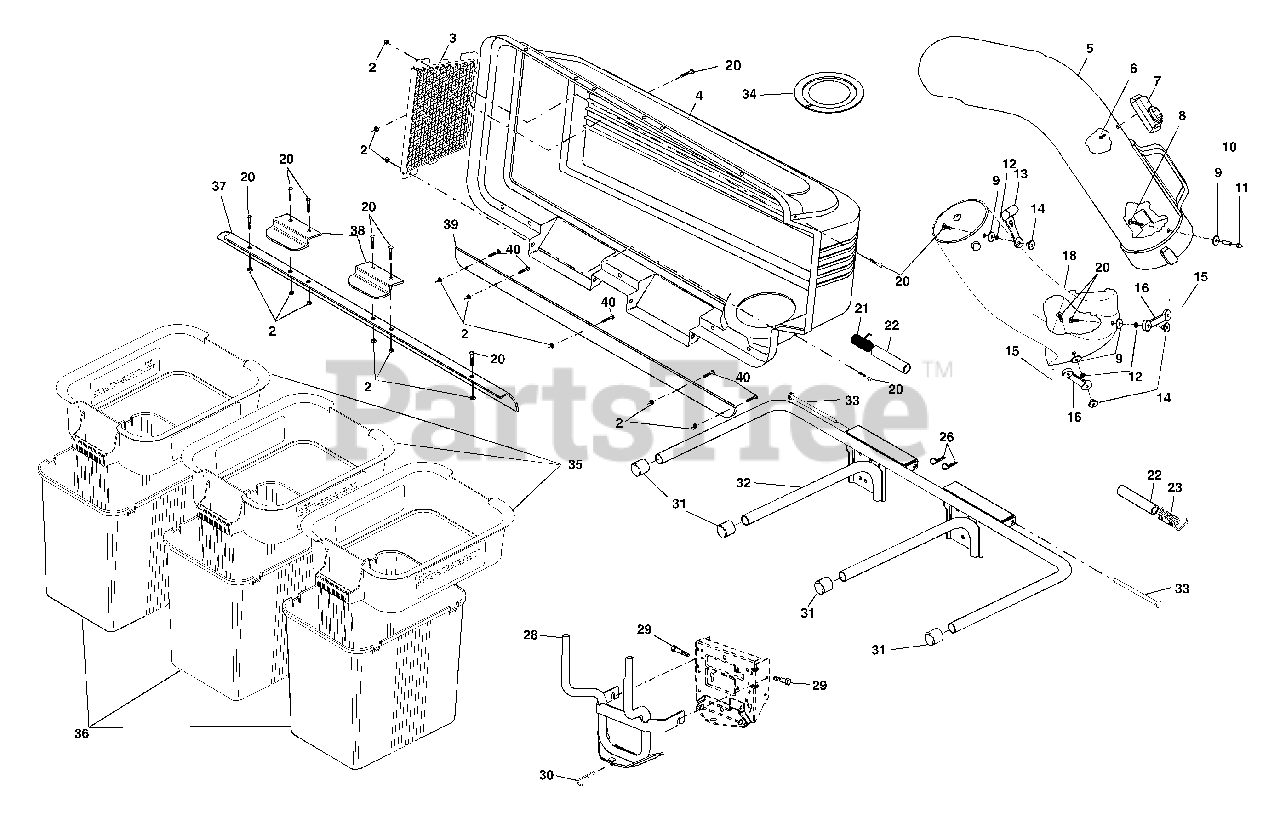

Grass Catcher Parts Diagram

  • Title

2

Electrolux/AYP 532069180

Nut, Crownlock #10-24

$6.49

$

Usually ships in 3-10 days

0

3

Electrolux/AYP 532127533

Screen, Cover

$18.99

$

Usually ships in 3-10 days

0

4

Electrolux/AYP 532134678

Cover
(Superseded to 532139850)

$279.99

$

Usually ships in 3-10 days

0

5

Electrolux/AYP 532176741

Chute, Upper

$133.99

$

Usually ships in 3-10 days

0

6

Electrolux/AYP 818021008

Screw, Special #10-14x1/2

$5.99

$

In Stock, Qty 10

0

7

Electrolux/AYP 532140572

Dump Bag Indicator

$8.99

$

Usually ships in 3-10 days

0

8

Electrolux/AYP 532087175

Screw, #10-24 x 1-1/8
(Superseded to 874981024)

$9.99

$

In Stock, Qty 9

0

9

Electrolux/AYP 819061216

Washer 3/16x3/4x16 Ga.

$4.99

$

In Stock, Qty 20+

0

10

Electrolux/AYP 532007206

Spacer, Split

$7.49

$

In Stock, Qty 18

0

11

Electrolux/AYP 532060867

Nut, Acorn #10-24
(Superseded to 60867)

$4.99

$

In Stock, Qty 20+

0

12

Electrolux/AYP 810071000

Washer, lock

$4.99

$

In Stock, Qty 20+

0

13

Electrolux/AYP 532109808

Latch, Chute

$6.99

$

In Stock, Qty 20+

0

14

Electrolux/AYP 532125004

Nut, Weld
(Superseded to 596987401)

$3.99

$

In Stock, Qty 20+

0

15

Electrolux/AYP 532130760

Latch, Hook
(Superseded to 532160793)

$

$

Not available

16

Electrolux/AYP 532130759

Rubber, Latch
(Superseded to 532160793)

$

$

Not available

18

Electrolux/AYP 532174345

Chute, Lower

$133.99

$

In Stock, only 2 left!

0

20

Electrolux/AYP 871161010

Screw #10-24 x 5/8
(Superseded to 871081010)

$6.49

$

Usually ships in 3-10 days

0

21

Electrolux/AYP 532132796

Spring, Cover L.H. (black)

$6.99

$

In Stock, only 2 left!

0

22

Electrolux/AYP 532140809

Spacer, Cover

$4.99

$

In Stock, only 3 left!

0

23

Electrolux/AYP 532132983

Spring, Cover R.H. (gray)

$6.99

$

In Stock, only 2 left!

0

26

Electrolux/AYP 532124670

Spring, Retainer
(Superseded to 532085902)

$

$

Not available

28

Electrolux/AYP 532179534

Support Assembly
(Superseded to 532403699)

$145.99

$

Usually ships in 3-10 days

0

29

Electrolux/AYP 532176997

Shoulder Bolt, Self Tapping

$7.49

$

In Stock, Qty 14

0

30

Electrolux/AYP 532165898

Spring, Retainer

$7.49

$

In Stock, Qty 10

0

31

Electrolux/AYP 532174083

Plug, Tubing End

$7.49

$

In Stock, Qty 8

0

32

Electrolux/AYP 532176990

Bagger, Frame

$121.99

$

Usually ships in 3-10 days

0

33

Electrolux/AYP 532128600

Pin, Hinge
(Superseded to 532192786)

$17.99

$

Usually ships in 3-10 days

0

34

Electrolux/AYP 532127534

Gasket, Cover

$13.99

$

In Stock, Qty 10

0

35

Electrolux/AYP 532129585

Container, Top
(Superseded to 532183286)

$34.99

$

Usually ships in 3-10 days

0

36

Electrolux/AYP 532129586

Container, Bottom

$80.99

$

In Stock, only 4 left!

0

37

Electrolux/AYP 532134637

Seal, Cover

$

$

Not available

38

Electrolux/AYP 532130895

Latch Handle, Cover

$7.49

$

In Stock, only 2 left!

0

39

Electrolux/AYP 532155857

Strip, Reinforcement

$14.99

$

Usually ships in 3-10 days

0

40

Electrolux/AYP 871141008

Screw #10-24 x 1/2

$

$

Not available

Electrolux/AYP 532104419

Bag, 3.0 mil. 30 Gallon Trash

Note: (Not included with bagger)

$

$

Not available

Electrolux/AYP 532178478

Owner's Manual

$

$

Not available
