LT02524JNSNA - Generac 25kW Home Standby Generator (SN: GXA00111 & Above) (2009) Cpl C2 H Control (0G2523D) Parts Diagram

25kW Home Standby Generator

Cpl C2 H Control (0G2523D) Parts Diagram

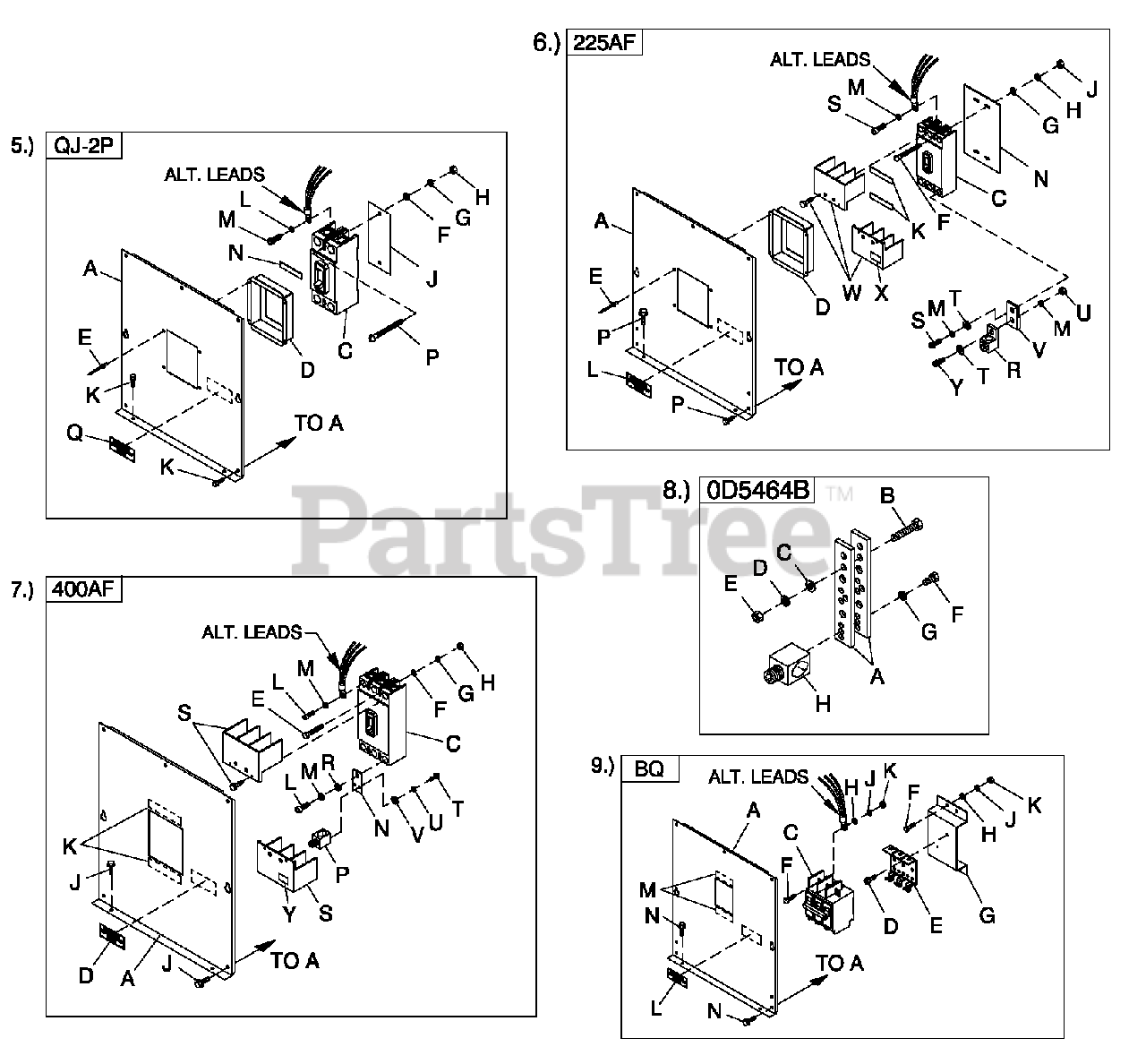

  • Title

UL CIRCUIT BREAKER (QJ-2P)

$

$

Not available

A

Generac 0F8137

COVER QJ 2P FRM CB

$

$

Not available

C

Generac 0E7994

CB 0225A 240V 2P S QJ22

$

$

Not available

D

Generac 0F8136

COVER QJ 2P CB DISH

$

$

Not available

E

Generac 036261

RIVET POP.125X.275SS

$

$

Not available

F

Generac 022473

WASHER FLAT 1/4-M6 ZINC
(Superseded to G022473)

$2.99

$

In Stock, only 2 left!

0

G

Generac 022097

WASHER LOCK M6-1/4
(Superseded to G022097)

$2.99

$

In Stock, only 1 left!

0

H

Generac 022127

NUT HEX 1/4-20 STEEL
(Superseded to G022127)

$4.99

$

In Stock, Qty 10

0

J

Generac 0F8139

INSULCB2P QJ

$

$

Not available

K

Generac 0C2454

SCREW THF M6-1 X 16 N WA Z/JS

$3.49

$

Usually ships in 2-12 days

0

L

Generac 022237

WASHER LOCK 3/8

$

$

Not available

M

Generac 048527

SCREW SHC 3/8-16 X 3/4 G8.8 NZ

$

$

Not available

N

Generac 029289

TAPE ELEC 1/2 FOAM (AS REQ' D)

$

$

Not available

P

Generac 022770

SCREW RHM 1/4-20X3

$

$

Not available

Q

Generac 0F1733

DECAL CUSTOMER CONNECT INSI DE

$2.49

$

Usually ships in 2-12 days

0

UL CIRCUIT BREAKER (225AF)

$

$

Not available

A

Generac 0F4185

COVER CBC2-C4 225AF

$311.99

$

Usually ships in 2-12 days

0

C

0F4165

CIRCUIT BREAKERS 200A FRAME

$

$

Not available

Generac 0F4143

CIRCUIT BREAKER 0040A 3P 480V 225AF

$724.99

$

Usually ships in 2-12 days

0

D

Generac 0F4186

COVER CB DISH 225AF

$44.99

$

Usually ships in 2-12 days

0

E

Generac 036261

RIVET POP .125X .275 SS

$

$

Not available

F

Generac 053640

SCREW RHM #8-32X3-1/4

$

$

Not available

G

Generac 038150

WASHER FLAT #8 ZINC
(Superseded to G038150)

$0.99

$

Usually ships in 2-12 days

0

H

Generac 022264

WASHER LOCK #8-M4
(Superseded to G022264)

$0.99

$

Usually ships in 2-12 days

0

J

Generac 022471

NUT HEX #8-32 STEEL
(Superseded to G022471)

$0.99

$

Usually ships in 2-12 days

0

K

Generac 029289

TAPE ELEC 1/2 FOAM

$

$

Not available

L

Generac 0F1733

DECAL CUSTOMER CONNECT INSI DE

$2.49

$

Usually ships in 2-12 days

0

M

Generac 022129

WASHER LOCK M8-5/16
(Superseded to G022129)

$2.49

$

In Stock, Qty 5

0

N

Generac 0F8432

INSULATOR CB225AF

$16.99

$

Usually ships in 2-12 days

0

P

Generac 0C2454

SCREW THF M6-1 X 16 N WA Z/JS

$3.49

$

Usually ships in 2-12 days

0

R

Generac 0F8451

LUG SLDLSS 300 MCM-6 AL/CU

$16.99

$

Usually ships in 2-12 days

0

S

Generac 049897

SCREW SHC M8-1.25X20G8

$

$

Not available

T

Generac 022145

WASHER FLAT 5/16-M8 ZINC
(Superseded to G022145)

$0.99

$

In Stock, Qty 10

0

U

Generac 045771

NUT HEX M8-1.25 G8 CLEARZINC
(Superseded to G045771)

$1.99

$

In Stock, Qty 5

0

V

Generac 0F8843

BUS BAR 200A LUG A DAPTOR

$29.99

$

Usually ships in 2-12 days

0

W

W/CB

TERMINAL COVER CB

Note: HAR DWARE FOR MTG. CB TERMINAL COVERS IS SUPPLIE D WITH CIRCUIT BREAKERS.

$

$

Not available

X

Generac 0G3259

DECAL TERMINAL SHOCK HZ D BI

$2.99

$

Usually ships in 2-12 days

0

Y

Generac 058306

SCREW SHC M8-1.25 X 25 G12.9
(Superseded to G058306)

$9.99

$

Usually ships in 2-12 days

0

UL CIRCUIT BREAKER (400AF)

$

$

Not available

A

Generac 0F4187

COVER CBC2-C4 400AF

$133.99

$

Usually ships in 2-12 days

0

C

0F4166+

CIRCUIT BREAKERS 400A FRAME

$

$

Not available

D

Generac 0F1733

DECAL CUSTOMER CONNECT INSI DE

$2.49

$

Usually ships in 2-12 days

0

E

Generac 042419

SCREW RHM 10-32X4

$

$

Not available

F

Generac 023897

WASHER FLAT #10 ZINC

$

$

Not available

G

Generac 022152

WASHER LOCK #10
(Superseded to G022152)

$3.49

$

In Stock, only 1 left!

0

H

Generac 022158

NUT HEX #10-32 STEEL

$

$

Not available

J

Generac 0C2454

SCREW THF M6-1 X 16 N WA Z/JS

$3.49

$

Usually ships in 2-12 days

0

K

Generac 029289

TAPE ELEC 1/2 FOAM

$

$

Not available

L

Generac 052647

SCREW SHC M10-1.5X 25 G12.9

Note: 2/3 QTY. 2 POLE & 3 POLE CB.

$

$

Not available

M

Generac 046526

WASHER LOCK M10

Note: 2/3 QTY. 2 POLE & 3 POLE CB.

$

$

Not available

N

W/CB

BUS BAR CB A DAPTER 225-400 A

$

$

Not available

P

Generac 0A7822

LUG SL DLSS 600/250-1/0 X 1/4-28

$46.99

$

Usually ships in 2-12 days

0

S

W/CB

TERM COVER CB

Note: HAR DWARE FOR MTG. CB TERMINAL COVERS IS SUPPLIE D WITH CIRCUIT BREAKERS.

$

$

Not available

T

Generac 023334

SCREW HHC 1/4-28 X 1/2 G5

$

$

Not available

U

Generac 022097

WASHER LOCK M6-1/4
(Superseded to G022097)

$2.99

$

In Stock, only 1 left!

0

V

Generac 022473

WASHER FLAT 1/4-M6 ZINC
(Superseded to G022473)

$2.99

$

In Stock, only 2 left!

0

W

W/CB

SCREW SHC M10-1.5X 25 G12.9

Note: 2/3 QTY. 2 POLE & 3 POLE CB.

$

$

Not available

X

W/CB

WASHER LOCK M10

Note: 2/3 QTY. 2 POLE & 3 POLE CB.

$

$

Not available

Y

Generac 0G3259

DECAL TERMINAL SHOCK HZ D BI

$2.99

$

Usually ships in 2-12 days

0

NEUTRAL BLOCK 390 / 200-400A

$

$

Not available

A

Generac 0D5466

BUS BAR NEUTRAL BLOCK 390

$23.99

$

Usually ships in 2-12 days

0

B

Generac 039287

SCREW HHC M8-1.25X 45 G8.8 FT

$

$

Not available

C

Generac 022145

WASHER FLAT 5/16-M8 ZINC
(Superseded to G022145)

$0.99

$

In Stock, Qty 10

0

D

Generac 022129

WASHER LOCK M8-5/16
(Superseded to G022129)

$2.49

$

In Stock, Qty 5

0

E

Generac 045771

NUT HEX M8-1.25G8YELCHR
(Superseded to G045771)

$1.99

$

In Stock, Qty 5

0

F

Generac 045335

SCREW HHC 1/4-28 X 3/4 G5

$

$

Not available

G

Generac 083896

WASHER LOCK 1/4-M6SS
(Superseded to G083896)

$7.99

$

Usually ships in 2-12 days

0

H

Generac 0A7822

LUG SL DLSS 600/250-1/0 X 1/4-28

$46.99

$

Usually ships in 2-12 days

0

UL CIRCUIT BREAKER (BQ)

$

$

Not available

A

Generac 0G1968

COVER BQ CIR BREAKER CPL 3P

$133.99

$

Usually ships in 2-12 days

0

Generac 0G1970

COVER BQ CIR BREAKER CPL 2P

$133.99

$

Usually ships in 2-12 days

0

C

Generac 0A2077

CB 0125A 2P 240V S BQ2 LL

$545.99

$

Usually ships in 2-12 days

0

Generac 040532

CB 0100A 3P 240V S BQ3 LL

$

$

Not available

Generac 062812

CB 0080A 3P 240V S BQ3 LL

$

$

Not available

D

Generac 0C3990

SCREW PHTT M4-0.7 X 10 ZYC

$0.99

$

Usually ships in 2-12 days

0

E

Generac 0E7890

BRKTCBMTG BACK

$11.99

$

Usually ships in 2-12 days

0

Generac 0E6002

MTG TRACK BQ SIEMENS CB 3P

$15.99

$

Usually ships in 2-12 days

0

F

Generac 022859

SCREW RHM #10-32X3/4

$

$

Not available

G

Generac 0G0008

BRKT BQCBSTANDOFF

$

$

Not available

H

Generac 023897

WASHER FLAT #10 ZINC

$

$

Not available

J

Generac 022152

WASHER LOCK #10
(Superseded to G022152)

$3.49

$

In Stock, only 1 left!

0

K

Generac 022158

NUT HEX #10-32 STEEL

$

$

Not available

L

Generac 0F1733

DECAL CUSTOMER CONNECT INSI DE

$2.49

$

Usually ships in 2-12 days

0

M

Generac 029289

TAPE ELEC 1/2 FOAM

$

$

Not available

N

Generac 0C2454

SCREW THF M6-1 X 16 N WA Z/JS

$3.49

$

Usually ships in 2-12 days

0
