LT-950 H (13AP616P790) - White Outdoor 50" Lawn Tractor (2006) Engine Accessories Parts Diagram

50" Lawn Tractor

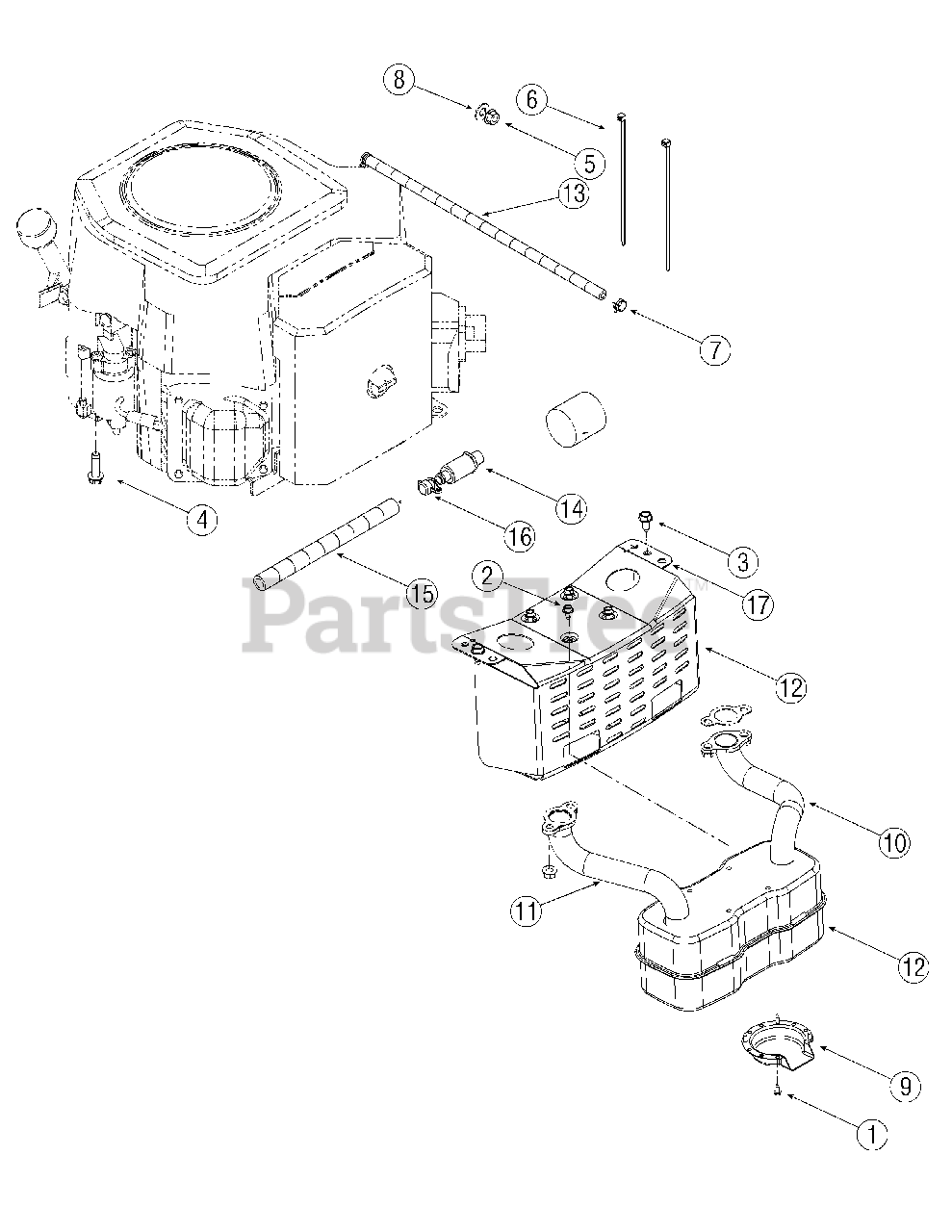

Engine Accessories Parts Diagram

  • Title

1

White Outdoor 710-0227

Self-tapping Screw, #8-18 x.50

$4.49

$

In Stock, Qty 20+

0

2

White Outdoor 710-0599

Self-tapping Screw, 1/4-20 x.50

$4.49

$

In Stock, Qty 20+

0

3

White Outdoor 710-0726

Self-tapping Screw, 5/16-18 x.625

$4.49

$

In Stock, Qty 20+

0

4

White Outdoor 710-1315

Self-tapping Screw, 3/8-16 x 1.25

$4.49

$

In Stock, Qty 20+

0

5

White Outdoor 712-3005

Flange Lock Nut, 3/8-16

$6.99

$

Usually ships in 3-6 days

0

6

White Outdoor 725-0157

Cable Tie

$3.99

$

In Stock, Qty 20+

0

7

White Outdoor 726-0205

Hose Clamp

$3.99

$

In Stock, Qty 20+

0

8

White Outdoor 736-0300

Lock Washer,.406 x.875 x.059

$4.49

$

In Stock, Qty 20+

0

9

White Outdoor 751-0564A

Muffler Deflector
(Superseded to 751-0564B)

$13.99

$

In Stock, Qty 5

0

10

White Outdoor 751-0644B

LH Exhaust Pipe (Kohler V-Twin)

$146.99

$

Usually ships in 3-6 days

0

11

White Outdoor 751-0645A

RH Exhaust Pipe (Kohler V-Twin)

$93.99

$

Usually ships in 3-6 days

0

12

White Outdoor 751-0805A

Muffler, Twin Inlet (Kohler V-Twin)
(Superseded to 951-0805A)

$123.99

$

Usually ships in 3-6 days

0

13

MTD 751-10349

Fuel Line Hose

$9.49

$

Usually ships in 3-6 days

0

14

White Outdoor 751-3140

Oil Drain Valve
(Superseded to 951-10517A)

$24.99

$

In Stock, only 3 left!

0

15

White Outdoor 751-3141

Oil Drain Hose
(Superseded to 751-3141-14)

$11.99

$

In Stock, Qty 8

0

16

White Outdoor 751-3142

Oil Drain Cap

$4.49

$

In Stock, Qty 14

0

17

White Outdoor 783-0615D

Muffler Bracket
(Superseded to 783-0615E-0637)

Variations

White Outdoor 783-0615D-0637

Muffler Bracket - POWDER BLACK (0637)

$64.99

$

In Stock, only 1 left!

0

$64.99

$

In Stock, only 1 left!

0
