LT-946 H (13A4616H790) - White Outdoor 46" Lawn Tractor (2005) Hood Assembly Parts Diagram

46" Lawn Tractor

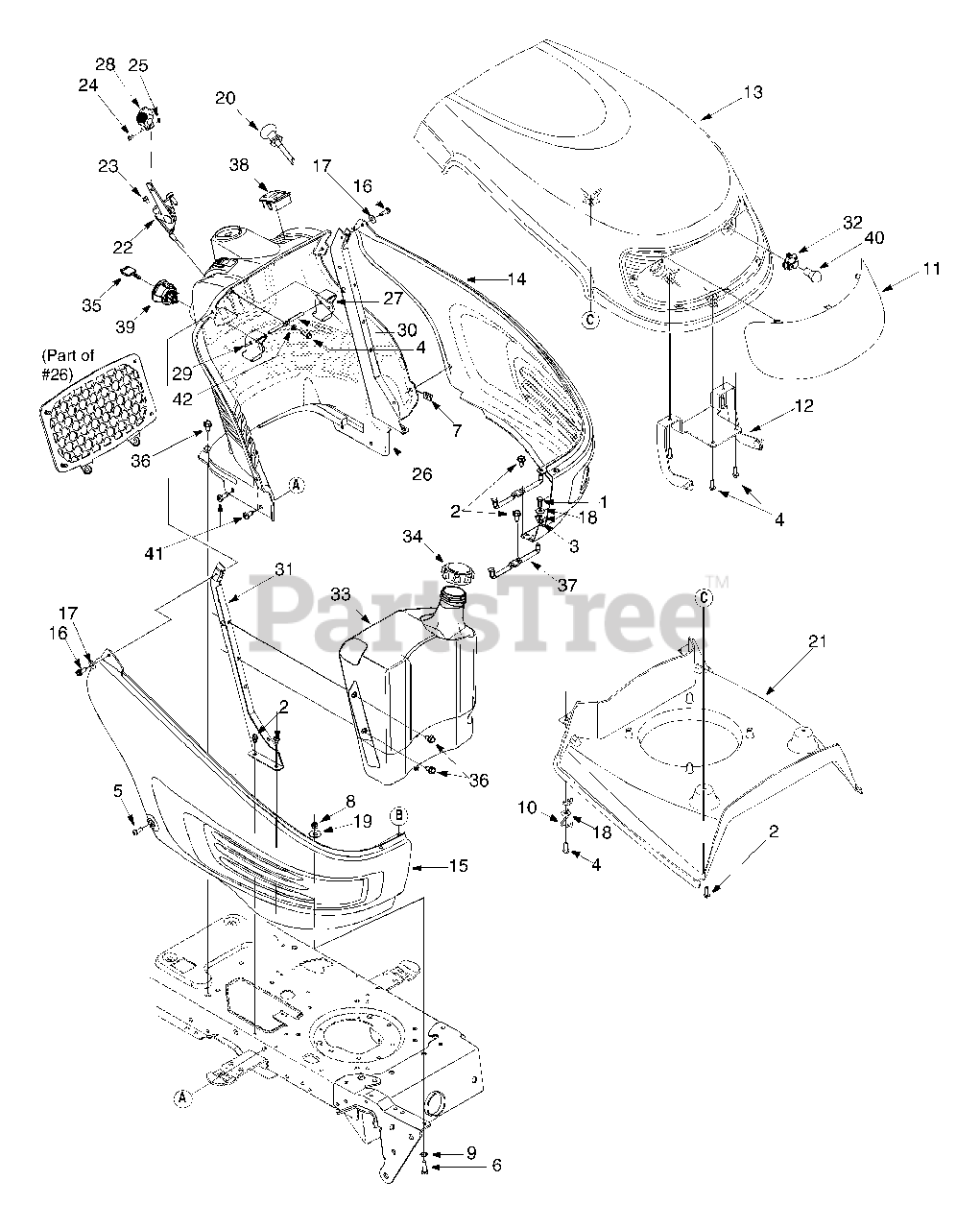

Hood Assembly Parts Diagram

  • Title

1

White Outdoor 710-3015

Hex Cap Screw, 1/4-20 x.75

$3.99

$

In Stock, Qty 20+

0

2

White Outdoor 710-0599

Self-tapping Screw, 1/4-20 x.5

$4.49

$

In Stock, Qty 20+

0

3

White Outdoor 712-04064

Flange Lock Nut, 1/4-20

$3.99

$

In Stock, Qty 20+

0

4

White Outdoor 710-0895

Self-tapping Screw, 1/4-15 x.75

$6.49

$

In Stock, only 4 left!

0

5

White Outdoor 710-0924

Pan Phillips Screw, 1/4-20 x.75

$4.49

$

In Stock, Qty 20+

0

6

White Outdoor 710-0376

Hex Cap Screw, 5/16-18 x 1.0

$3.99

$

In Stock, Qty 20+

0

7

White Outdoor 712-0292

U-type Speed Nut, 1/4-20

$10.99

$

In Stock, only 2 left!

0

8

White Outdoor 712-04063

Flange Lock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

9

White Outdoor 726-0201

Speed Nut

$6.99

$

In Stock, only 2 left!

0

10

White Outdoor 747-2127

Hood Latch Rod

$12.99

$

Usually ships in 3-6 days

0

11

White Outdoor 731-2286

Head Light Lens
(Superseded to 931-2286)

$

$

Not available

12

White Outdoor 683-0305

Hood Bracket Assembly
(Superseded to 683-0305-0637)

Variations

White Outdoor 683-0305-0637

Hood Bracket Assembly, 6 ST - POWDER BLACK (0637)

$

$

Not available

$

$

13

White Outdoor 731-2283A

Hood
(Superseded to 931-2283A)

$

$

Not available

14

White Outdoor 731-2307B

LH Side Panel
(Superseded to 931-05473)

$141.99

$

In Stock, only 1 left!

0

15

White Outdoor 731-2308B

RH Side Panel
(Superseded to 931-2308B)

$135.99

$

In Stock, only 1 left!

0

16

White Outdoor 710-0642

Screw, 1/4-20 x.750

$4.49

$

In Stock, Qty 20+

0

17

White Outdoor 736-0342

Flat Washer,.283 x.75 x.030

$7.49

$

Usually ships in 3-6 days

0

18

White Outdoor 736-0173

Flat Washer,.28 x.74 x.063

$4.49

$

In Stock, Qty 20+

0

19

White Outdoor 736-3078

Flat Washer,.349 x 1.0 x.063

$4.49

$

In Stock, Qty 20+

0

20

White Outdoor 746-1085A

Choke Control
(Superseded to 946-1085A)

$30.99

$

In Stock, only 1 left!

0

21

White Outdoor 731-2284

Hood Plenum w/o Intake Bellow

$63.99

$

Usually ships in 3-6 days

0

22

White Outdoor 746-1086

Throttle Control/Cable
(Superseded to 946-1086)

$33.99

$

Usually ships in 3-6 days

0

23

White Outdoor 710-1017

Torx Self-Tapping Screw, 1/4-14 x.625

$8.49

$

In Stock, Qty 9

0

24

White Outdoor 710-3217

Torx Screw, #8-32 x.375

$6.99

$

In Stock, Qty 7

0

25

White Outdoor 712-0142

Hex Nut, 8-32

$4.49

$

In Stock, Qty 10

0

26

White Outdoor 631-04151

Dash Panel, 4-style w/ Cargo Net
(Superseded to 931-04151)

$

$

Not available

27

White Outdoor 731-04213

Parking Brake Button

$12.99

$

Usually ships in 3-6 days

0

28

White Outdoor 731-1857

Throttle Control Lever

$14.99

$

In Stock, only 4 left!

0

29

White Outdoor 731-04214

Cruise Control Button

$

$

Not available

30

White Outdoor 747-1155

Brake/Cruise Pivot Rod

$13.99

$

Usually ships in 3-6 days

0

31

White Outdoor 783-04285B

Dash Support Plate RH
(Superseded to 783-04285F-0637)

Variations

White Outdoor 783-04285B-0637

SUPPORT-DASH PLATE - POWDER BLACK (0637)

$

$

Not available

$

$

White Outdoor 783-04323B

Dash Support Plate LH
(Superseded to 783-04323F-0637)

Variations

White Outdoor 783-04323B-0637

SUPPORT-DASH PLATE - POWDER BLACK (0637)

$34.99

$

Usually ships in 3-6 days

0

$34.99

$

Usually ships in 3-6 days

0

32

White Outdoor 725-1649

Lamp Socket
(Superseded to 925-1649A)

$11.99

$

In Stock, Qty 20+

0

33

White Outdoor 751-0658E

Fuel Tank, 3-gallon

$115.99

$

In Stock, only 3 left!

0

34

White Outdoor 751-0603

Fuel Cap
(Superseded to 751-0603B)

$23.99

$

Usually ships in 3-6 days

0

35

White Outdoor 725-1745

Ignition Key w/ plastic cover
(Superseded to 925-1745A)

$17.99

$

In Stock, Qty 20+

0

White Outdoor 725-1744

Ignition Key w/o plastic cover
(Superseded to 925-1745A)

$17.99

$

In Stock, Qty 20+

0

36

White Outdoor 710-0726

Self-tapping Screw, 5/16-18 x.75

$4.49

$

In Stock, Qty 20+

0

37

White Outdoor 747-04301

Side Panel Support

$

$

Not available

38

White Outdoor 725-04036A

Systems Indicator Monitor
(Superseded to 925-06170B)

$70.99

$

Usually ships in 3-6 days

0

39

White Outdoor 725-04227

Ignition Switch
(Superseded to 925-06119C)

$116.99

$

In Stock, Qty 20+

0

40

White Outdoor 725-0963

Miniature Lamp, 12V
(Superseded to 925-0963)

$7.49

$

In Stock, only 1 left!

0

41

White Outdoor 710-1611B

Self-tapping Screw, 5/16-18 x.75

$6.99

$

In Stock, only 2 left!

0

42

White Outdoor 736-0142

Flat Washer

$4.99

$

In Stock, Qty 20+

0

White Outdoor 629-04083

Headlight Wire Harness
(Superseded to 929-04083B)

$39.99

$

Usually ships in 3-6 days

0

White Outdoor 629-04105

Tractor Wire Harness

$

$

Not available

White Outdoor 629-04144

Jumper Wire Harness

$

$

Not available
