LT-946 G (13AP606H790) - White Outdoor 46" Lawn Tractor (2006) Steering, Front Wheels, Axle Parts Diagram

46" Lawn Tractor

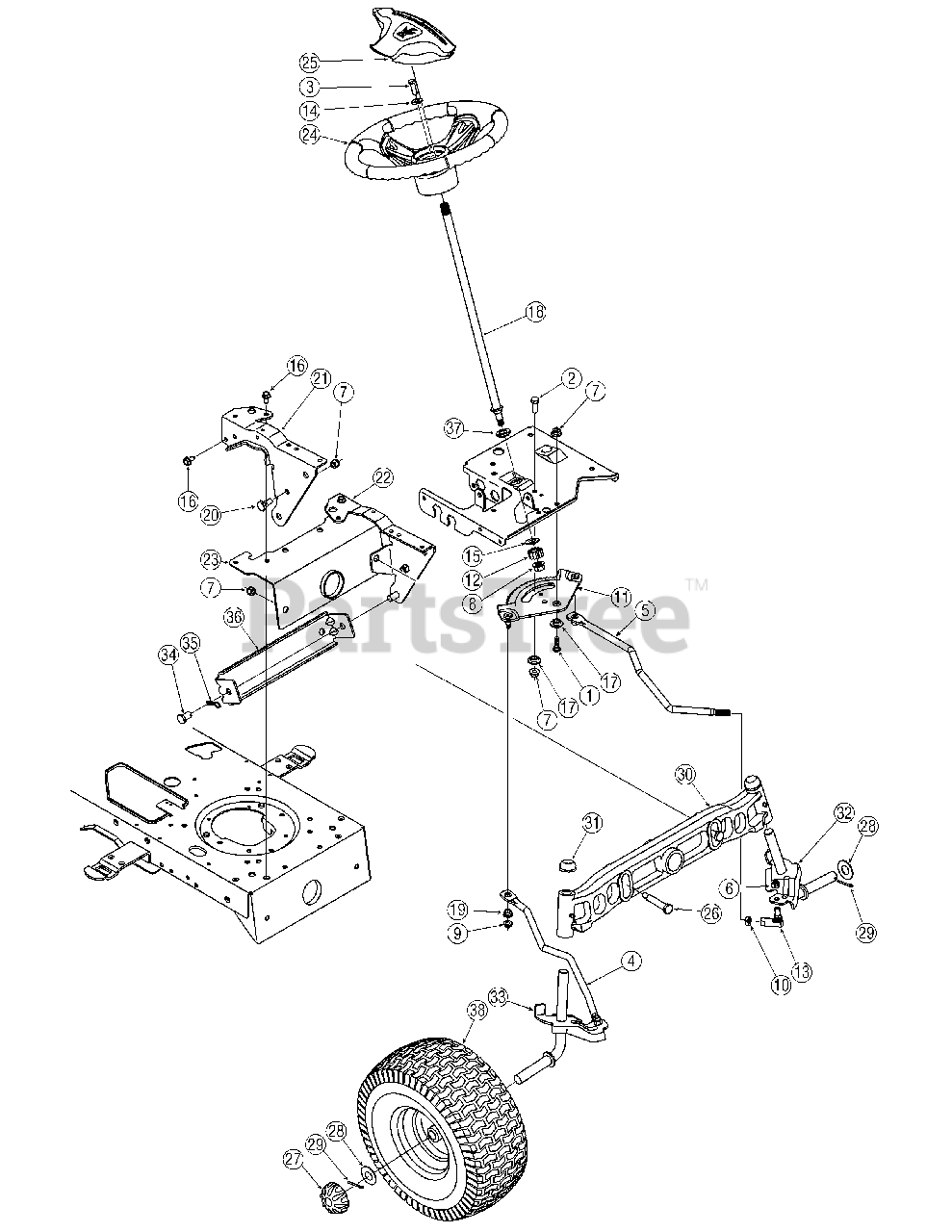

Steering, Front Wheels, Axle Parts Diagram

  • Title

1

White Outdoor 710-04095

Hex Screw, 3/8-16, 1.00, Gr5

$5.49

$

In Stock, Qty 20+

0

2

White Outdoor 710-0514

Hex Screw, 3/8-16, 1.00, Gr5

$4.49

$

In Stock, Qty 20+

0

3

White Outdoor 710-0643

Hex Screw, 5/16-18, 1.00, Gr5

$6.99

$

In Stock, Qty 5

0

4

White Outdoor 711-1408

Link, Drag, RH

$

$

Not available

5

White Outdoor 711-1409A

Link, Drag, LH

$

$

Not available

6

White Outdoor 712-0214

Nut, Hex Lock, 3/8-24

$6.49

$

In Stock, only 2 left!

0

7

White Outdoor 712-04065

Nut, Flange Lock, 3/8-16, Grf

$3.99

$

In Stock, Qty 20+

0

8

White Outdoor 712-0459

Nut, Flange Lock, 7/16-20

$4.99

$

In Stock, Qty 20+

0

9

White Outdoor 712-3004A

Nut, Flange Lock, 5/16-18, Gr5

$3.99

$

In Stock, Qty 20+

0

10

White Outdoor 712-0240

Nut, Jam, 7/16-20, Gr2
(Superseded to 912-0240)

$4.49

$

In Stock, Qty 20+

0

11

White Outdoor 717-1550E

Gear, Steering, 11/90 Ratio
(Superseded to 717-1550F)

$70.99

$

In Stock, Qty 20+

0

12

White Outdoor 717-1554

Gear, Pinion, Steering

$10.99

$

In Stock, Qty 20+

0

13

White Outdoor 723-0448A

Ball Joint, 7/16-20, Lock
(Superseded to 923-0448A)

$24.99

$

In Stock, Qty 20+

0

14

White Outdoor 736-3004

Washer, Flat, .406 x .875 x .105

$4.99

$

In Stock, Qty 6

0

15

White Outdoor 736-3084

Washer, Flat, .51 x 1.12 x .06

$4.99

$

In Stock, Qty 20+

0

16

White Outdoor 710-1260A

Screw, 5/16-18, 0.750

$3.99

$

In Stock, Qty 20+

0

17

White Outdoor 738-04154

Spacer, Shoulder, .38 x 1.00 x .31

$5.49

$

In Stock, Qty 11

0

18

White Outdoor 738-1001A

Shaft, Steering, .625 OD x 24.25

$75.99

$

In Stock, Qty 5

0

19

White Outdoor 741-0475

Plastic Bushing .380 ID
(Superseded to 941-0475)

$4.49

$

In Stock, Qty 20+

0

20

White Outdoor 738-0143

Screw, Shoulder, .498 x .340

$4.49

$

In Stock, Qty 20+

0

21

White Outdoor 783-0726E

Pivot Bracket, Support RH

Variations

White Outdoor 783-0726E-0606

Pivot Support Bracket, RH - MAJESTIC ORANGE (0606)

$

$

Not available

White Outdoor 783-0726E-0498

Pivot Support Bracket, RH - OLD CUB YELLOW (0498)

$

$

Not available

White Outdoor 783-0726E-0637

BRACKET:PIVOT SUPPORT RH - POWDER BLACK (0637)

$

$

Not available

White Outdoor 783-0726E-0650

BRACKET:PIVOT SUPPORT RH - RED METALLIC (0650)

$

$

Not available

White Outdoor 783-0726E-0691

BRACKET:PIVOT SUPPORT RH - BLACK JACK (0691)

$

$

Not available

White Outdoor 783-0726E-0716

Pivot Support Bracket, RH - CUB YELLOW-99 (0716)

$

$

Not available

White Outdoor 783-0726E-0665

BRACKET:PIVOT SUPPORT RH - YARDMAN GREEN (0665)

$

$

Not available

White Outdoor 783-0726E-4008

BRACKET:PIVOT SUPPORT RH - WINE RED (4008)

$

$

Not available

$

$

22

White Outdoor 783-0727D

Pivot Bracket, Support LH

Variations

White Outdoor 783-0727D-0606

BRACKET:PIVOT:SUPPORT LH - MAJESTIC ORANGE (0606)

$

$

Not available

White Outdoor 783-0727D-0498

Pivot Support Bracket, LH - OLD CUB YELLOW (0498)

$

$

Not available

White Outdoor 783-0727D-0637

BRACKET:PIVOT:SUPPORT LH - POWDER BLACK (0637)

$

$

Not available

White Outdoor 783-0727D-0650

BRACKET:PIVOT:SUPPORT LH - RED METALLIC (0650)

$

$

Not available

White Outdoor 783-0727D-0691

BRACKET:PIVOT:SUPPORT LH - BLACK JACK (0691)

$

$

Not available

White Outdoor 783-0727D-0716

Pivot Support Bracket, LH - CUB YELLOW-99 (0716)

$

$

Not available

White Outdoor 783-0727D-0665

BRACKET:PIVOT:SUPPORT LH - YARDMAN GREEN (0665)

$

$

Not available

White Outdoor 783-0727D-4008

BRACKET:PIVOT:SUPPORT LH - WINE RED (4008)

$

$

Not available

$

$

23

White Outdoor 783-0728

Pivot Bracket, Bar
(Superseded to 783-0728B)

Variations

White Outdoor 783-0728-0637

Pivot Bar Bracket - POWDER BLACK (0637)

$

$

Not available

White Outdoor 783-0728-0650

BRACKET-PIVOT BAR - RED METALLIC (0650)

$

$

Not available

White Outdoor 783-0728-0665

BRACKET-PIVOT BAR - YARDMAN GREEN (0665)

$

$

Not available

White Outdoor 783-0728-0691

BRACKET-PIVOT BAR - BLACK JACK (0691)

$

$

Not available

$38.99

$

Usually ships in 3-6 days

0

24

White Outdoor 631-04008

Steering Wheel, 13.25
(Superseded to 631-04008B)

$94.99

$

In Stock, only 3 left!

0

25

White Outdoor 731-04065

Steering Wheel Cover

$

$

Not available

26

White Outdoor 738-1011A

Shoulder Screw, .5 x 2.2, 3/8-16

$8.49

$

In Stock, Qty 11

0

27

White Outdoor 731-2290A

Deluxe Hub Cap
(Superseded to 731-2290B)

$4.49

$

In Stock, Qty 20+

0

28

White Outdoor 736-0316

Flat Washer, .78 x 1.589 x .06

$4.49

$

In Stock, Qty 20+

0

29

White Outdoor 714-04039

Cotter Pin, 5/32 x 1.25
(Superseded to 714-0162)

$4.99

$

In Stock, Qty 20+

0

30

White Outdoor 719-04105

Cast Iron Pivot Bar
(Superseded to 919-04177E)

$248.99

$

In Stock, only 1 left!

0

31

White Outdoor 726-0341

Push Cap

$4.99

$

In Stock, Qty 20+

0

32

White Outdoor 638-04003

LH Axle Assembly, .750
(Superseded to 638-04003AP)

$

$

Not available

33

White Outdoor 638-04004

RH Axle Assembly, .750
(Superseded to 938-04004A)

$71.99

$

In Stock, only 2 left!

0

34

White Outdoor 711-0332

Pin, Clevis, .50 x .78
(Superseded to 911-0332)

$16.99

$

In Stock, Qty 14

0

35

White Outdoor 714-04023

Cotter Pin, Internal, .080 x 1.5625

$4.49

$

In Stock, Qty 20+

0

36

White Outdoor 783-0720A

Adjustment Bracket, Front
(Superseded to 783-0720C)

Variations

White Outdoor 783-0720A-0637

Deck Adjustment Bracket, Front - POWDER BLACK (0637)

$45.99

$

In Stock, only 2 left!

0

White Outdoor 783-0720A-4008

BRACKET-ADJ:FRT DE - WINE RED (4008)

$36.99

$

Usually ships in 3-6 days

0

$36.99

$

Usually ships in 3-6 days

0

37

White Outdoor 741-0656A

Hex Flange Bearing
(Superseded to 941-0656A)

$5.49

$

In Stock, Qty 20+

0

38

White Outdoor 634-04087

Wheel Assembly Complete, 15 x 6
(Superseded to 634-05067-0911)

Variations

White Outdoor 634-04087-0911

Wheel Assembly Complete - Carlisle Gray (0911)

$185.99

$

In Stock, only 4 left!

0

White Outdoor 634-04087-0914

Wheel Assembly Complete - Cheng Gray (0914)

$185.99

$

In Stock, only 4 left!

0

White Outdoor 634-04087-0994

Wheel Assembly Complete - Cheng White (0994)

$185.99

$

In Stock, only 4 left!

0

White Outdoor 634-04087-0941

USE 634-04086-0941 WHL ASM-CO - Carlisle Yellow (0941)

$172.99

$

Usually ships in 3-6 days

0

White Outdoor 634-04087-0944

USE 634-04086-0941 WHL ASM-CO - Cheng Yellow (0944)

$172.99

$

Usually ships in 3-6 days

0

White Outdoor 634-04087-0991

USE 634-04086-0991 WHL ASM-CO - Carlisle White (0991)

$185.99

$

Usually ships in 3-6 days

0

$185.99

$

In Stock, only 4 left!

0

38

White Outdoor 734-04040

Tire Only 15 x 6 x 6
(Superseded to 734-1731-0901)

Note: Not Shown

Variations

White Outdoor 734-04040-0904

TIRE - Cheng (0904)

$49.99

$

Usually ships in 3-6 days

0

$49.99

$

Usually ships in 3-6 days

0

38

White Outdoor 634-04081

Rim Only w/ Valve Stem
(Superseded to 934-04081)

Note: Not Shown

Variations

White Outdoor 634-04081-0499

RIM ASSY-FRONT - CUB BEIGE (0499)

$105.99

$

Usually ships in 3-6 days

0

White Outdoor 634-04081-0662

Rim Assembly, Front Grey - OYSTER GRAY (0662)

$105.99

$

Usually ships in 3-6 days

0

White Outdoor 634-04081-0674

RIM ASSY-FRONT - YARDMAN YELLOW (0674)

$105.99

$

Usually ships in 3-6 days

0

White Outdoor 634-04081-4009

Rim Assembly, Front Tee White - TEE WHITE (4009)

$105.99

$

Usually ships in 3-6 days

0

White Outdoor 634-04081-4042

RIM ASSY-FRONT - CRAFTSMAN GRAY (4042)

$105.99

$

Usually ships in 3-6 days

0

$85.99

$

Usually ships in 3-6 days

0

White Outdoor 741-0516B

BRG:FLG:.760 X 1.00 X 1.20 LG

Note: Not Shown

$6.49

$

In Stock, Qty 20+

0

White Outdoor 741-0990B

BRG:FLG:.760 ID W/GREASE FTG

Note: Not Shown

$10.99

$

In Stock, Qty 20+

0
