LT-946 G (13AP606H790) - White Outdoor 46" Lawn Tractor (2006) PTO Drive, Battery and Frame Parts Diagram

46" Lawn Tractor

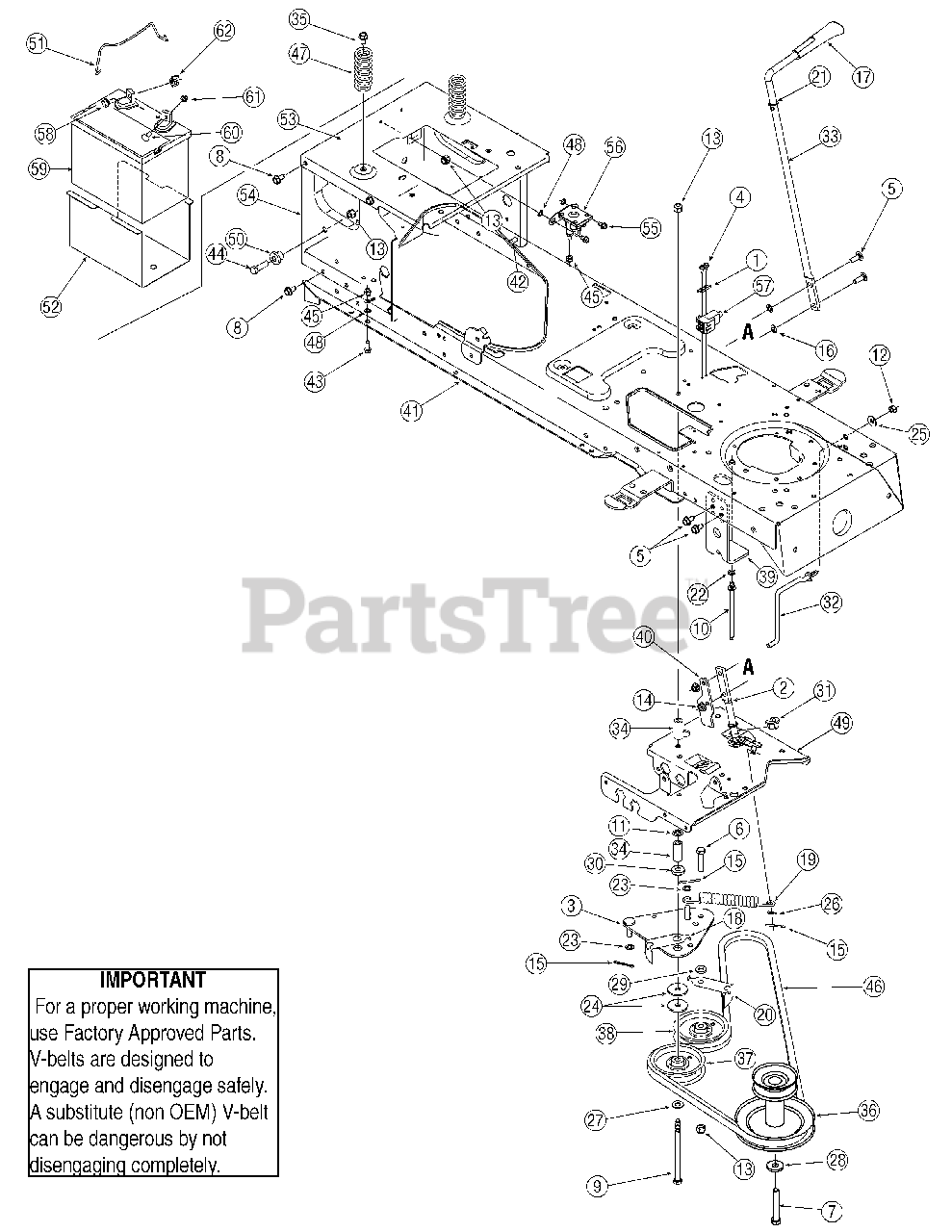

PTO Drive, Battery and Frame Parts Diagram

  • Title

1

White Outdoor 17962

Plate, Switch

$4.99

$

In Stock, only 3 left!

0

2

White Outdoor 647-0064

Lever Assembly, Engagement

$

$

Not available

3

White Outdoor 683-0302

Plate Assembly, Engagement

Variations

White Outdoor 683-0302-0637

ENGAGEMENT PLATE ASSEMBLY - POWDER BLACK (0637)

$37.99

$

In Stock, only 1 left!

0

$37.99

$

In Stock, only 1 left!

0

4

White Outdoor 710-0224

Screw, #10-16, 0.500
(Superseded to 910-0224)

$3.99

$

In Stock, only 2 left!

0

5

White Outdoor 710-0276

Screw, Carriage, 5/16-18, 1.00

$3.99

$

In Stock, Qty 14

0

6

White Outdoor 710-0347

Screw, 3/8-16, 1.75, Gr5

$5.49

$

In Stock, Qty 20+

0

7

White Outdoor 710-04377

Screw, 7/16-20, 2.75, Gr5

$11.99

$

In Stock, only 1 left!

0

8

White Outdoor 710-0726

Screw, 5/16-12, 0.750

$4.49

$

In Stock, Qty 20+

0

9

White Outdoor 710-0831

Screw, 3/8-16, 5.50, Gr5

$

$

Not available

10

White Outdoor 711-1044A

Pin, Belt Guard, 5/16 x 4.75

$8.99

$

In Stock, Qty 10

0

11

White Outdoor 712-0229

Nut, Push, 3/8

$3.99

$

In Stock, Qty 20+

0

12

White Outdoor 712-04063

Nut, Flange Lock, 5/16-18, GrF

$3.99

$

In Stock, Qty 20+

0

13

White Outdoor 712-04065

Nut, Flange Lock, 3/8-16, GrF

$3.99

$

In Stock, Qty 20+

0

14

White Outdoor 712-3004A

Nut, Flange Lock, 5/16-18, Gr5

$3.99

$

In Stock, Qty 20+

0

15

White Outdoor 714-0470

Pin, Cotter, 1/8 x 1.25

$4.49

$

In Stock, Qty 20+

0

16

White Outdoor 726-0201

Nut, Speed, .3125 ID

$6.99

$

Usually ships in 3-6 days

0

17

White Outdoor 731-2111A

Knob, PTO
(Superseded to 731-2111B)

$

$

Not available

18

White Outdoor 732-04245A

Belt Guard

$

$

Not available

19

White Outdoor 732-0944

Spring, Extension, .75 OD x 6.75

$10.99

$

In Stock, only 1 left!

0

20

White Outdoor 732-1013

Belt Guard
(Superseded to 732-1013A)

$10.99

$

In Stock, only 1 left!

0

21

White Outdoor 736-0108

Washer, Flat, .510 x .750

$6.99

$

Usually ships in 3-6 days

0

22

White Outdoor 736-0119

Washer, Lock, 5/16
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

23

White Outdoor 736-0140

Washer, Flat, .385 x .62 x .063

$7.49

$

In Stock, Qty 7

0

24

White Outdoor 736-0227

Washer, Flat, .390 x 1.500 x .134

$6.49

$

In Stock, Qty 13

0

25

White Outdoor 736-0242

Washer, Bell, .340 x .872 x .060

$4.49

$

In Stock, Qty 20+

0

26

White Outdoor 736-0275

Washer, Flat, .344 x .688 x.065

$6.99

$

Usually ships in 3-6 days

0

27

White Outdoor 736-0300

Washer, Flat, .406 x .875 x .059

$4.49

$

In Stock, Qty 20+

0

28

White Outdoor 736-0322

Washer, Flat, .450 x1.250 x .164

$9.49

$

In Stock, Qty 8

0

29

White Outdoor 736-3010

Washer, Flat, .407 x.812 x .135

$4.99

$

In Stock, only 2 left!

0

30

White Outdoor 738-0372B

Spacer, Shldr, 1.00 x .38 x .38

$9.49

$

In Stock, Qty 20+

0

31

White Outdoor 741-0708

Bearing, Flange, Hex Split .500 ID

$4.49

$

In Stock, only 1 left!

0

32

White Outdoor 747-04355

Keeper Rod, Belt

$22.99

$

Usually ships in 3-6 days

0

33

White Outdoor 747-04470

Engagement Handle, Deck

$

$

Not available

34

White Outdoor 748-0415B

Spacer, .385 ID x .635 x 1.54

$7.49

$

In Stock, Qty 10

0

35

White Outdoor 710-1260A

Screw, 5/16-18 x .750

$3.99

$

In Stock, Qty 20+

0

36

White Outdoor 756-04207

Pulley, Engine, 3.39 x 6.12 Dia
(Superseded to 756-04207A)

$

$

Not available

37

White Outdoor 756-0487

Pulley, Idler, V-type 5/8 x 4.0 Dia

$48.99

$

In Stock, only 1 left!

0

38

White Outdoor 756-0627D

Pulley, Idler, 3.50 Diameter

$30.99

$

In Stock, Qty 20+

0

39

White Outdoor 783-04467

Stop Bracket, Deck-Up

Variations

White Outdoor 783-04467-0606

BRACKET-DECK:UP STOP - MAJESTIC ORANGE (0606)

$37.99

$

Usually ships in 3-6 days

0

White Outdoor 783-04467-0637

Deck Up-Stop Bracket - POWDER BLACK (0637)

$37.99

$

Usually ships in 3-6 days

0

White Outdoor 783-04467-0691

Deck Up-Stop Bracket - BLACK JACK (0691)

$37.99

$

Usually ships in 3-6 days

0

White Outdoor 783-04467-0650

BRACKET-DECK:UP STOP - RED METALLIC (0650)

$

$

Not available

White Outdoor 783-04467-0665

BRACKET-DECK:UP STOP - YARDMAN GREEN (0665)

$

$

Not available

White Outdoor 783-04467-0716

BRACKET-DECK:UP STOP - CUB YELLOW-99 (0716)

$

$

Not available

White Outdoor 783-04467-4008

BRACKET-DECK:UP STOP - WINE RED (4008)

$

$

Not available

$34.99

$

Usually ships in 3-6 days

0

40

White Outdoor 783-0744A

Stop Bracket, Engagement

Variations

White Outdoor 783-0744A-0637

Stop Bracket - POWDER BLACK (0637)

$44.99

$

Usually ships in 3-6 days

0

White Outdoor 783-0744A-4008

BRACKET-STOP - WINE RED (4008)

$41.99

$

Usually ships in 3-6 days

0

$41.99

$

Usually ships in 3-6 days

0

41

White Outdoor 683-04173

Frame Assembly, Lower
(Superseded to 683-04173B-0637)

Variations

White Outdoor 683-04173-0637

FRAME ASSY-LOWER - POWDER BLACK (0637)

$

$

Not available

$

$

42

White Outdoor 710-0607

Screw, 5/16-18, 0.500

$6.99

$

In Stock, Qty 12

0

43

White Outdoor 710-0642

Screw, 1/4-20, 0.750

$4.49

$

In Stock, Qty 20+

0

44

White Outdoor 710-3005

Screw, 3/8-16, 1.25, Gr5

$3.99

$

In Stock, Qty 12

0

45

White Outdoor 712-04064

Nut, Flange Lock, 1/4-20, GrF

$3.99

$

In Stock, Qty 20+

0

46

White Outdoor 754-04064

V-Belt, PTO

$79.99

$

In Stock, only 1 left!

0

47

White Outdoor 732-04035

Spring, Compr., 1.28 OD x 3.125

$10.99

$

In Stock, only 4 left!

0

48

White Outdoor 736-0222

Washer, Lock, 1/4, External

$5.99

$

In Stock, only 3 left!

0

49

White Outdoor 783-04612

Support Bracket, Steering
(Superseded to 783-04612-0637)

Variations

White Outdoor 783-04612-0637

Steering Support Bracket - POWDER BLACK (0637)

$89.99

$

In Stock, only 3 left!

0

$89.99

$

In Stock, only 3 left!

0

50

White Outdoor 738-04058

Spacer, Shoulder, .38 x 1.0

$4.49

$

In Stock, only 2 left!

0

51

White Outdoor 747-04121A

Hold Rod, Battery

$6.49

$

In Stock, Qty 20+

0

52

White Outdoor 783-0349

Battery Tray

Variations

White Outdoor 783-0349-4008

TRAY-BATTERY 400 S - WINE RED (4008)

$

$

Not available

White Outdoor 783-0349-0606

TRAY-BATTERY 400 S - MAJESTIC ORANGE (0606)

$

$

Not available

White Outdoor 783-0349-0637

Battery Tray, Powder Black - POWDER BLACK (0637)

$

$

Not available

$

$

53

White Outdoor 783-04329A

Seat Bracket, Frame

Variations

White Outdoor 783-04329A-0606

BRACKET-FRAME SEAT - MAJESTIC ORANGE (0606)

$

$

Not available

White Outdoor 783-04329A-0637

BRACKET-FRAME SEAT - POWDER BLACK (0637)

$

$

Not available

White Outdoor 783-04329A-0716

BRACKET-FRAME SEAT - CUB YELLOW-99 (0716)

$

$

Not available

White Outdoor 783-04329A-4008

BRACKET-FRAME SEAT - WINE RED (4008)

$

$

Not available

$

$

54

White Outdoor 783-04809

Frame, Upper
(Superseded to 783-04809C-0637)

Variations

White Outdoor 783-04809-0637

FRAME-UPPER - POWDER BLACK (0637)

$

$

Not available

White Outdoor 783-04809-0638

FRAME-UPPER - MTD/TROY-BILT RED (0638)

$

$

Not available

White Outdoor 783-04809-0650

FRAME-UPPER - RED METALLIC (0650)

$

$

Not available

White Outdoor 783-04809-0665

FRAME UPPER - YARDMAN GREEN (0665)

$

$

Not available

White Outdoor 783-04809-0716

FRAME-UPPER - CUB YELLOW-99 (0716)

$

$

Not available

$

$

55

White Outdoor 710-0599

Screw, 1/4-20, 0.50

$4.49

$

In Stock, Qty 20+

0

56

White Outdoor 725-1426A

Solenoid, 12V, 100 Amp
(Superseded to 925-1426A)

$26.99

$

In Stock, Qty 20+

0

57

White Outdoor 725-04039

Switch, Interlock
(Superseded to 925-04039)

$24.99

$

In Stock, Qty 9

0

58

White Outdoor 738-1132

Screw, Shoulder, .250 x .150

$5.49

$

In Stock, only 2 left!

0

59

White Outdoor 725-1750A

Battery, 235 CCA
(Superseded to 925-1707D)

$

$

Not available

60

White Outdoor 710-0703

Screw, Carriage, 1/4-20, .75, Gr5

$4.49

$

In Stock, Qty 15

0

61

White Outdoor 712-0271

Nut, Sems, 1/4-20

$4.49

$

In Stock, Qty 10

0

62

White Outdoor 712-3087

Nut, Wing, 1/4-20

$3.99

$

In Stock, Qty 20+

0
