LT-946 G (13AP606H790) - White Outdoor 46" Lawn Tractor (2006) Fender, Seat, Deck Assembly Parts Diagram

46" Lawn Tractor

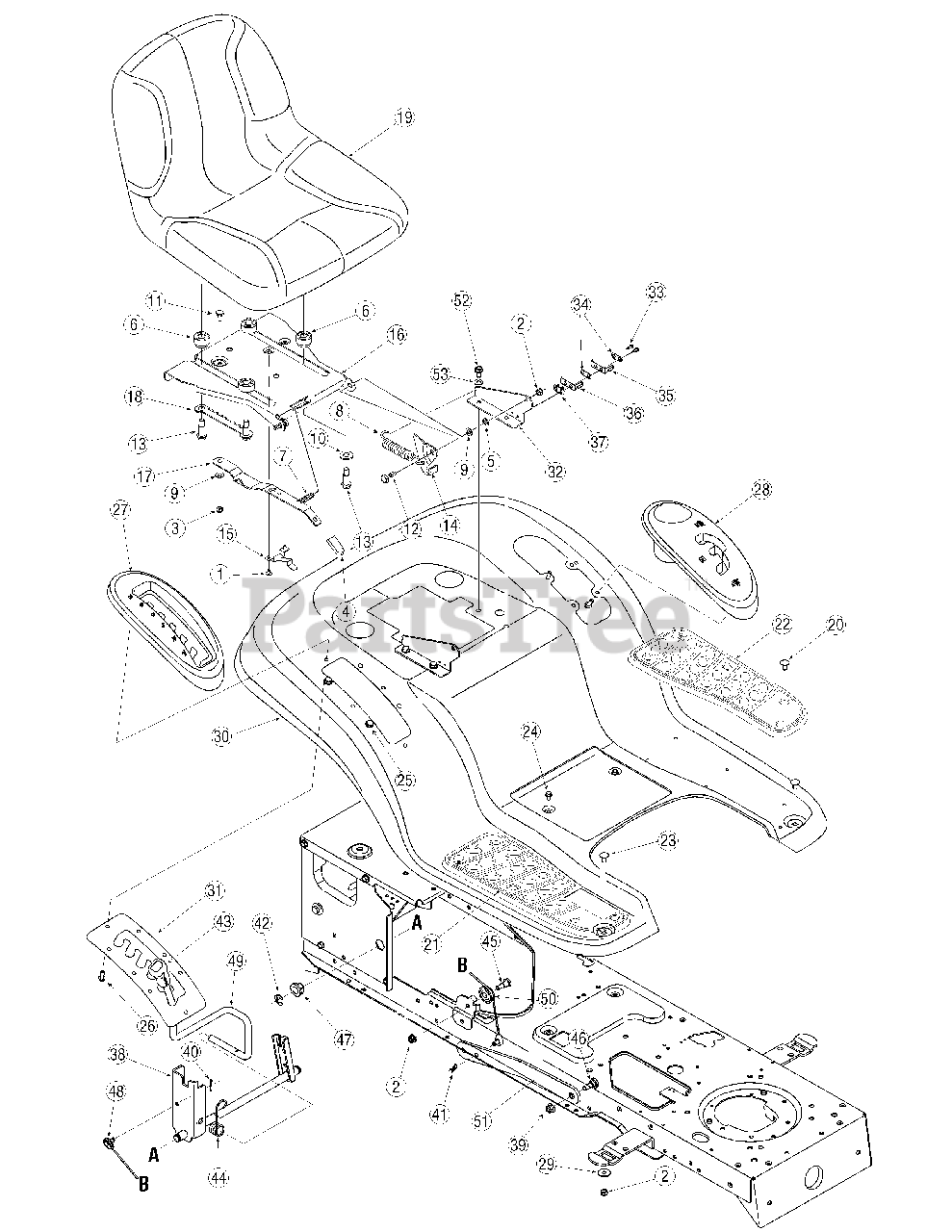

Fender, Seat, Deck Assembly Parts Diagram

  • Title

1

White Outdoor 710-1268

Screw, #10-16 x .375

$4.49

$

In Stock, only 2 left!

0

2

White Outdoor 712-04063

Nut, Flange Lock, 5/16-18, GrF

$3.99

$

In Stock, Qty 20+

0

3

White Outdoor 712-3027

Nut, Flange Lock, 1/4-20
(Superseded to 912-3027)

$4.49

$

In Stock, Qty 20+

0

4

White Outdoor 720-0309A

Seat Adjuster Grip

$9.49

$

Usually ships in 3-6 days

0

5

White Outdoor 726-0201

Nut, Speed, .3125 ID

$6.99

$

Usually ships in 3-6 days

0

6

White Outdoor 731-04074

Spacer

$7.49

$

In Stock, Qty 20+

0

7

White Outdoor 732-0499

Compression Spring, .41 x 1.5

$9.49

$

In Stock, only 1 left!

0

8

White Outdoor 732-1184

Spring, Extension, .84 Dia. X 4.6

$11.99

$

In Stock, only 1 left!

0

9

White Outdoor 736-0275

Wash, Flat, .344 x .688 x .065

$6.99

$

Usually ships in 3-6 days

0

10

White Outdoor 736-3019

Wash, Flat, .531x 1.062 x.1.34

$5.99

$

In Stock, Qty 11

0

11

White Outdoor 738-0137A

Screw, Shoulder, .340 x .285

$10.99

$

In Stock, Qty 10

0

12

White Outdoor 738-0296

Screw, Shoulder, .437 x .268

$4.49

$

In Stock, Qty 20+

0

13

White Outdoor 738-0966A

Screw, Shoulder, .50 x .925

$4.99

$

In Stock, Qty 19

0

14

White Outdoor 783-0209D

Seat Bracket, Lift

$16.99

$

In Stock, only 1 left!

0

15

White Outdoor 783-0611

Seat Stop

$10.99

$

In Stock, only 3 left!

0

16

White Outdoor 783-0738C

Seat Pivot Bracket
(Superseded to 783-0738D)

Variations

White Outdoor 783-0738C-0716

Seat Pivot Bracket - CUB YELLOW-99 (0716)

$

$

Not available

White Outdoor 783-0738C-0637

Seat Pivot Bracket - POWDER BLACK (0637)

$

$

Not available

White Outdoor 783-0738C-0638

Seat Pivot Bracket - MTD/TROY-BILT RED (0638)

$

$

Not available

White Outdoor 783-0738C-0650

BRACKET-PIVOT:SEAT - RED METALLIC (0650)

$

$

Not available

White Outdoor 783-0738C-0665

BRACKET-PIVOT:SEAT - YARDMAN GREEN (0665)

$

$

Not available

White Outdoor 783-0738C-0691

Seat Pivot Bracket - BLACK JACK (0691)

$

$

Not available

White Outdoor 783-0738C-4015

BRACKET-PIVOT:SEAT - FIRE RED (4015)

$

$

Not available

White Outdoor 783-0738C-4008

BRACKET-PIVOT:SEAT - WINE RED (4008)

$

$

Not available

$

$

17

White Outdoor 783-0739A

Seat Adjustment Lever
(Superseded to 783-0739A-0637)

Variations

White Outdoor 783-0739A-0637

Seat Adjust Lever - POWDER BLACK (0637)

$25.99

$

Usually ships in 3-6 days

0

$25.99

$

Usually ships in 3-6 days

0

18

White Outdoor 783-0753

Seat Adjustment Selector

$15.99

$

In Stock, only 1 left!

0

19

White Outdoor 757-04014A

Medium Back Seat, Black
(Superseded to 957-04037)

$240.99

$

In Stock, only 1 left!

0

20

White Outdoor 726-3046

Ratchet Clip

$3.99

$

In Stock, Qty 16

0

21

White Outdoor 735-0656

RH Foot Pad, Rubber

$25.99

$

Usually ships in 3-6 days

0

22

White Outdoor 735-0657

LH Foot Pad, Rubber

$26.99

$

Usually ships in 3-6 days

0

23

White Outdoor 710-0451

Bolt, Carriage, 5/16-18, .750, Gr1

$4.49

$

In Stock, Qty 20+

0

24

White Outdoor 710-0599

Screw, 1/4-20, 0.500

$4.49

$

In Stock, Qty 20+

0

25

White Outdoor 710-0726

Screw, 5/16-12, 0.750

$4.49

$

In Stock, Qty 20+

0

26

White Outdoor 710-0895

Screw, 1/4-15, 0.750

$6.49

$

In Stock, Qty 5

0

27

White Outdoor 731-1990

Cover, Lift Lever
(Superseded to 731-06795)

$24.99

$

Usually ships in 3-6 days

0

28

White Outdoor 731-2104C

Cover, w/ Cup Holder
(Superseded to 931-2104C)

$35.99

$

Usually ships in 3-6 days

0

29

White Outdoor 736-3078

Washer, Flat, .344 x 1.0 x .063

$4.49

$

In Stock, only 4 left!

0

30

White Outdoor 783-04333A

Fender

Variations

White Outdoor 783-04333A-0606

FENDER - 4 STYLE - MAJESTIC ORANGE (0606)

$

$

Not available

White Outdoor 783-04333A-0638

FENDER - 4 STYLE - MTD/TROY-BILT RED (0638)

$

$

Not available

White Outdoor 783-04333A-0650

FENDER - 4 STYLE - RED METALLIC (0650)

$

$

Not available

White Outdoor 783-04333A-0665

FENDER - 4 STYLE - YARDMAN GREEN (0665)

$

$

Not available

White Outdoor 783-04333A-0709

FENDER - 4 STYLE - MASTERCRAFT GREEN (0709)

$

$

Not available

White Outdoor 783-04333A-0716

FENDER - 4 STYLE - CUB YELLOW-99 (0716)

$

$

Not available

White Outdoor 783-04333A-4008

No Longer Available - WINE RED (4008)

$

$

Not available

$332.99

$

Usually ships in 3-6 days

0

31

White Outdoor 783-0677B

Adjustment Bracket, Lift

Variations

White Outdoor 783-0677B-0637

BRACKET:LIFT:ADJ - POWDER BLACK (0637)

$

$

Not available

White Outdoor 783-0677B-4008

BRACKET:LIFT:ADJ - WINE RED (4008)

$

$

Not available

White Outdoor 783-0677B-4015

BRACKET:LIFT:ADJ - FIRE RED (4015)

$

$

Not available

$22.99

$

Usually ships in 3-6 days

0

32

White Outdoor 783-1489A

Mounting Bracket, Seat
(Superseded to 783-1489C)

Variations

White Outdoor 783-1489A-0637

Seat Mounting Bracket - POWDER BLACK (0637)

$23.99

$

In Stock, only 1 left!

0

White Outdoor 783-1489A-4008

Seat Mounting Bracket - WINE RED (4008)

$21.99

$

Usually ships in 3-6 days

0

$19.99

$

Usually ships in 3-6 days

0

33

White Outdoor 710-0227

Screw, #8-18 x .50

$4.49

$

In Stock, Qty 15

0

34

White Outdoor 726-0279

Plate, Insulator

$3.99

$

In Stock, Qty 8

0

35

White Outdoor 725-1303

Spring Switch, Outer
(Superseded to 925-1303)

$6.49

$

In Stock, Qty 7

0

36

White Outdoor 725-1439

Spring Switch, Inner

$8.49

$

In Stock, Qty 8

0

37

White Outdoor 726-0278

Plate, Insulator Boss

$6.99

$

In Stock, Qty 10

0

38

White Outdoor 753-06260

Shaft Assembly, Lift Service Kit

Note: Replaces 683-04079

$57.99

$

Usually ships in 3-6 days

0

39

White Outdoor 712-04065

Nut, Flange Lock, 3/8-16,GrF

$3.99

$

In Stock, Qty 20+

0

40

White Outdoor 714-0104

Pin, Cotter, .072 Dia. x 1.13

$4.49

$

In Stock, Qty 20+

0

41

White Outdoor 714-0111

Pin, Cotter, 3/32, 1.0

$4.99

$

In Stock, Qty 13

0

42

White Outdoor 716-0106A

Ring, E Type, .625 Dia.

$5.49

$

In Stock, only 2 left!

0

43

White Outdoor 720-0311

Grip, Handle, 1/2

$15.99

$

In Stock, only 2 left!

0

44

White Outdoor 732-0874

Spring, Torsion

$4.99

$

In Stock, Qty 6

0

45

738-0138a

Screw, 5/16-18 x .620 Gr2

$

$

Not available

46

White Outdoor 738-0380

Screw, Shoulder, .50 x .27

$7.99

$

In Stock, only 1 left!

0

47

White Outdoor 741-0225

Bearing, Hex Flange
(Superseded to 941-0225)

$7.49

$

In Stock, Qty 20+

0

48

White Outdoor 746-0968

Cable, Lift, 16.16

$19.99

$

In Stock, Qty 20+

0

49

White Outdoor 747-04155

Handle, Lift

$

$

Not available

50

White Outdoor 756-1154

Pulley, Roller

$7.99

$

In Stock, only 1 left!

0

51

White Outdoor 783-0678A

Arm, Lift
(Superseded to 783-0678C)

Variations

White Outdoor 783-0678A-0637

Lift Deck Link - POWDER BLACK (0637)

$29.99

$

In Stock, only 1 left!

0

White Outdoor 783-0678A-4008

LINK-LIFT DECK - WINE RED (4008)

$29.99

$

Usually ships in 3-6 days

0

$24.99

$

Usually ships in 3-6 days

0

52

White Outdoor 710-0604A

Screw, 5/16-18 x .625

$4.49

$

In Stock, Qty 20+

0

53

White Outdoor 736-0607

Lock Washer, 5/16

$3.99

$

In Stock, Qty 20+

0
