LT-946 G (13AP606H790) - White Outdoor 46" Lawn Tractor (2006) Engine Accessories Parts Diagram

46" Lawn Tractor

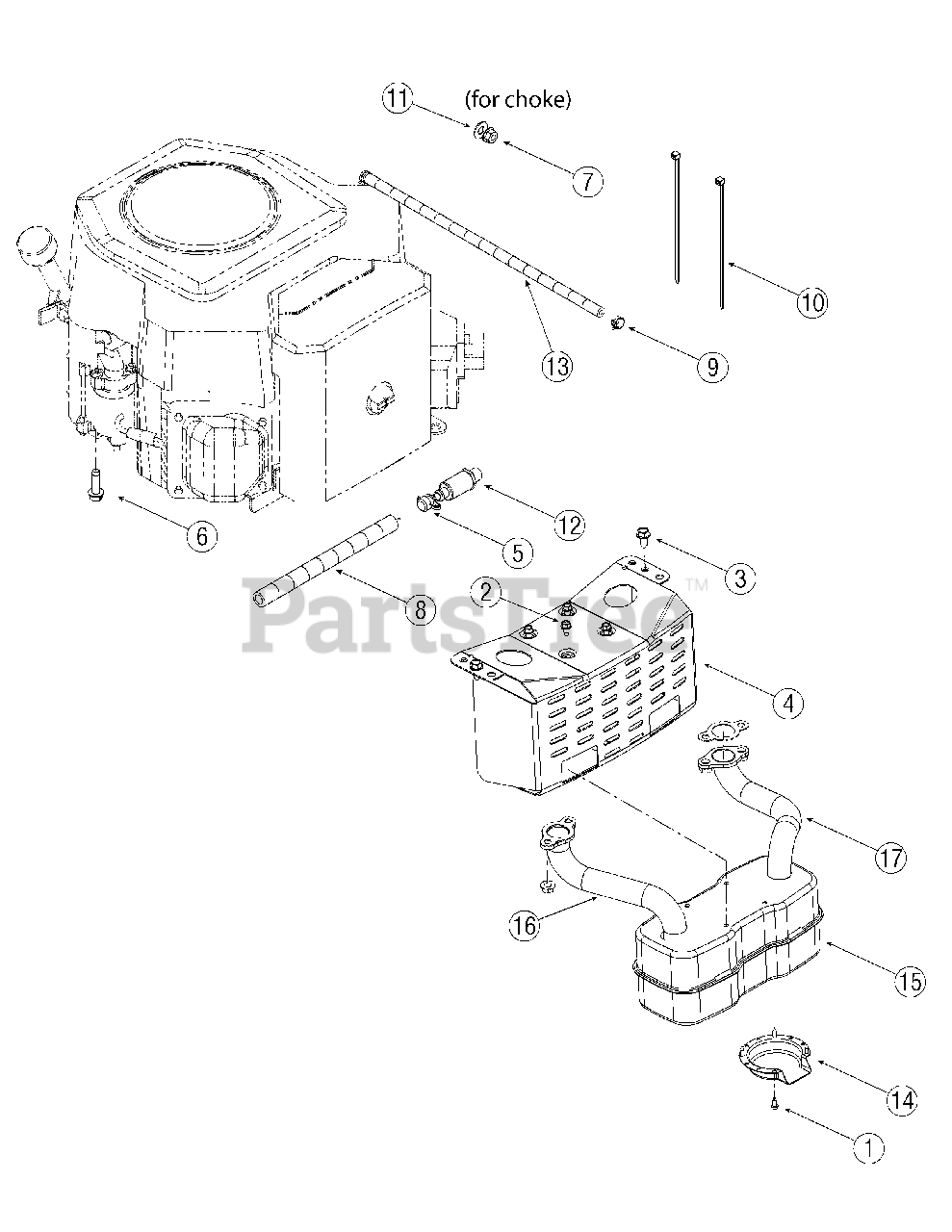

Engine Accessories Parts Diagram

  • Title

1

White Outdoor 710-0227

AB Screw #8-18 x 0.5

$4.49

$

In Stock, Qty 20+

0

2

White Outdoor 710-0599

TT Screw 1/4-20 x 0.5

$4.49

$

In Stock, Qty 20+

0

3

White Outdoor 710-0726

AB Screw 5/16-12 x 0.5

$4.49

$

In Stock, Qty 20+

0

4

White Outdoor 783-0615D

Muffler Bracket
(Superseded to 783-0615E-0637)

Variations

White Outdoor 783-0615D-0637

Muffler Bracket - POWDER BLACK (0637)

$64.99

$

In Stock, only 1 left!

0

$64.99

$

In Stock, only 1 left!

0

5

White Outdoor 751-3142

Oil Drain Cap

$4.49

$

In Stock, Qty 14

0

6

White Outdoor 710-1315

TT Screw 3/8-16 x 1.25

$4.49

$

In Stock, Qty 20+

0

7

White Outdoor 712-3005

Flange Lock Nut, 3/8-16

$6.99

$

Usually ships in 3-6 days

0

8

White Outdoor 751-3141

OIl Drain Extension Hose
(Superseded to 751-3141-14)

$11.99

$

In Stock, Qty 7

0

9

White Outdoor 726-0205

Hose Clamp

$3.99

$

In Stock, Qty 20+

0

10

White Outdoor 725-0157

Cable Tie

$3.99

$

In Stock, Qty 20+

0

11

White Outdoor 736-0300

Lock Washer, .406 x .875

$4.49

$

In Stock, Qty 20+

0

12

White Outdoor 751-3140

Oil Drain Valve
(Superseded to 951-10517A)

$24.99

$

In Stock, only 1 left!

0

13

MTD 751-10349

Fuel Line Hose

$9.49

$

Usually ships in 3-6 days

0

14

White Outdoor 751-0564A

Muffler Deflector
(Superseded to 751-0564B)

$13.99

$

In Stock, only 3 left!

0

15

White Outdoor 751-0805A

Muffler
(Superseded to 951-0805A)

$123.99

$

Usually ships in 3-6 days

0

16

White Outdoor 751-0645A

Exhaust Pipe - RH

$93.99

$

Usually ships in 3-6 days

0

17

White Outdoor 751-0644B

Exhaust Pipe - LH

$146.99

$

Usually ships in 3-6 days

0
