LT-946 G (13AP606H790) - White Outdoor 46" Lawn Tractor (2006) Drive and Rear Wheels Parts Diagram

46" Lawn Tractor

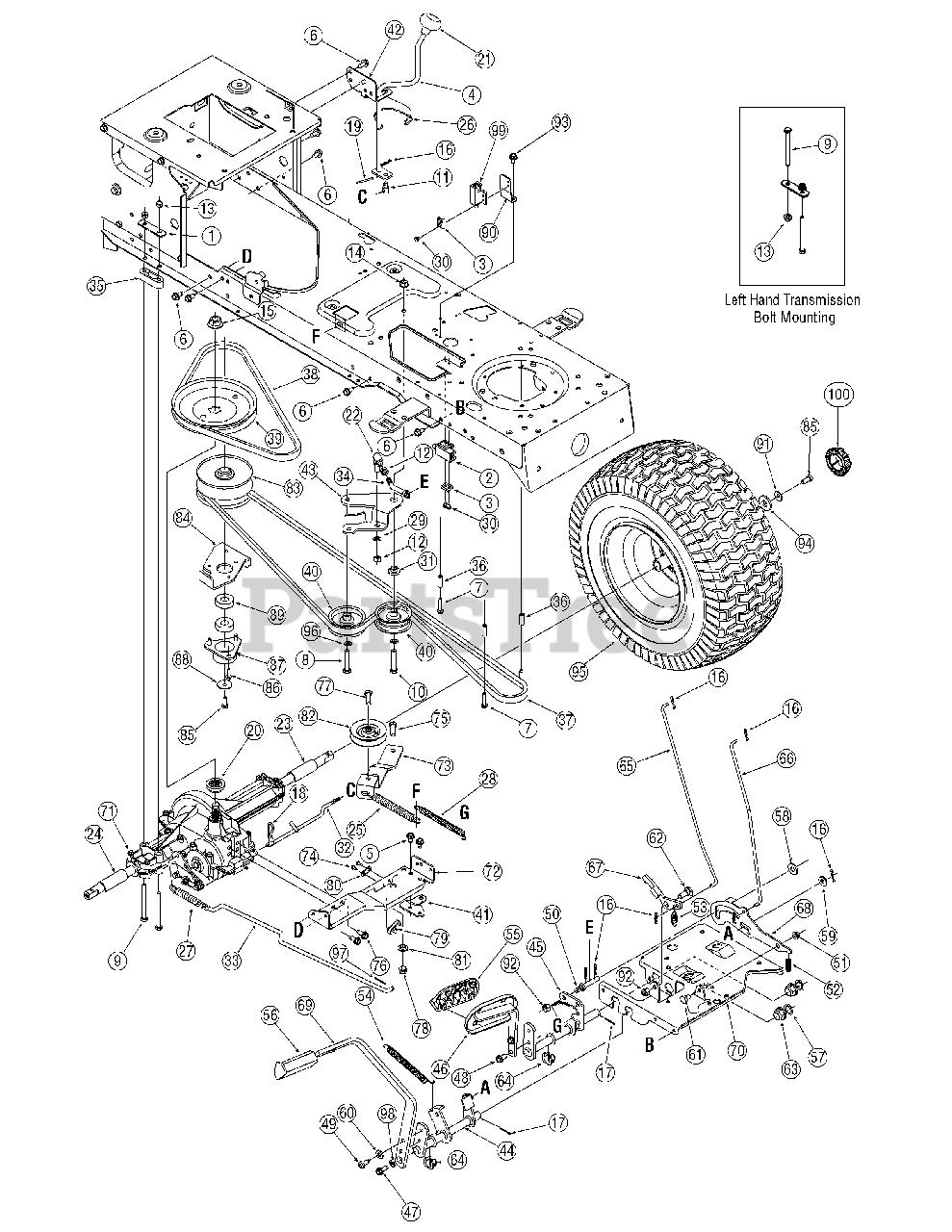

Drive and Rear Wheels Parts Diagram

  • Title

1

White Outdoor 17840

Mounting Bracket, Transaxle
(Superseded to 17840-0637)

Variations

White Outdoor 17840-0637

Trans Mounting Bracket - POWDER BLACK (0637)

$11.99

$

Usually ships in 3-6 days

0

$11.99

$

Usually ships in 3-6 days

0

2

White Outdoor 725-04039

Switch, Interlock
(Superseded to 925-04039)

$24.99

$

In Stock, Qty 7

0

3

White Outdoor 17962

Plate, Switch

$4.99

$

In Stock, only 3 left!

0

4

White Outdoor 647-04020

Lever Assembly, Shift

$29.99

$

Usually ships in 3-6 days

0

5

White Outdoor 710-0607

Screw, 5/16-18, 0.500

$6.99

$

In Stock, Qty 9

0

6

White Outdoor 710-0726

Screw, 5/16-12, 0.750

$4.49

$

In Stock, Qty 20+

0

7

White Outdoor 710-0809

Screw, 1/4-20, 1.250

$6.99

$

In Stock, Qty 17

0

8

White Outdoor 710-1007

Screw, Sems, 3/8-16, 1.500

$6.49

$

Usually ships in 3-6 days

0

9

White Outdoor 710-1266

Screw, 5/16-18, 3.50, Gr5

$9.99

$

Usually ships in 3-6 days

0

10

White Outdoor 710-3144

Screw, 3/8-16, 2.00, Gr5

$4.49

$

In Stock, Qty 20+

0

11

White Outdoor 711-0736

Adjustment Ferrule 1/4-20 x 1.

$13.99

$

In Stock, only 1 left!

0

12

White Outdoor 712-0241

Nut, Hex, 3/8-24, Gr5

$4.49

$

In Stock, Qty 13

0

13

White Outdoor 712-04063

Nut, Flange Lock, 5/16-18, GrF

$3.99

$

In Stock, Qty 20+

0

14

White Outdoor 712-0431

Nut, Flange Lock, 3/8-16, GrF
(Superseded to 912-0431)

$4.99

$

In Stock, Qty 20+

0

15

White Outdoor 712-0700

Nut, Flange, 9/16-18, Gr2

$10.99

$

In Stock, only 2 left!

0

16

White Outdoor 714-0104

Pin, Cotter,.072 Dia. x 1.13

$4.49

$

In Stock, Qty 20+

0

17

White Outdoor 714-0111

Pin, Cotter, 3/32, 1.0

$4.99

$

In Stock, Qty 13

0

18

White Outdoor 714-0209

Cotter Pin, Internal,.125 Dia.
(Superseded to 914-0209)

$3.99

$

In Stock, only 2 left!

0

19

White Outdoor 714-0470

Pin, Cotter, 1/8 x 1.25

$4.49

$

In Stock, Qty 20+

0

20

White Outdoor 718-0758A

Pulley Hub, 5/8 Spline
(Superseded to 718-04407)

$12.99

$

In Stock, Qty 20+

0

21

White Outdoor 720-04028

Knob, Shift

$10.99

$

In Stock, only 4 left!

0

22

White Outdoor 723-3018

Ball Joint
(Superseded to 923-3018)

$16.99

$

In Stock, Qty 20+

0

23

White Outdoor 731-04602

Sleeve,.758 x.821 x 3.3125

$6.49

$

In Stock, only 1 left!

0

24

White Outdoor 731-04604

Sleeve,.758 x.821 x 2.4375

$6.99

$

In Stock, only 3 left!

0

25

White Outdoor 732-0384

Spring, Extension,.62 Dia x 6.12
(Superseded to 932-0384)

$14.99

$

In Stock, Qty 11

0

26

White Outdoor 732-0525

Spring Clip, Shifter

$10.99

$

In Stock, only 1 left!

0

27

White Outdoor 732-0716

Spring, Extension,.59 OD x 4.00
(Superseded to 732-0716D)

$13.99

$

In Stock, only 1 left!

0

28

White Outdoor 732-0963

Spring, Extension,.50 Dia x 6.37

$9.99

$

In Stock, only 4 left!

0

29

White Outdoor 736-0169

Washer, Lock, 3/8

$3.99

$

In Stock, Qty 20+

0

30

White Outdoor 710-0224

Screw, #10-16,.50
(Superseded to 910-0224)

$3.99

$

In Stock, Qty 20+

0

31

White Outdoor 738-0372B

Spacer, Shoulder, 1.00 x.38 x.38

$9.49

$

In Stock, Qty 19

0

32

White Outdoor 747-04146A

Rod, Shift
(Superseded to 747-04146C)

$22.99

$

In Stock, only 1 left!

0

33

White Outdoor 747-04164

Rod, Brake

$

$

Not available

34

White Outdoor 747-1127

Idler Rod, Adjustable, 3/8

$42.99

$

Usually ships in 3-6 days

0

35

White Outdoor 748-0334

Spacer,.68
(Superseded to 948-0334)

$10.99

$

In Stock, only 1 left!

0

36

White Outdoor 750-0566A

Spacer,.260 x.372 x 1.030

$9.99

$

In Stock, only 1 left!

0

37

White Outdoor 754-0467

Belt, V-Type
(Superseded to 954-0467A)

$50.99

$

In Stock, Qty 20+

0

38

White Outdoor 754-0468

Belt, V-Type
(Superseded to 954-0468)

$30.99

$

In Stock, Qty 12

0

39

White Outdoor 756-04002

Pulley, V-Type, 7.25 Dia.
(Superseded to 956-04002)

$27.99

$

In Stock, Qty 19

0

40

White Outdoor 756-04224

Idler Pulley, Flat 2.75 OD

$26.99

$

In Stock, Qty 20+

0

41

White Outdoor 783-04283

Bracket, Shift

$

$

Not available

42

White Outdoor 783-04360

Bracket, Shift, F-N-R

$

$

Not available

43

White Outdoor 783-04442

Idler Bracket, Center Double

Variations

White Outdoor 783-04442-0637

Double Idler Bracket Assembly - POWDER BLACK (0637)

$35.99

$

In Stock, only 1 left!

0

White Outdoor 783-04442-4008

Double Idler Bracket Assembly - WINE RED (4008)

$

$

Not available

$35.99

$

In Stock, only 1 left!

0

44

White Outdoor 647-0031B

Control Assembly, Brake
(Superseded to 753-05606)

Variations

White Outdoor 647-0031B-0637

Service Kit - POWDER BLACK (0637)

$

$

Not available

$

$

45

White Outdoor 647-0032A

Control Assembly, Speed
(Superseded to 647-0032A-0637)

Variations

White Outdoor 647-0032A-0637

CONTROL ASSY-SPEED - POWDER BLACK (0637)

$

$

Not available

$

$

46

White Outdoor 683-0266

Pedal Assembly

$

$

Not available

47

White Outdoor 710-0650

Screw, 5/16-18, 0.875

$3.99

$

In Stock, Qty 20+

0

48

White Outdoor 710-1260A

Screw,5/16-18, 0.750

$3.99

$

In Stock, Qty 20+

0

49

White Outdoor 710-1611B

Screw, 5/16-18, 0.750

$6.99

$

In Stock, only 2 left!

0

50

White Outdoor 711-04159B

Pin, 3/8-16 x 2.68

$7.99

$

Usually ships in 3-6 days

0

51

White Outdoor 712-3004A

Nut, Flange Lock, 5/16-18, Gr5

$3.99

$

In Stock, Qty 20+

0

52

White Outdoor 732-0335

Spring, Compression.,.405 x 1.17

$

$

Not available

53

White Outdoor 732-0955

Spring, Extension,.50 OD x 1.41

$9.99

$

In Stock, only 1 left!

0

54

White Outdoor 732-0963

Spring, Extension,.50 OD x 6.37

$9.99

$

In Stock, only 4 left!

0

55

White Outdoor 735-0662

Pad

$11.99

$

Usually ships in 3-6 days

0

56

White Outdoor 735-3049

Pad, Brake
(Superseded to 735-3049A)

$12.99

$

In Stock, only 1 left!

0

57

White Outdoor 736-0187

Washer, Flat,.64 x 1.24 x.06, HT

$4.49

$

In Stock, Qty 20+

0

58

White Outdoor 736-0262

Washer, Flat,.385 x.870 x.092

$3.99

$

In Stock, Qty 20+

0

59

White Outdoor 736-0300

Washer, Flat,.406 x.875 x.059

$4.49

$

In Stock, Qty 20+

0

60

White Outdoor 736-3008

Washer, Flat,.344 x.750 x.120
(Superseded to 936-3008)

$6.99

$

Usually ships in 3-6 days

0

61

White Outdoor 738-0155

Screw, Shoulder.437 Dia x.162
(Superseded to 938-0155)

$6.99

$

Usually ships in 3-6 days

0

62

White Outdoor 738-0380

Screw, Shoulder,.50 x.27 Lg

$7.99

$

In Stock, only 1 left!

0

63

White Outdoor 741-0225

Bearing, Hex Flange
(Superseded to 941-0225)

$7.49

$

In Stock, Qty 19

0

64

White Outdoor 741-3065B

Split Bearing, Hex Flange

$8.49

$

In Stock, Qty 20+

0

65

White Outdoor 747-04093

Rod, Brake Lock
(Superseded to 747-04093A)

$

$

Not available

66

White Outdoor 747-04096

Rod, Cruise Control

$15.99

$

Usually ships in 3-6 days

0

67

White Outdoor 748-04039B

Latch, Cruise Control
(Superseded to 748-04039C)

$

$

Not available

68

White Outdoor 783-0732A

Bracket, Lockout

$34.99

$

Usually ships in 3-6 days

0

69

White Outdoor 783-0773A

Ped, Brake
(Superseded to 753-05606)

Variations

White Outdoor 783-0773A-0637

Service Kit - POWDER BLACK (0637)

$

$

Not available

White Outdoor 783-0773A-0650

Service Kit - RED METALLIC (0650)

$

$

Not available

White Outdoor 783-0773A-0665

Service Kit - YARDMAN GREEN (0665)

$

$

Not available

White Outdoor 783-0773A-0691

Service Kit - BLACK JACK (0691)

$

$

Not available

White Outdoor 783-0773A-4008

PEDAL-BRAKE - WINE RED (4008)

$

$

Not available

$

$

70

White Outdoor 783-04612

Bracket, Steering Support
(Superseded to 783-04612-0637)

Variations

White Outdoor 783-04612-0637

Steering Support Bracket - POWDER BLACK (0637)

$89.99

$

In Stock, only 3 left!

0

$89.99

$

In Stock, only 3 left!

0

71

White Outdoor 618-04034

Transmission, Single Speed
(Superseded to 753-05851)

$671.99

$

Usually ships in 3-6 days

0

72

White Outdoor 683-04055A

Bracket Assembly, Torque
(Superseded to 753-05343)

$

$

Not available

73

White Outdoor 683-04130

Bracket, Idler
(Superseded to 753-05343)

$

$

Not available

74

White Outdoor 710-0227

Screw, #8-18 x.50

$4.49

$

In Stock, Qty 20+

0

75

White Outdoor 710-0514

Screw, 3/8-16, 1.00

$4.49

$

In Stock, Qty 20+

0

76

White Outdoor 710-0604A

Screw, 5/16-18,.625

$4.49

$

In Stock, Qty 20+

0

77

White Outdoor 710-1315

Screw, 3/8-16, 1.250

$4.49

$

In Stock, Qty 20+

0

78

White Outdoor 712-0130

Nut, Lock, 3/8-16, Nylon

$3.99

$

In Stock, Qty 11

0

79

White Outdoor 725-1644

Switch Spring, Short

$9.99

$

In Stock, Qty 11

0

80

White Outdoor 726-0320

Plate, Insulator
(Superseded to 926-0320)

$6.99

$

In Stock, Qty 11

0

81

White Outdoor 750-04294

Spacer, Shoulder

$7.49

$

Usually ships in 3-6 days

0

82

White Outdoor 756-04209

Pulley, V-Type, 3.06

$22.99

$

In Stock, Qty 20+

0

83

White Outdoor 656-04015

Pulley Ass’y, Variable Speed
(Superseded to 956-04015B)

$103.99

$

In Stock, Qty 20+

0

84

White Outdoor 683-04129

Bracket, Pulley
(Superseded to 753-06035)

$

$

Not available

85

White Outdoor 710-0627

Screw, 5/16-24,.750

$4.49

$

In Stock, Qty 20+

0

86

White Outdoor 710-1652

Screw, 1/4-20,.625

$4.49

$

In Stock, Qty 20+

0

87

White Outdoor 718-04012

Cup, Bearing

$21.99

$

In Stock, only 1 left!

0

88

White Outdoor 736-0362

Washer, Flat

$4.49

$

In Stock, only 4 left!

0

89

White Outdoor 741-0600

Ball Bearing
(Superseded to 941-0600)

$25.99

$

In Stock, Qty 20+

0

90

White Outdoor 783-04722

Switch Bracket, Parking Brake

Variations

White Outdoor 783-04722-0637

BRACKET-PARKING SW - POWDER BLACK (0637)

$

$

Not available

$

$

91

White Outdoor 736-0242

Washer, Bell,.340 x.872 x.060

$4.49

$

In Stock, Qty 20+

0

92

White Outdoor 712-04065

Nut, Flange Lock, 3/8-16, GrF

$3.99

$

In Stock, Qty 20+

0

93

White Outdoor 710-0599

Screw, 1/4-20 x.500

$4.49

$

In Stock, Qty 20+

0

94

White Outdoor 736-0430

Flat Washer,.350 x 1.59 x.062

$4.49

$

In Stock, Qty 8

0

95

White Outdoor 634-0177

Wheel Assy Comp, 20 x 10 x 8

Variations

White Outdoor 634-0177-0911

WHEEL ASS'Y COMP - Carlisle Gray (0911)

$473.99

$

Usually ships in 3-6 days

0

White Outdoor 634-0177-0931

WHEEL ASSEMBLY COM - Carlisle Beige (0931)

$473.99

$

In Stock, only 1 left!

0

White Outdoor 634-0177-0941

WHEEL ASS'Y COMP - Carlisle Yellow (0941)

$357.99

$

Usually ships in 3-6 days

0

White Outdoor 634-0177-0991

WHEEL ASS'Y COMP - Carlisle White (0991)

$357.99

$

Usually ships in 3-6 days

0

White Outdoor 634-0177-0994

WHEEL ASS'Y COMP - Cheng White (0994)

$357.99

$

Usually ships in 3-6 days

0

White Outdoor 634-0177-4009

WHEEL ASS'Y COMP - TEE WHITE (4009)

$357.99

$

Usually ships in 3-6 days

0

White Outdoor 634-0177-0961

WHEEL ASS'Y COMP - Carlisle Gray (0961)

$

$

Not available

$384.99

$

Usually ships in 3-6 days

0

95

White Outdoor 734-1873

Tire Only 20 x 10 x 8

Variations

White Outdoor 734-1873-0901

Tire, 20 X 10 X 8 - Carlisle (0901)

$106.99

$

In Stock, only 1 left!

0

White Outdoor 734-1873-0904

Tire, 20 X 10 X 8 - Cheng (0904)

$106.99

$

In Stock, only 1 left!

0

$246.99

$

Usually ships in 3-6 days

0

White Outdoor 634-0070

Rim Only w/ Valve Stem
(Superseded to 634-04369)

Variations

White Outdoor 634-0070-4009

WHEEL RIM - TEE WHITE (4009)

$154.99

$

Usually ships in 3-6 days

0

White Outdoor 634-0070-0499

WHEEL RIM - CUB BEIGE (0499)

$165.99

$

Usually ships in 3-6 days

0

White Outdoor 634-0070-0674

WHEEL RIM - YARDMAN YELLOW (0674)

$165.99

$

Usually ships in 3-6 days

0

White Outdoor 634-0070-0629

WHEEL RIM - SILVER FLAKE (0629)

$165.99

$

Usually ships in 3-6 days

0

White Outdoor 634-0070-0662

WHEEL RIM - OYSTER GRAY (0662)

$165.99

$

Usually ships in 3-6 days

0

White Outdoor 634-0070-0688

WHEEL RIM - SPRING GREEN (0688)

$165.99

$

Usually ships in 3-6 days

0

$134.99

$

Usually ships in 3-6 days

0

96

White Outdoor 736-3010

Flat Washer, .407 x .812 x .135

$4.99

$

In Stock, Qty 20+

0

97

White Outdoor 714-0507

Pin, Cotter, 3/32 x .750

$4.49

$

In Stock, Qty 12

0

98

White Outdoor 736-0119

Lock Washer, 5/16
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

99

MTD 725-3167

Switch
(Superseded to 925-3167)

$14.99

$

In Stock, only 2 left!

0

100

White Outdoor 731-2290A

Hub Cap
(Superseded to 731-2290B)

$4.49

$

In Stock, Qty 20+

0
