LT-942 H (13A4616G790) - White Outdoor 42" Lawn Tractor (2005) Deck Assembly 42 Inch Parts Diagram

42" Lawn Tractor

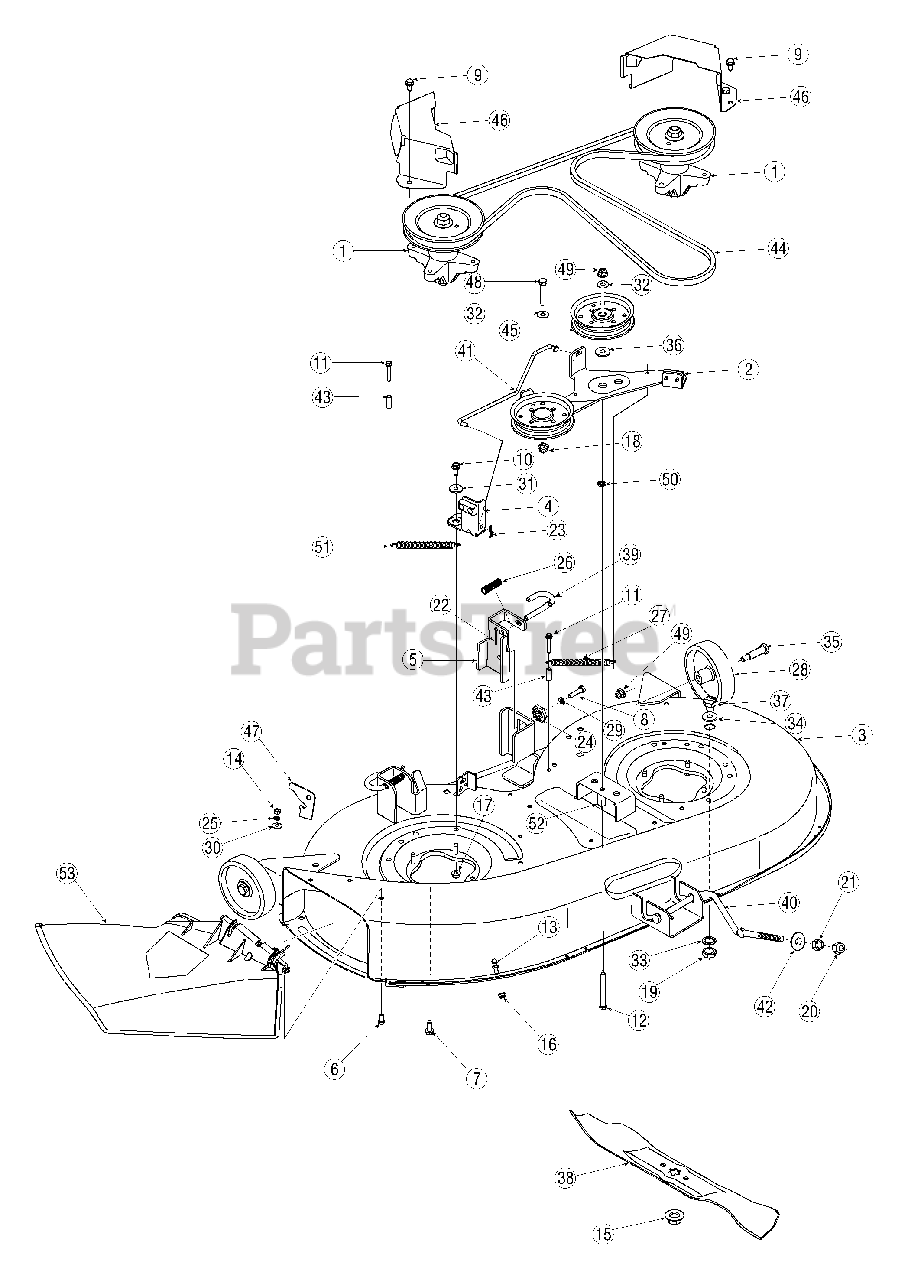

Deck Assembly 42 Inch Parts Diagram

  • Title

1

White Outdoor 918-0624

Pulley/ Spindle Assembly
(Superseded to 918-0624B)

$149.99

$

In Stock, Qty 6

0

1

White Outdoor 712-0417A

Flange Nut:5/8-18

Note: Not shown

$6.99

$

In Stock, Qty 20+

0

1

White Outdoor 738-1010A

Spindel ShaftL:5.75 LG.

Note: Not shown

$46.99

$

In Stock, only 2 left!

0

1

White Outdoor 941-0919

Ball Bearing:20x47x14:62
(Superseded to 941-0919B)

Note: Not shown

$21.99

$

In Stock, Qty 20+

0

1

White Outdoor 748-0433

Spacer:.820 x 1.15 x .730

Note: Not shown

$5.99

$

In Stock, Qty 5

0

1

White Outdoor 750-1000

Spacer:.8 x 1.1 x 1.322

Note: Not shown

$4.49

$

In Stock, Qty 7

0

1

White Outdoor 956-1227

Deck Pulley:6.3 DIA

Note: Not shown

$26.99

$

In Stock, only 4 left!

0

2

White Outdoor 683-04138

Deck Brake Assembly
(Superseded to 683P04138C)

Variations

White Outdoor 683-04138-0637

Brake Assembly, 42 - POWDER BLACK (0637)

$117.99

$

In Stock, only 1 left!

0

White Outdoor 683-04138-0665

USE 683-04138B-0665 BRAKE ASM - YARDMAN GREEN (0665)

$117.99

$

In Stock, only 1 left!

0

$117.99

$

In Stock, only 1 left!

0

3

White Outdoor 683-04162

42" Deck Assembly
(Superseded to 983-04162A)

Variations

White Outdoor 683-04162-0637

DECK SHELL 42" POWDER BLACK - POWDER BLACK (0637)

$724.99

$

Usually ships in 3-6 days

0

White Outdoor 683-04162-0638

DECK ASSEMBLY 42" RED - MTD/TROY-BILT RED (0638)

$724.99

$

Usually ships in 3-6 days

0

White Outdoor 683-04162-0650

DECK SHELL 42" RED - RED METALLIC (0650)

$586.99

$

Usually ships in 3-6 days

0

White Outdoor 683-04162-0709

DECK ASSEMBLY 42" GREEN - MASTERCRAFT GREEN (0709)

$627.99

$

Usually ships in 3-6 days

0

White Outdoor 683-04162-0665

DECK ASSY SD 42" W/WHEEL BRKT - YARDMAN GREEN (0665)

$

$

Not available

$586.99

$

Usually ships in 3-6 days

0

4

White Outdoor 683-04167

Deck Brake Assembly
(Superseded to 983-04167)

Variations

White Outdoor 683-04167-0637

Deck Brake Assembly 42" - POWDER BLACK (0637)

$47.99

$

In Stock, only 2 left!

0

White Outdoor 683-04167-0665

Deck Brake Assembly 42" - YARDMAN GREEN (0665)

$47.99

$

In Stock, only 2 left!

0

$47.99

$

In Stock, only 2 left!

0

5

White Outdoor 683-0254B

Deck Hanger Bracket Assembly

Variations

White Outdoor 683-0254B-0498

Deck Bracket Assembly, LH - OLD CUB YELLOW (0498)

$49.99

$

Usually ships in 3-6 days

0

White Outdoor 683-0254B-0716

Deck Bracket Assembly, LH - CUB YELLOW-99 (0716)

$49.99

$

Usually ships in 3-6 days

0

White Outdoor 683-0254B-4021

Deck Bracket Assembly, LH - CUB YELLOW 2 (4021)

$49.99

$

Usually ships in 3-6 days

0

White Outdoor 683-0254B-0637

Deck Bracket Assembly, LH - POWDER BLACK (0637)

$36.99

$

In Stock, only 1 left!

0

White Outdoor 683-0254B-4033

Deck Bracket Assembly, LH - FLINT MICA (4033)

$36.99

$

In Stock, only 1 left!

0

White Outdoor 683-0254B-4044

Deck Bracket Assembly, LH - CRAFTSMAN RED (4044)

$49.99

$

In Stock, only 1 left!

0

White Outdoor 683-0254B-0606

Deck Bracket Assembly, LH - MAJESTIC ORANGE (0606)

$36.99

$

In Stock, only 1 left!

0

White Outdoor 683-0254B-0638

Deck Bracket Assembly, LH - MTD/TROY-BILT RED (0638)

$36.99

$

In Stock, only 1 left!

0

White Outdoor 683-0254B-0650

BRACKET ASSY-DECK LH - RED METALLIC (0650)

$49.99

$

In Stock, only 1 left!

0

White Outdoor 683-0254B-0665

BRACKET ASSY-DECK LH - YARDMAN GREEN (0665)

$49.99

$

Usually ships in 3-6 days

0

White Outdoor 683-0254B-0691

Deck Bracket Assembly, LH - BLACK JACK (0691)

$36.99

$

In Stock, only 1 left!

0

White Outdoor 683-0254B-4008

BRACKET ASSY-DECK LH - WINE RED (4008)

$46.99

$

Usually ships in 3-6 days

0

White Outdoor 683-0254B-0709

BRACKET ASSY-DECK LH - MASTERCRAFT GREEN (0709)

$49.99

$

Usually ships in 3-6 days

0

White Outdoor 683-0254B-4028

BRACKET ASSY-DECK LH - SEARS YELLOW (4028)

$36.99

$

In Stock, only 1 left!

0

$46.99

$

Usually ships in 3-6 days

0

6

White Outdoor 710-0751

Screw, 1/4-20 x.620

$3.99

$

In Stock, Qty 20+

0

7

White Outdoor 710-0650

Screw, 5/16-18 x.875

$3.99

$

In Stock, Qty 20+

0

8

White Outdoor 710-0528

Screw, 5/16-18 x 1.25

$4.49

$

In Stock, Qty 19

0

9

White Outdoor 710-0726

Screw, 5/16-12 x.750

$4.49

$

In Stock, Qty 20+

0

10

White Outdoor 710-1260A

Screw, 5/16-18 x.750

$3.99

$

In Stock, Qty 20+

0

11

White Outdoor 710-0778

Screw, 1/4-20 x 1.500

$4.49

$

In Stock, Qty 20+

0

12

White Outdoor 710-3085

Screw, 3/8-16 x 3.50

$4.49

$

In Stock, Qty 20+

0

13

White Outdoor 711-04069

Grass catcher Pin
(Superseded to 911-04069)

$8.49

$

In Stock, Qty 20+

0

14

White Outdoor 712-3006

Hex Nut, 1/4-20

$4.99

$

In Stock, Qty 17

0

15

White Outdoor 712-0417A

Flange Nut, 5/8-18

$6.99

$

In Stock, Qty 20+

0

16

White Outdoor 712-04064

Flange Lock Nut, 1/4-20

$3.99

$

In Stock, Qty 20+

0

17

White Outdoor 712-04063

Flange Lock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

18

White Outdoor 712-04065

Flange Lock Nut, 3/8-16

$3.99

$

In Stock, Qty 20+

0

19

White Outdoor 712-0641

Hex Nut, M16-1.5

$6.49

$

In Stock, Qty 7

0

20

White Outdoor 712-3083

Hex Lock Nut, 1/2-13

$4.49

$

In Stock, Qty 20+

0

21

White Outdoor 712-0206

Hex Nut, 1/2-13

$4.49

$

In Stock, Qty 20+

0

22

White Outdoor 714-0470

Cotter Pin, 1/8 x 1.25

$4.49

$

In Stock, Qty 20+

0

23

White Outdoor 714-0104

Cotter Pin,.072 Dia. x 1.13 Lg.

$4.49

$

In Stock, Qty 20+

0

24

White Outdoor 717-04074

Deck Adjustment Gear
(Superseded to 917-04074)

$13.99

$

In Stock, Qty 9

0

25

White Outdoor 726-0233

Push Nut,.25 ID x.50 OD

$4.49

$

In Stock, Qty 20+

0

26

White Outdoor 732-0306A

Compression Spring,.531 OD x 1.
(Superseded to 932-0306A)

$8.49

$

In Stock, only 2 left!

0

27

White Outdoor 732-0308A

Extension Spring,.50 Dia. x 6.37 Lg.

$11.99

$

In Stock, only 2 left!

0

28

White Outdoor 734-0973

Deck Wheel

$12.99

$

In Stock, Qty 20+

0

29

White Outdoor 736-0119

Lock Washer, 5/16
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

30

White Outdoor 736-0270

Bell Washer,.265 x.75 x.062

$3.99

$

In Stock, Qty 20+

0

31

White Outdoor 736-0289

Shoulder Bushing,.320 ID x.135 Lg.
(Superseded to 936-0289)

$6.99

$

In Stock, only 1 left!

0

32

White Outdoor 736-0267

Flat Washer,.385 x.87 x.06

$4.49

$

In Stock, Qty 20+

0

33

White Outdoor 736-0225

Lock Washer, 5/8

$4.49

$

In Stock, only 2 left!

0

34

White Outdoor 736-0187

Flat Washer,.64 x 1.24 x.06

$4.49

$

In Stock, Qty 20+

0

35

White Outdoor 738-0373

Shoulder Screw,.498 x 1.53 x 3/8-16
(Superseded to 938-0373)

$9.49

$

In Stock, Qty 20+

0

36

White Outdoor 738-04162

Shoulder Spacer,.8540 x.200
(Superseded to 738-04162C)

$13.99

$

In Stock, Qty 20+

0

37

White Outdoor 738-04146

Plug

$9.49

$

Usually ships in 3-6 days

0

38

White Outdoor 742-0616A

Blade, 21.23", Star 3-in-One
(Superseded to 942-0616A)

$31.99

$

In Stock, Qty 20+

0

39

White Outdoor 747-1116

Deck Release Handle Rod

$12.99

$

In Stock, Qty 6

0

40

White Outdoor 747-04269A

Front Deck Adjustment Rod

$27.99

$

In Stock, only 4 left!

0

41

White Outdoor 747-04379

Brake Control Rod
(Superseded to 747-04379A)

$21.99

$

In Stock, only 3 left!

0

42

White Outdoor 748-04069

Deck Lift Pivot Cup
(Superseded to 748-04069A)

$5.99

$

In Stock, Qty 10

0

43

White Outdoor 750-0566A

Spacer,.260 x.372 x 1.030 Lg.

$9.99

$

In Stock, only 1 left!

0

44

White Outdoor 754-04060B

V-Belt, 96.3 Lg.
(Superseded to 954-04060C)

$50.99

$

In Stock, Qty 7

0

45

White Outdoor 756-04129

Idler Pulley, 4.25" Dia.
(Superseded to 753-08171)

$35.99

$

In Stock, Qty 20+

0

46

White Outdoor 783-04327

Belt Cover
(Superseded to 783-04327B)

Variations

White Outdoor 783-04327-0637

Belt Cover, Black 6.00 Dia - POWDER BLACK (0637)

$24.99

$

In Stock, Qty 20+

0

White Outdoor 783-04327-0638

Belt Cover, 6.00 Dia - MTD/TROY-BILT RED (0638)

$24.99

$

In Stock, Qty 20+

0

White Outdoor 783-04327-0650

Belt Cover, 6.00 Dia - RED METALLIC (0650)

$24.99

$

In Stock, Qty 20+

0

White Outdoor 783-04327-0665

COVER-BELT:6.00 DI - YARDMAN GREEN (0665)

$24.99

$

Usually ships in 3-6 days

0

White Outdoor 783-04327-0709

COVER-BELT:6.00 DI - MASTERCRAFT GREEN (0709)

$24.99

$

In Stock, Qty 20+

0

White Outdoor 783-04327-0716

Belt Cover, 6.00 Dia - CUB YELLOW-99 (0716)

$24.99

$

In Stock, Qty 20+

0

$23.99

$

Usually ships in 3-6 days

0

47

N/A

Chute Stop

$

$

Not available

48

White Outdoor 710-3144

Screw, 3/8-16 x 2.00

$4.49

$

In Stock, Qty 20+

0

49

White Outdoor 712-0431

Flange Lock Nut, 3/8-16
(Superseded to 912-0431)

$4.99

$

In Stock, Qty 20+

0

50

White Outdoor 712-0229

Push Nut, 3/8

$3.99

$

In Stock, Qty 20+

0

51

White Outdoor 732-04287

Extension Spring,.500 Dia. x 6.375 Lg

$15.99

$

In Stock, Qty 6

0

52

White Outdoor 750-04446

Spacer, 3/8 ID x.68 OD x 1.46 Lg

$6.99

$

In Stock, Qty 6

0

53

White Outdoor 731-1032B

Discharge Chute
(Superseded to 631-05229)

$81.99

$

In Stock, Qty 5

0
