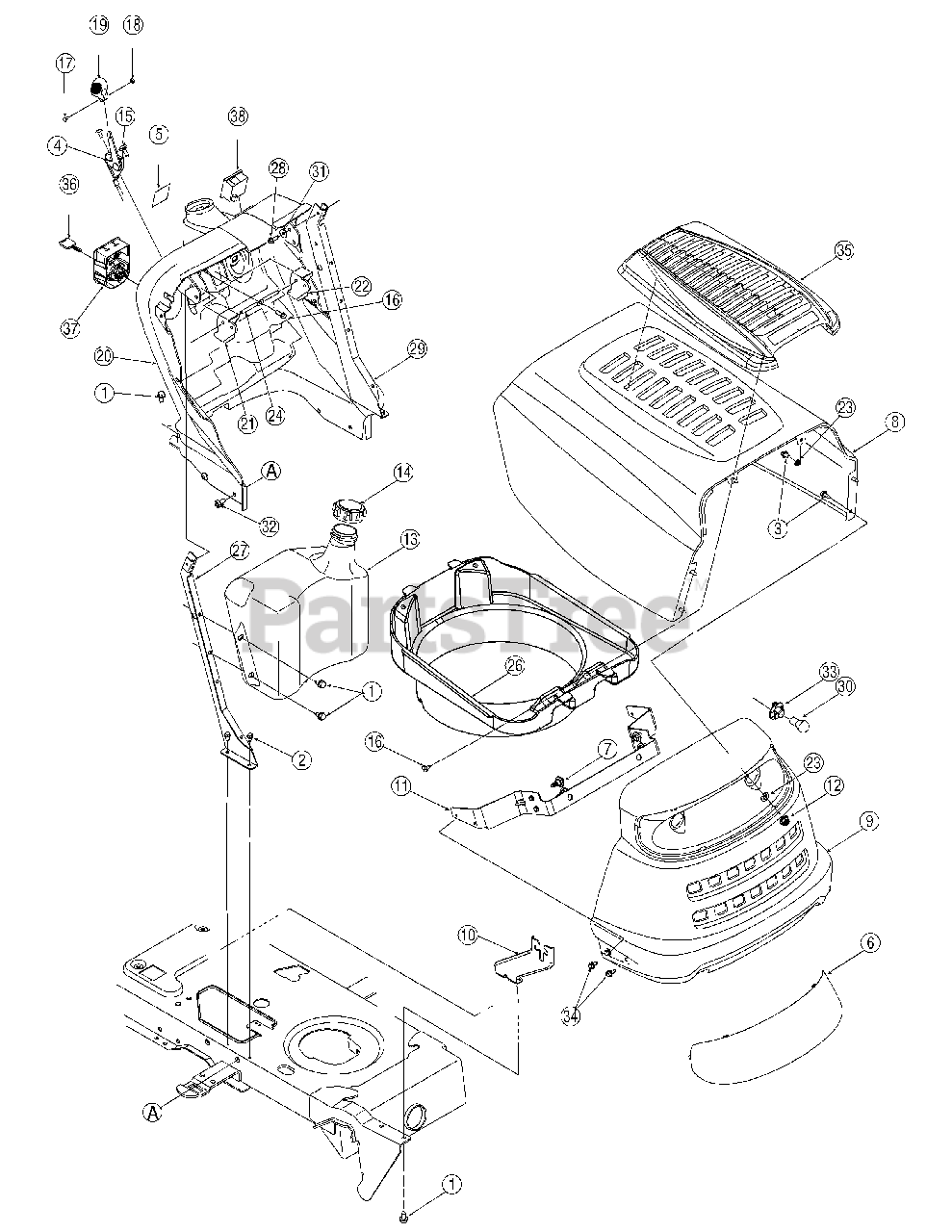

LT-942 G (13AX605G790) - White Outdoor 42" Lawn Tractor (2006) Hood and Control Assembly Parts Diagram

42" Lawn Tractor

Hood and Control Assembly Parts Diagram

  • Title

1

White Outdoor 710-0726

Screw, 5/16-12 x.750

$4.49

$

In Stock, Qty 20+

0

2

White Outdoor 710-0599

Self-tapping Screw, 1/4-20 x.5

$4.49

$

In Stock, Qty 20+

0

3

White Outdoor 710-0751

Hex Cap Screw, 1/4-20 x.62

$3.99

$

In Stock, Qty 20+

0

4

White Outdoor 746-1084

Throttle Control/Cable
(Superseded to 946-1084)

$32.99

$

Usually ships in 3-6 days

0

5

White Outdoor 731-1999

Choke Plug

$10.99

$

Usually ships in 3-6 days

0

6

White Outdoor 731-04949

Headlight Lens
(Superseded to 731-04949A)

$26.99

$

Usually ships in 3-6 days

0

7

White Outdoor 738-04091

Shoulder Screw,.43 x.29
(Superseded to 738-04091A)

$3.99

$

In Stock, Qty 20+

0

8

White Outdoor 783-04551

Hood, 1 Style

Variations

White Outdoor 783-04551-0499

HOOD-1 STYLE - CUB BEIGE (0499)

$

$

Not available

White Outdoor 783-04551-0638

HOOD-1 STYLE - MTD/TROY-BILT RED (0638)

$

$

Not available

White Outdoor 783-04551-0640

HOOD-1 STYLE - CO-OP GREEN (0640)

$

$

Not available

White Outdoor 783-04551-0662

HOOD-1 STYLE - OYSTER GRAY (0662)

$

$

Not available

White Outdoor 783-04551-0674

HOOD-1 STYLE - YARDMAN YELLOW (0674)

$

$

Not available

White Outdoor 783-04551-0691

HOOD-1 STYLE - BLACK JACK (0691)

$

$

Not available

White Outdoor 783-04551-0709

HOOD-1 STYLE - MASTERCRAFT GREEN (0709)

$

$

Not available

White Outdoor 783-04551-0729

HOOD-1 STYLE - STORM GRAY (0729)

$

$

Not available

White Outdoor 783-04551-4015

HOOD-1 STYLE - FIRE RED (4015)

$

$

Not available

$

$

9

White Outdoor 783-04552

Grill, 1 Style

Variations

White Outdoor 783-04552-0662

GRILLE 1 STYLE - OYSTER GRAY (0662)

$

$

Not available

White Outdoor 783-04552-0674

GRILLE 1 STYLE - YARDMAN YELLOW (0674)

$

$

Not available

White Outdoor 783-04552-0499

GRILLE 1 STYLE - CUB BEIGE (0499)

$

$

Not available

White Outdoor 783-04552-0638

GRILLE 1 STYLE - MTD/TROY-BILT RED (0638)

$

$

Not available

White Outdoor 783-04552-0640

GRILLE 1 STYLE - CO-OP GREEN (0640)

$

$

Not available

White Outdoor 783-04552-0691

GRILLE 1 STYLE - BLACK JACK (0691)

$

$

Not available

White Outdoor 783-04552-0709

GRILLE 1 STYLE - MASTERCRAFT GREEN (0709)

$

$

Not available

White Outdoor 783-04552-0729

GRILLE 1 STYLE - STORM GRAY (0729)

$

$

Not available

$

$

10

White Outdoor 783-04578

Pivot Bracket - RH
(Superseded to 783-04578A-0637)

Variations

White Outdoor 783-04578-0637

Pivot Bracket, RH - POWDER BLACK (0637)

$17.99

$

In Stock, only 1 left!

0

$17.99

$

In Stock, only 1 left!

0

10

White Outdoor 783-04577

Pivot Bracket - LH
(Superseded to 783-04577A-0637)

Variations

White Outdoor 783-04577-0637

Pivot Bracket, LH - POWDER BLACK (0637)

$

$

Not available

$

$

11

White Outdoor 783-04621

Grill Pivot Bracket

Variations

White Outdoor 783-04621-0637

BRACKET-PIVOT GRILL - POWDER BLACK (0637)

$

$

Not available

$

$

12

White Outdoor 712-04064

Flange Lock Nut, 1/4-20

$3.99

$

In Stock, Qty 20+

0

13

White Outdoor 751-0659C

Fuel Tank, Two Gallon
(Superseded to 751-0659D)

$84.99

$

In Stock, Qty 5

0

14

White Outdoor 751-0603

Fuel Cap
(Superseded to 751-0603B)

$23.99

$

Usually ships in 3-6 days

0

15

White Outdoor 710-1017

Screw, 1/4-14 x.625

$8.49

$

In Stock, Qty 9

0

16

White Outdoor 710-0895

Self-tapping Screw, 1/4-15 x.75

$6.49

$

In Stock, only 4 left!

0

17

White Outdoor 710-3217

Truss Phillips Screw, #8-32 x.375

$6.99

$

In Stock, Qty 7

0

18

White Outdoor 712-0142

Hex Nut, #8-32

$4.49

$

In Stock, Qty 10

0

19

White Outdoor 731-1857

Throttle Control Knob

$14.99

$

In Stock, only 4 left!

0

20

White Outdoor 731-05001A

Dash Panel
(Superseded to 731-06167)

$109.99

$

Usually ships in 3-6 days

0

21

White Outdoor 731-04215

Cruise Control Button
(Superseded to 931-04215)

$

$

Not available

22

White Outdoor 731-04217

Parking Brake Button
(Superseded to 931-04217)

$11.99

$

In Stock, only 1 left!

0

23

White Outdoor 736-0176

Flat Washer, .265 x .938 x 1.20

$4.99

$

In Stock, only 4 left!

0

24

White Outdoor 747-1196

Brake/Cruise Pivot Rod

$15.99

$

Usually ships in 3-6 days

0

25

White Outdoor 629-04083

Headlight Wire Harness
(Superseded to 929-04083B)

$39.99

$

Usually ships in 3-6 days

0

26

White Outdoor 731-05165A

Hood Plenum

$47.99

$

Usually ships in 3-6 days

0

27

White Outdoor 783-04908

RH Dash Support Plate
(Superseded to 783-04285F-0637)

Variations

White Outdoor 783-04908-0637

SUPPORT-DASH PLATE - POWDER BLACK (0637)

$

$

Not available

$

$

28

White Outdoor 710-0642

Self-tapping Screw, 1/4-20 x .75

$4.49

$

In Stock, Qty 20+

0

29

White Outdoor 783-04909

LH Dash Support Plate
(Superseded to 783-04323F-0637)

Variations

White Outdoor 783-04909-0637

SUPPORT-DASH PLATE - POWDER BLACK (0637)

$34.99

$

Usually ships in 3-6 days

0

$34.99

$

Usually ships in 3-6 days

0

30

White Outdoor 725-0963

Lamp
(Superseded to 925-0963)

$7.49

$

In Stock, only 1 left!

0

31

White Outdoor 736-0270

Bell Washer,.265 x.75 x.062

$3.99

$

In Stock, Qty 20+

0

32

White Outdoor 710-1611B

Screw, 5/16-18 x.75

$6.99

$

In Stock, only 2 left!

0

33

White Outdoor 725-1649

Headlight Socket
(Superseded to 925-1649A)

$11.99

$

In Stock, Qty 20+

0

34

White Outdoor 710-1652

Hex Index Screw, 1/4-20 x. 625

$4.49

$

In Stock, Qty 20+

0

35

White Outdoor 731-05522

Hood Cover, 5 Style
(Superseded to 731-05522A)

$49.99

$

Usually ships in 3-6 days

0

36

White Outdoor 725-1745

Ignition Key w/ plastic cover
(Superseded to 925-1745A)

$17.99

$

In Stock, Qty 20+

0

36

White Outdoor 725-1744

Ignition Key w/o plastic
(Superseded to 925-1745A)

$17.99

$

In Stock, Qty 20+

0

37

White Outdoor 725-04227

Ignition Switch
(Superseded to 925-06119C)

$116.99

$

In Stock, Qty 20+

0

38

White Outdoor 725-04036B

Systems Ind. Monitor w/ Hr.
(Superseded to 925-06170B)

$70.99

$

Usually ships in 3-6 days

0

White Outdoor 725-04339

Wire Harness

Note: Not shown

$

$

Not available
