LT-942 G (13AX605G790) - White Outdoor 42" Lawn Tractor (2006) Engine Accessories Parts Diagram

42" Lawn Tractor

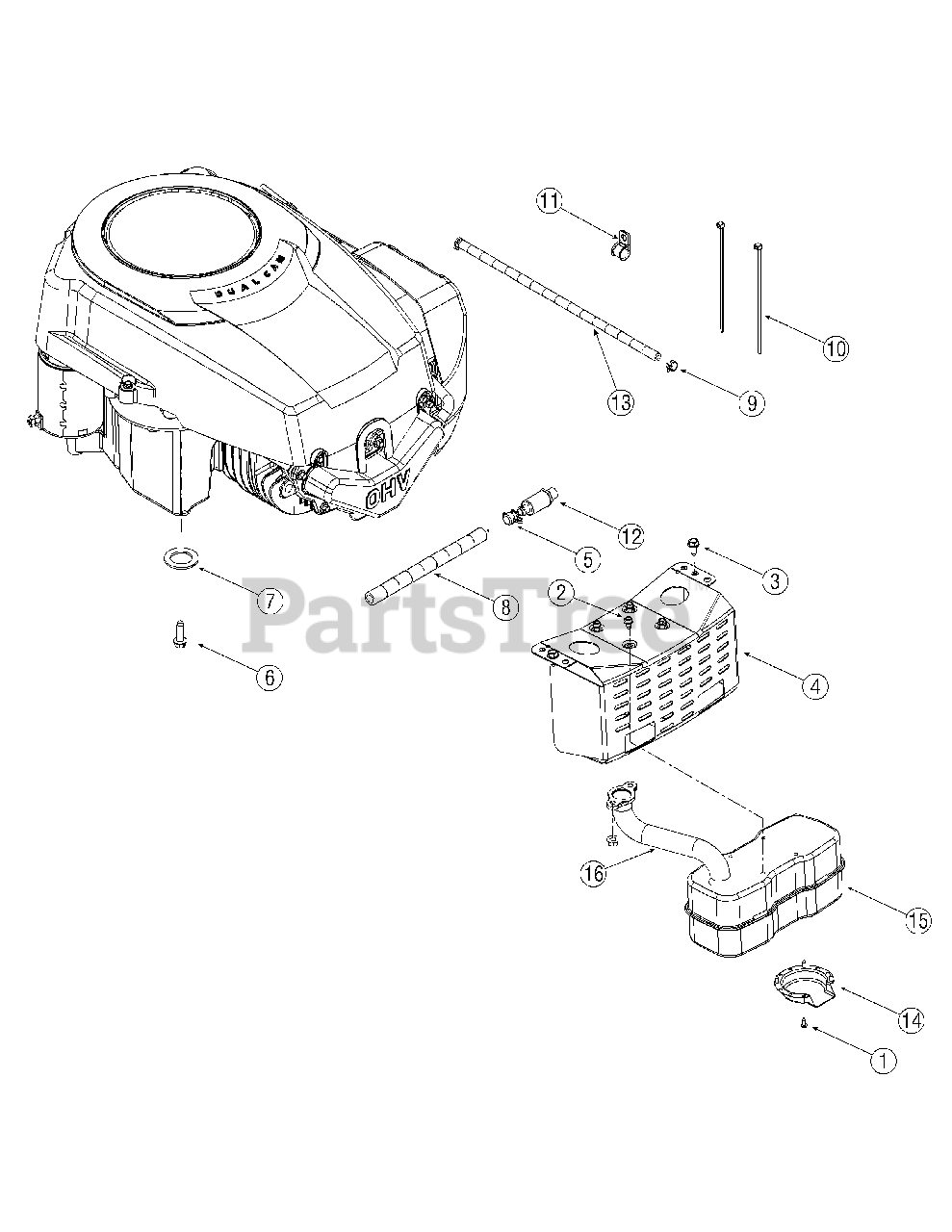

Engine Accessories Parts Diagram

  • Title

1

White Outdoor 710-0227

AB Screw #8-18 x 0.5

$4.49

$

In Stock, Qty 20+

0

2

White Outdoor 710-0599

TT Screw 1/4-20 x 0.5

$4.49

$

In Stock, Qty 20+

0

3

White Outdoor 710-0726

AB Screw 5/16-12 x 0.5

$4.49

$

In Stock, Qty 20+

0

4

White Outdoor 783-0615D

Muffler Bracket
(Superseded to 783-0615E-0637)

Variations

White Outdoor 783-0615D-0637

Muffler Bracket - POWDER BLACK (0637)

$64.99

$

In Stock, only 1 left!

0

$64.99

$

In Stock, only 1 left!

0

5

White Outdoor 751-3142

Oil Drain Cap

$4.49

$

In Stock, Qty 14

0

6

White Outdoor 710-0654A

TT Screw 3/8-16 x 1.00

$4.49

$

In Stock, Qty 20+

0

7

White Outdoor 736-0277

Flat Washer, 1.031 x 1.620 x .095

$4.49

$

In Stock, Qty 20+

0

8

White Outdoor 751-3141

Oil Drain Extension Hose
(Superseded to 751-3141-14)

$11.99

$

In Stock, Qty 7

0

9

White Outdoor 726-0205

Hose Clamp

$3.99

$

In Stock, Qty 20+

0

10

White Outdoor 725-0157

Cable Tie

$3.99

$

In Stock, Qty 20+

0

11

White Outdoor 726-0272

Clamp

$7.49

$

Usually ships in 3-6 days

0

12

White Outdoor 751-3140

Oil Drain Valve
(Superseded to 951-10517A)

$24.99

$

In Stock, only 1 left!

0

13

MTD 751-10349

Fuel Line Hose

$9.49

$

Usually ships in 3-6 days

0

14

White Outdoor 751-0564A

Muffler Deflector
(Superseded to 751-0564B)

$13.99

$

In Stock, only 3 left!

0

15

White Outdoor 751-0617B

Muffler
(Superseded to 951-0617C)

$149.99

$

In Stock, Qty 5

0

16

White Outdoor 751-10047

Exhaust Pipe

$

$

Not available
