LT 92012 (954000251-A) - Husqvarna Lawn Tractor (1993-01) Mower Lift Lever Parts Diagram

Lawn Tractor

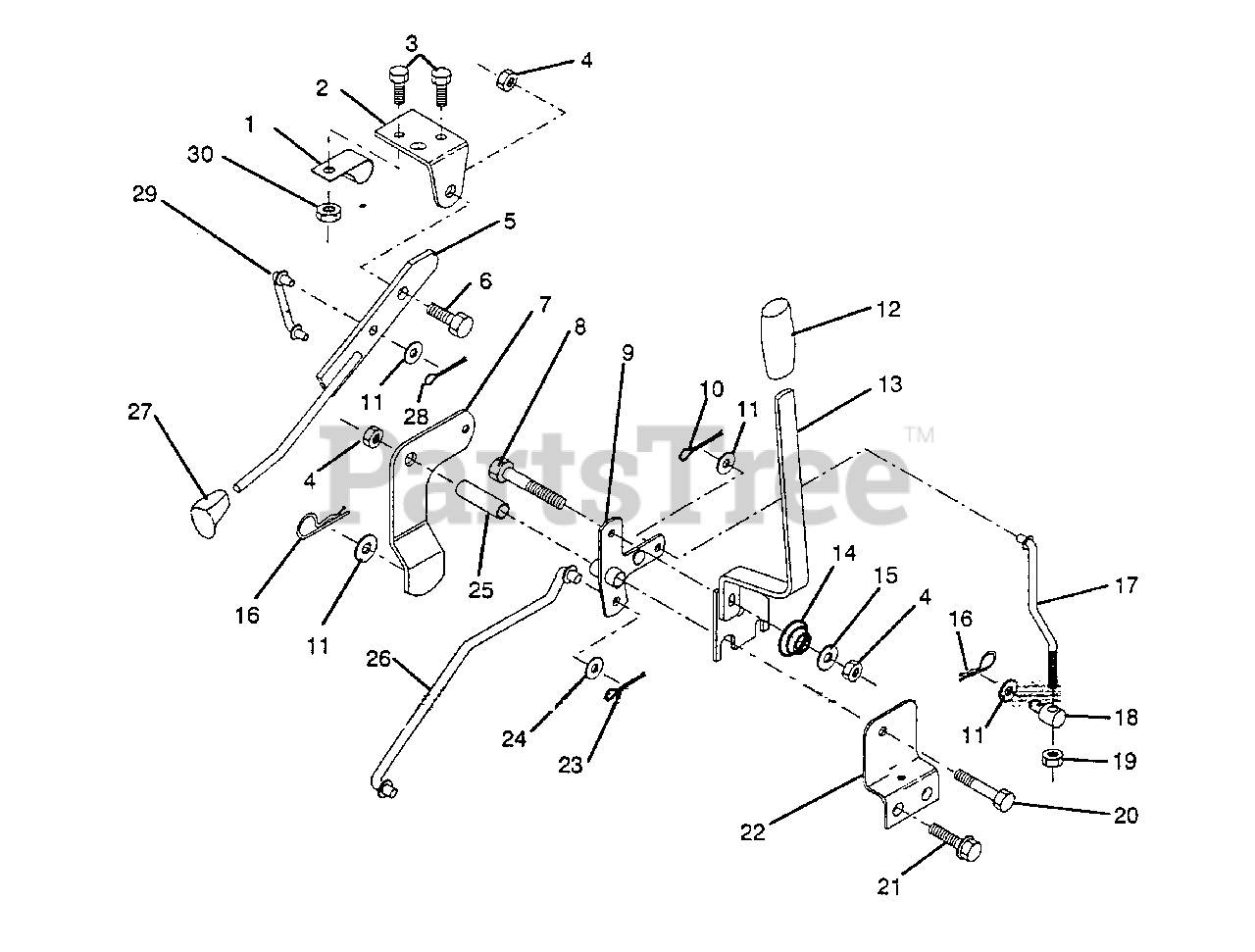

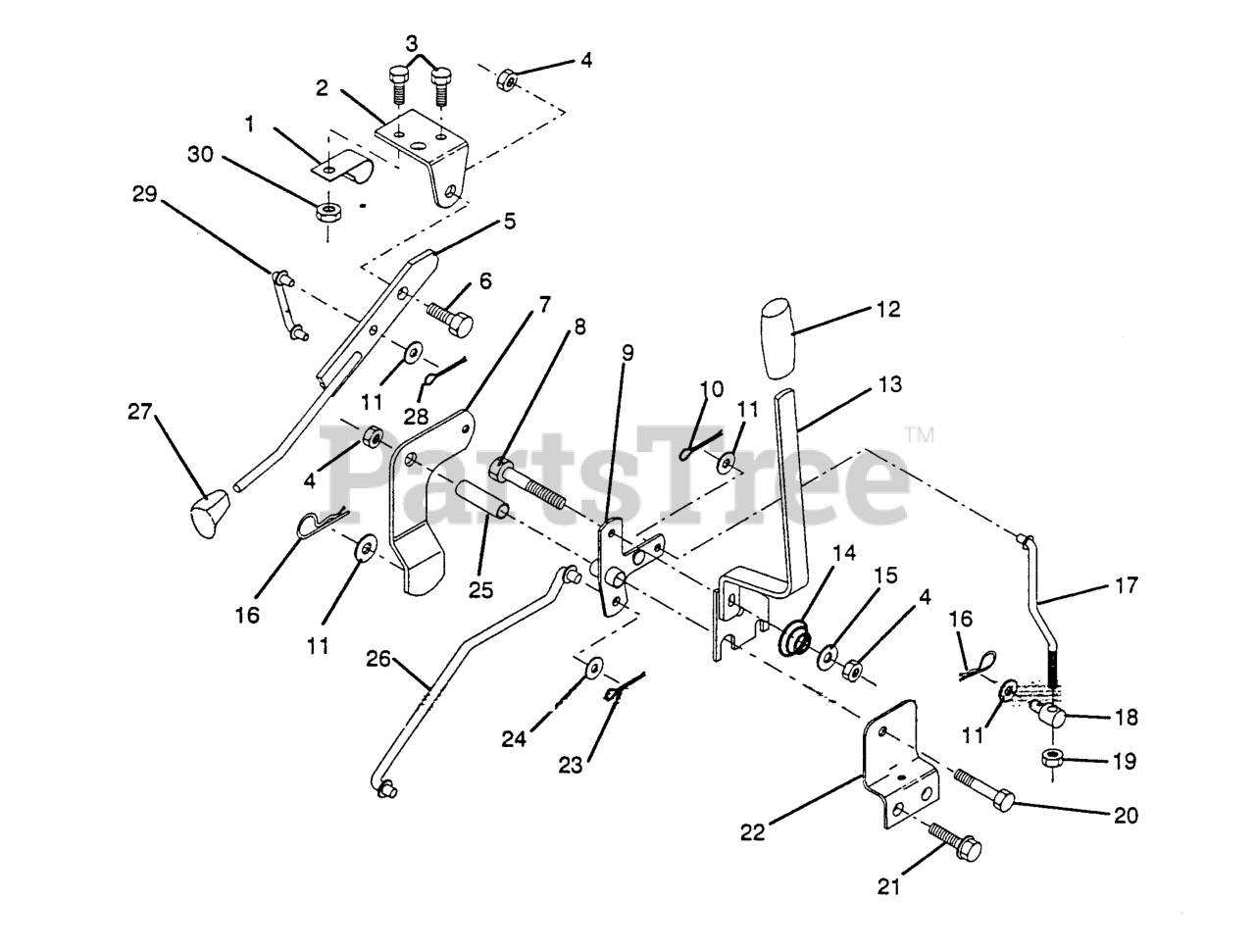

Mower Lift Lever Parts Diagram

  • Title
1

Husqvarna 532126470

Clip, Insulated

$3.99

$

Usually ships in 3-10 days

0

2

Husqvarna 532122018

Bracket, Mower Clutch

$

$

Not available

3

Husqvarna 874780408

Bolt, Fin. Hex 1/4-20 Unc x 1/2 Gr. 5
(Superseded to 539990071)

$3.99

$

Usually ships in 3-10 days

0

4

Husqvarna 873680600

Nut, Crownlock 3/8-16 UNC

$3.99

$

Usually ships in 3-10 days

0

5

Husqvarna 532123417

Assembly, Clutch Lever
(Superseded to 532145187)

$

$

Not available

6

Husqvarna 532106451

Bolt, Shoulder

$2.99

$

Usually ships in 3-10 days

0

7

Husqvarna 532123491

Assembly, Mower Clutch Arm

$

$

Not available

8

Husqvarna 874760636

Bolt, Hex 3/8-16 UNC x 2-1/4

$6.49

$

Usually ships in 3-10 days

0

9

Husqvarna 532121930

Assembly, Bellcrank Lift

$11.99

$

Usually ships in 3-10 days

0

10

Husqvarna 876020412

Pin, Cotter 1/8 x 3/4
(Superseded to 539990365)

$6.49

$

In Stock, Qty 20+

0

11

Husqvarna 819131316

Washer, 13/32 x 13/16 x 16 Ga.
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

12

Husqvarna 532122027

Grip, Handle

$

$

Not available

13

Husqvarna 532127028

Assembly, Lift Handle

$

$

Not available

14

Husqvarna 532123496

Spring, Compression

$2.99

$

Usually ships in 3-10 days

0

15

Husqvarna 819131212

Washer, 13/32 x 3/4 x 12 Ga.
(Superseded to 734117201)

$3.49

$

Usually ships in 3-10 days

0

16

Husqvarna 532004921

Retainer, Spring

$6.49

$

In Stock, only 2 left!

0

17

Husqvarna 532123654

Link, Front Lift

$

$

Not available

18

Husqvarna 532007078

Trunnion, Threaded 3/8-16
(Superseded to 532142028)

$

$

Not available

19

Husqvarna 873350600

Nut, Hex Jam 3/8 x 16 UNC
(Superseded to 873220600)

$6.49

$

In Stock, only 2 left!

0

20

Husqvarna 874760644

Bolt, Fin. Hex 3/8-16 UNC x 2-3/4

$6.49

$

Usually ships in 3-10 days

0

21

Husqvarna 817490508

Screw, Hex Thdrol. 5/16-18 x 1/2
(Superseded to 539990858)

$3.99

$

Usually ships in 3-10 days

0

22

Husqvarna 532121929

Bracket, Mower Height

$

$

Not available

23

Husqvarna 876020416

Pin, Cotter 1/8 x 1

$3.99

$

Usually ships in 3-10 days

0

24

Husqvarna 819171616

Washer 17/32 x 1 x 16 Ga.
(Superseded to 734117801)

$

$

Not available

25

Husqvarna 532121933

Tube, Spacer

$

$

Not available

26

Husqvarna 532121934

Rod, Mower Lift
(Superseded to 532141470)

$

$

Not available

$

$

Not available

28

Husqvarna 876020312

Pin, Cotter 3/32 x 3/4
(Superseded to 876020308)

$

$

Not available

29

Husqvarna 532123671

Link, Mower Clutch

$10.99

$

Usually ships in 3-10 days

0

30

Husqvarna 873680400

Nut, Crownlock 1/4-20
(Superseded to 586668901)

$4.99

$

In Stock, Qty 15

0
