LT 92012 (954000251-A) - Husqvarna Lawn Tractor (1993-01) Mower Deck (Mower Housing) Parts Diagram

Lawn Tractor

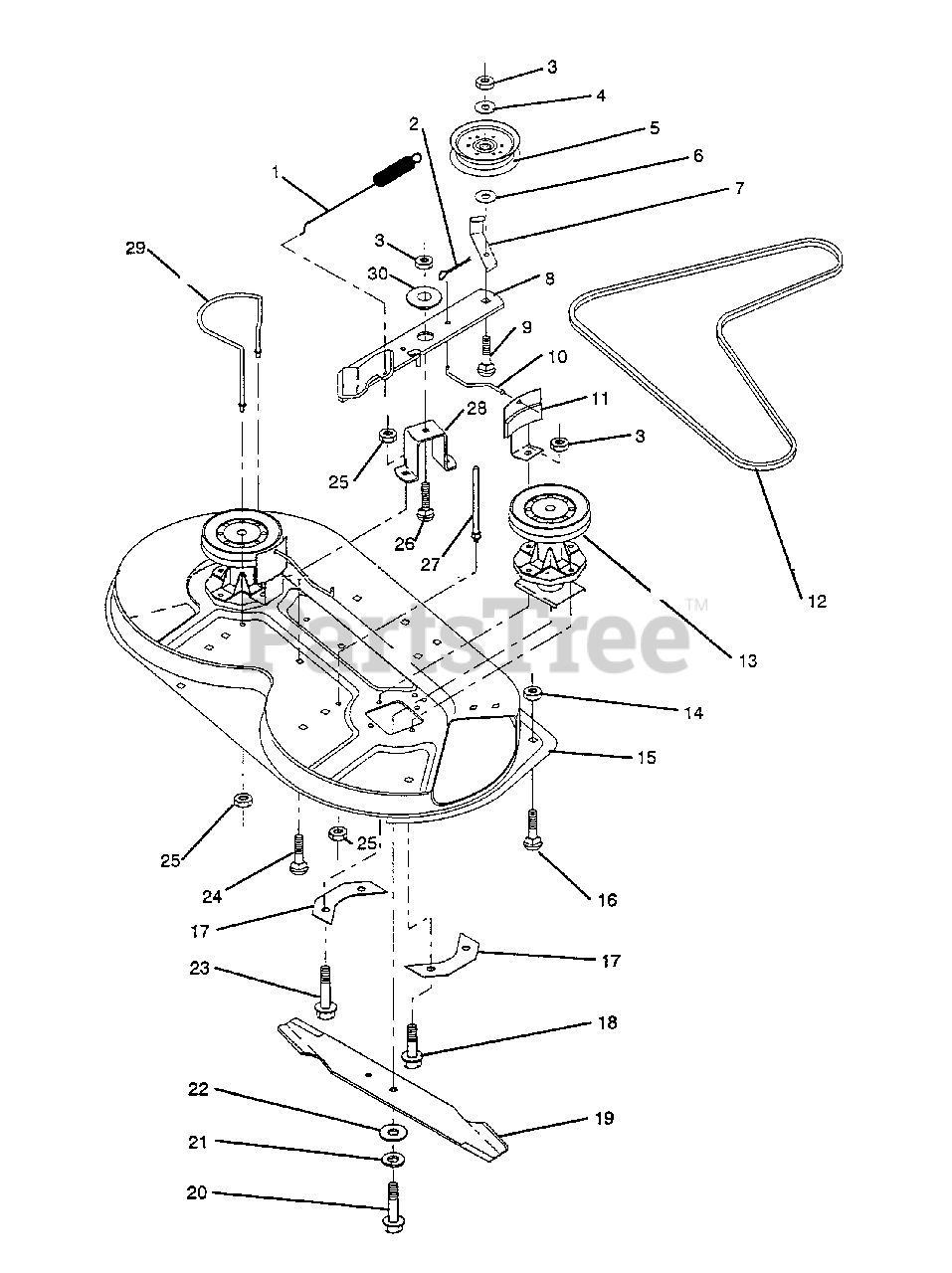

Mower Deck (Mower Housing) Parts Diagram

  • Title

1

Husqvarna 532122028

Spring, Mower Clutch
(Superseded to 532140064)

$24.99

$

In Stock, only 1 left!

0

2

Husqvarna 876020312

Pin, Cotter 3/32 x 3/4
(Superseded to 876020308)

$

$

Not available

3

Husqvarna 873680600

Nut, Crownlock 3/8-16 UNC

$3.99

$

Usually ships in 3-10 days

0

4

Husqvarna 819131412

Washer 13/32 x 7/8 x 12 Ga.

$

$

Not available

5

Husqvarna 532121316

Idler, Flat

$51.99

$

In Stock, only 4 left!

0

6

Husqvarna 819132203

Washer 13/32 x 1-3/8 x 13 Ga.

$6.49

$

In Stock, only 3 left!

0

7

Husqvarna 532126756

Guide, Belt

$

$

Not available

8

Husqvarna 532123702

Assembly, Mower Idler Arm

$

$

Not available

9

Husqvarna 872110618

Bolt, Carriage 3/8-16 x 2-1/4

$6.49

$

In Stock, only 2 left!

0

10

Husqvarna 532122049

Rod, Brake

$

$

Not available

11

Husqvarna 532106578

Assembly, Brake

$46.99

$

Usually ships in 3-10 days

0

12

Husqvarna 532124293

V-Belt

$46.99

$

Usually ships in 3-10 days

0

13

Husqvarna 532124207

Assembly, Mandrel
(Superseded to 532124208)

$193.99

$

Usually ships in 3-10 days

0

14

Husqvarna 873680400

Nut, Crownlock 1/4-20
(Superseded to 586668901)

$4.99

$

In Stock, Qty 16

0

15

Husqvarna 532126410

Housing, Mower 36"
(Superseded to 532144727)

$

$

Not available

16

Husqvarna 872140404

Bolt, Carriage 1/4-20 x 1/2

$6.49

$

Usually ships in 3-10 days

0

17

Husqvarna 532100668

Support, Plate Jackshaft

$

$

Not available

18

Husqvarna 817490614

Screw Hex Thdrol. 3/8-16 x 7/8

$

$

Not available

19

Husqvarna 532126338

Blade, 60 Degree High Lift
(Superseded to 532143969)

$

$

Not available

20

Husqvarna 874610624

Bolt, Fin. Hex 3/8-24 UNF x 1-1/2 Gr. 5

$6.49

$

In Stock, only 1 left!

0

21

Husqvarna 810030600

Washer, Lock Hvy.3/8
(Superseded to 810040600)

$4.99

$

In Stock, Qty 20+

0

22

Husqvarna 819132012

Washer 13/32 x 1-1/4 x 12 Ga.
(Superseded to 596134901)

$3.49

$

Usually ships in 3-10 days

0

23

Husqvarna 817490620

Screw Hex Thdrol. 3/8-16 x 1-1/4
(Superseded to 874760620)

$7.49

$

Usually ships in 3-10 days

0

24

Husqvarna 872140505

Bolt, Carriage 5/16-18 UNC x 5/8
(Superseded to 596136401)

$3.99

$

In Stock, Qty 20+

0

25

Husqvarna 873680500

Nut,Crownlock 5/16-18
(Superseded to 873690500)

$3.99

$

Usually ships in 3-10 days

0

26

Husqvarna 872110608

Bolt, Carriage 3/8-16 UNC x 1 Gr. 5
(Superseded to 596728201)

$4.99

$

In Stock, only 1 left!

0

27

Husqvarna 532123439

Guide, R.H. Rear Belt

$

$

Not available

28

Husqvarna 532122051

Support, Idler Arm

$5.99

$

Usually ships in 3-10 days

0

29

Husqvarna 532123673

Guide, L.H. Belt

$8.99

$

Usually ships in 3-10 days

0

30

Husqvarna 532122052

Spacer, Retainer
(Superseded to 532165723)

$6.99

$

In Stock, only 2 left!

0
