LT 92012 (954000251-A) - Husqvarna Lawn Tractor (1993-01) Hood Parts Diagram

Lawn Tractor

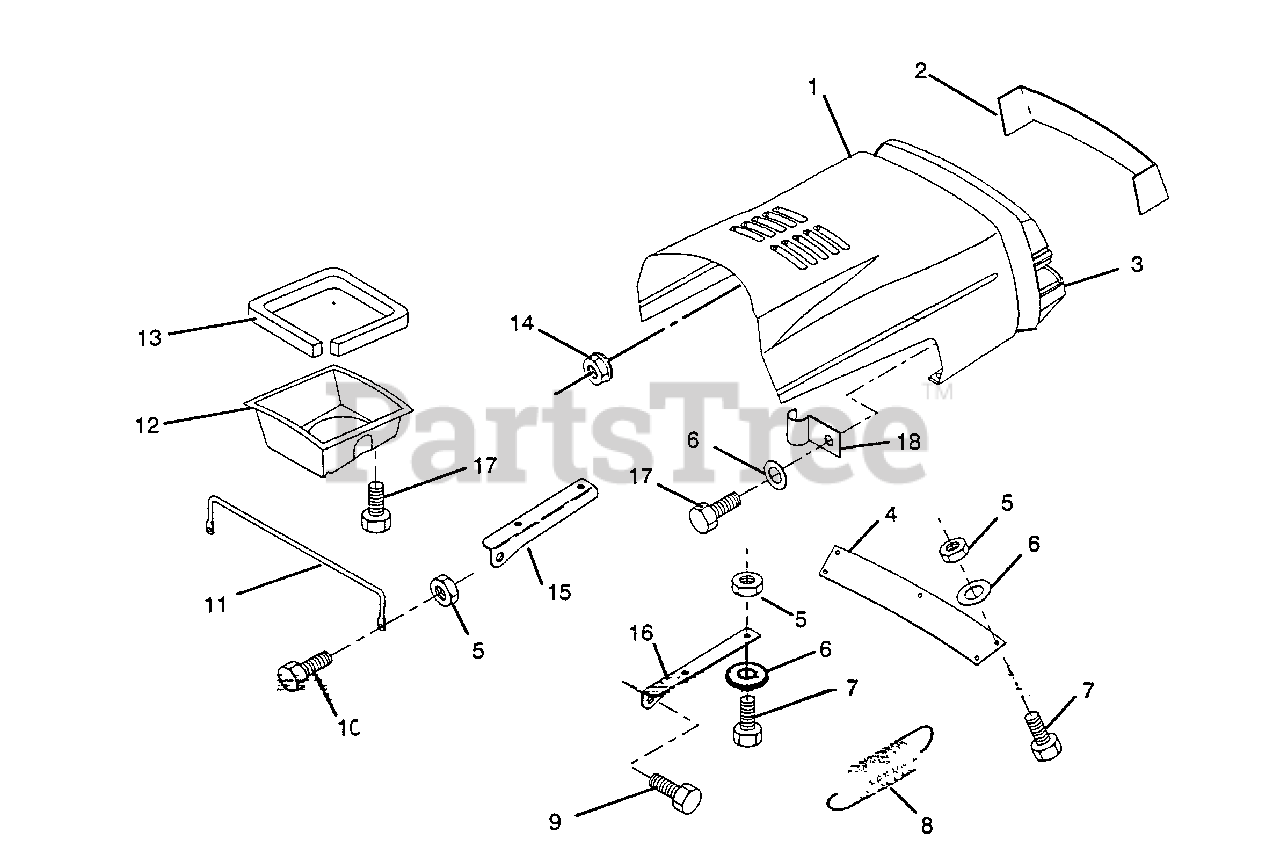

Hood Parts Diagram

  • Title

1

Husqvarna 532124968

Hood
(Superseded to 532140463)

$

$

Not available

2

Husqvarna 532127659

Lens, Plate, Grill

$

$

Not available

3

Husqvarna 532127733

Grill
(Superseded to 532140129)

$

$

Not available

4

Husqvarna 532124969

Strap, Grill

$

$

Not available

5

Husqvarna 873510400

Nut, Hex, Keps 1/4-20
(Superseded to 873680400)

$4.99

$

In Stock, Qty 18

0

6

Husqvarna 819091016

Washer, 9/32 x 5/8 x 16 Ga.

$4.99

$

Usually ships in 3-10 days

0

7

Husqvarna 874780410

Bolt, Hex Fin. 1/4 - 20 UNC 5/8 Gr. 5
(Superseded to 539990072)

$3.99

$

In Stock, only 3 left!

0

8

Husqvarna 532124657

Extension, Spring

$10.99

$

Usually ships in 3-10 days

0

9

Husqvarna 532126675

Bolt, Shoulder
(Superseded to 532139888)

$6.49

$

In Stock, only 1 left!

0

10

Husqvarna 874780410

Bolt, Hex Fin. 1/4-20 x 5/8 Gr. 5
(Superseded to 539990072)

$3.99

$

In Stock, only 3 left!

0

11

Husqvarna 532123693

Brace, Hood

$

$

Not available

12

Husqvarna 532123840

Duct, Air

$

$

Not available

13

Husqvarna 532120537

Strip, Foam

$

$

Not available

14

Husqvarna 532124346

Nut, Self-Thd wsh-hd. 3/16

$7.99

$

In Stock, only 1 left!

0

15

Husqvarna 532122548

Bracket, Hood L.H.

$2.99

$

Usually ships in 3-10 days

0

16

Husqvarna 532122549

Bracket, Hood R.H.

$

$

Not available

17

Husqvarna 817411310

Screw, Fin. Hex #13-16 Hi-Lo x 5/8

$3.99

$

Usually ships in 3-10 days

0

18

Husqvarna 532124996

Clip, Fuel Line
(Superseded to 532002751)

$

$

Not available

Husqvarna 532127420

Decal, Grill Logo

$

$

Not available

Husqvarna 532126036

Decal, Grill Stripe

$

$

Not available

Husqvarna 532127679

Decal, Stripe Hood R.H.

$

$

Currently unavailable

Husqvarna 532127678

Decal, Stripe Hood L.H.

$

$

Currently unavailable
