LT 92012 (954000251-A) - Husqvarna Lawn Tractor (1993-01) Fender / Chassis Parts Diagram

Lawn Tractor

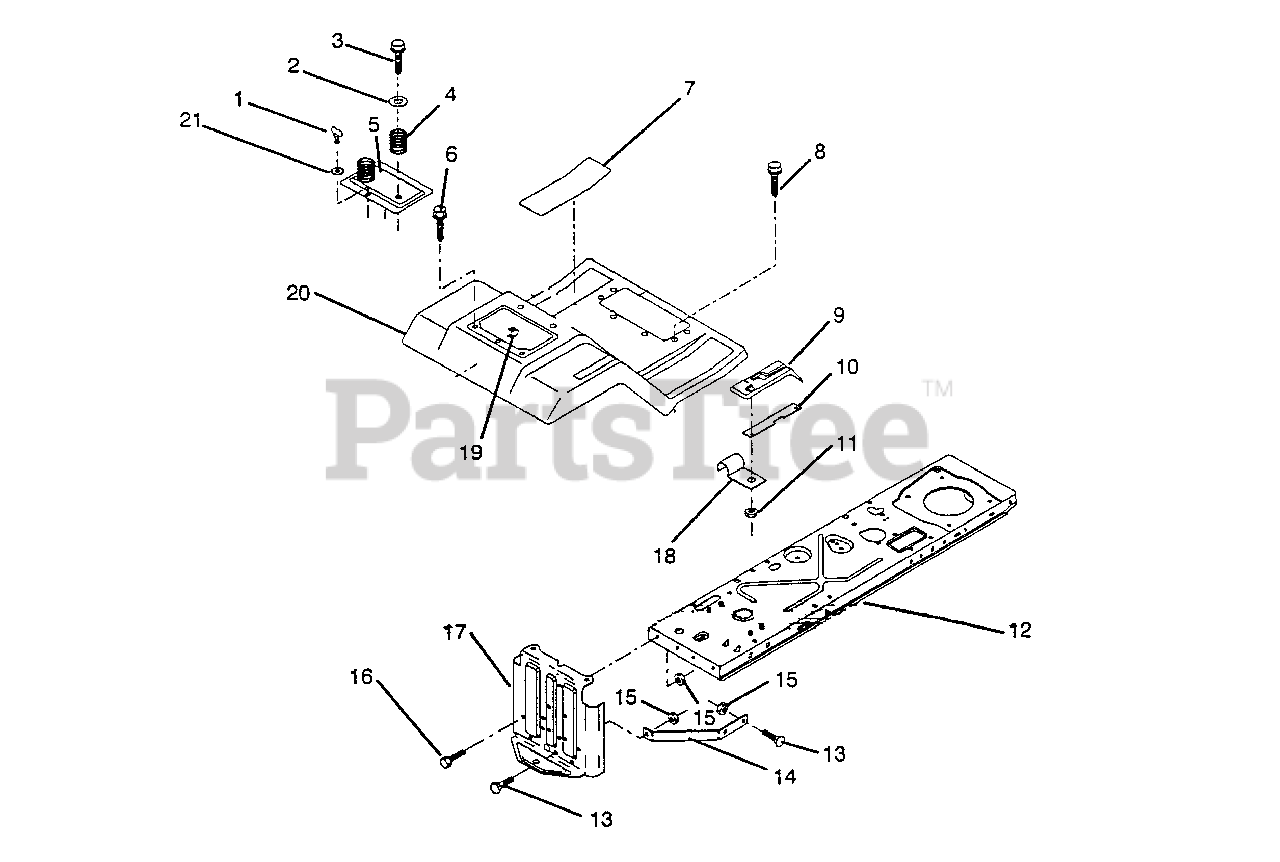

Fender / Chassis Parts Diagram

  • Title

1

Husqvarna 532123650

Stud 1/4 Turn

$6.49

$

Usually ships in 3-10 days

0

2

Husqvarna 819132012

Washer 13/32 x 1-1/4 x 12 Ga.
(Superseded to 596134901)

$3.49

$

Usually ships in 3-10 days

0

3

Husqvarna 817490612

Screw, Hex Wsh. Thrdrol. 3/8-16 x 3/4
(Superseded to 874780612)

$7.49

$

In Stock, only 2 left!

0

4

Husqvarna 532124181

Spring, Compression, Seat
(Superseded to 587613301)

$6.99

$

In Stock, only 4 left!

0

5

Husqvarna 532124971

Door, Fender

$

$

Currently unavailable

6

Husqvarna 817490508

Screw, Hex Wsh. Thrdrol. 5/16-18 x 1/2
(Superseded to 539990858)

$3.99

$

Usually ships in 3-10 days

0

7

Husqvarna 532126700

Pad, Footrest

$

$

Not available

8

Husqvarna 817490512

Screw, Hex Wsh. Thrdrol. 5/16-18 x 3/4
(Superseded to 874780512)

$4.99

$

In Stock, Qty 20+

0

9

Husqvarna 532126995

Console, Shift Control

$14.99

$

Usually ships in 3-10 days

0

10

Husqvarna 532124305

Bar, Shift Lock

$

$

Currently unavailable

11

Husqvarna 532124346

Nut

$7.99

$

In Stock, only 1 left!

0

12

Husqvarna 532123645

Assembly, Frame

$

$

Not available

13

Husqvarna 872140506

Bolt, Carriage 5/16-18 UNC x 3/4
(Superseded to 595901601)

$3.99

$

In Stock, Qty 20+

0

14

Husqvarna 532123379

Brace, Drawbar

$

$

Not available

15

Husqvarna 873680500

Nut, Crownlock 5/16-18
(Superseded to 873690500)

$3.99

$

Usually ships in 3-10 days

0

16

Husqvarna 874760512

Bolt, Hex Hd. 5/16-18 UNC x 3/4
(Superseded to 874780512)

$4.99

$

In Stock, Qty 20+

0

17

Husqvarna 532121904

Drawbar
(Superseded to 532127880)

$

$

Not available

18

Husqvarna 532126470

Clip, Insulated

$3.99

$

Usually ships in 3-10 days

0

19

Husqvarna 532105839

Receptacle, 1/4 Turn

$3.99

$

In Stock, only 1 left!

0

20

Husqvarna 532124970

Fender/Footrest

$

$

Not available

21

Husqvarna 532105838

Retainer, 1/4 Turn

$6.49

$

Usually ships in 3-10 days

0

Husqvarna 532125690

Decal, 100 DBA

$

$

Not available

Husqvarna 532123637

Decal, Operating Instructions (French)
(Superseded to 532138269)

$

$

Not available

Husqvarna 532126392

Decal, Operating Instructions (English)

$

$

Currently unavailable
