LT 92012 (954000251-A) - Husqvarna Lawn Tractor (1993-01) Engine / Throttle Parts Diagram

Lawn Tractor

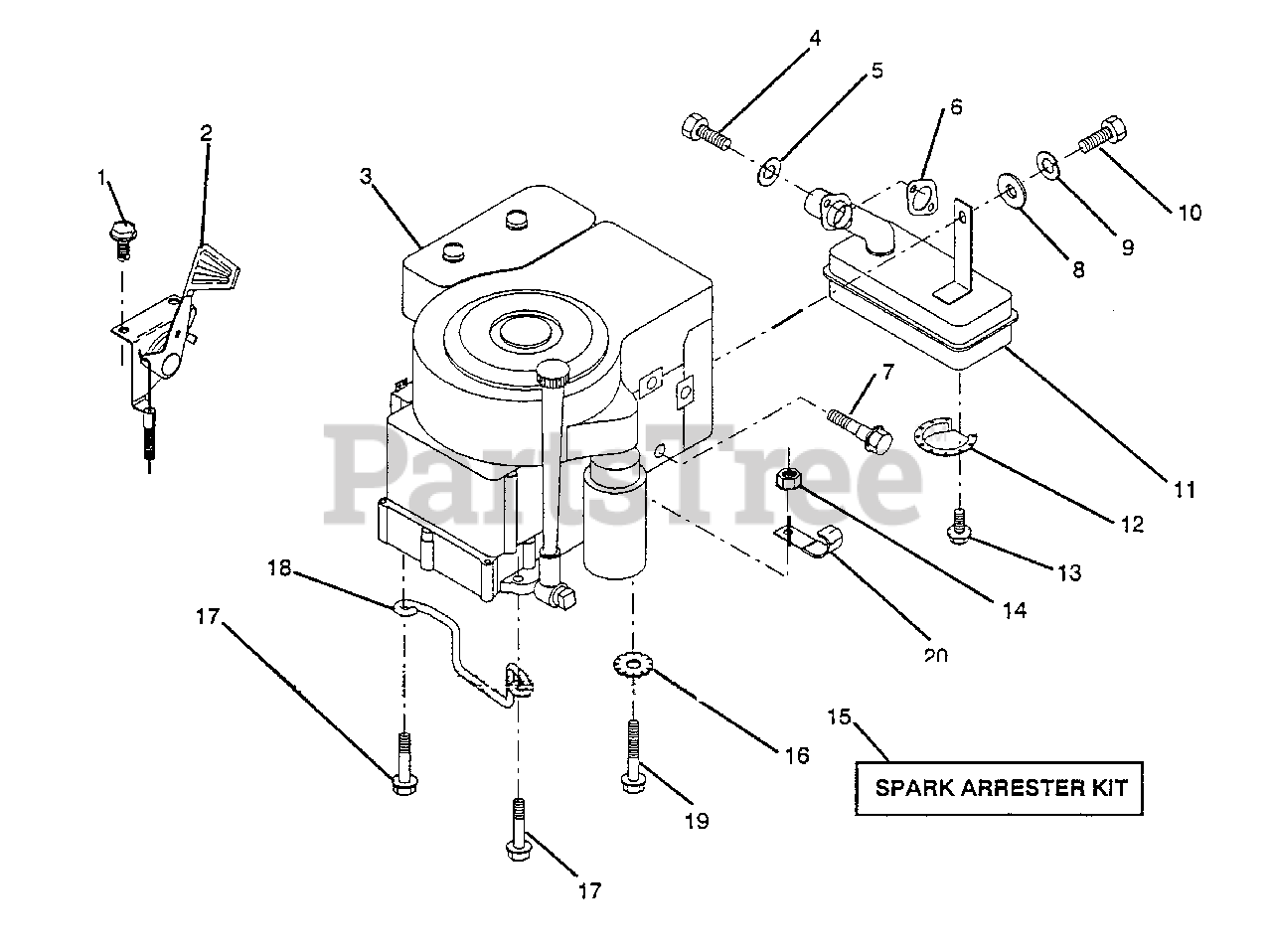

Engine / Throttle Parts Diagram

  • Title

1

Husqvarna 817720408

Screw, Hex Thd. Cut 1/4-20 x 1/2
(Superseded to 874780408)

$3.99

$

Usually ships in 3-10 days

0

2

Husqvarna 532125985

Control, Throttle

$

$

Not available

3

Husqvarna 532124136

Engine, Briggs and Stratton Model No. 281707 Type No. 0122-01

$

$

Not available

4

Husqvarna 871070512

Screw, Hex, Cap 5/16 -18 x 3/4
(Superseded to 532192334)

$

$

Not available

5

Husqvarna 810040500

Washer, Lock Heavy Helical Spring 5/16
(Superseded to 596238801)

$3.99

$

In Stock, only 4 left!

0

6

Husqvarna 532125593

Gasket, Exhaust
(Superseded to 532272293)

$12.99

$

Usually ships in 3-10 days

0

7

Husqvarna 532121094

Bolt, Shoulder 5/16

$2.99

$

Usually ships in 3-10 days

0

8

Husqvarna 819101216

Washer, 5/16 x 3/4 x 16 Ga.
(Superseded to 734115441)

$4.99

$

Usually ships in 3-10 days

0

9

Husqvarna 810040400

Washer, Lock Heavy Helical Spring 1/4
(Superseded to 596029801)

$3.99

$

In Stock, only 2 left!

0

10

Husqvarna 874780412

Bolt, Hex Fin. 1/4-20 UNC x 1-1/2
(Superseded to 874780414)

$6.49

$

Usually ships in 3-10 days

0

11

Husqvarna 532123676

Muffler
(Superseded to 532137437)

$242.99

$

Usually ships in 3-10 days

0

12

Husqvarna 532101326

Deflector, Muffler

$

$

Not available

13

Husqvarna 817030808

Screw, Spiderlock Hex Hd. 8 x 1/2 ABTPS
(Superseded to 817030814)

$

$

Not available

14

Husqvarna 873510600

Nut, Keps 3/8-16

$6.49

$

Usually ships in 3-10 days

0

15

Husqvarna 532121851

Arrester, Spark

Note: (Optional equipment)

$

$

Not available

16

Husqvarna 811050600

Lock Washer, Ext. Tooth 3/8
(Superseded to 810040600)

$4.99

$

In Stock, Qty 20+

0

17

Husqvarna 817490624

Screw, Hex Wsh Hd Thdrol 3/8-16 x 1 1/2
(Superseded to 874930624)

$7.99

$

Usually ships in 3-10 days

0

18

Husqvarna 532126636

Keeper, Ground Drive Belt

$8.99

$

Usually ships in 3-10 days

0

19

Husqvarna 817490632

Screw, Hex Wsh Hd Thdrol 3/8 - 16 x 2

$

$

Not available

20

Husqvarna 532124996

Clip, Fuel Line
(Superseded to 532002751)

$

$

Not available

Husqvarna 532120601

Decal, Engine

$

$

Not available
