LT 92012 (954000251-A) - Husqvarna Lawn Tractor (1993-01) Brake / Rear Mower Lift Assembly Parts Diagram

Lawn Tractor

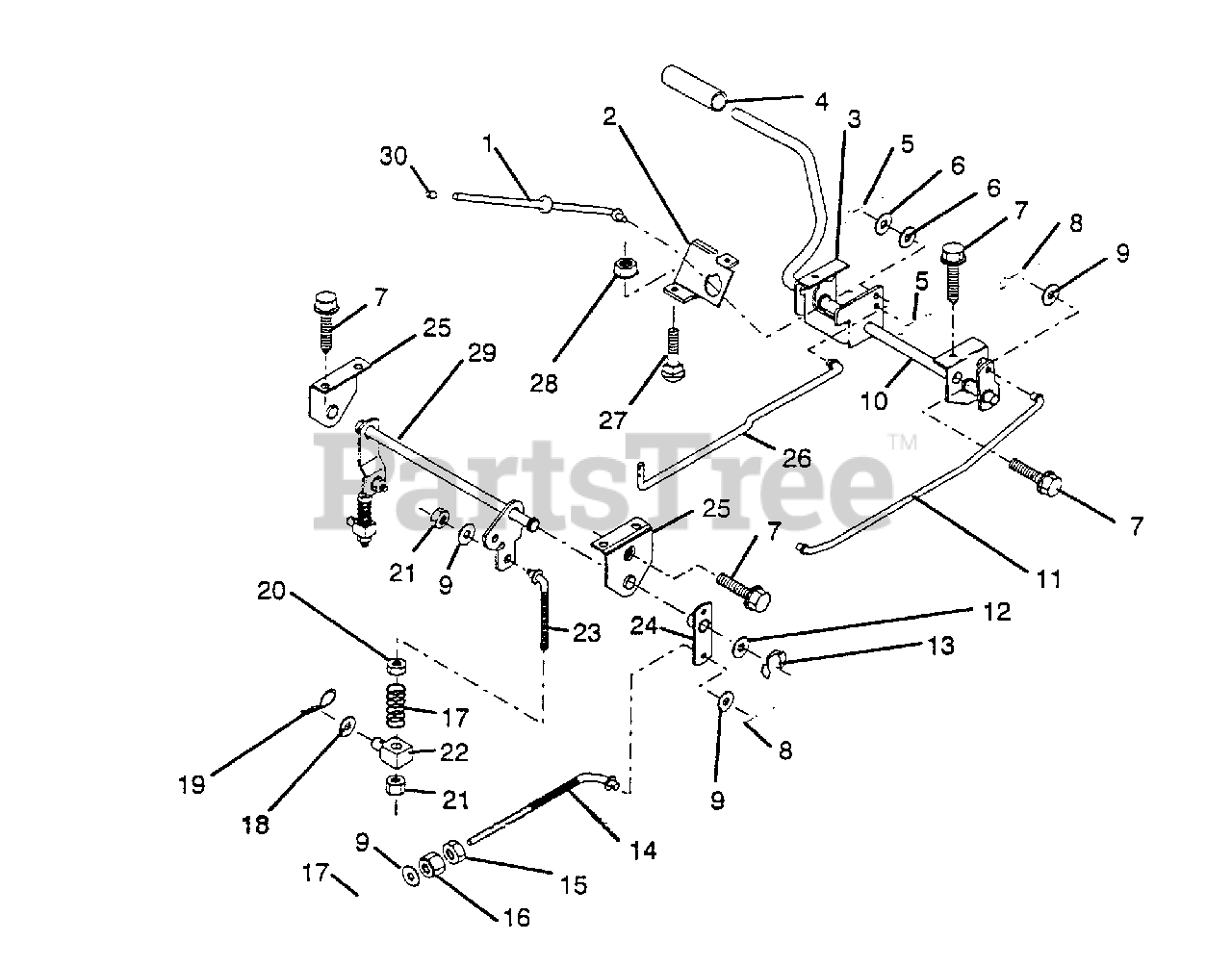

Brake / Rear Mower Lift Assembly Parts Diagram

  • Title
1

Husqvarna 532123436

Rod, Parking Brake

$

$

Not available

2

Husqvarna 532123437

Bracket, Parking Brake

$

$

Not available

3

Husqvarna 532122504

Bracket, L.H. Clutch Pedal

$

$

Not available

4

Husqvarna 532124872

Cover, Pedal
(Superseded to 532008883)

$6.49

$

In Stock, Qty 14

0

5

Husqvarna 876020312

Pin, Cotter
(Superseded to 876020308)

$

$

Not available

6

Husqvarna 819131016

Washer, 13/32 x 5/8 x 16 Ga.

$6.49

$

In Stock, Qty 5

0

7

Husqvarna 817490508

Screw Hex Thdrol 5/16-18 x 1/2
(Superseded to 539990858)

$3.99

$

Usually ships in 3-10 days

0

8

Husqvarna 876020412

Pin, Cotter
(Superseded to 539990365)

$6.49

$

In Stock, Qty 20+

0

9

Husqvarna 819131316

Washer 13/32 x 13/16 x 16 Ga.
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

10

Husqvarna 532129567

Assembly, Clutch/Brake-Pedal
(Superseded to 532139933)

$

$

Not available

11

Husqvarna 532123543

Rod, Front Brake

$

$

Not available

12

Husqvarna 819251816

Washer 25/32 x 1-1/8 x 16 Ga.

$6.49

$

Usually ships in 3-10 days

0

13

Husqvarna 812000034

Ring, Clip

$

$

Not available

14

Husqvarna 532126759

Rod, Rear Brake
(Superseded to 532131461)

$13.99

$

Usually ships in 3-10 days

0

15

Husqvarna 873350600

Nut, Hex Jam 3/8-16 UNC
(Superseded to 873220600)

$6.49

$

In Stock, only 2 left!

0

16

Husqvarna 873800600

Nut, Lock, Hex with Wsh Insert 3/8-16 UNC
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

17

Husqvarna 532106888

Spring, Brake Rod
(Superseded to 532151332)

$6.49

$

In Stock, only 1 left!

0

18

Husqvarna 819132012

Washer 13/32 x 1-1/4 x 12 Ga.
(Superseded to 596134901)

$3.49

$

Usually ships in 3-10 days

0

19

Husqvarna 532004921

Spring, Retainer

$6.49

$

In Stock, only 2 left!

0

20

Husqvarna 873930600

Nut, Centerlock 3/8-16 UNC
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

21

Husqvarna 873680600

Nut, Crownlock 3/8-16 UNC

$3.99

$

Usually ships in 3-10 days

0

22

Husqvarna 532106204

Trunnion, Lift
(Superseded to 532132793)

$

$

Not available

23

Husqvarna 532123672

Link, Threaded

$

$

Not available

24

Husqvarna 532123641

Assembly, Brake Pivot Arm

$

$

Not available

25

Husqvarna 532121978

Bracket, Lift Shaft

$

$

Not available

26

Husqvarna 532123394

Rod, Clutch

$

$

Not available

27

Husqvarna 872110506

Bolt, Carriage 5/16-18 UNC x 3/4

$7.49

$

In Stock, Qty 20+

0

28

Husqvarna 873510500

Nut, Keps 5/16-18 UNC
(Superseded to 873680500)

$3.99

$

Usually ships in 3-10 days

0

29

Husqvarna 532123547

Assembly, Rear Mower Lift

$

$

Not available

30

Husqvarna 532071673

Cap, Plunger

$5.99

$

Usually ships in 3-10 days

0
