LT 9000 (2691144-00) - Allis-Chalmers 46" Lawn Tractor, 22hp Briggs & Stratton Hood, Grille & Dash Group Parts Diagram

46" Lawn Tractor, 22hp Briggs & Stratton

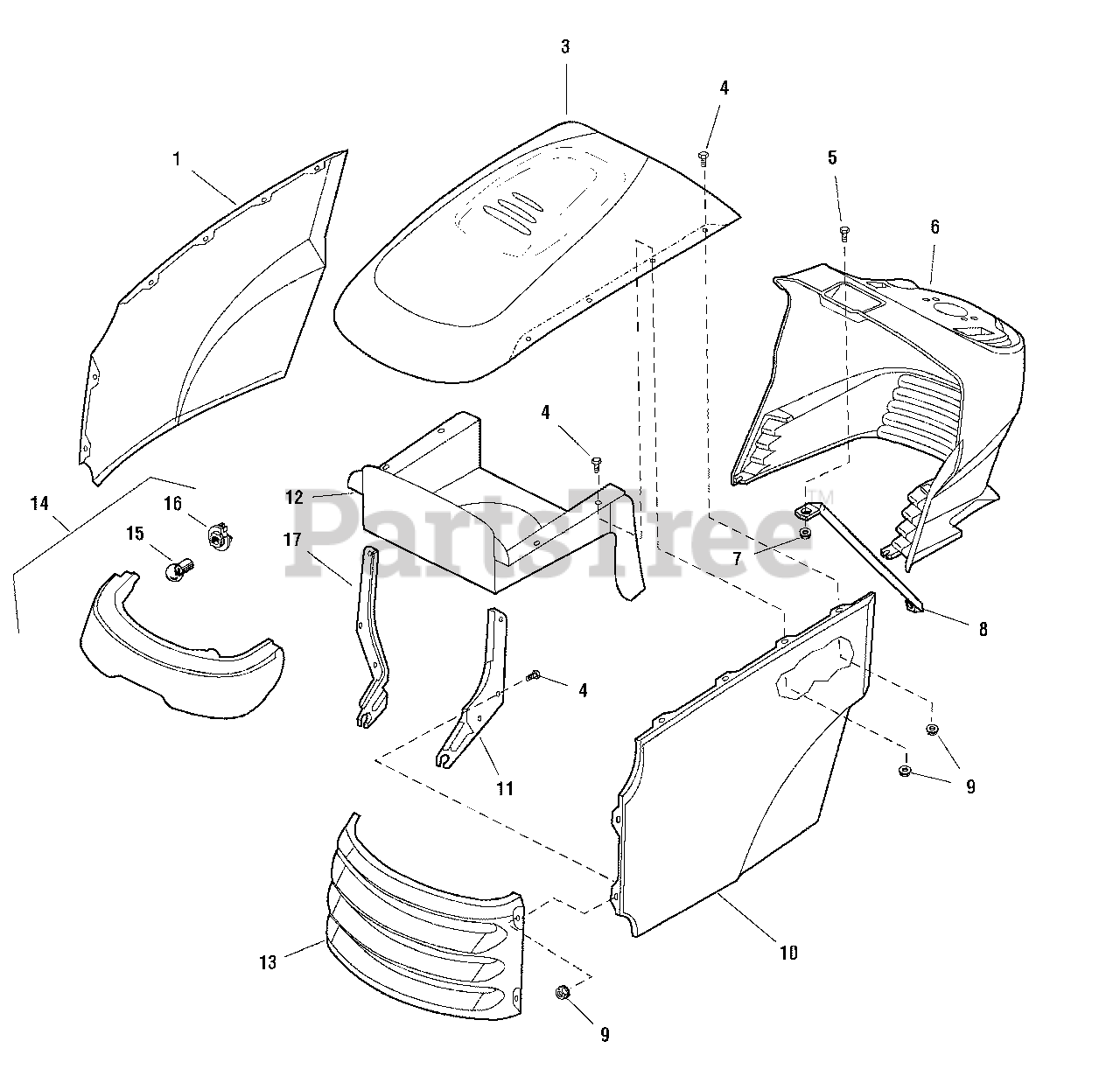

Hood, Grille & Dash Group Parts Diagram

  • Title

1

Simplicity 1721804ZYP

PANEL, RH Side

$185.99

$

Usually ships in 2-12 days

0

3

Simplicity 1722110ZYP

HOOD, with Louvers

$141.99

$

Usually ships in 2-12 days

0

4

Simplicity 1960295SM

CAPSCREW, Hex Head Flange Lock,1/4-20 x 5/8

$4.49

$

In Stock, only 1 left!

0

5

Simplicity 1960392SM

SCREW, Pan Head Phillips, #10-24 x 1

$3.99

$

Usually ships in 2-12 days

0

6

Simplicity 1687054SM

DASHBOARD, RMO, Black

$173.99

$

Usually ships in 2-12 days

0

7

Simplicity 1933896SM

NUT, Hex Nylock,#10-24
(Superseded to 703412)

$4.49

$

Usually ships in 2-12 days

0

8

Simplicity 1723123SM

ROD, Dash Support

$11.99

$

Usually ships in 2-12 days

0

9

Simplicity 1930641SM

NUT, Hex Flange Lock, 1/4-20
(Superseded to 703161)

$3.49

$

In Stock, Qty 20+

0

10

Simplicity 1721803ZYP

PANEL, LH Side

$

$

Not available

11

Simplicity 1721808ASM

HINGE, LH

$29.99

$

In Stock, only 3 left!

0

12

Simplicity 7102326YP

DUCT, Air Inlet

$131.99

$

In Stock, only 1 left!

0

13

Simplicity 1721802BRYP

GRILLE

$103.99

$

Usually ships in 2-12 days

0

14

Simplicity 1721810SM

HEADLIGHT ASSEMBLY

Note: (Incl. Ref. Nos. 15 & 16)

$164.99

$

Usually ships in 2-12 days

0

15

Simplicity 1677371SM

BULB, Headlight

Note: (Included with Ref. No. 14)

$30.99

$

In Stock, only 1 left!

0

16

Simplicity 1723451SM

SOCKET, Headlight

Note: (Included with Ref. No. 14)

$28.99

$

In Stock, only 1 left!

0

17

Simplicity 1721809ASM

HINGE, RH

$29.99

$

In Stock, only 1 left!

0
