LT-80 (136-690-190) - White Outdoor 34" Lawn Tractor (1986) Body Assembly Parts Diagram

34" Lawn Tractor

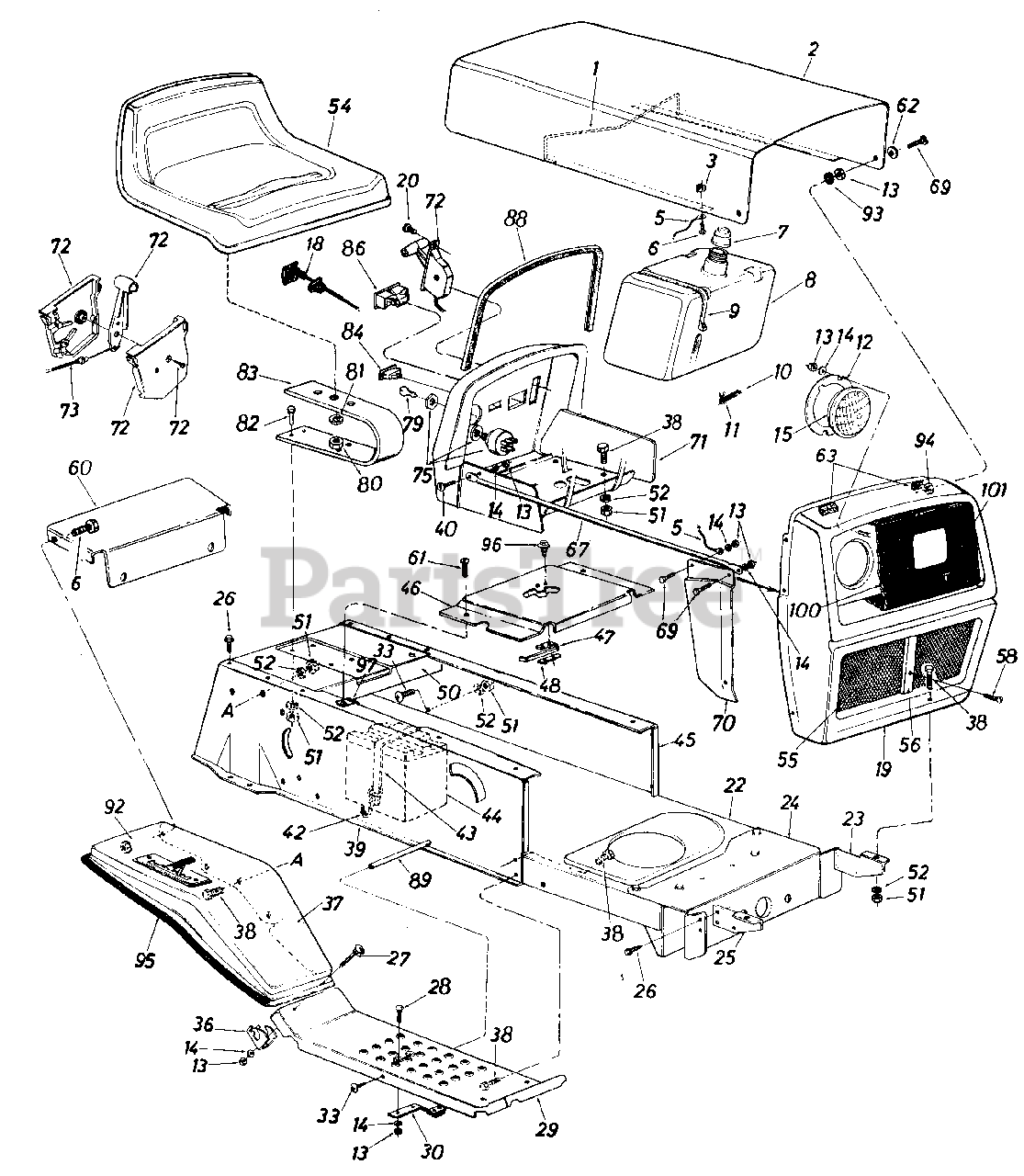

Body Assembly Parts Diagram

  • Title

1

White Outdoor 732-0414

Hood Spring

$

$

Not available

2

White Outdoor 14665

Hood

$

$

Not available

3

White Outdoor 712-0272

Hex Sems Nut #10-24 Thd.

$3.99

$

Usually ships in 3-6 days

0

5

White Outdoor 723-0302

Hood Stop 7" Lg.

$12.99

$

Usually ships in 3-6 days

0

6

White Outdoor 710-0473

Truss Hd. Scr. #10-24 x 1/2"

$4.49

$

In Stock, only 2 left!

0

7

White Outdoor 723-0333

Fuel Cap Gauge
(Superseded to 923-0333)

$

$

Not available

8

White Outdoor 751-0172

Fuel Tank
(Superseded to 753-0503)

$

$

Not available

9

White Outdoor 726-0209

Tie Strap
(Superseded to 726-0230)

$27.99

$

In Stock, only 1 left!

0

10

White Outdoor 751-0173

Fuel Line
(Superseded to 751-10349-16)

$19.99

$

In Stock, Qty 11

0

11

White Outdoor 726-0207

Hose Clamp

$

$

Not available

12

White Outdoor 09960

Headlight Retainer

$

$

Not available

13

White Outdoor 712-0287

Hex Nut 1/4-20 Thd.
(Superseded to 912-0287)

$4.99

$

In Stock, only 1 left!

0

14

White Outdoor 736-0329

L-Wash 1/4" I.D.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 9

0

15

White Outdoor 725-0222

Headlight
(Superseded to 925-0222)

$58.99

$

In Stock, only 4 left!

0

18

White Outdoor 746-0615

Choke Control 29" Lg.
(Superseded to 946-0615A)

$47.99

$

Usually ships in 3-6 days

0

19

White Outdoor 14787

Grille Ass'y.

$

$

Not available

20

White Outdoor 710-0779

Truss Mach. AB-Tap Scr. #10 x .50" Lg.
(Superseded to 710-0779A)

$4.49

$

In Stock, Qty 12

0

22

White Outdoor 15930

Lower Frame

$

$

Not available

23

White Outdoor 13863

Grille Mount Brkt. L.H.

$

$

Not available

24

14619

Front Pivot Brkt.

$

$

Not available

25

White Outdoor 13862

Grille Mount Brkt. R.H.

$

$

Not available

26

White Outdoor 710-0726

Hex Wash. Hd. AB-Tap Scr. 5/16 x .75" Lg.

$4.49

$

In Stock, Qty 20+

0

27

White Outdoor 710-0495

Carriage Bolt 1/4-20 x 2.0"*

$

$

Not available

28

White Outdoor 710-0134

Carriage Bolt 1/4-20 x .62"

$4.49

$

In Stock, Qty 20+

0

29

14604

Running Board

Note: (R.H. & L.H.)

$

$

Not available

30

White Outdoor 761-0169

Blade Brake Ass'y.
(Superseded to 961-0197)

$

$

Not available

33

White Outdoor 710-0323

Truss Mach. Scr. 5/16-18 x .75" Lg.

$4.99

$

In Stock, only 2 left!

0

36

White Outdoor 14671

Fender Clamp

$

$

Not available

37

16197

Fender

Note: (R.H.)

$

$

Not available

White Outdoor 14666

Fender

Note: (L.H.)

Variations

White Outdoor 14666-0629

No Longer Available FENDER - SILVER FLAKE (0629)

$

$

Not available

$

$

38

White Outdoor 710-0118

Hex Bolt 5/16-18 x .75" Lg.
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

39

White Outdoor 14602

R.H. Side Frame
(Superseded to 14602G-0637)

$

$

Not available

40

White Outdoor 710-0258

Hex Bolt 1/4-20 x .62" Lg.
(Superseded to 710-0751)

$3.99

$

In Stock, Qty 20+

0

42

White Outdoor 747-0475

Battery Strap Hook

$

$

Not available

43

White Outdoor 731-0718

Battery Hold Down Strap

$

$

Not available

44

White Outdoor 725-0514

12-V Battery
(Superseded to 753-0607)

$170.99

$

Usually ships in 3-6 days

0

45

White Outdoor 14603

L.H. Side Frame

$

$

Not available

46

16433

Shift Cover

$

$

Not available

47

White Outdoor 725-0759

Reverse Safety Switch
(Superseded to 753-0579)

$

$

Not available

48

White Outdoor 726-0222

Insulator Nut Piate
(Superseded to 926-0320)

$6.99

$

In Stock, Qty 11

0

50

14607

Hitch Plate

$

$

Not available

51

White Outdoor 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$

$

Not available

52

White Outdoor 736-0119

L-Wash. 5/16 I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

54

White Outdoor 757-0264

Seat Ass'y.

Note: (w/o Safety Switch)

$

$

Not available

White Outdoor 757-0322

Seat Ass'y.

Note: (w/ Safety Switch)

$

$

Not available

55

UNKNOWN

$

$

Not available

56

723-0347

Moulding

$

$

Not available

58

White Outdoor 710-0148

Hex Wash. F-Tap Scr. #8 x .38" Lg.

$4.49

$

In Stock, Qty 16

0

60

White Outdoor 14789

Fender Panel

Variations

White Outdoor 14789-0637

No Longer Available PANEL-FENDER - POWDER BLACK (0637)

$

$

Not available

$

$

61

White Outdoor 710-0351

Truss Mach. Tap Scr. #10 x .05" Lg.

$4.49

$

Usually ships in 3-6 days

0

62

White Outdoor 736-0173

Fl-Wash 281 I.D. x .73 O.D.

$4.49

$

In Stock, Qty 20+

0

63

White Outdoor 722-0157

Foam Strip 3/8 x 1-1/8 x 11/2

$4.49

$

Usually ships in 3-6 days

0

67

White Outdoor 749-0517

Grille Support Rod

Note: (R.H. & L.H.)

$

$

Not available

69

White Outdoor 710-0255

Truss Hd. Scr. 1/4-20 x .75"
(Superseded to 710-0924)

$4.49

$

In Stock, Qty 20+

0

70

14748

R.H. Grille Side Panel

$

$

Not available

14749

L.H. Grille Side Panel

$

$

Not available

71

16184

Dash Panel Ass'y.

$

$

Not available

72

White Outdoor 831-0823

Throttle Control Box Ass'y.
(Superseded to 831-0823A)

$32.99

$

In Stock, Qty 20+

0

73

White Outdoor 746-0501

Throttle Control Wire

$17.99

$

In Stock, only 1 left!

0

75

White Outdoor 725-0267

Ignition Switch
(Superseded to 925-0267B)

$35.99

$

In Stock, Qty 20+

0

79

White Outdoor 725-0201

Ignition Key
(Superseded to 925-0201)

$9.49

$

In Stock, only 1 left!

0

80

White Outdoor 712-0206

Hex N ut 1/2-13 Thd .

$4.49

$

In Stock, Qty 20+

0

81

White Outdoor 736-0921

L-Wash. 1/2" I.D.

$4.49

$

In Stock, only 2 left!

0

82

White Outdoor 710-0376

Hex Bolt 5/16-18 x 1.0"

$3.99

$

In Stock, Qty 20+

0

83

White Outdoor 732-0458

Seat Spring 5.5" High

$

$

Not available

84

White Outdoor 725-0634

Light Switch
(Superseded to 925-0634)

$17.99

$

In Stock, only 4 left!

0

86

White Outdoor 725-0925

Ammeter
(Superseded to 925-0925)

$31.99

$

In Stock, Qty 6

0

88

White Outdoor 731-0511

Molding Strip 27" Lg.

$3.99

$

Usually ships in 3-6 days

0

89

White Outdoor 738-0526

Running Board Rod

$

$

Not available

92

White Outdoor 712-0272

Hex Sems Nut #10-24 Thd.

$3.99

$

Usually ships in 3-6 days

0

93

White Outdoor 735-0144

Rubber Wash. 1/2" I.D. x 1.0 0 O.D. x .25"

$

$

Not available

94

White Outdoor 712-0324

Hex Sems Ins. L-Nut 1/4-20 0 Thd.

$3.99

$

In Stock, Qty 16

0

95

White Outdoor 731-0516

Trim Strip
(Superseded to 731-0511)

$3.99

$

Usually ships in 3-6 days

0

96

White Outdoor 710-0227

Hex Wash. Hd. AB-Tap Scr. #8 x .50" Lg.

$4.49

$

In Stock, Qty 20+

0

97

White Outdoor 726-0139

Speed Nut #10Z

$6.99

$

Usually ships in 3-6 days

0

100

White Outdoor 731-0465

Bezel

$

$

Not available

101

White Outdoor 710-0425

Truss Scr. #10-24 x .62" Lg.

$4.99

$

Usually ships in 3-6 days

0
