LT-80 (135-690-190) - White Outdoor 34" Lawn Tractor (1985) Electrical System Parts Diagram

34" Lawn Tractor

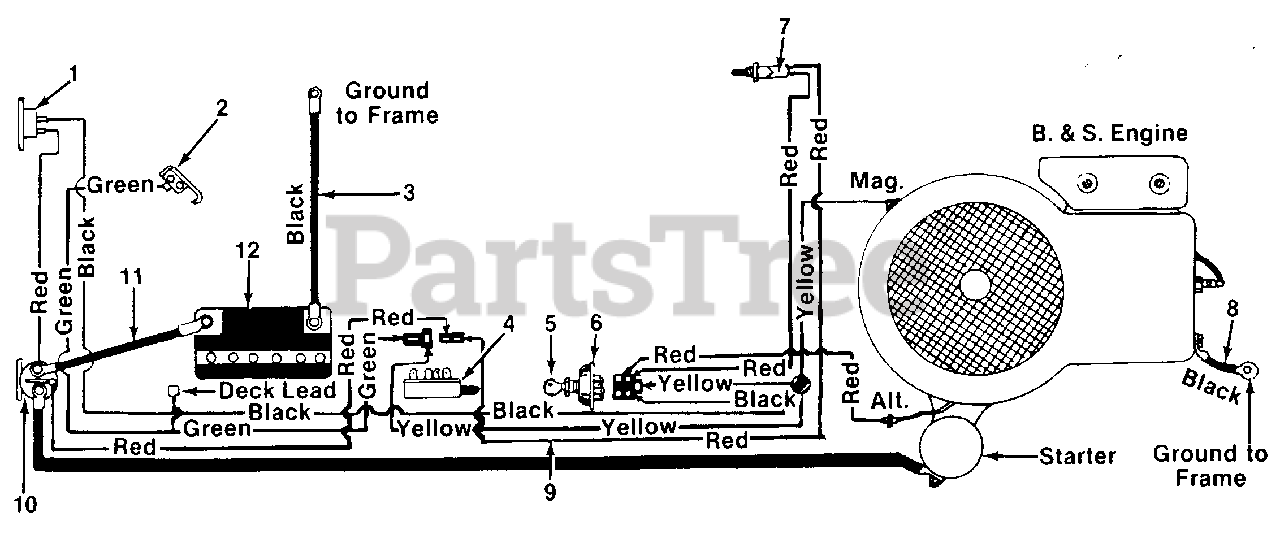

Electrical System Parts Diagram

  • Title

1

MTD 753-0685

Circuit Breaker

$

$

Not available

2

MTD 753-0579

Spring Switch

Note: (Reverse)

$

$

Not available

3

MTD 725-0975

Ground Wire 9.0" Lg.

Note: NLA (Negative Black)

$

$

Not available

4

MTD 725-0803B

Safety Switch

Note: (P.T.O.)

$33.99

$

In Stock, only 1 left!

0

5

MTD 925-0201

Ignition Key

$9.49

$

In Stock, only 1 left!

0

6

MTD 925-0267B

Ignition Switch

$35.99

$

In Stock, Qty 20+

0

7

MTD 925-0268

Safety Switch

Note: (Clutch)

$39.99

$

Usually ships in 3-6 days

0

8

MTD 725-0976A

Ground Wire 7.25" Lg.

Note: (Engine Black)

$

$

Not available

9

MTD 725-0937

Wire Harness

Note: NLA

$

$

Currently unavailable

10

MTD 925-0771

Solenoid

$35.99

$

In Stock, only 1 left!

0

11

MTD 725-0927

Electric Wire w/ Boot

Note: NLA(Positive Red)

$

$

Not available

12

MTD 753-0607

12V-Battery

$170.99

$

Usually ships in 3-6 days

0
