LT-80 (135-690-190) - White Outdoor 34" Lawn Tractor (1985) Chassis Assembly Parts Diagram

34" Lawn Tractor

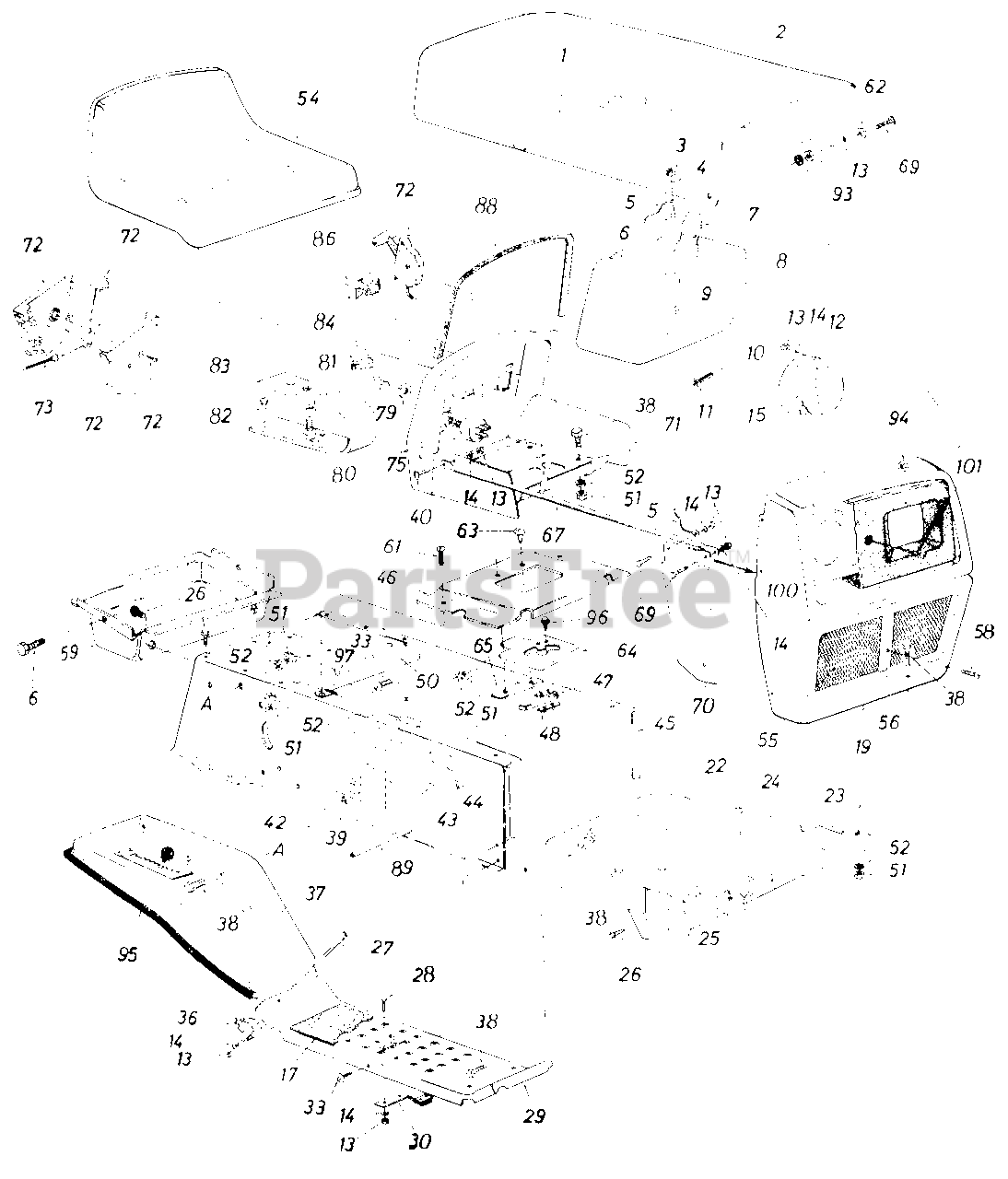

Chassis Assembly Parts Diagram

  • Title

1

MTD 732-0414

Hood Spring

Note: NLA

$

$

Not available

2

MTD 14665

Hood

Note: NLA

$

$

Not available

3

MTD 712-0272

Hex Sems Nut #10-24 Thd.*

$3.99

$

Usually ships in 3-6 days

0

4

MTD 936-0463

Fl-Wash. .281" I.D. x .62" O.D. x .051
(Superseded to 736-0463)

$4.49

$

In Stock, Qty 20+

0

5

MTD 723-0302

Hood Stop 7" Lg.

$12.99

$

Usually ships in 3-6 days

0

6

MTD 710-0473

Truss Hd. Scr. #10-24 x 1/2"*

$4.49

$

In Stock, only 2 left!

0

7

MTD 923-0333

Fuel Cap Gauge

$

$

Not available

8

MTD 753-0503

Fuel Tank

$

$

Not available

9

MTD 726-0230

Tie Strap

$27.99

$

In Stock, only 1 left!

0

10

MTD 751-10349-16

Fuel Line

$19.99

$

In Stock, Qty 11

0

11

MTD 726-0207

Hose Clamp

Note: NLA

$

$

Not available

12

MTD 09960

Headlight Retainer

Note: NLA

$

$

Not available

13

MTD 912-0287

Hex Nut 1/4-20 Thd.*

Note: (688)

$4.99

$

In Stock, only 1 left!

0

14

MTD 936-0329

L-Wash. 1/4" I.D.*

Note: (688)

$4.49

$

In Stock, Qty 9

0

15

MTD 925-0222

Headlight

Note: (688)

$58.99

$

In Stock, only 4 left!

0

17

MTD 723-0360

Foot Pad

Note: NLA

$

$

Not available

19

MTD 14787

Grille Ass'y.

Note: NLA

$

$

Not available

19

MTD 16405

Grille Ass'y.

Note: NLA

$

$

Currently unavailable

22

MTD 14606

Lower Frame

Note: NLA

$

$

Currently unavailable

23

MTD 13863

Grille Mount Brkt. L.H.

Note: NLA

$

$

Not available

24

MTD 14619

Front Pivot Brkt.

Note: NLA

$

$

Currently unavailable

25

MTD 13862

Grille Mount Brkt. R.H.

Note: NLA

$

$

Not available

26

MTD 710-0726

Hex Wash. Hd. AB-Tap Scr. 5/16 x .75" Lg.

$4.49

$

In Stock, Qty 20+

0

27

MTD 710-0524

Truss Hd. Scr. 1/4-20 x 1.75" Lg.*

Note: NLA

$

$

Currently unavailable

28

MTD 710-0134

Carriage Bolt 1/4-20 x .62" Lg.*

$4.49

$

In Stock, Qty 20+

0

29

MTD 14604

Running Board

Note: NLA

$

$

Currently unavailable

30

MTD 961-0197

Blade Brake Ass'y.

$

$

Not available

33

MTD 710-0323

Truss Mach. Scr. 5/16-18 x .75" Lg.*

$4.99

$

In Stock, only 2 left!

0

36

MTD 14671

Fender Clamp

Note: NLA

$

$

Not available

37

MTD 16198

Fender (R.H.)

Note: NLA

$

$

Not available

37

MTD 15350

Fender (L.H.)

Note: NLA

Variations

MTD 15350-0638

No Longer Available FENDER - MTD/TROY-BILT RED (0638)

$

$

Not available

$

$

38

MTD 710-3008

Hex Bolt 5/16-18 x .75" Lg.*

$4.49

$

In Stock, Qty 20+

0

39

MTD 14602G-0637

R.H. Side Frame

$

$

Not available

40

MTD 710-0751

Hex Bolt 1/4-20 x .62" Lg.*

$3.99

$

In Stock, Qty 20+

0

42

MTD 747-0475

Battery Strap Hook

Note: NLA

$

$

Not available

43

MTD 731-0718

Battery Hold Down Strap

Note: NLA

$

$

Not available

44

MTD 753-0607

12-V Battery

$170.99

$

Usually ships in 3-6 days

0

45

MTD 14603

L.H. Side Frame

Note: NLA

$

$

Not available

46

MTD 16188

Shift Cover

Note: NLA

$

$

Currently unavailable

47

MTD 753-0579

Reverse Safety Switch

$

$

Not available

48

MTD 926-0320

Insulator Nut Plate

$6.99

$

In Stock, Qty 11

0

50

MTD 14607

Hitch Plate

Note: NLA

$

$

Currently unavailable

51

MTD 912-0267

Hex Nut 5/16-18 Thd.*
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

52

MTD 936-0119

L-Wash. 5/16" I.D.*

$4.99

$

In Stock, Qty 20+

0

54

MTD 757-0309

Seat Ass'y.

Note: NLA

$

$

Currently unavailable

55

MTD 13730

Grille Screen

Note: NLA

$

$

Not available

56

MTD 723-0347

Moulding

Note: NLA

$

$

Currently unavailable

58

MTD 710-0148

Hex Wash. Hd. F-Tap Scr. #8-32 x .38" Lg.

$4.49

$

In Stock, Qty 16

0

59

MTD 731-0561

Tool Tray

Note: NLA

$

$

Currently unavailable

59

MTD 14789

Fender Panel

Note: NLA

Variations

MTD 14789-0637

No Longer Available PANEL-FEND - POWDER BLACK (0637)

$

$

Not available

$

$

61

MTD 710-0351

Truss Mach. Tap Scr. #10 x .50" Lg.

$4.49

$

Usually ships in 3-6 days

0

62

MTD 936-0463

Fl-Wash. .296 I.D. x .62 O.D.
(Superseded to 736-0463)

$4.49

$

In Stock, Qty 20+

0

63

MTD 710-0924

Truss Mach. Scr. 1/4-20 x .75" Lg.

$4.49

$

In Stock, Qty 20+

0

64

MTD 16189

Gear Selection Plate

Note: NLA

$

$

Currently unavailable

65

MTD 16190

Clamping Plate

Note: NLA

$

$

Currently unavailable

67

MTD 749-0517

Grille Support Rod

Note: NLA

$

$

Not available

69

MTD 710-0924

Truss Hd. Scr. 1/4-20 x .75" Lg.*

$4.49

$

In Stock, Qty 20+

0

70

MTD 14748

R.H. Grille Side Panel

Note: NLA

$

$

Currently unavailable

70

MTD 14749

L.H. Grille Side Panel

Note: NLA

$

$

Currently unavailable

71

MTD 15933

Dash Panel Ass'y.

Note: NLA

$

$

Currently unavailable

72

MTD 831-0796A

Throttle Control Box Ass'y.

$21.99

$

Usually ships in 3-6 days

0

73

MTD 746-0501

Throttle Control Wire

$17.99

$

In Stock, only 1 left!

0

75

MTD 925-0267B

Ignition Switch

$35.99

$

In Stock, Qty 20+

0

79

MTD 925-0201

Ignition Key

$9.49

$

In Stock, only 1 left!

0

80

MTD 710-3131

Hex Bolt 1/2-13 x 1.00" Lg

$5.49

$

In Stock, only 1 left!

0

81

MTD 936-0921

L-Wash. 1/2" I.D.*
(Superseded to 736-0921)

$4.49

$

In Stock, Qty 6

0

82

MTD 710-0376

Hex Bolt 5/16-18 x 1.00" Lg.*

$3.99

$

In Stock, Qty 20+

0

83

MTD 732-0458

Seat Spring 5.5" High

Note: NLA

$

$

Not available

84

MTD 925-0634

Light Switch

Note: (688)

$17.99

$

In Stock, only 4 left!

0

86

MTD 925-0925

Ammeter

Note: (688)

$31.99

$

In Stock, Qty 6

0

88

MTD 731-0511

Molding Strip 27" Lg.

$3.99

$

Usually ships in 3-6 days

0

89

MTD 738-0526

Running Board Rod

$

$

Not available

89

MTD 710-0599

Thread Rolling Scr. 1/4-20 x .50" Lg.

$4.49

$

In Stock, Qty 20+

0

93

MTD 735-0144

RubberWash. 1/2" I.D. x 1.0 O.D. x .25"

Note: NLA

$

$

Not available

94

MTD 712-0324

Hex Sems Ins. L-Nut 1/4-20 Thd.

$3.99

$

In Stock, Qty 16

0

95

MTD 731-0511

Trim Strip

$3.99

$

Usually ships in 3-6 days

0

96

MTD 710-0227

Hex Wash. Hd. AB-Tap Scr. #8 x .50" Lg.

$4.49

$

In Stock, Qty 20+

0

97

MTD 726-0139

Speed Nut #10Z

$6.99

$

Usually ships in 3-6 days

0

100

MTD 731-0465

Bezel

Note: (688)

$

$

Not available

101

MTD 710-0425

Truss Scr. #10-24 x .62" Lg.

Note: (688)

$4.99

$

Usually ships in 3-6 days

0
