LT 7500 - Weed Eater String Trimmer POWER UNIT Parts Diagram

String Trimmer

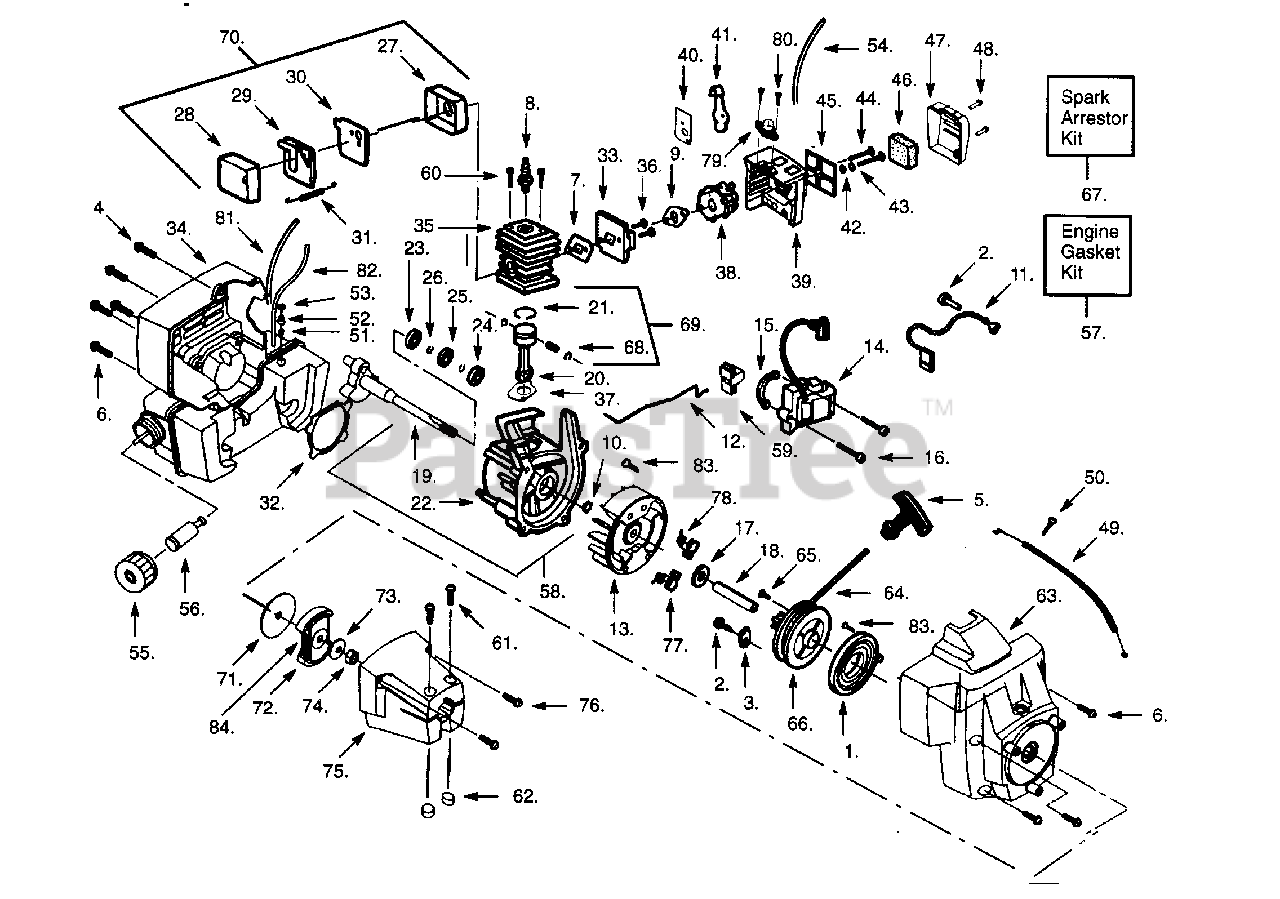

POWER UNIT Parts Diagram

  • Title

1

Poulan 530029395

Starter Spring
(Superseded to 545008010)

$9.49

$

In Stock, Qty 20+

0

2

Poulan 530015775

Screw

$6.49

$

In Stock, only 2 left!

0

3

Poulan 530027523

Retainer

$7.49

$

In Stock, only 2 left!

0

4

Poulan 530015934

Screw

$4.99

$

In Stock, only 1 left!

0

5

Poulan 530027569

Starter Handle

$6.49

$

In Stock, only 2 left!

0

6

Poulan 530015810

Screw
(Superseded to 530016386)

$8.99

$

In Stock, only 1 left!

0

7

Poulan 530019185

Cylinder Gasket
(Superseded to 530019233)

$3.99

$

In Stock, only 1 left!

0

8

Poulan 530030078

Spark Plug

$

$

Not available

9

Poulan 530019194

Gasket

$6.49

$

In Stock, only 4 left!

0

10

Poulan 530015945

Retainer

$3.99

$

Usually ships in 3-10 days

0

11

Poulan 530029606

Lead Wire

$

$

Not available

12

Poulan 530037321

Switch Wire Form

$0.99

$

Usually ships in 3-10 days

0

13

Poulan 530039149

Flywheel Ass'y.
(Superseded to 545221701)

$28.99

$

Usually ships in 3-10 days

0

14

Poulan 530039163

Ignition Module

$53.99

$

In Stock, only 1 left!

0

15

Poulan 530036145

Spacer

$3.99

$

In Stock, only 3 left!

0

16

Poulan 530015954

Screw

$4.99

$

Usually ships in 3-10 days

0

17

Poulan 530015149

Washer

$4.99

$

In Stock, only 3 left!

0

18

Poulan 530037705

Spacer

$5.99

$

Usually ships in 3-10 days

0

19

Poulan 530014864

Crankshaft Ass'y.

$21.99

$

Usually ships in 3-10 days

0

20

Poulan 530069615

Connecting Rod Ass'y.

$24.99

$

Usually ships in 3-10 days

0

21

Poulan 530036404

Piston Ring

$

$

Not available

22

Poulan 530014861

Crankcase Ass'y.

$

$

Not available

23

Poulan 530032125

Inner Bearing
(Superseded to 738210101)

$18.99

$

Usually ships in 3-10 days

0

24

Poulan 530032124

Outer Bearing

$7.49

$

Usually ships in 3-10 days

0

25

Poulan 530019179

C'case Seal

$

$

Not available

26

Poulan 530015941

Retaining Ring

$4.99

$

In Stock, only 1 left!

0

27

Poulan 530036578

Muffler Body

$4.99

$

Usually ships in 3-10 days

0

28

Poulan 530036577

Muffler Cover

$2.99

$

Usually ships in 3-10 days

0

29

Poulan 530038602

Muffler Baffle-Exit

$1.99

$

Usually ships in 3-10 days

0

30

Poulan 530036579

Muffler Baffle-First

$2.99

$

Usually ships in 3-10 days

0

31

Poulan 530029930

Muffler Spring
(Superseded to 530016197)

$4.99

$

In Stock, Qty 5

0

32

Poulan 530019181

Gasket

$6.49

$

Usually ships in 3-10 days

0

34

Poulan 530014857

Type 1

$

$

Not available

34

Poulan 530047099

Type 2 & 3

$

$

Not available

35

Poulan 530012309

Cylinder
(Superseded to 530069619)

$

$

Not available

36

Poulan 530016014

Screw

$6.49

$

In Stock, only 3 left!

0

37

Poulan 530019223

Gasket

$4.99

$

In Stock, only 4 left!

0

38

Poulan 530035329

Type 1 (WT-245)

$

$

Not available

38

Poulan 530069683

Type 2 & 3(WT-380)
(Superseded to 530071639)

$

$

Not available

39

Poulan 530037308

Type 1

$3.99

$

Usually ships in 3-10 days

0

39

Poulan 530037969

Type 2 & 3

$

$

Not available

40

Poulan 530037326

Choke Plate

$

$

Not available

41

Poulan 530038102

Choke Shutter

$3.99

$

Usually ships in 3-10 days

0

42

Poulan 530015254

Wave Washer

$3.99

$

In Stock, only 2 left!

0

43

Poulan 530015852

Choke Spacer

$3.49

$

In Stock, only 1 left!

0

44

Poulan 530015954

Screw

$4.99

$

Usually ships in 3-10 days

0

45

Poulan 530037413

Filter Plate

$

$

Not available

46

Poulan 530037331

Air Filter Foam

$3.99

$

In Stock, only 1 left!

0

47

Poulan 530037292

Air Filter Cover

$

$

Not available

48

Poulan 530015966

Screw

$2.49

$

Usually ships in 3-10 days

0

49

Poulan 530037415

Throttle Cable Ass'y.

$7.49

$

Usually ships in 3-10 days

0

50

Poulan 530015814

Screw

$6.49

$

In Stock, Qty 17

0

51

Poulan 530026119

Check Valve

$5.99

$

In Stock, Qty 10

0

52

Poulan 530029717

Element

$

$

Not available

53

Poulan 530029696

Retainer

$

$

Not available

54

Poulan 530069571

Fuel Line-Prim./Carb

$6.49

$

In Stock, Qty 10

0

55

Poulan 530014347

Fuel Cap Ass'y.

$9.49

$

In Stock, Qty 15

0

56

Poulan 530014362

Fuel Pickup Ass'y.
(Superseded to 530095646)

$6.99

$

In Stock, Qty 20+

0

57

Poulan 530069625

Engine Gasket Kit (Inc. 7, 9, 32, 37)
(Superseded to 530069616)

$9.99

$

Usually ships in 3-10 days

0

58

Poulan 530014906

C'case & C'shaft Assy. (Inc. 10,19,22-26)
(Superseded to 530071625)

$54.99

$

Usually ships in 3-10 days

0

59

Poulan 530038309

Switch Button

$4.99

$

In Stock, Qty 8

0

60

Poulan 530015953

Screw

$6.49

$

In Stock, Qty 7

0

61

Poulan 530016072

Screw

$3.99

$

Usually ships in 3-10 days

0

62

Poulan 530015768

Locknut

$6.49

$

In Stock, only 2 left!

0

63

Poulan 530014920

Fan Housing

$

$

Not available

64

Poulan 530069232

Rope Kit

$7.49

$

In Stock, Qty 20+

0

65

Poulan 530016080

Screw

$6.49

$

In Stock, only 2 left!

0

66

Poulan 530069400

Starter Pulley
(Superseded to 530071786)

$11.99

$

In Stock, Qty 7

0

67

Poulan 530069380

Spark Arrestor Kit

$6.49

$

Usually ships in 3-10 days

0

68

Poulan 530015162

Piston Pin Retainer

$6.49

$

In Stock, only 2 left!

0

69

Poulan 530069387

Piston Kit (Inc. 21,68 & Pin)
(Superseded to 530069621)

$36.99

$

Usually ships in 3-10 days

0

70

Poulan 530069389

Muffler Kit
(Superseded to 530069660)

$15.99

$

Usually ships in 3-10 days

0

71

Poulan 530015611

Washer

$6.49

$

In Stock, Qty 11

0

72

Poulan 530069491

Clutch Ass'y.

$

$

Not available

73

Poulan 530015828

Washer

$4.99

$

Usually ships in 3-10 days

0

74

Poulan 530626605

Nut

$5.99

$

Usually ships in 3-10 days

0

75

Poulan 530014923

Clutch Hsg.

$

$

Not available

76

Poulan 530015886

Screw

$6.49

$

In Stock, only 4 left!

0

77

Poulan 530029939

Starter Dog

$

$

Not available

78

Poulan 530037730

Starter Spring
(Superseded to 530047570)

$3.99

$

Usually ships in 3-10 days

0

79

Poulan 530038874

Primer Bulb Ass'y Type 2 & 3

$

$

Not available

80

Poulan 530016090

Screw-Type 2 & 3
(Superseded to 530015780)

$6.49

$

In Stock, only 2 left!

0

81

Poulan 530069216

Fuel Line-Prim./Tnk

$11.99

$

In Stock, Qty 20+

0

82

Poulan 530069247

Fuel Line-Carb./Tnk.

$7.99

$

In Stock, Qty 20+

0

83

Poulan 530015882

Screw-Flywheel

$

$

Not available

84

Poulan 530094188

Spring-Clutch
(Superseded to 530014949)

$22.99

$

In Stock, only 1 left!

0
