LT 75 (7800676) - Snapper 33" Rear-Engine Riding Mower, 17.5hp 33" Mower Deck - Arbors Group Parts Diagram

33" Rear-Engine Riding Mower, 17.5hp

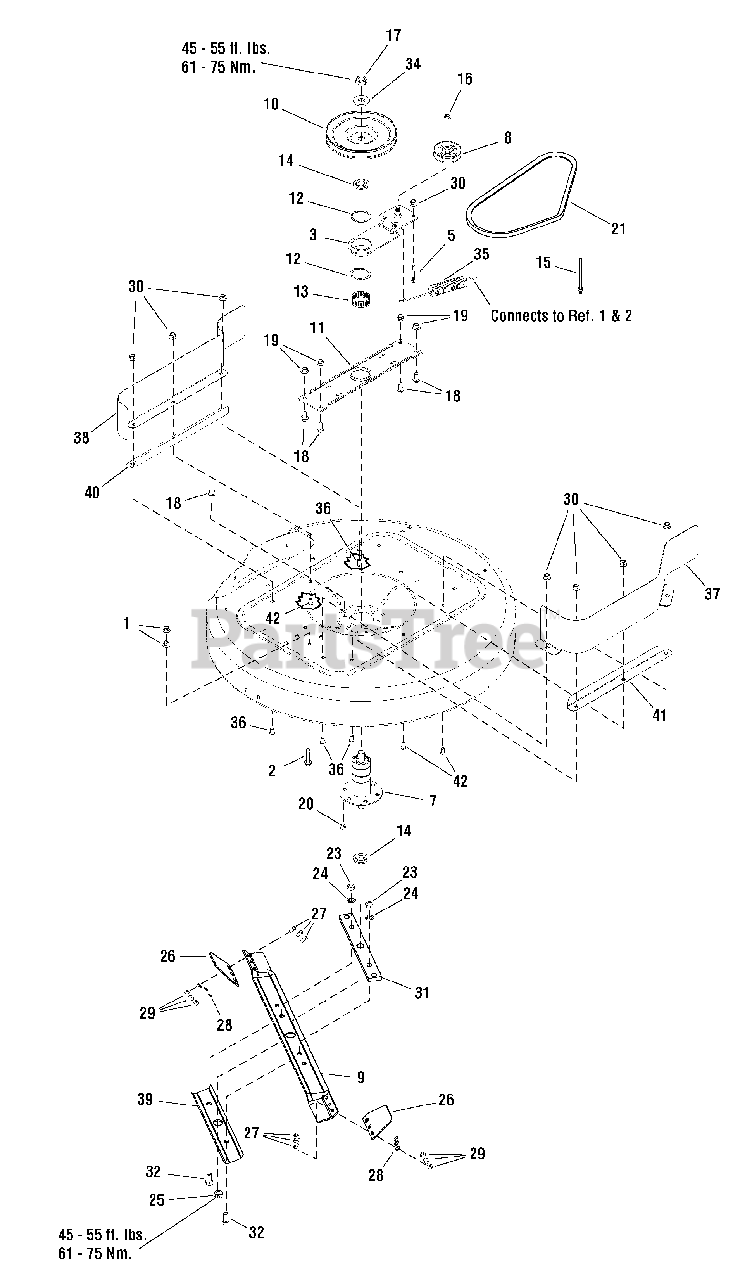

33" Mower Deck - Arbors Group Parts Diagram

  • Title

1

Snapper 720145

NUT, 5/16-18
(Superseded to 704067)

$3.99

$

In Stock, Qty 14

0

2

Snapper 885286

BOLT, 5/16-18 x 2.0
(Superseded to 704062)

$4.49

$

Usually ships in 2-12 days

0

3

Snapper 885309D

BLADE, Idler Bracket
(Superseded to 885309DYP)

$67.99

$

Usually ships in 2-12 days

0

5

Snapper 721293

BELT GUIDE
(Superseded to 094384MA)

$4.49

$

Usually ships in 2-12 days

0

7

Snapper 7502343BM

SPINDLE ASSY
(Superseded to 7502343BMYP)

$157.99

$

Usually ships in 2-12 days

0

8

Snapper 722009

IDLER PULLEY
(Superseded to 1401252MA)

$

$

Not available

9

Snapper 7019523

BLADE, 33"
(Superseded to 7019523BZYP)

$36.99

$

In Stock, Qty 20+

0

10

Snapper 885019

PULLEY, 33" Input
(Superseded to 885019YP)

$46.99

$

Usually ships in 2-12 days

0

11

Snapper 7038018D

BRACE, Spindle
(Superseded to 7038018AYP)

$23.99

$

Usually ships in 2-12 days

0

12

Snapper 7010740

RING, Retaining
(Superseded to 7010740YP)

$5.49

$

In Stock, only 3 left!

0

13

Snapper 7012670

TOLERANCE RING
(Superseded to 7012670YP)

$8.49

$

In Stock, Qty 6

0

14

Snapper 7014407

WASHER, Spindle
(Superseded to 7014407SM)

$7.49

$

In Stock, Qty 18

0

15

Snapper 885078A

BELT GUIDE, Long
(Superseded to 885078AYP)

$17.99

$

Usually ships in 2-12 days

0

16

Snapper 720148

NUT, Flange 3/8-16
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

17

Snapper 7074467

NUT, Hex, Jam, 3/4F GR8
(Superseded to 7074467SM)

$4.49

$

In Stock, Qty 10

0

18

Snapper 720027

BOLT, Hex 3/8-16 x 3/4
(Superseded to 001X85MA)

$3.99

$

Usually ships in 2-12 days

0

19

Snapper 7091619

NUT, Hex Flange, 3/8-16
(Superseded to 703333)

$4.99

$

In Stock, Qty 20+

0

20

Snapper 720142

NUT, Centerlock, 3/8-16
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

21

Snapper 885018

BELT, 33" Blade Drive
(Superseded to 885018YP)

$26.99

$

In Stock, only 1 left!

0

23

Snapper 7090559

NUT, Hex Jam, 1/2-20
(Superseded to 703903)

$3.49

$

In Stock, Qty 20+

0

24

Snapper 7090509

WASHER, 1/2" Internal Tooth Lock
(Superseded to 7090509YP)

$4.49

$

In Stock, Qty 10

0

25

Snapper 7090356

NUT, Hex Center Lock Jam, 5/8-18
(Superseded to 7090356YP)

$5.49

$

In Stock, Qty 20+

0

26

Snapper 885054D

33" AIR LIFT
(Superseded to 885054AYP)

$23.99

$

Usually ships in 2-12 days

0

27

Snapper 7090228

SCREW, Oval Head, 5/16 - 24 x 21/32
(Superseded to 7090228SM)

$5.49

$

In Stock, Qty 20+

0

28

Snapper 7090391

WASHER, 5/16" Internal Tooth Lock
(Superseded to 703587)

$4.49

$

In Stock, Qty 20+

0

29

Snapper 7091297

NUT, Hex, 5/16 - 24
(Superseded to 703331)

$3.99

$

In Stock, Qty 20+

0

30

Snapper 720139

NUT, Hex Flange 5/16-18
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

31

Snapper 885344BZ

HOLDER, Blade
(Superseded to 885344BZYP)

$83.99

$

Usually ships in 2-12 days

0

32

Snapper 7090491

CAPSCREW, Hex Head, 1/2-20 x 1-1/4, GR5
(Superseded to 7090491YP)

$4.99

$

Usually ships in 2-12 days

0

34

Snapper 7032028

WASHER, 25/32 x 1.5 x .132
(Superseded to 7032028YP)

$4.99

$

Usually ships in 2-12 days

0

35

Snapper 885221

SPRING, Extension PTO
(Superseded to 885221YP)

$9.49

$

Usually ships in 2-12 days

0

36

Snapper 720049

BOLT, Carriage, 3/8-16 x 5/8
(Superseded to 703159)

$3.99

$

In Stock, Qty 19

0

37

Snapper 885133D

GUARD, L.H.
(Superseded to 885133DYP)

Note: (France)

$64.99

$

Usually ships in 2-12 days

0

38

Snapper 885354D

GUARD, R.H.
(Superseded to 885354DYP)

Note: (France)

$64.99

$

Usually ships in 2-12 days

0

39

Snapper 885345A

STIFFENER
(Superseded to 885345AYP)

$50.99

$

Usually ships in 2-12 days

0

40

Snapper 885353A

BRACE, R.H.
(Superseded to 885353AYP)

$19.99

$

Usually ships in 2-12 days

0

41

Snapper 885287A

BRACE, L.H.
(Superseded to 885287AYP)

$26.99

$

Usually ships in 2-12 days

0

42

Snapper 1930591

CAPSCREW, Hex Whiz Lock, 5/16-18 x 3/4
(Superseded to 80003531)

$5.49

$

In Stock, Qty 14

0
