LT 75 (7800672) - Snapper 33" Rear-Engine Riding Mower, 15.5hp Electrical Group Parts Diagram

33" Rear-Engine Riding Mower, 15.5hp

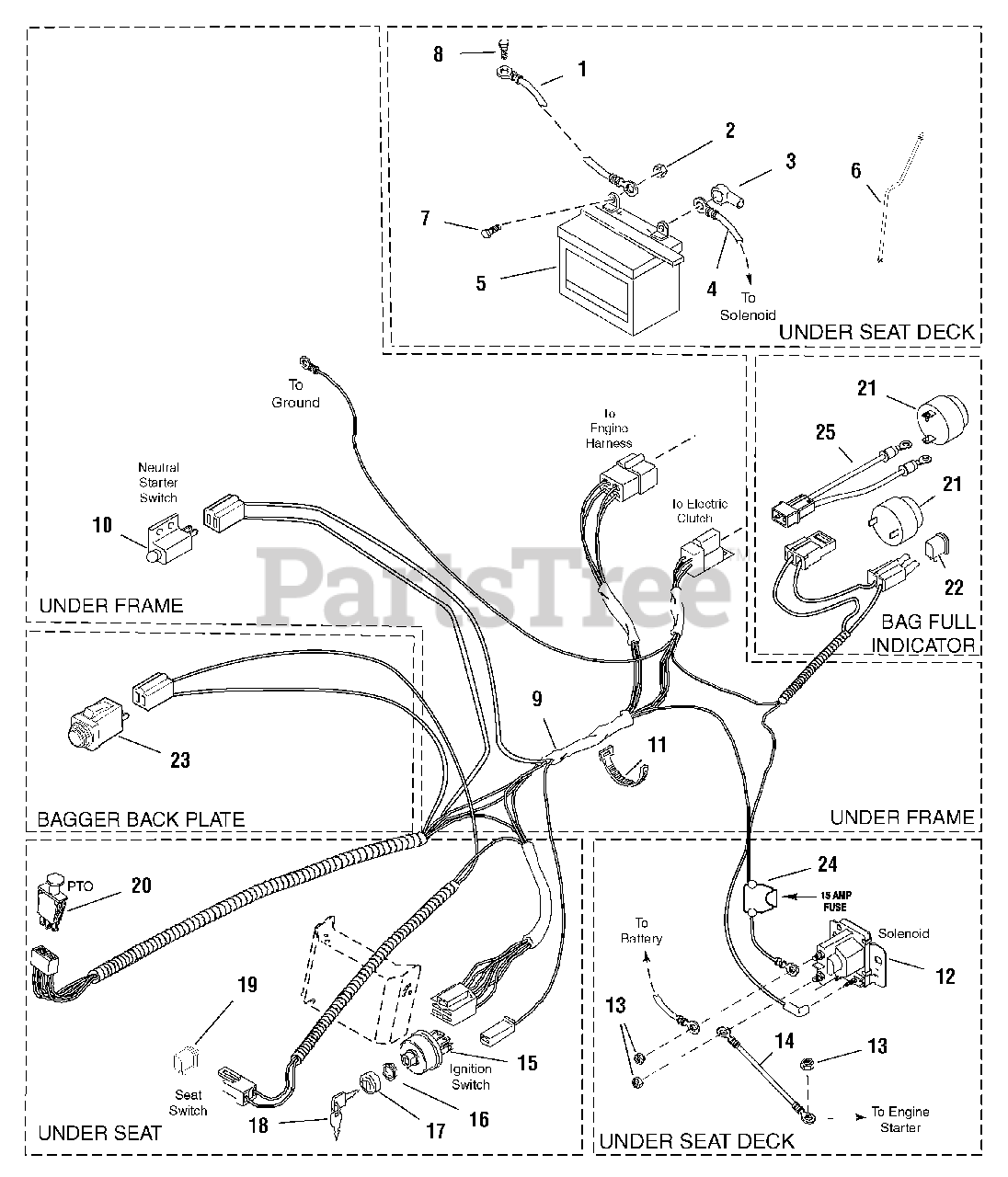

Electrical Group Parts Diagram

  • Title

1

Snapper 885279

BATTERY CABLE, Negative, 17" - Black
(Superseded to 885279YP)

$11.99

$

Usually ships in 2-12 days

0

2

Snapper 720123

WINGNUT, 1/4-20
(Superseded to 014X79MA)

$4.99

$

Usually ships in 2-12 days

0

3

Snapper 720588

BOOT, Battery, Positive
(Superseded to 690604MA)

$5.99

$

Usually ships in 2-12 days

0

4

Snapper 720345

BATTERY CABLE, Positive, 12" - Red
(Superseded to 024X24MA)

$8.49

$

Usually ships in 2-12 days

0

5

BATTERY, 12V, 195CCA, 7U1L

$

$

Not available

6

Snapper 885095

ROD, Battery
(Superseded to 885095YP)

$9.99

$

Usually ships in 2-12 days

0

7

Snapper 720057

Bolt, Carriage 1/4-20 x .63
(Superseded to 703841)

$3.99

$

Usually ships in 2-12 days

0

8

Snapper 722851

SCREW, 1/4-14 x 3/8
(Superseded to 26X229MA)

$4.49

$

In Stock, only 1 left!

0

9

Snapper 885113

WIRE HARNESS
(Superseded to 885113YP)

$153.99

$

Usually ships in 2-12 days

0

10

Snapper 721516

SWITCH, Limit
(Superseded to 1001575MA)

$9.99

$

In Stock, only 1 left!

0

11

Snapper 720393

TIE STRAP
(Superseded to 032618MA)

$3.99

$

Usually ships in 2-12 days

0

12

Snapper 721615

SOLENOID, 3 Pole
(Superseded to 7701100MA)

$27.99

$

In Stock, only 2 left!

0

13

Snapper 722393

NUT, Nylock 1/4-20
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

14

Snapper 720348

CABLE, Battery 8GA 18" - Red
(Superseded to 024X31MA)

$7.49

$

In Stock, only 1 left!

0

15

Snapper 721108

SWITCH, Ignition
(Superseded to 092556MA)

$28.99

$

In Stock, only 1 left!

0

16

Snapper 720889

NUT, Ignition Switch
(Superseded to 091489MA)

$10.99

$

Usually ships in 2-12 days

0

17

Snapper 727338

CAP, Ignition Switch
(Superseded to 091488MA)

$4.99

$

Usually ships in 2-12 days

0

18

Snapper 7102329

KEY, Ignition
(Superseded to 1717163SM)

$8.99

$

In Stock, Qty 20+

0

19

Snapper 885307

SWITCH, Seat
(Superseded to 1720411SM)

$14.99

$

In Stock, only 1 left!

0

20

Snapper 1722887

SWITCH, PTO
(Superseded to 1722887SM)

$33.99

$

In Stock, Qty 20+

0

21

Snapper 1720117

BUZZER, Bag Full Indicator
(Superseded to 1720117SM)

$38.99

$

Usually ships in 2-12 days

0

22

Snapper 1720411

SWITCH, BAG FULL
(Superseded to 1720411SM)

$14.99

$

In Stock, only 1 left!

0

23

Snapper 727831

BAGGER SWITCH
(Superseded to 1001845MA)

$16.99

$

Usually ships in 2-12 days

0

24

Snapper 722977

FUSE, 15 Amp
(Superseded to 302031MA)

$6.49

$

Usually ships in 2-12 days

0

25

Snapper 885248

HARNESS, Buzzer Connector
(Superseded to 885248YP)

$25.99

$

Usually ships in 2-12 days

0

26

Snapper 885283

SERVICE KIT, Buzzer and Harness
(Superseded to 885283YP)

Note: (Includes Ref Nos. 21 and 25)

$79.99

$

Usually ships in 2-12 days

0
