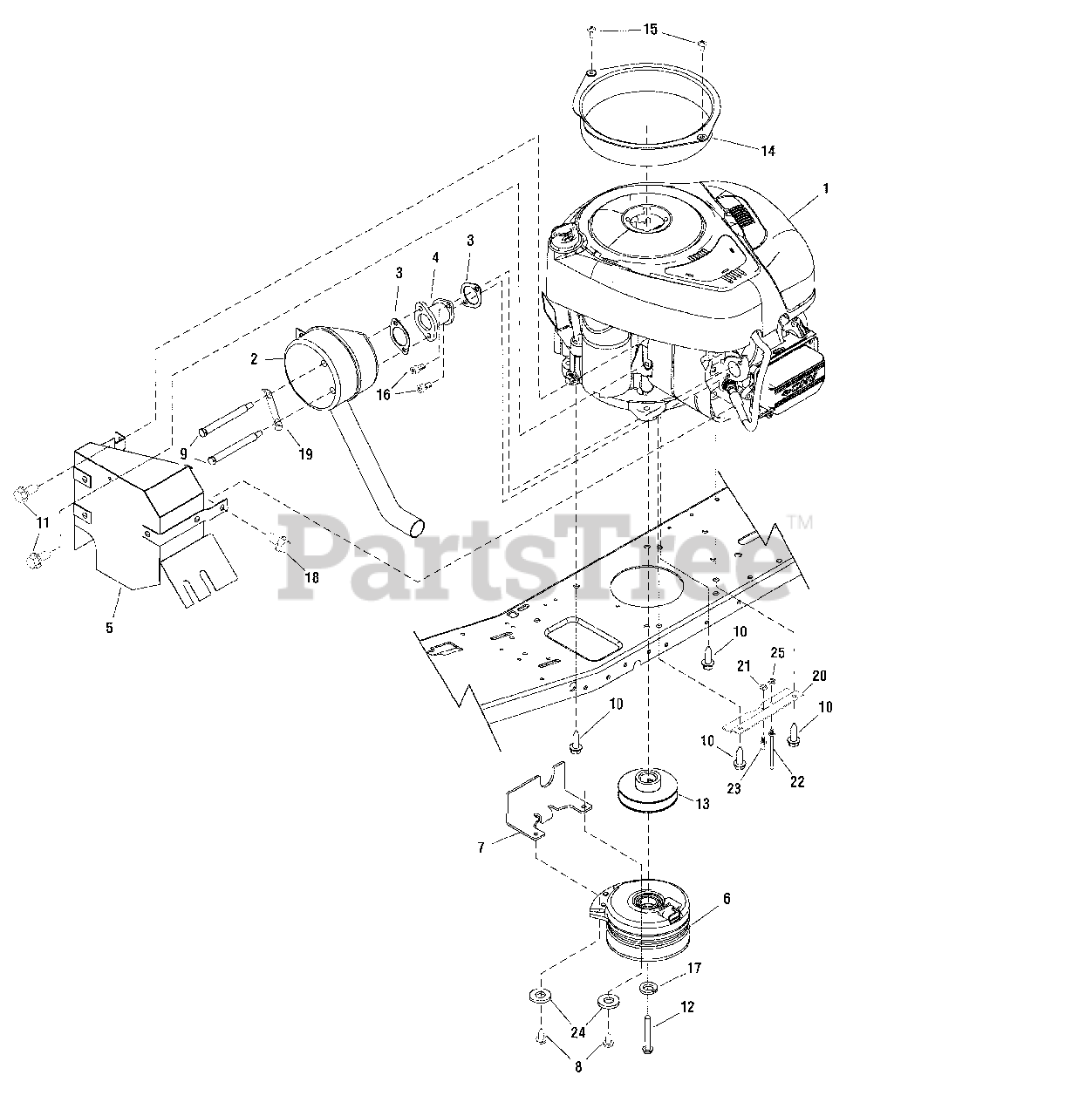

LT 75 (7800357) - Snapper 33" Rear-Engine Riding Mower, 17.5hp Engine & Electric Clutch Group - Briggs & Stratton (Before Serial No. 2013421412) Parts Diagram

33" Rear-Engine Riding Mower, 17.5hp

Engine & Electric Clutch Group - Briggs & Stratton (Before Serial No. 2013421412) Parts Diagram

  • Title

1

Snapper 31A677-0136-B1

*ENGINE, Briggs & Stratton, 15.5HP

Note: For use on models 7800354 & 7800355

$

$

Not available

1

Snapper 31A677-0153-B1

*ENGINE, Briggs & Stratton, 17.5HP

Note: For use on models 7800358 & 7800359

$

$

Not available

--

Snapper 720393

TIE, Strap, 5.38 Long
(Superseded to 032618MA)

$3.99

$

Usually ships in 2-12 days

0

2

Snapper 885011

MUFFLER
(Superseded to 885011YP)

$42.99

$

In Stock, only 1 left!

0

3

Snapper 720881

*GASKET 272293
(Superseded to 7015352SM)

$5.49

$

In Stock, Qty 8

0

4

Snapper 721405

ADAPTOR, Muffler
(Superseded to 796002)

$43.99

$

In Stock, Qty 6

0

5

Snapper 885128

HEAT SHIELD ASSEMBLY
(Superseded to 885128YP)

$53.99

$

Usually ships in 2-12 days

0

6

Snapper 885107

ELECTRIC CLUTCH
(Superseded to 885107YP)

$364.99

$

Usually ships in 2-12 days

0

7

Snapper 885056A

TORQUE STRAP, Electric PTO
(Superseded to 885056AYP)

$15.99

$

Usually ships in 2-12 days

0

8

Snapper 722858

CAPSCREW, 5/16-18 x 3/4
(Superseded to 26X249MA)

$

$

Not available

9

Snapper 720105

BOLT, Shoulder, 5/16-18 x 4.35
(Superseded to 009X59MA)

$6.99

$

In Stock, Qty 9

0

10

Snapper 720045

BOLT, 3/8-16 x 1-1/4
(Superseded to 2828635SM)

$4.99

$

In Stock, Qty 20+

0

11

Snapper 720664

SCREW, Hex Head 5/16-18 x 5/8
(Superseded to 06X104MA)

$4.49

$

Usually ships in 2-12 days

0

12

Snapper 1960370

CAPSCREW, Hex, 7/16-20 x 2-1/2
(Superseded to 1960370SM)

$5.49

$

Usually ships in 2-12 days

0

13

Snapper 885096

STACK PULLEY
(Superseded to 885096YP)

$91.99

$

Usually ships in 2-12 days

0

14

Snapper 885063

BAFFLE, Engine
(Superseded to 885063YP)

$22.99

$

Usually ships in 2-12 days

0

15

Snapper 720095

SCREW, Shoulder #10-24
(Superseded to 009X47MA)

$4.49

$

Usually ships in 2-12 days

0

16

Snapper 720663

SCREW, Torx Head 5/16-18 x 5/8
(Superseded to 06X103MA)

$6.49

$

Usually ships in 2-12 days

0

17

Snapper 1918199

LOCKWASHER, Spring 7/16
(Superseded to 704007)

$4.49

$

In Stock, Qty 20+

0

18

Snapper 722866

SCREW, Hex 1/4-20 x 5/8
(Superseded to 26X263MA)

$4.99

$

In Stock, only 1 left!

0

19

Snapper 721064

LOCK, SCREW
(Superseded to 092378MA)

$5.49

$

In Stock, Qty 9

0

20

Snapper 885041A

PLATE, Belt Guide
(Superseded to 885041AYP)

$8.99

$

Usually ships in 2-12 days

0

21

Snapper 720139

NUT, Flange, 5/16-18
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

22

Snapper 885078A

GUIDE, Belt Long
(Superseded to 885078AYP)

$17.99

$

Usually ships in 2-12 days

0

23

Snapper 885077

GUIDE, Belt Short
(Superseded to 885077YP)

$5.99

$

Usually ships in 2-12 days

0

24

Snapper 720163

WASHER, Flat, 5/16
(Superseded to 704015)

$4.49

$

Usually ships in 2-12 days

0

25

Snapper 720146

NUT, Hex Flange Lock, 1/4-20
(Superseded to 015X89MA)

$4.49

$

Usually ships in 2-12 days

0

--

Snapper 885280

SERVICE KIT, Muffler Assembly
(Superseded to 885280YP)

Note: (Replaces Ref. Nos. 2, 3,4, 5, 9, 16 and 19)

$245.99

$

Usually ships in 2-12 days

0

--

Snapper 885281

SERVICE KIT, Stack Pulley Assembly
(Superseded to 885281YP)

Note: (Replaces Ref. Nos. 13)

$70.99

$

Usually ships in 2-12 days

0
