LT 75 (7800352) - Snapper 33" Rear-Engine Riding Mower, 15.5hp 33" Mower Deck - Housing & Arbors Group Parts Diagram

33" Rear-Engine Riding Mower, 15.5hp

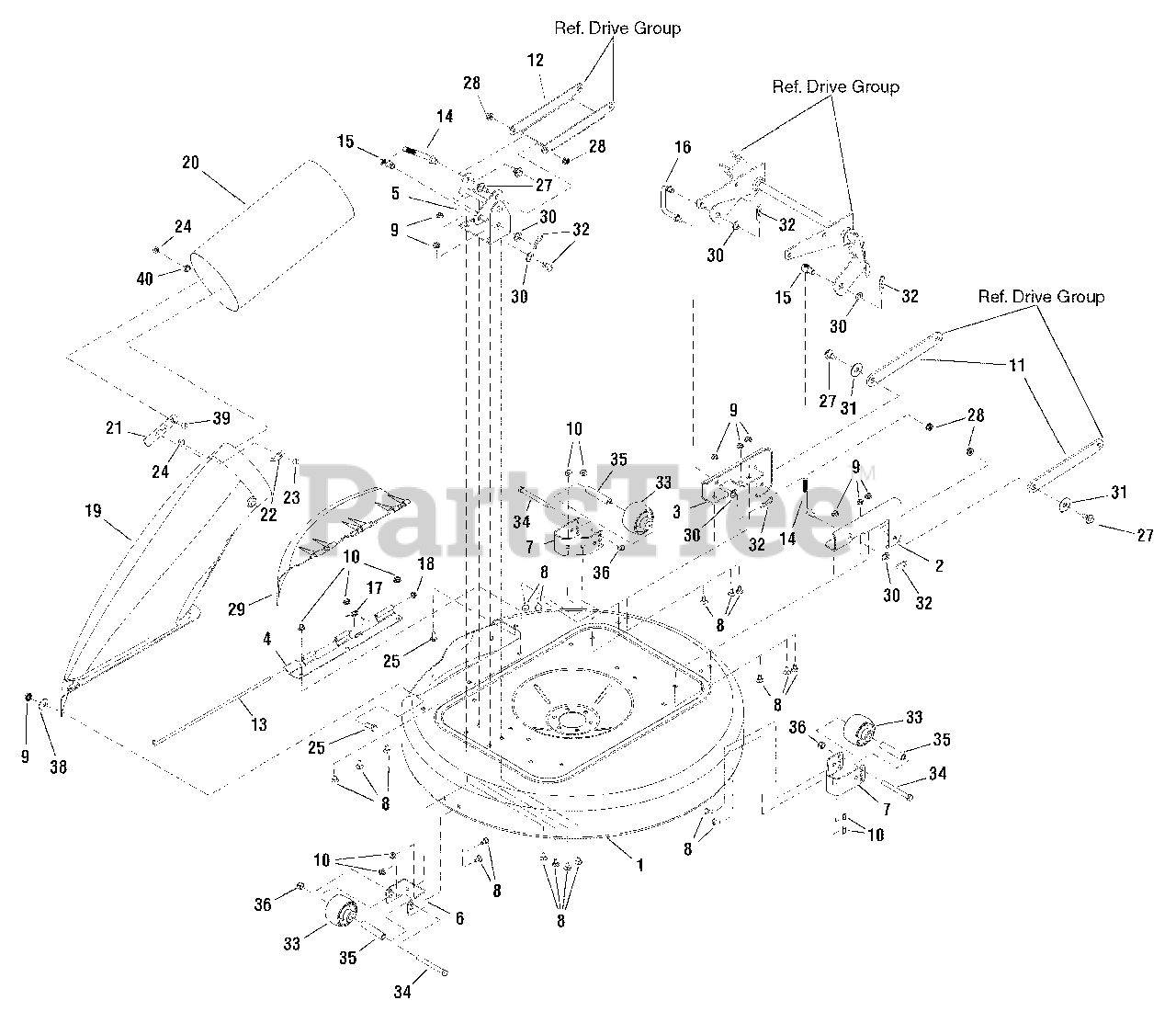

33" Mower Deck - Housing & Arbors Group Parts Diagram

  • Title
1

Snapper 885232D

BLADE HOUSING KIT, 33"
(Superseded to 885232DYP)

Note: (Kit Includes Safety Decals)

$683.99

$

Usually ships in 2-12 days

0

2

Snapper 885045D

BRACKET, Top Deck LH
(Superseded to 885045DYP)

$22.99

$

Usually ships in 2-12 days

0

3

Snapper 885047D

BRACKET, Top Deck RH
(Superseded to 885047DYP)

$22.99

$

Usually ships in 2-12 days

0

4

Snapper 885094D

HINGE, Mulching Cover
(Superseded to 885094DYP)

$19.99

$

Usually ships in 2-12 days

0

5

Snapper 885075D

FRONT DECK ADJUSTMENT ASSY

$

$

Currently unavailable

6

Snapper 7033570D

ANTI SCALP BRACKET, Front
(Superseded to 7033570BMYP)

$19.99

$

In Stock, only 1 left!

0

7

Snapper 7033571D

ANTI SCALP BRACKET, Rear
(Superseded to 7033571BMYP)

$14.99

$

In Stock, only 4 left!

0

8

Snapper 720049

BOLT, Carriage 5/16-18 x 5/8
(Superseded to 703159)

$3.99

$

In Stock, Qty 19

0

9

Snapper 720139

NUT, Hex Flange, 5/16-18
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

10

Snapper 720145

NUT, Hex Flange Centerlock 5/16-18
(Superseded to 704067)

$3.99

$

In Stock, Qty 14

0

11

Snapper 885039D

ARM, Rear
(Superseded to 885039DYP)

$20.99

$

Usually ships in 2-12 days

0

12

Snapper 885052D

HANGER, Front
(Superseded to 885052DYP)

$28.99

$

Usually ships in 2-12 days

0

13

Snapper 7026234

ROD DEFLECTOR
(Superseded to 7105174YP)

$8.99

$

In Stock, Qty 11

0

14

Snapper 885046

ROD, Lift Link
(Superseded to 885046YP)

$9.49

$

Usually ships in 2-12 days

0

15

Snapper 885115

ADJUSTING NUT
(Superseded to 885115YP)

$8.49

$

Usually ships in 2-12 days

0

16

Snapper 885105

LIFT ROD, Fixed
(Superseded to 885105YP)

$5.99

$

Usually ships in 2-12 days

0

17

Snapper 885227

SPRING, Deflector
(Superseded to 885227YP)

$8.99

$

Usually ships in 2-12 days

0

18

Snapper 7026483

PUSH CAP
(Superseded to 7026483YP)

$4.49

$

In Stock, only 1 left!

0

19

Snapper 885005

REAR DISCHARGE CHUTE
(Superseded to 885005YP)

$218.99

$

Usually ships in 2-12 days

0

20

Snapper 885066

CHUTE EXTENSION, Upper
(Superseded to 885066YP)

$131.99

$

Usually ships in 2-12 days

0

21

Snapper 720552

RUBBER STRAP
(Superseded to 054695MA)

$10.99

$

Usually ships in 2-12 days

0

22

Snapper 720543

PIN
(Superseded to 054563MA)

$23.99

$

In Stock, only 2 left!

0

23

Snapper 720048

BOLT, Carriage 1/4-20 x 0.63
(Superseded to 002X39MA)

$3.49

$

In Stock, only 1 left!

0

24

Snapper 720146

NUT, Hex Flange Lock, 1/4-20
(Superseded to 015X89MA)

$4.49

$

Usually ships in 2-12 days

0

25

Snapper 720053

BOLT, Carriage, 5/16-18 x 3/4
(Superseded to 703185)

$3.49

$

In Stock, Qty 16

0

27

Snapper 720104

BOLT, Shoulder, 3/8-16 x 1.10
(Superseded to 702315)

$6.99

$

Usually ships in 2-12 days

0

28

Snapper 720142

NUT, Hex Flange, 3/8-16
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

29

Snapper 885016

MULCH COVER
(Superseded to 885016YP)

$38.99

$

Usually ships in 2-12 days

0

30

Snapper 722578

WASHER, .51-.87
(Superseded to 703128)

$3.49

$

In Stock, Qty 20+

0

31

Snapper 722585

WASHER, .51-1.5
(Superseded to 17X120MA)

$3.49

$

Usually ships in 2-12 days

0

32

Snapper 720069

HAIRPIN
(Superseded to 703300)

$3.99

$

In Stock, Qty 20+

0

33

Snapper 7019190

WHEELS, Anti Scalp
(Superseded to 7019190YP)

$11.99

$

Usually ships in 2-12 days

0

34

Snapper 7091532

SCREW, 3/8-24 x 3/4" Hex Head Cap, GR5
(Superseded to 703876)

$6.99

$

In Stock, Qty 10

0

35

Snapper 7015272

SPACER, 3" Long
(Superseded to 7015272YP)

$7.49

$

Usually ships in 2-12 days

0

36

Snapper 7091518

NUT, Hex Nyloc, 3/8-24
(Superseded to 703901)

$3.49

$

In Stock, Qty 5

0

38

Snapper 720163

WASHER, Flat, 5/16
(Superseded to 704015)

$4.49

$

Usually ships in 2-12 days

0

39

Snapper 720076

BOLT, 1/4-20 x 1.0
(Superseded to 004X71MA)

$4.99

$

In Stock, only 4 left!

0

40

Snapper 720132

NUT, Keps Lock 1/4-20
(Superseded to 703914)

$3.49

$

In Stock, Qty 14

0
