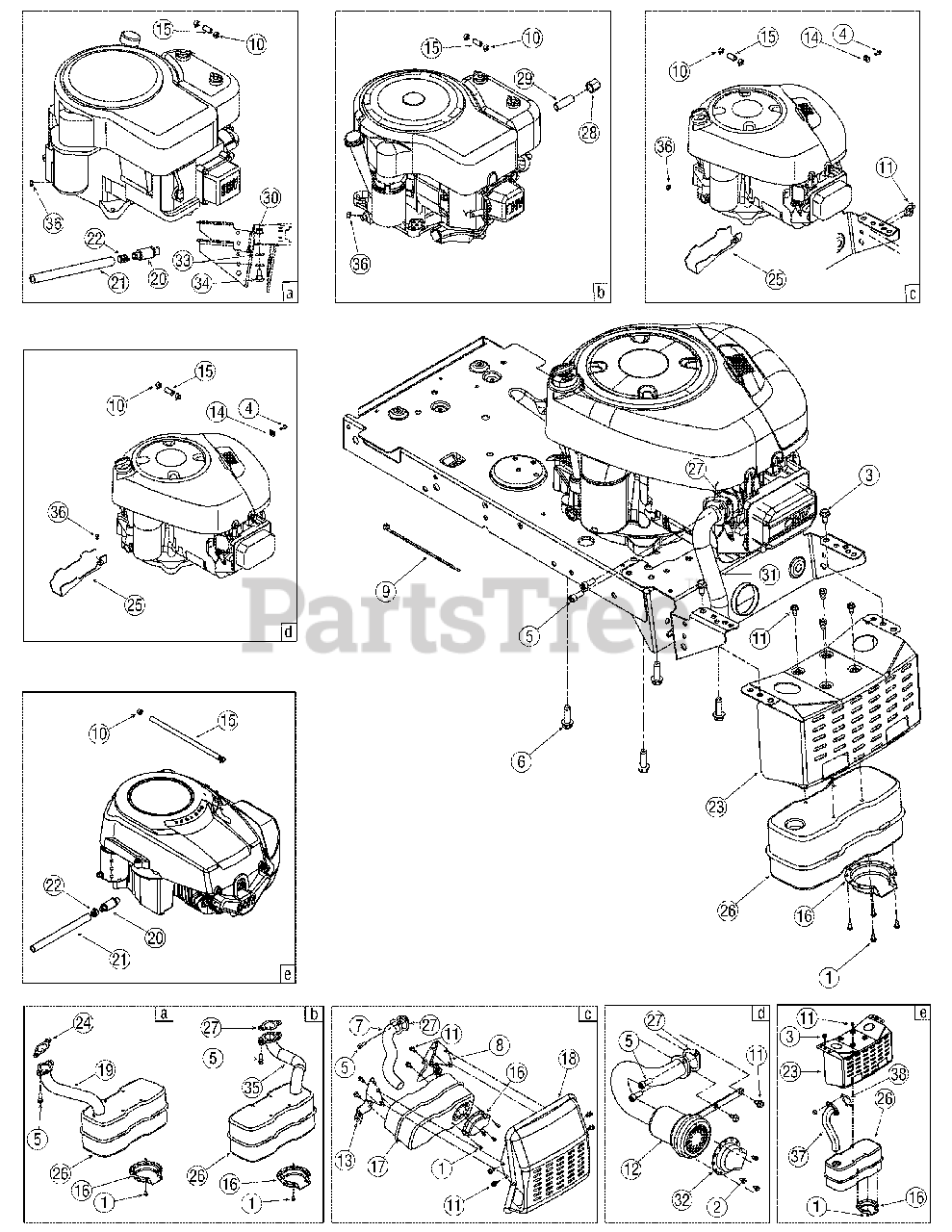

LT-546 H (13AN795H790) - White Outdoor 46" Lawn Tractor (2007) Engine Accessories Parts Diagram

46" Lawn Tractor

Engine Accessories Parts Diagram

  • Title

1

White Outdoor 710-0227

Screw, #8-18 x .50

$4.49

$

In Stock, Qty 20+

0

2

White Outdoor 710-1502

Screw, #8-18 x .375

$

$

Not available

3

White Outdoor 710-0604A

Self-tapping Screw, 5/16-18, .625

$4.49

$

In Stock, Qty 20+

0

4

White Outdoor 710-1237

Screw, #10-32, .625

$4.49

$

Usually ships in 3-6 days

0

5

White Outdoor 710-1314A

Socket Cap Screw, 5/16-18, .625

$4.49

$

In Stock, Qty 20+

0

6

White Outdoor 710-1315

Self-tapping Screw, 3/8-16, 1.25

$4.49

$

In Stock, Qty 20+

0

7

White Outdoor 751-10013

Exhaust Pipe

$84.99

$

Usually ships in 3-6 days

0

8

White Outdoor 783-04573

LH Muffler Bracket

Variations

White Outdoor 783-04573-0637

Muffler Bracket, LH - POWDER BLACK (0637)

$23.99

$

In Stock, only 1 left!

0

White Outdoor 783-04573-4008

BRACKET:MFLR:LH - WINE RED (4008)

$6.49

$

In Stock, only 1 left!

0

$18.99

$

Usually ships in 3-6 days

0

9

White Outdoor 725-0157

Cable Tie, 7.4"

$3.99

$

In Stock, Qty 20+

0

10

White Outdoor 726-0205

Hose Clamp, .490

$3.99

$

In Stock, Qty 20+

0

11

White Outdoor 710-0599

Screw, 1/4-20, 0.500

$4.49

$

In Stock, Qty 20+

0

12

White Outdoor 751-9986A

Muffler, Bug
(Superseded to 951-9986A)

$97.99

$

Usually ships in 3-6 days

0

13

White Outdoor 783-04574

RH Muffler Bracket

Variations

White Outdoor 783-04574-0637

Muffler Bracket, RH - POWDER BLACK (0637)

$

$

Not available

White Outdoor 783-04574-4008

BRACKET:MFLR:RH - WINE RED (4008)

$

$

Not available

$

$

14

White Outdoor 751B221535

Casing Clamp

$10.99

$

In Stock, Qty 10

0

15

MTD 751-10349

Fuel Line Hose

$9.49

$

Usually ships in 3-6 days

0

16

White Outdoor 751-0564B

Muffler Deflector

Note: See note

$13.99

$

In Stock, only 3 left!

0

17

White Outdoor 751-10162

Muffler, Single Inlet
(Superseded to 951-10162)

$84.99

$

In Stock, Qty 5

0

18

White Outdoor 783-04576

Muffler Shield

Variations

White Outdoor 783-04576-0637

Muffler Shield Assembly - POWDER BLACK (0637)

$58.99

$

Usually ships in 3-6 days

0

White Outdoor 783-04576-4008

Muffler Shield Assembly - WINE RED (4008)

$58.99

$

Usually ships in 3-6 days

0

$51.99

$

In Stock, only 1 left!

0

19

White Outdoor 751-0620A

Exhaust Pipe

$81.99

$

In Stock, only 2 left!

0

20

White Outdoor 751-3140

Oil Drain Valve
(Superseded to 951-10517A)

$24.99

$

In Stock, only 1 left!

0

21

White Outdoor 751-3141

Oil Drain Hose
(Superseded to 751-3141-14)

$11.99

$

In Stock, Qty 7

0

22

White Outdoor 751-3142

Oil Drain Cap

$4.49

$

In Stock, Qty 14

0

23

White Outdoor 783-0615D

Muffler Heat Shield
(Superseded to 783-0615E-0637)

Note: See note

Variations

White Outdoor 783-0615D-0637

Muffler Bracket - POWDER BLACK (0637)

$64.99

$

In Stock, only 1 left!

0

$64.99

$

In Stock, only 1 left!

0

24

White Outdoor 721-0348

Exhaust Gasket
(Superseded to TC-36365)

$3.49

$

In Stock, only 2 left!

0

25

White Outdoor 731-05628

Oil Drain Sleeve

$8.49

$

In Stock, only 1 left!

0

26

White Outdoor 751-0617B

Muffer, Single Inlet
(Superseded to 951-0617C)

Note: See note

$149.99

$

In Stock, Qty 5

0

27

White Outdoor 721-0208

Exhaust Gasket
(Superseded to BS-692236)

Note: See note

$5.49

$

In Stock, Qty 20+

0

28

White Outdoor 737-0143

Oil Drain Cap, 3/8-18

$

$

Not available

29

White Outdoor 737-0199

Oil Drain Pipe, 3/8-16, 2.0
(Superseded to 937-0199)

$

$

Not available

30

White Outdoor 712-04065

Flange Lock Nut, 3/8-16

$3.99

$

In Stock, Qty 20+

0

31

White Outdoor 751-0619A

Exhaust Pipe
(Superseded to 751-0619B)

$76.99

$

In Stock, only 2 left!

0

32

White Outdoor 751B222261

Muffler Deflector

Note: See note

$10.99

$

In Stock, only 1 left!

0

33

White Outdoor 736-0300

Flat Washer, .406 x .875 x .059

$4.49

$

In Stock, Qty 20+

0

34

White Outdoor 738-0143

Shldr Screw, .498 x .340 x 3/8-16

$4.49

$

In Stock, Qty 20+

0

35

White Outdoor 751-0622A

Exhaust Pipe

$82.99

$

Usually ships in 3-6 days

0

36

White Outdoor 712-0271

Hex Sems Nut, 1/4-20

$4.49

$

In Stock, Qty 19

0

37

White Outdoor 751-10047

Kohler Courage Exhaust Pipe

$

$

Not available

38

White Outdoor KH-20-041-12-S

Gasket, Kohler Courage

$4.99

$

Usually ships in 2-5 days

0
