LT-542 H (13AN79GS897) - Columbia 42" Lawn Tractor (2012) Drive & Rear Wheels Parts Diagram

42" Lawn Tractor

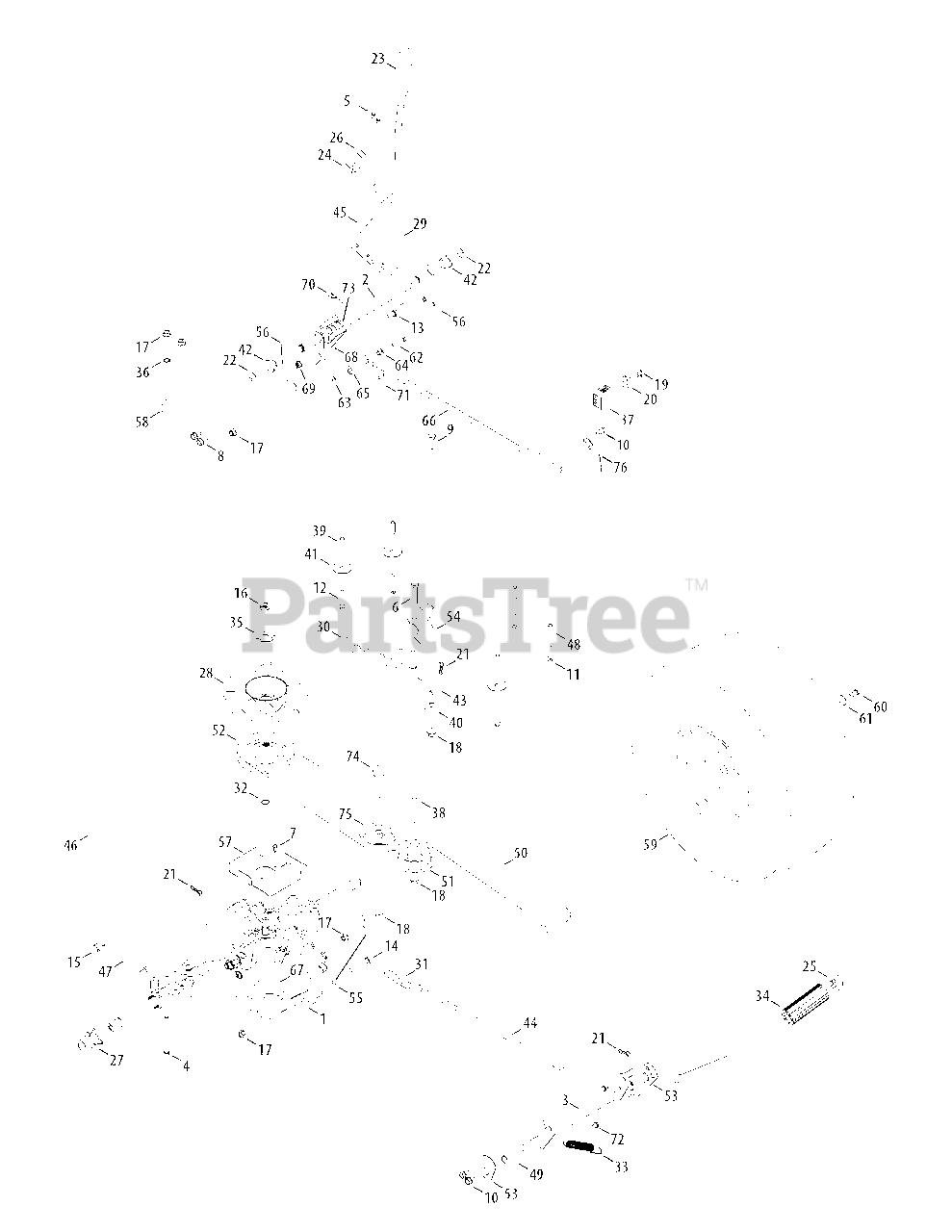

Drive & Rear Wheels Parts Diagram

  • Title

1

MTD 918-04892B

Transmission Ass’y
(Superseded to 918-04892C)

$1108.99

$

Usually ships in 3-6 days

0

2

MTD 647-04200A

Hydro Hand Control Ass’y

$24.99

$

Usually ships in 3-6 days

0

3

MTD 647-04261A-0637

Hydro Pedal Assembly

$37.99

$

Usually ships in 3-6 days

0

4

MTD 710-1266

Hex Scr 5/16-18 x 3.5

$9.99

$

Usually ships in 3-6 days

0

5

MTD 710-0227

Hex Wash HD AB S-Tapp Scr #8-.50

$4.49

$

In Stock, Qty 20+

0

6

MTD 710-0347

Hex Scr 3/8-16 x 1.75

$5.49

$

In Stock, Qty 20+

0

7

MTD 910-0224

Screw #10-16 x .50

$3.99

$

In Stock, Qty 20+

0

8

MTD 710-04484

S-Tapp Scr 5/16-18 x .75

$3.99

$

In Stock, Qty 20+

0

9

MTD 710-0514

Hex Scr 3/8-16 x 1.0

$4.49

$

In Stock, Qty 20+

0

10

MTD 710-0604A

Hex Scr 5/16-18 x 0.625

$4.49

$

In Stock, Qty 20+

0

11

MTD 710-0809

Hex Bolt 1/4-20 x 1.25

$6.99

$

In Stock, Qty 19

0

12

MTD 710-1026

Screw 1/4-20 x 1.75

$6.99

$

In Stock, Qty 13

0

13

MTD 710-3008

Hex Bolt 5/16-18 x .75" Lg. Gr. 5

$4.49

$

In Stock, Qty 20+

0

14

MTD 710-3103

Screw, #10-24 x .75

$4.49

$

In Stock, Qty 20+

0

15

MTD 711-04448

Ferrule

$10.99

$

In Stock, only 2 left!

0

16

MTD 912-0346

Jam L-Nut 1/2-20
(Superseded to 712-0346)

$4.99

$

In Stock, Qty 7

0

17

MTD 712-04063

Flange Locknut 5/16-18 Gr. F, Nylon

$3.99

$

In Stock, Qty 20+

0

18

MTD 712-04065

Flange Locknut 3/8-16 Gr. F, Nylon

$3.99

$

In Stock, Qty 16

0

19

MTD 728-04021

Rivet

$3.99

$

In Stock, only 1 left!

0

20

MTD 17962

Switch Plate

$4.99

$

In Stock, only 3 left!

0

21

MTD 714-04040

Bow Tie Cotter Pin

$1.49

$

In Stock, Qty 20+

0

22

MTD 716-0106A

E Ring .625 Dia.

$5.49

$

In Stock, only 2 left!

0

23

MTD 720-0311

Handle Grip

$15.99

$

In Stock, only 1 left!

0

24

MTD 725-04249

Hydro Spring Switch

$10.99

$

Usually ships in 3-6 days

0

25

MTD 726-0214

Push Cap 5/8" Dia Rod

$10.99

$

In Stock, only 3 left!

0

26

MTD 926-0320

Insulator Nut Plate

$6.99

$

In Stock, Qty 11

0

27

MTD 731-08237

Sleeve, .765 x 2.11" Lg.

$3.99

$

In Stock, Qty 13

0

28

MTD 731-06098

Hydro Fan

$19.99

$

In Stock, Qty 20+

0

29

MTD 732-04225

Torsion Spring

$12.99

$

Usually ships in 3-6 days

0

30

MTD 732-04229

Ext. Spring .75 Dia. x 6.02

$20.99

$

Usually ships in 3-6 days

0

31

MTD 732-0716D

Ext. Spring .59 OD x 4.00 Lg.

$13.99

$

In Stock, only 1 left!

0

32

MTD 732-0729

Wire Ring

$4.99

$

In Stock, only 4 left!

0

33

MTD 732-04587

Extension Spring .63 dia. x 4.95

$7.49

$

In Stock, Qty 12

0

34

MTD 735-0239

Foot Pad
(Superseded to 735-0239A)

$12.99

$

Usually ships in 3-6 days

0

35

MTD 736-04263

LockwasherTrans Hydro

$6.99

$

In Stock, Qty 20+

0

36

MTD 736-0607

Lockwasher 5/16 ID

$3.99

$

In Stock, Qty 20+

0

37

MTD 925-04039

Interlock Switch

$24.99

$

In Stock, Qty 8

0

38

MTD 736-3010

Flat Washer .407 x .812 x .135 HT

$4.99

$

In Stock, only 1 left!

0

39

MTD 750-04456

Spacer .260 x .372 x 1.420

$7.49

$

In Stock, only 4 left!

0

40

MTD 738-04430

Spacer

$4.49

$

Usually ships in 3-6 days

0

41

MTD 736-0430

Flat Washer .350 x 1.59 x .062

$4.49

$

In Stock, Qty 10

0

42

MTD 941-0225

Hex Flange Bearing .630 ID

$7.49

$

In Stock, Qty 20+

0

43

MTD 747-04283B

Declutching Rod

$

$

Not available

44

MTD 747-05242A

Brake Rod

$17.99

$

Usually ships in 3-6 days

0

45

MTD 747-04296A

Hydro Control Handle

$41.99

$

Usually ships in 3-6 days

0

46

MTD 747-05245

Hydro Bypas Rod

$9.99

$

In Stock, only 1 left!

0

47

MTD 747-04407A

Hydro Control Rod

$17.99

$

Usually ships in 3-6 days

0

48

MTD 750-0566A

Spacer, .260 x .375 x 1.030" Lg.

$9.99

$

In Stock, only 1 left!

0

49

MTD 750-05593

Spacer, .645 x .78 x 1.58" Lg.

$3.99

$

Usually ships in 3-6 days

0

50

MTD 954-04252

V-Belt 4L SEC x 84.17 Lg

$45.99

$

Usually ships in 3-6 days

0

51

MTD 756-04224

Flat Idler Puley 2.75 OD

$26.99

$

In Stock, Qty 20+

0

52

MTD 756-04308

Input Pulley

$31.99

$

In Stock, only 3 left!

0

53

MTD 783-04536B-0606

Support Pedal Bracket

$6.49

$

Usually ships in 3-6 days

0

54

MTD 783-04570B-0637

Idler Arm

$19.99

$

In Stock, Qty 5

0

55

MTD 783-06551-0637

Torque Bracket

$13.99

$

Usually ships in 3-6 days

0

56

MTD 783-04585A

Handle Bracket

$5.99

$

Usually ships in 3-6 days

0

57

MTD 783-06558-0637

Belt Support Bracket

$6.99

$

Usually ships in 3-6 days

0

58

MTD 948-0334

Spacer, T-Axle, 46" only

$10.99

$

In Stock, only 1 left!

0

59

MTD 634-0104-0911

Wheel Assembly Complete, 20 x 8 x 8

$144.99

$

Usually ships in 3-6 days

0

59

MTD 734-1730-0901

Tire Only, 20 x 8 x 8, Square Shoulder

$99.99

$

In Stock, only 1 left!

0

59

MTD 634-04369-0662

Rim Only

$165.99

$

Usually ships in 3-6 days

0

60

MTD 710-0627

Hex L-Screw 5/16-24 x 0.75 Gr. 5

$4.49

$

In Stock, Qty 20+

0

61

MTD 736-0242

Cup. Wash. .345 ID x .88 OD x .060

$4.49

$

In Stock, Qty 20+

0

62

MTD 710-0106

Hex Screw 1/4-20 x 1.25

$3.99

$

In Stock, only 2 left!

0

63

MTD 936-0142

Flt Washer .281 x .50 x .063
(Superseded to 736-0142)

$4.99

$

In Stock, Qty 20+

0

64

MTD 738-04483

Screw, 1/4-20 x .5

$3.99

$

Usually ships in 3-6 days

0

65

MTD 741-04280

Ball Bearing .25 x .6875 x .25

$15.99

$

In Stock, only 1 left!

0

66

MTD 747-05598A-0637

Hydro Rod, RTN

$16.99

$

Usually ships in 3-6 days

0

67

MTD 783-06750A-0637

Cam Bracket, RTN

$8.49

$

Usually ships in 3-6 days

0

68

MTD 783-06756-0637

Pivot Bracket, RTN

$9.99

$

Usually ships in 3-6 days

0

69

MTD 712-04064

Hex L-Flg. Nut 1/4-20 Gr. F, Nylon

$3.99

$

In Stock, Qty 20+

0

70

MTD 914-0145

Click Pin, .092 x 1.64" Lg.
(Superseded to 714-0145)

$4.99

$

In Stock, Qty 20+

0

71

MTD 710-3144

Hex screw 3/8-16 x 2.0

$4.49

$

In Stock, Qty 20+

0

72

MTD 738-04278

Shoulder screw 1/4-20 x .50

$6.99

$

In Stock, Qty 5

0

73

MTD 741-3065B

Hex Fl. Bearing .628 ID

$8.49

$

In Stock, Qty 11

0

74

MTD 750-3119

Spacer 406 ID x 1.0 OD x .38

$11.99

$

In Stock, only 4 left!

0

75

MTD 756-04325

V-Pulley 3.06 OD

$24.99

$

In Stock, Qty 20+

0

76

MTD 783-06807A-0637

Stop Pedal Plate

$4.49

$

Usually ships in 3-6 days

0

MTD 725-04990

Harness, Jumper, Hydro

Note: (Not shown)

$6.99

$

Usually ships in 3-6 days

0
